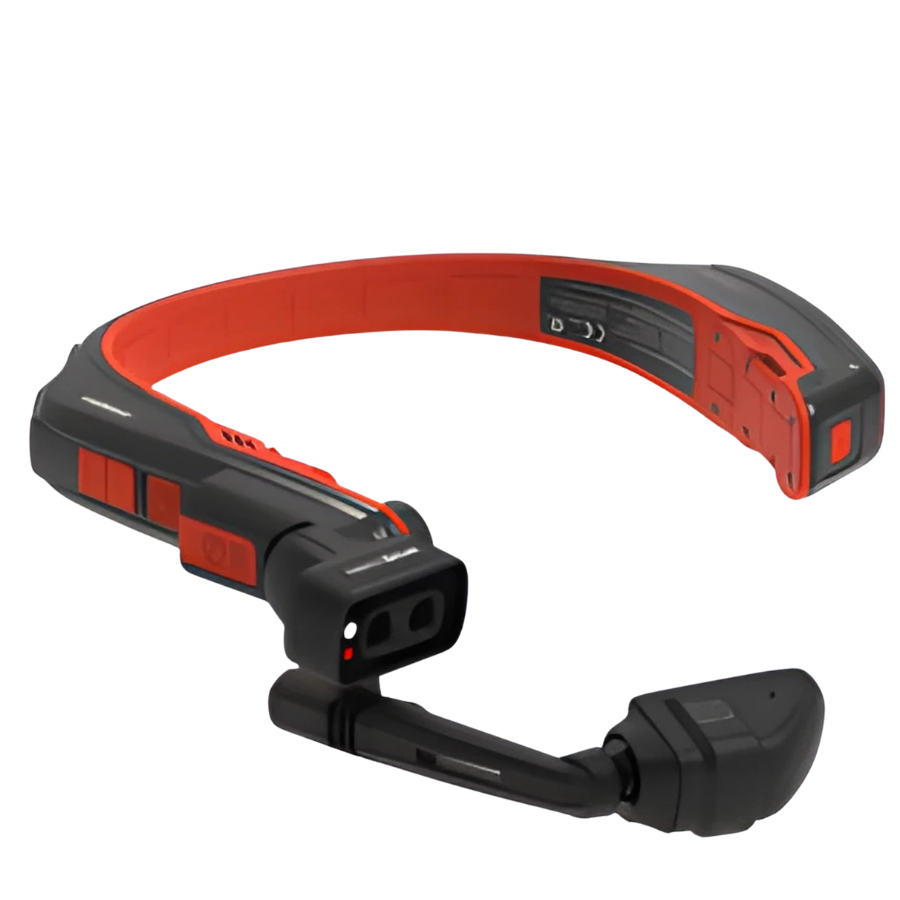

Realwear Z1 with thermal camera

Intrinsically safe head-mounted Android wearable for hazardous sites (ATEX Zone 1 / IECEx / C1D1).
Rugged, hands-free voice control with 4-mic noise cancellation—usable up to ~100 dBA.
0.35″ LCOS HD display (1280×720) with ~24° FOV; bright-light readable.
48 MP modular camera (1080p60 video); optional FLIR thermal module.
Wi-Fi 6E, Bluetooth 5.2, and multi-GNSS including NavIC for precise location.
Full-shift removable battery, IP66, 2 m drop, MIL-STD-810H; 383 g.

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

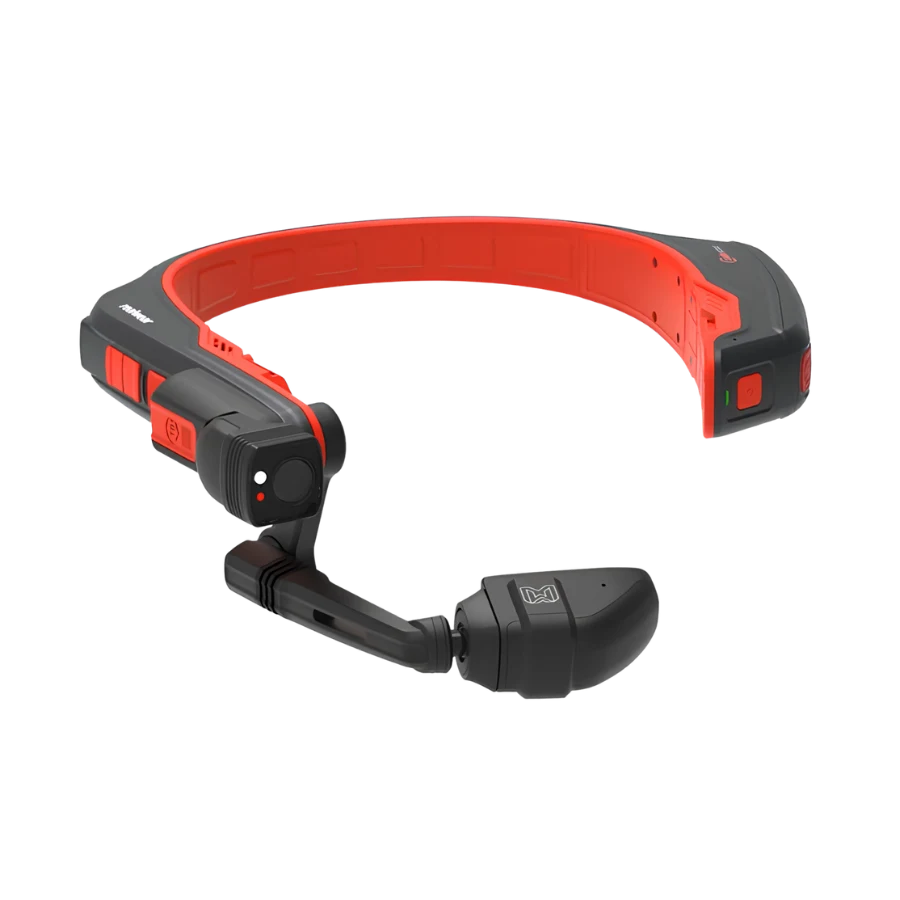

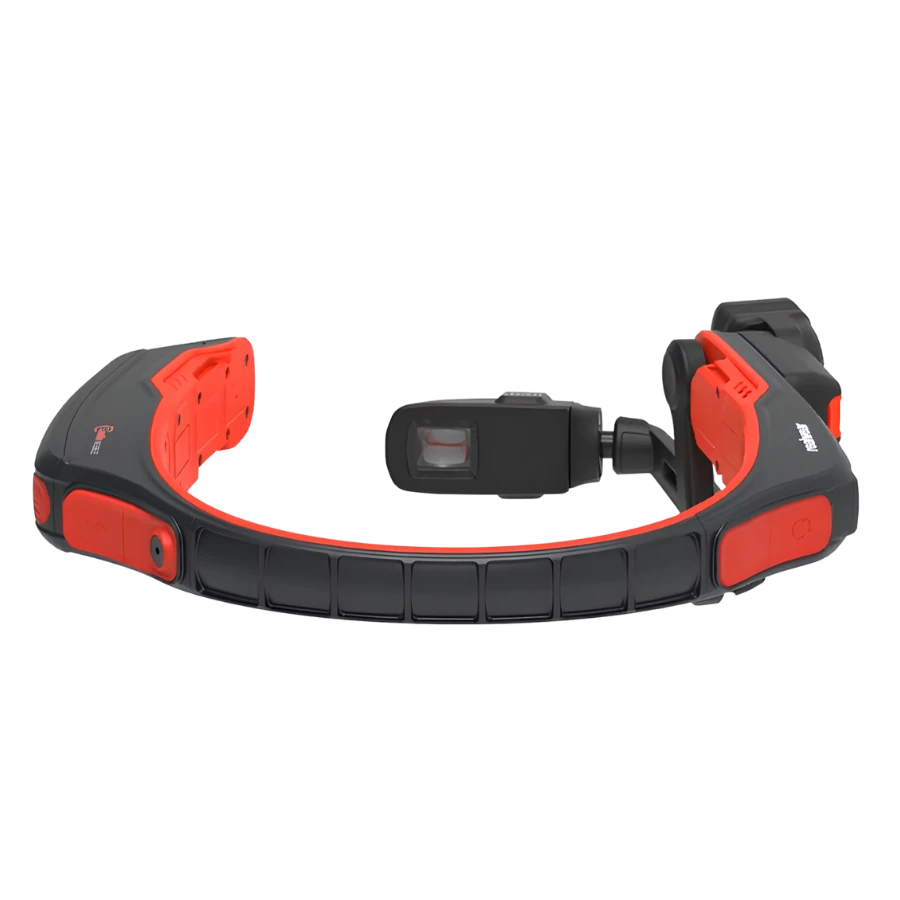

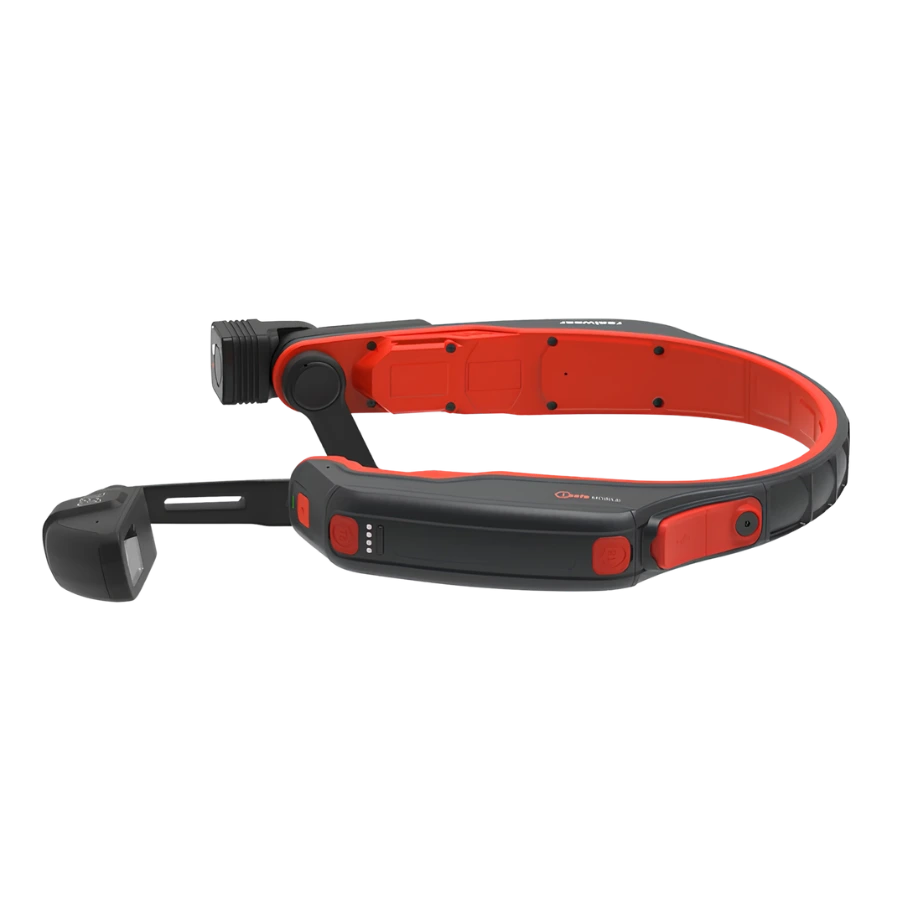

Realwear Z1 with thermal camera

The world’s most advanced fully rugged, fully hands-free head-mounted wearable computer — engineered for the toughest industrial environments on earth. AI-powered voice control, 48MP camera, Android 11, and enterprise-grade connectivity built for frontline workers.

Category	Details
Certifications (IS)	ATEX Zone 1, IECEx Zone 1, North America Class I, Division 1 (C1/D1).
Processor / GPU / AI	Qualcomm® QCS6490 (Kryo 670 CPU, Arm v8), Adreno 643 GPU @ 812 MHz, 6th-gen Qualcomm AI Engine.
Operating system	Android 12 (AOSP) with WearHF™ hands-free interface.
Memory & storage	8 GB RAM / 128 GB internal storage.
Display	0.35″ LCOS micro-display, 1280×720 (HD), 24-bit color, ~24° FOV, outdoor-visible.
Camera (visual)	48 MP sensor with PDAF and LED flashlight; modular camera pod. Video up to 1080p@60 fps, >6× HD zoom, stabilization; codecs: VP8/VP9/H.264/H.265 (HEVC).
Thermal	Optional Teledyne FLIR thermal camera module (bundle SKU includes it).
Microphones	4 digital mics with active noise cancellation; accurate voice recognition in 100 dBA environments.
Speaker / audio	Internal loudspeaker (standard output < 76 dB, visual warning above 80 dB); 3.5 mm audio jack.
Connectivity (wireless)	Wi-Fi 6E (802.11a/b/g/n/ac/ax; 2.4/5/6 GHz), Bluetooth® Low Energy 5.2.
Location / GNSS	GPS, GLONASS, NavIC, BeiDou, Galileo, QZSS, SBAS.
Sensors	9-DoF IMU (accelerometer, magnetometer, gyroscope) with software-enhanced stabilization.
Ports & keys	USB-C (data/charging), 3.5 mm audio; keys: Power, Action, Volume ±.
Battery	2550 mAh Li-ion, removable & rechargeable; typical use 8–10 hrs (“full-shift”). (Charge/replace outside hazardous areas; battery model B21S.)
Ruggedness	IP66 dust/water protection; 2 m drop-resistant; MIL-STD-810H; operating temp −20 °C to +55 °C.
Weight	383 g.
Mounting & fit	Six-way adjustable boom; left/right-eye compatible; works with hard hats, bump caps, safety glasses.
In-box (thermal bundle)	Navigator Z1 device, thermal camera module, tri-band strap, battery pack, USB-C cable with charging protection, protective case, Torx-8 screwdriver, quick start guide

Truly Hands-Free. By Design.

The Navigator Z1’s AI-powered voice engine is purpose-built for the factory floor — not the living room. With four industrial microphones and RealWear’s proprietary noise-filtering algorithm, it works flawlessly in environments exceeding 85 dB.

Navigate entire OS and apps using only voice commands — no touch required
Over 100 built-in voice commands out of the box
Custom vocabulary training for domain-specific terminology
Offline voice recognition in 20+ languages
WakeWord “navigate to” activation for always-on operation
Compatible with Dragon NaturallySpeaking for advanced transcription

Engineered for Extreme Conditions.

Where consumer devices fail, the Navigator Z1 thrives. Certified to MIL-STD-810H and rated IP66, it handles drops, dust, water jets, extreme temperatures, and the vibrations of industrial machinery without missing a beat.
