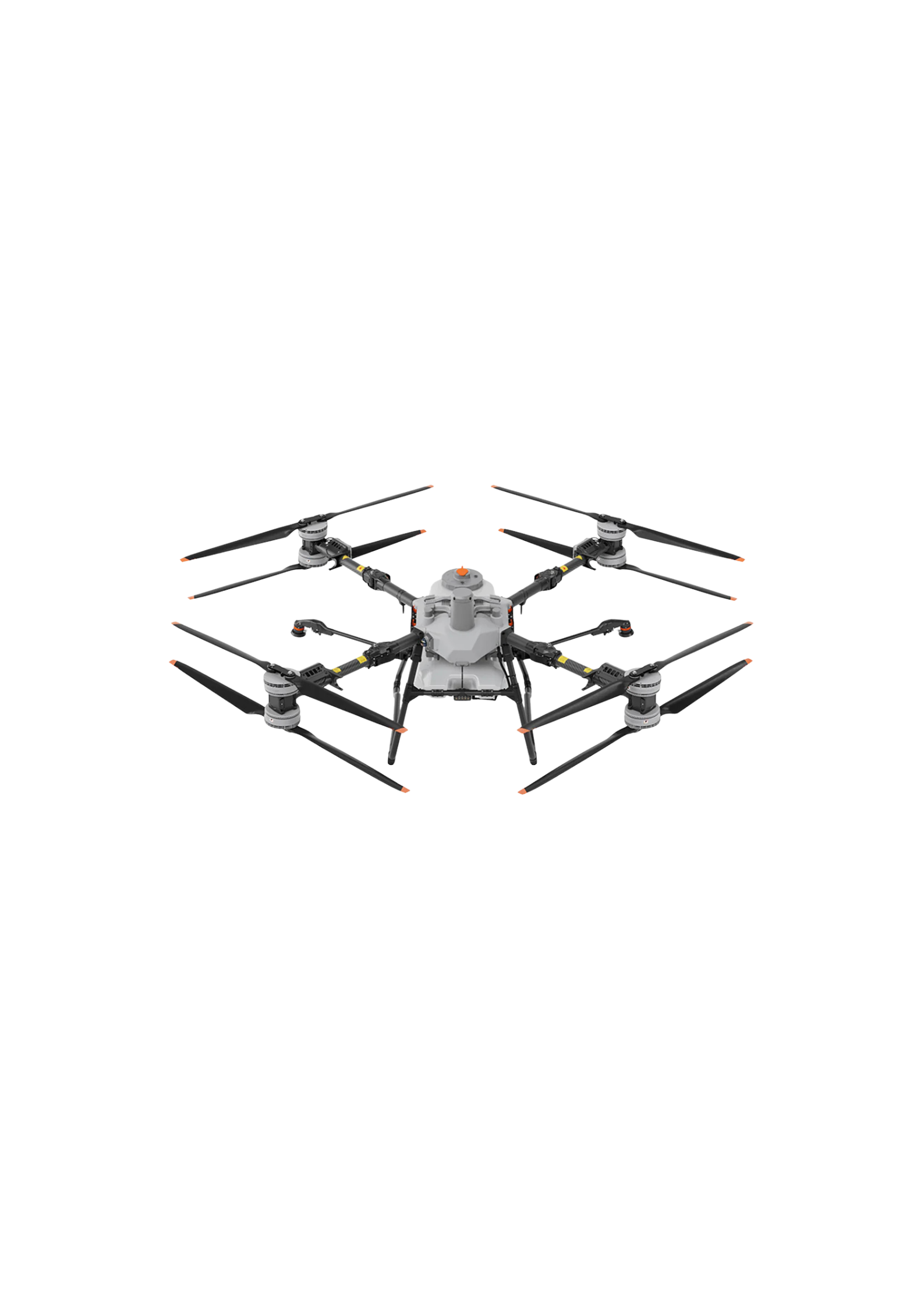

DJI AGRAS T100
-
Flagship ag-drone for large farms with three roles: spraying, spreading, and lifting.
-
100 L spray tank with dual impeller pumps; 30 L/min (2 nozzles) or 40 L/min (optional 4 nozzles). Droplet size 50–500 µm; effective width 5–13 m.
-
150 L spreader (Screw Feeder 4.0 + centrifugal disc) delivering up to 400 kg/min; width 3–10 m.
-
Lifting up to 100 kg (80 kg with dual-battery lifting module) with cable-fuse emergency escape.
-
Safety System 3.0: LiDAR + millimeter-wave radar + Penta-Vision (quad vision + FPV) with ≤ 60 m sensing and ≤ 13.8 m/s safe OA speed.
-
62-inch carbon-fiber props and upgraded power for heavy payload efficiency.
-
Max operation speed 20 m/s for faster coverage (market-dependent).
-
DB2160 41,000 mAh battery, 52 V; rapid turnaround via C12000 charger / D14000iE generator (≈ 8–9 min from 30→95%).
-
New RC Plus 2 (TKPL 2) controller with 7″/1400-nit display and long runtimes.
Drones in India are regulated under the Drone Rules, 2021 (as amended). Depending on the drone’s weight and use, you may need to register it on the Digital Sky Platform, obtain a UIN and hold a Remote Pilot Certificate, and you must follow the airspace map (green/yellow/red zones). You are responsible for lawful use. Xboom Utilities may refuse or cancel an order that does not meet legal requirements.
Read the full Drone Sales Disclaimer & Compliance Notice- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Aircraft
| Item | Spec |
|---|---|
| Dimensions (unfolded arms/props) | 3220 × 3224 × 975 mm |
| Dimensions (arms unfolded, props folded) | 1820 × 1840 × 975 mm |
| Dimensions (folded) | 1105 × 1265 × 975 mm |
| Max diagonal wheelbase | 2330 mm |
| Weight (spray, 2 nozzles / 4 nozzles) | 75 kg / 77 kg |
| Weight (spread / lift / dual-battery lift) | 75 kg / 65 kg / 90 kg |
| Max takeoff weight (spray 2 / 4) | 175 kg / 177 kg |
| Max takeoff weight (spread / lift / dual-battery lift) | 175 kg / 165 kg / 170 kg |
| Hovering accuracy (RTK on / off) | ±10 cm H, ±10 cm V / ±0.6 m H, ±0.3 m V |
| Max configurable flight radius | 2 km |
| Max wind resistance | < 6 m/s |
| Operating temperature | 0 – 40 °C |
Propulsion
| Item | Spec |
|---|---|
| Motor stator size / KV | 155 × 16 mm / 60 rpm·V⁻¹ |
| Propellers | 62-inch carbon-fiber composite, 8 pairs |
Spraying system
| Item | Spec |
|---|---|
| System / Tank | LS100 / 100 L HDPE (100 kg operating payload) |
| Delivery pumps | Dual magnetic-drive impeller pumps |
| Flow rate | 30 L/min (2 nozzles), 40 L/min (4-nozzle option) |
| Sprinklers (std / opt) | LX07550SX (std) / LX09550SX (mist) |
| Nozzles (qty) | 2 standard / 4 optional |
| Nozzle spacing | 1834 mm (two nozzles / outermost of four) |
| Droplet size | 50 – 500 µm |
| Effective spray width | 5 – 13 m |
Spreading system 4.0
| Item | Spec |
|---|---|
| Tank volume | 150 L |
| Feeder / spreader | Screw Feeder 4.0 / centrifugal disc |
| Max discharge rate | 400 kg/min (compound fertilizer) |
| Effective spread width | 3 – 10 m |
| Compatible granule sizes (augers) | XL: 0.5–10 mm; Medium: 4–6 mm; (Optional) Large: 4–10 mm; Small: 0.5–4 mm |
| Max load in spread box | 100 kg |
Lifting system
| Item | Spec |
|---|---|
| Standard lifting load | 100 kg |
| Dual-battery lifting load | 80 kg |
| Cable length (std / recommended) | 10 m / 10–15 m |
| Emergency escape | Cable-fuse disconnection (dual-battery module) |
| Operating temperature | 0 – 40 °C |

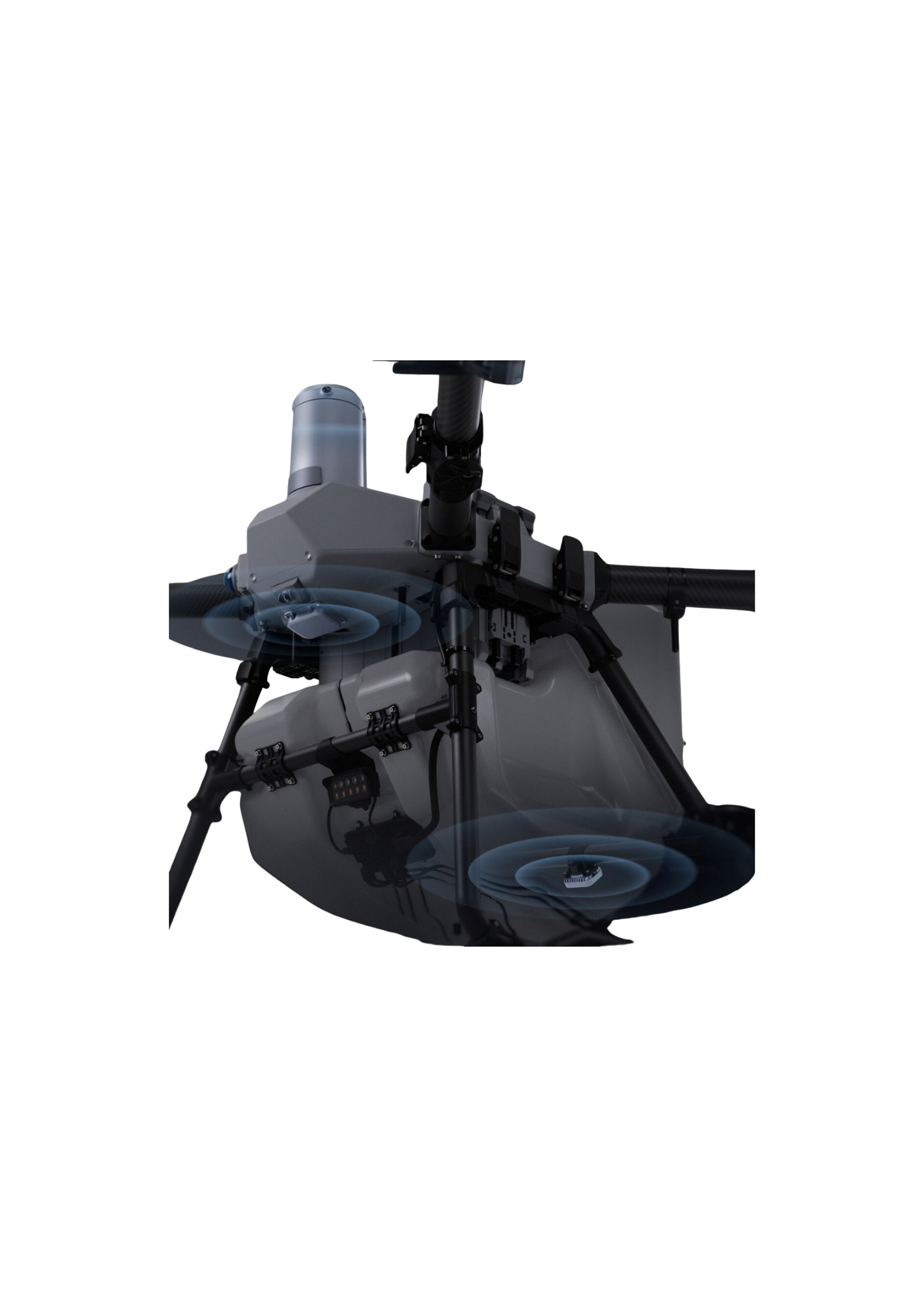

Safety System 3.0 (perception & OA)
| Item | Spec |
|---|---|
| Sensors & views | LiDAR, millimeter-wave radar (front/down/rear), Quad Vision + FPV (Penta-Vision) |
| FOV (selected) | LiDAR V 272°, H 60°; Front radar H 360°, V ±45°; Vision H 360°, V 180° |
| Measurement range | ≤ 60 m |
| Safe OA speed / OA height | ≤ 13.8 m/s / ≥ 1.5 m |
Remote controller (DJI RC Plus 2, model TKPL 2)
| Item | Spec |
|---|---|
| Display | 7″ LCD, 1920×1200, 1400 nits |
| Internal / external battery runtime | 3.8 h / 3.2 h |
| Charging | USB-C fast charge (≤ 65 W); ≈ 2 h (RC off) |
| Storage temp (guidance) | −30 – 45 °C (≤ 1 mo); −30 – 35 °C (1–3 mo); −30 – 30 °C (3–12 mo) |
Power & turnaround
| Item | Spec |
|---|---|
| Flight battery | DB2160, 41,000 mAh, 52 V, 14.7 ± 0.3 kg |
| Smart charger | C12000 (12 kW 3-phase / 3 kW single-phase), 62 V, 194 A |
| Generator | D14000iE multi-function inverter, 30 L tank |
| Typical recharge time | ≈ 8–9 min (DB2160 from 30→95%) |
| Generator outputs | 42–61.6 V/11.5 kW DC; 12 V/6 A; 220 V/1500 W AC |
Connectivity / Relay (O4)
| Item | Spec |
|---|---|
| Bands | 2.4 / 5.1 / 5.8 GHz |
| Effective range (relay) | FCC 8 km; SRRC 5 km; CE/MIC/KCC 4 km (LoS) |
| Battery / runtime | 6500 mAh / 5 h |
| IP rating (relay) | IP55 |
Performance note
| Item | Spec |
|---|---|
| Max operation speed | 20 m/s (varies by region/regulation) |

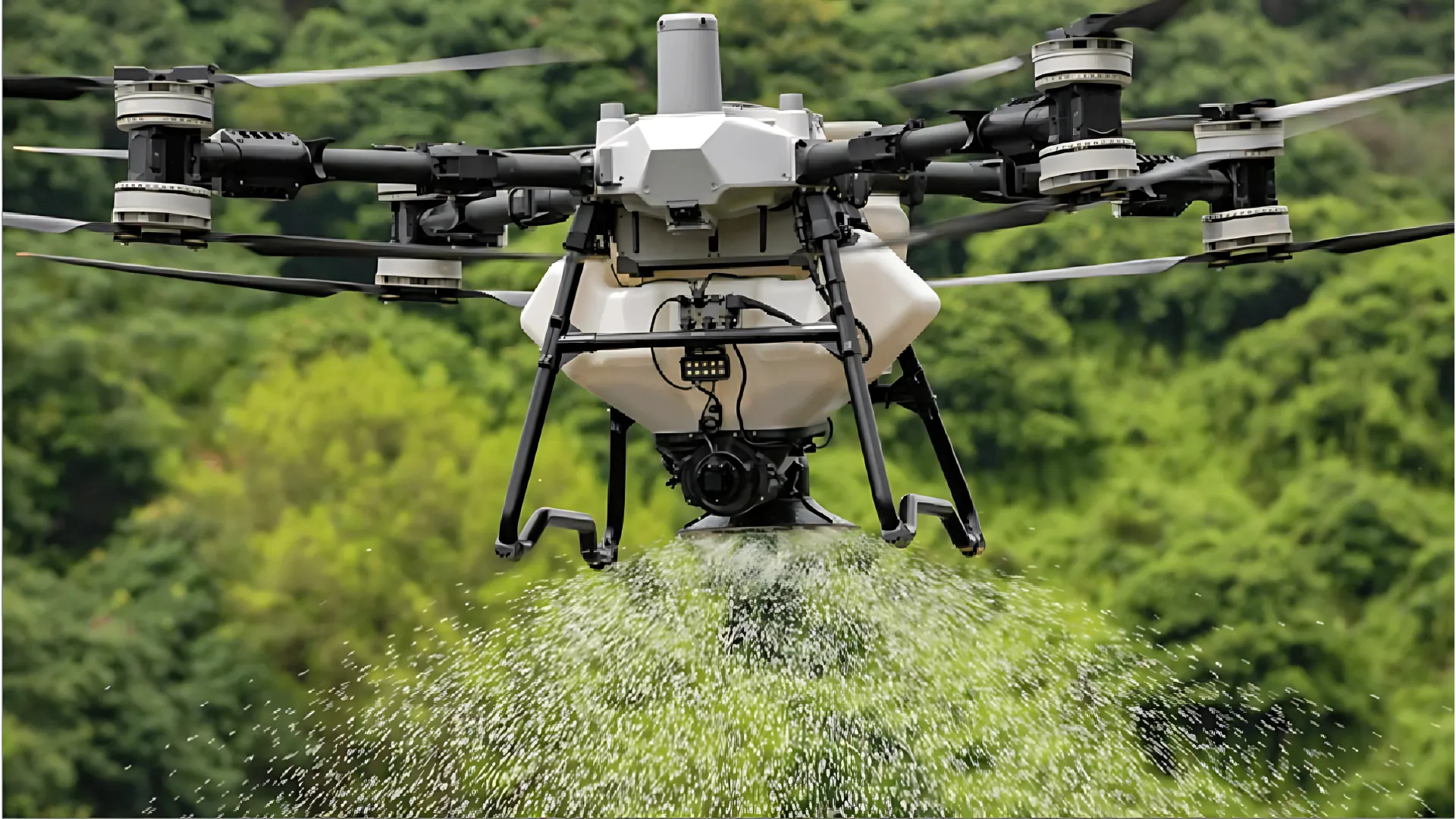

DJI AGRAS T100 is a flagship agricultural drone built for large-scale farm work—spraying, spreading, and lifting. It combines a 100 L spray tank (up to 40 L/min) and a 150 L spreader (up to 400 kg/min) with Safety System 3.0 (LiDAR, millimeter-wave radar, multi-directional vision) for precise terrain following and obstacle avoidance. O4 transmission and the RC Plus 2 controller support reliable, long-range operations, while the DB2160 high-capacity battery and C12000/D14000iE power ecosystem enable rapid turnarounds. With 62-inch carbon-fiber props and a rugged frame, it’s engineered to cover big acres quickly and accurately.
The full sheet
