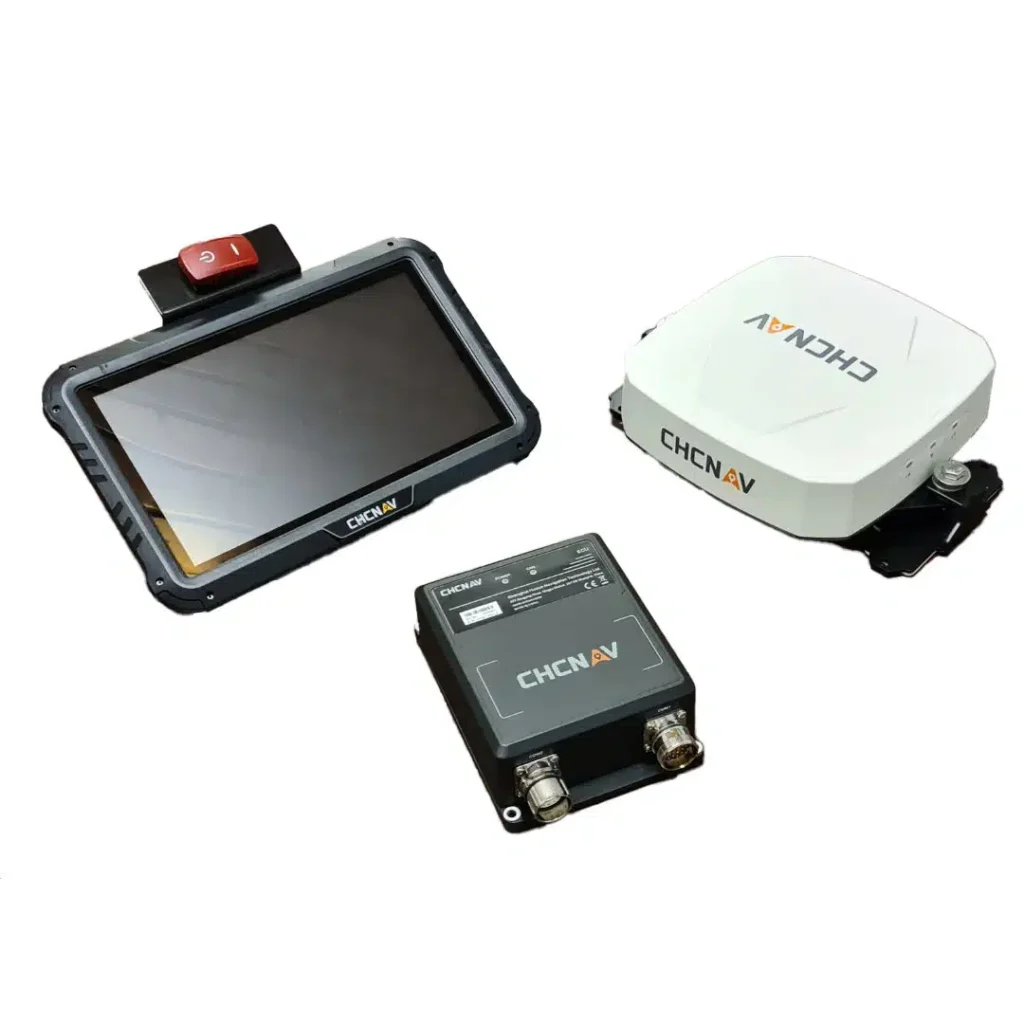

CHCNAV NX510 Steer Ready Automated Steering System for Steer Ready Tractors

Steer-ready autosteering that plugs into OEM hydraulic steering via PWM or CANBUS—no add-on motor wheel or valve needed.
≤ ±2.5 cm pass-to-pass precision using full-constellation GNSS with RTK; GNSS+IMU terrain compensation for stable lines.
ISOBUS VT/UT support, NMEA + 5 V pulse outputs and .SHP field import for smooth implement/control integration.
10.1" Android display (AgNav) with quick onboarding and remote support.
Works across common patterns (AB, A+, pivot, curve, 90°, headland) with a typical 0.3–20 km/h operating range.

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

System Overview

Item	Details
Positioning	Full GNSS (GPS, GLONASS, Galileo, BDS, QZSS)
Max precision	≤ ±2.5 cm pass-to-pass
Components	Display 10.1″ Android • Guidance control Integrated • Steering control Tractor hydraulics • Camera Yes
Integrations	ISOBUS VT/UT, NMEA, 5 V pulse, .SHP file input
Vehicle interface	PWM or CANBUS (steer-ready tractors)
Typical speed range	0.3–20 km/h

Positioning & Performance

Item	Spec
RTK accuracy (RMS)	H: 8 mm + 1 ppm • V: 15 mm + 1 ppm
RTK init	< 5 s, reliability > 99.9 %
Velocity accuracy	0.03 m/s RMS
Pass-to-pass	≤ ±2.5 cm

Communications & I/O

Item	Spec
Wireless	Wi-Fi, Bluetooth
Cellular	4G LTE modem integrated (receiver & display)
Serial	RS-232 ×2
CAN	2 ports
NMEA output	1/2/5/10 Hz
UHF module	410–470 MHz; protocols TT450S / Transparent / CHC / CHCAG / SATEL 3AS
Output interface	410–470 MHz; protocols TT450S / Transparent / CHC / CHCAG / SATEL 3AS

Constellations & Corrections

Item	Bands
GPS	L1/L2/L5
BDS	B1I/B2I/B3I/B1C/B2a/B2b
Galileo	E1/E5a/E5b/E6
GLONASS	L1/L2
QZSS	L1/L2/L5/L6
SBAS	L1
Correction formats	RTCM 3.0/3.1/3.2/3.3

Display (console)

Item	Spec
Screen / OS	10.1″ touch • Android 6.01
Dimensions	281 × 181 × 42 mm
Ingress protection	IP65

Receiver

Item	Spec
Size / Weight	220 × 205 × 60 mm • < 2 kg
Power	9–36 V DC
Ingress protection	IP67

Rear camera

Item	Spec
Resolution	1280 × 720 px
Field of view	120°

Power & Environment

Item	Spec
External power	9–36 V DC
Operating / Storage temp	−20 °C to +70 °C / −40 °C to +85 °C

Guidance Patterns

Patterns
AB line, A+ line, pivot, curve, 90° line, headland line

Highlights

For agricultural vehicles, the NX510 Steer Ready system provides sophisticated automated steering that improves field management and accuracy. Its interoperability and user base are increased by supporting both PWM and CANBUS technologies and connecting seamlessly with a tractor’s OEM onboard steering valve. The NX510 Steer Ready offers a reliable substitute for original hydraulic systems, boosting agricultural production, operational effectiveness, and return on investment.
