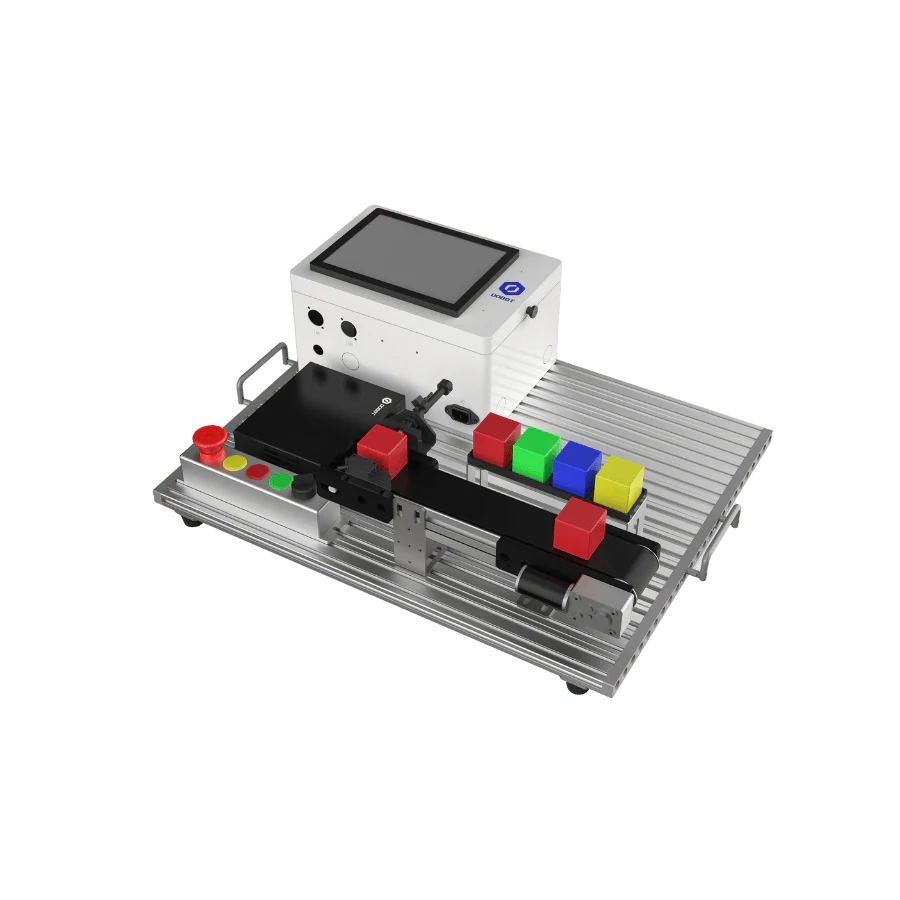

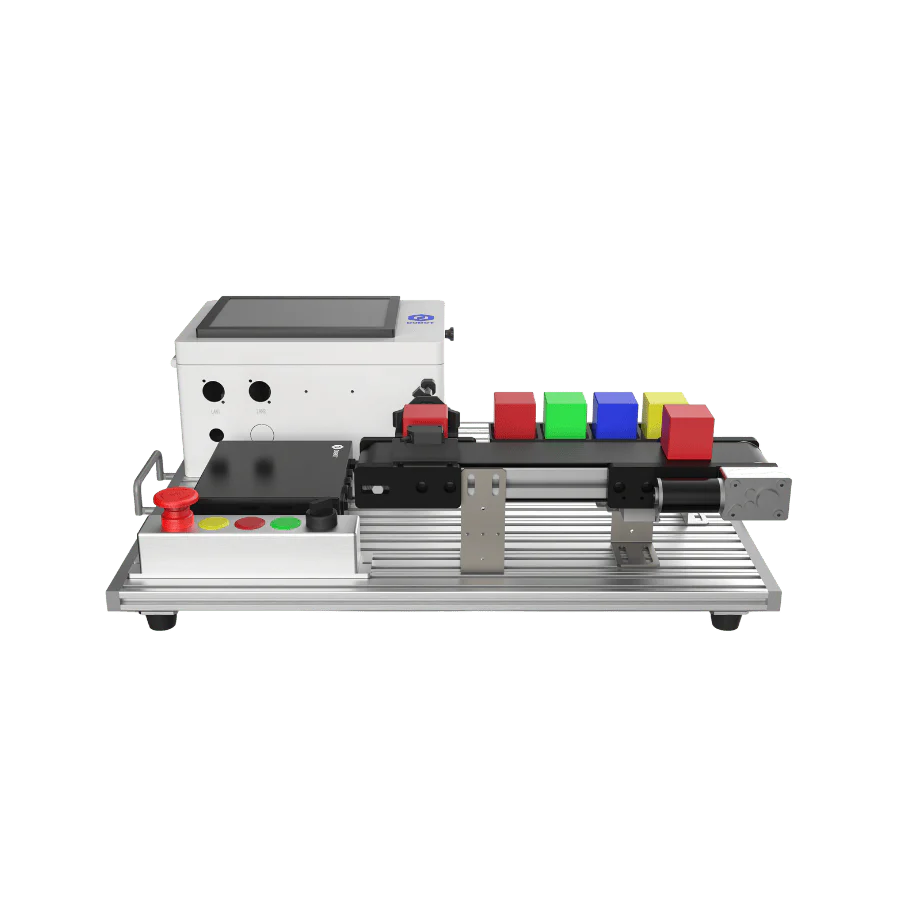

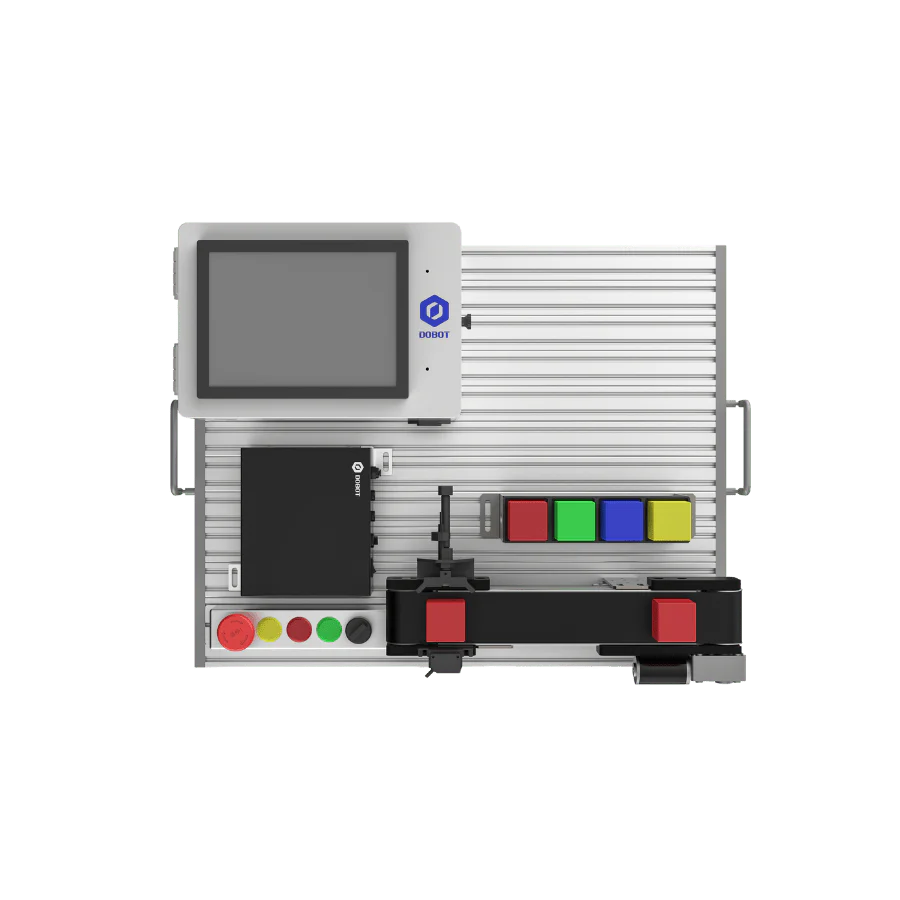

Dobot Magician E6 Mini Training Station
All-in-one automation training kit covering robotics, PLC programming, conveyor control, pneumatics, and HMI interaction.
7-inch HMI touch screen paired with a 24 VDC PLC — 14 inputs, 12 outputs, PNP transistor output.
Modular design: each component works independently or combined with the Magician E6 robot.
Emergency stop module with start/stop buttons; 500×600 mm footprint, 220V AC powered.
Complete kit included — base plate, conveyor, PLC/HMI, positioning plate, air pump box, 4-colour blocks, and tool kit. Robot sold separately.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

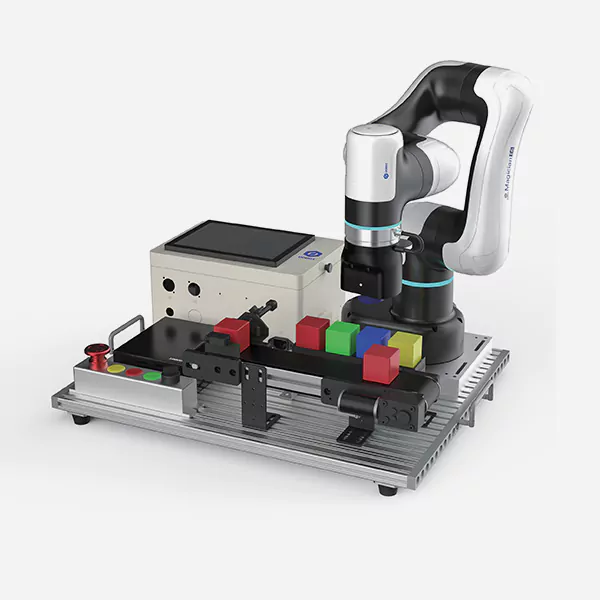

DOBOT Magician E6 Training Platform
An all-in-one, hands-on automation training kit designed for high school and vocational students — covering robot motion, PLC programming, conveyor control, pneumatics, and HMI interaction in a single integrated platform. (Robot excluded.)
All-in-One Practical Automation Platform for Students
The DOBOT Magician E6 Training Platform is an affordable, comprehensive automation training kit designed specifically for high school and vocational technical school students. It integrates multidisciplinary knowledge across mechanics, electronics, pneumatics, and programming into a single practical platform — covering everything from 6-axis robot motion control to PLC programming with HMI interaction. Designed for the Magician E6 robot (sold separately), it enables students to simulate real Industry 4.0 scenarios including material transportation, block sorting, sensor-based detection, and pneumatic actuation. Each module is independently designed for ease of teaching, assembly, and maintenance. The conveyor belt and PLC module can be used individually or combined with the robot for full interactive automation scenarios — supporting progressive, step-by-step pedagogical delivery. Equipped with an emergency stop module and user-friendly HMI touch screen, the platform is safe, intuitive, and ready for classroom deployment.
Four Principles Behind the Training Platform
A Complete Automation Learning Environment
Modular Platform, Built for Progressive Teaching
Every component of the Magician E6 Training Platform is independently designed, making it straightforward to teach, assemble, and maintain in a classroom environment. The conveyor belt and PLC module — which includes the HMI touch screen — are integrated and can be operated independently with the DOBOT Magician E6 for focused single-module lessons, or combined for a complete interactive automation system. This modular approach is purpose-built for progressive experimental teaching: introduce one concept at a time, then layer complexity as students advance. The 500 × 600 mm base plate provides a stable, compact workspace that fits standard classroom benches.
Conveyor Belt & Sensor-Based Block Sorting
The conveyor belt module simulates real material transportation scenarios from Industry 4.0, giving students hands-on experience with motor control principles and transmission system design. Paired with the diffuse-reflective photoelectric sensor (PNP, detection range 0–100 mm adjustable), students learn how sensors detect and position objects on a moving line. Four-colour square blocks and a building block positioning plate complete the sorting scenario — students programme the Magician E6 robot to pick, identify, and place blocks based on sensor input, combining robot motion control with conveyor and sensor logic in a single cohesive workflow.
Pneumatic System & Safety Training
The air pump box and cylinder pushrod module introduce students to the fundamental role of pneumatic systems in industrial automation. With an 8 mm cylinder diameter and 30 mm stroke, the pushrod module provides a clear, observable demonstration of linear pneumatic actuation — ideal for teaching the principles behind real factory grippers, clamps, and actuators. Alongside the pneumatic module, the emergency stop module — complete with start and stop buttons — reinforces safety-first practices. Students learn when and how to trigger emergency stops, building the safety awareness and emergency response habits required in any professional automation environment.
Complete Training Platform Components
The training platform ships as a complete kit ready for classroom deployment. The DOBOT Magician E6 robot is sold separately and is not included in the platform price.
Six Teaching Modules in One Platform
DOBOT Magician E6 Training Platform — Complete Specification
| Specification | Details |
|---|---|
| Platform | |
| Dimensions (L × W) | 500 × 600 mm |
| Power Supply | 220 V AC |
| HMI Touch Screen | |
| Screen Size | 7 inch |
| Resolution | 800 × 480 |
| PLC Module | |
| PLC Power Supply | 24 VDC |
| Input Points | 14-bit |
| Output Points | 12-bit |
| Output Type | PNP |
| Output Mode | Transistor |
| Photoelectric Sensor | |
| Sensor Type | Photoelectric Switch (Diffuse-reflective PNP) |
| Detection Range | 0 – 100 mm (adjustable) |
| Push Rod Module | |
| Cylinder Diameter | 8 mm |
| Stroke | 30 mm |
| Configuration — Training Platform Components | |
| Base Plate Assembly | Included |
| Conveyor Belt | Included |
| PLC Module with HMI Touch Screen | Included |
| Building Block Positioning Plate | Included |
| Emergency Stop Module (with Start/Stop Buttons) | Included |
| Air Pump Box | Included |
| 4-Colour Square Blocks | 4 pieces |
| Tool Kit (Screwdrivers, Screws, etc.) | Included |
| Robot (Magician E6) | Not included — sold separately |
| Identification | |
| EAN | 1300000700 |
Where the Training Platform Is Used
See the DOBOT Magician E6 in Action
Common Questions About the Training Platform
Is the DOBOT Magician E6 robot included with the Training Platform?
No — the DOBOT Magician E6 robot is sold separately and is not included in the Training Platform price. The Training Platform kit includes the base plate assembly, conveyor belt, PLC module with HMI touch screen, building block positioning plate, emergency stop module with start/stop buttons, air pump box, four-colour square blocks (×4), and a tool kit. The platform is designed to work specifically with the Magician E6 robot arm, which must be purchased independently.
What subjects and skills does the Training Platform cover?
The Training Platform integrates six teaching modules into one platform: robot motion control (6-axis arm kinematics and operation), motor and conveyor belt control (material transport simulation), sensor and signal processing (photoelectric detection and block positioning), pneumatic component practice (air pump and cylinder actuation), PLC programming and HMI interaction (24 VDC PLC with 7-inch touch screen), and safety operation training (emergency stop, start/stop procedures). It is designed to give students a comprehensive, practical foundation across mechanics, electronics, pneumatics, and programming.
Can the conveyor belt and PLC module be used independently from the robot?
Yes — the conveyor belt and PLC module (including the HMI touch screen) are independently designed and can be operated on their own without the Magician E6 robot connected. This allows teachers to introduce conveyor control and PLC programming lessons before bringing in the robot for combined interactive exercises. This modular approach supports progressive experimental teaching — students can build skills one module at a time and then combine them for full automation scenarios.
What are the PLC specifications on this training platform?
The PLC module runs on a 24 VDC power supply and provides 14 input points and 12 output points. It uses PNP transistor output mode. This is paired with a 7-inch HMI touch screen at 800 × 480 resolution for control interface design and operation. The platform itself operates on a standard 220 V AC supply, with the PLC powered via the integrated control circuit — no specialist power infrastructure is required.
Is the Training Platform suitable for science museums or youth centres, or only for schools?
The Training Platform is designed primarily for high schools and vocational technical schools as a practical automation training tool. However, the official product documentation also identifies science museums and youth science centres as suitable environments — for display and experiential demonstration of modern industrial automation technologies. Its modular design, HMI touch screen interface, and safety-focused emergency stop system make it accessible and engaging for general audiences in public education settings as well.
