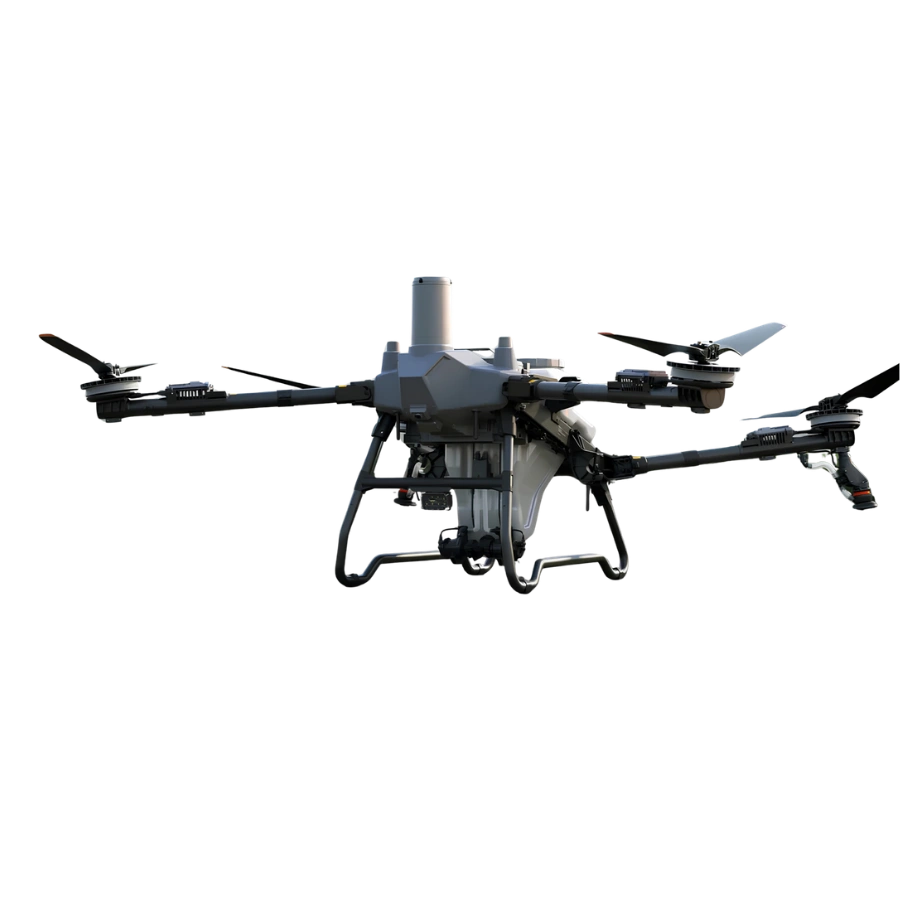

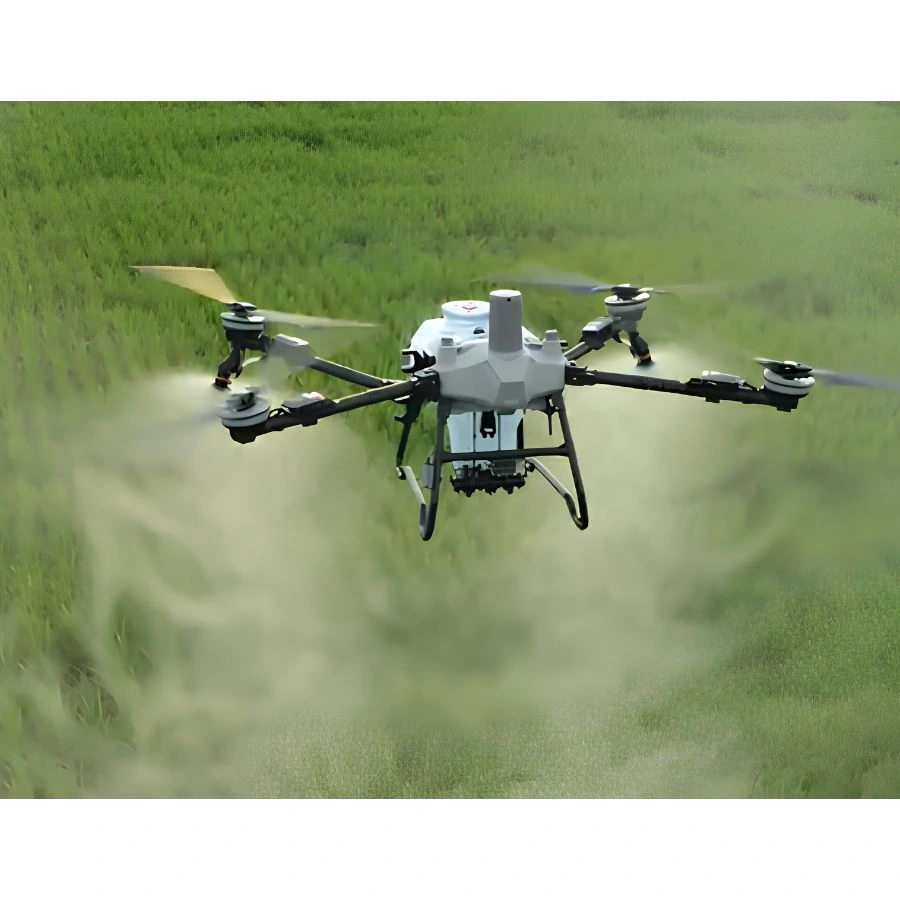

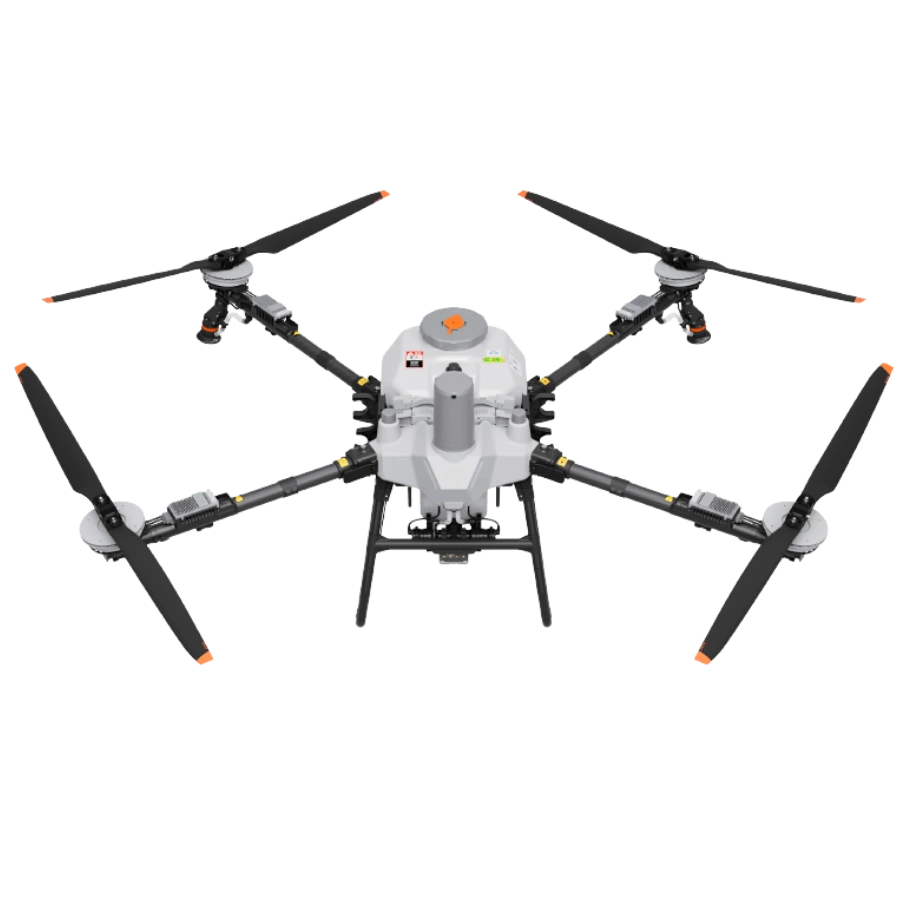

DJI AGRAS T55 Agricultural Drone
• 50 L HDPE spray tank with up to 50 L/min flow rate (optional mist nozzles) and 4–11 m effective spray width
• 55 kg DS80L spreading payload at 400 kg/min — handles fertiliser, rice, rapeseed, granular herbicides, and more
• 40 kg DL100 lifting system with Auto Balance Control and Emergency Cable Release for safe aerial logistics
• All-new millimeter-wave radar: 250,000 points/sec, rain-and-fog capable, with obstacle memory for safer future flights
• D-RTK 3 AG base station: ±10 cm RTK hovering accuracy, multi-constellation GNSS, 15 km signal range (FCC)
• DJI RC Plus 2 AG: 7-inch 1920×1200 LCD at 1,400 cd/m², 3.8-hour runtime, USB-C fast charge
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
DJI AGRAS T55
Farming, Simplified.
The AGRAS T55 is light, intuitive, and easy to get started with. It supports high-application-rate spraying, efficient and precise spreading, and lifting operations. Featuring an upgraded safety system, it is safer with every flight. An innovative Onboard Battery Heat Sink keeps performance steady even in high temperatures. With a cost-effective configuration, it offers excellent value.

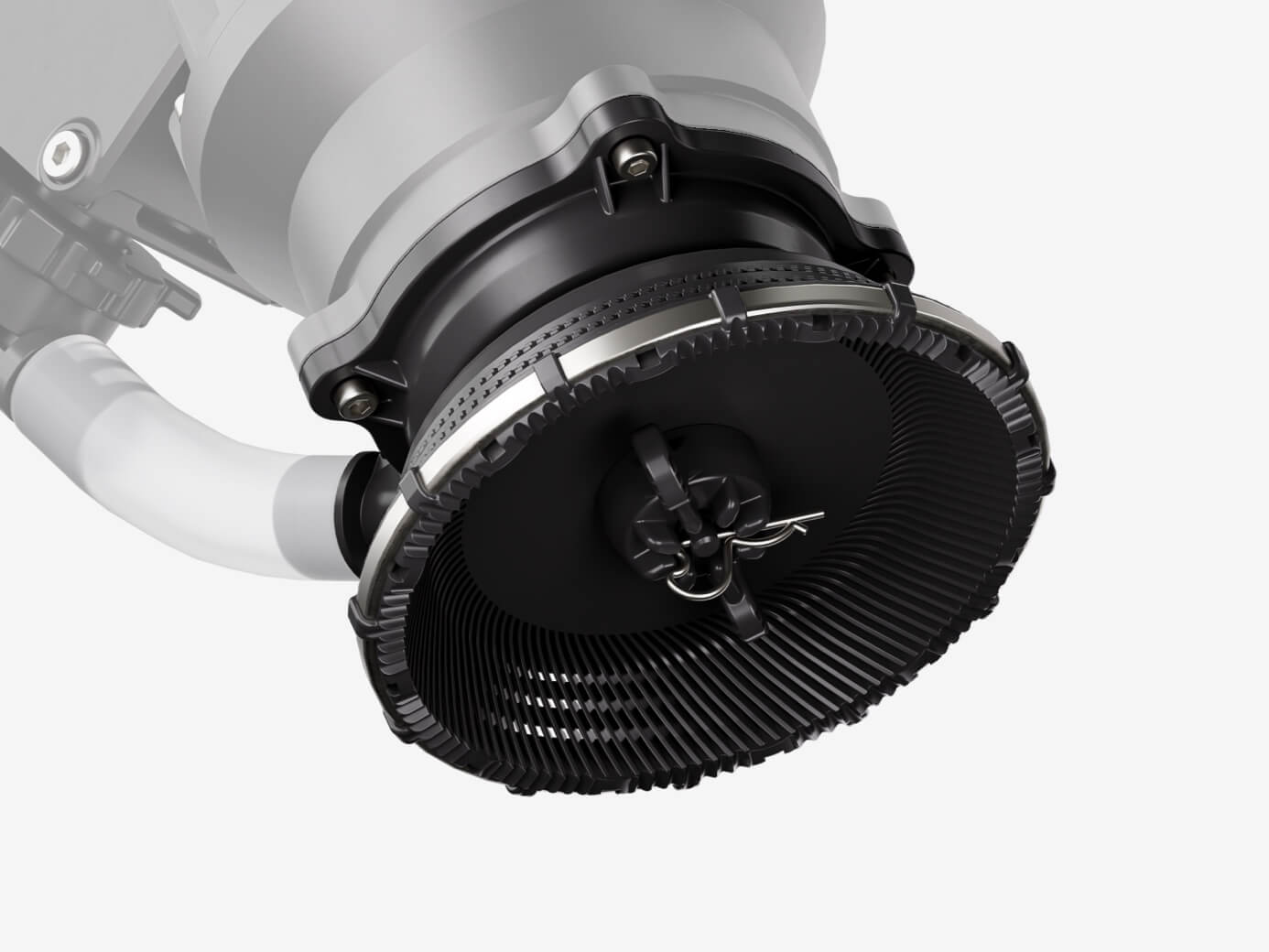

50 L/min Flow Rate (Mist Sprinklers)
400 kg/min Flow Rate
Easy to Transport
Worry-Free Flight
Built for the Heat
Beginner-Friendly,
Easy to Start

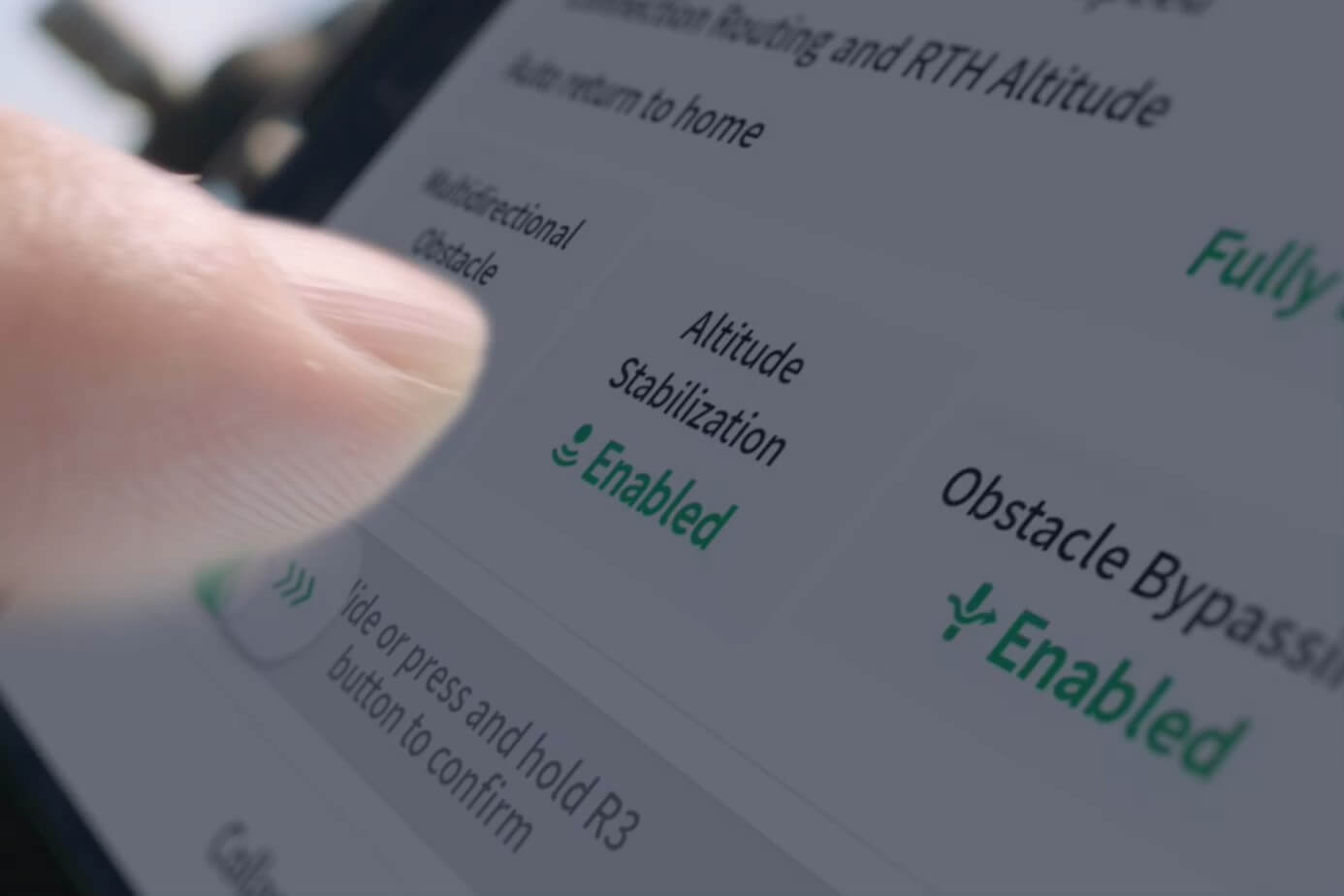

Automatic Operation

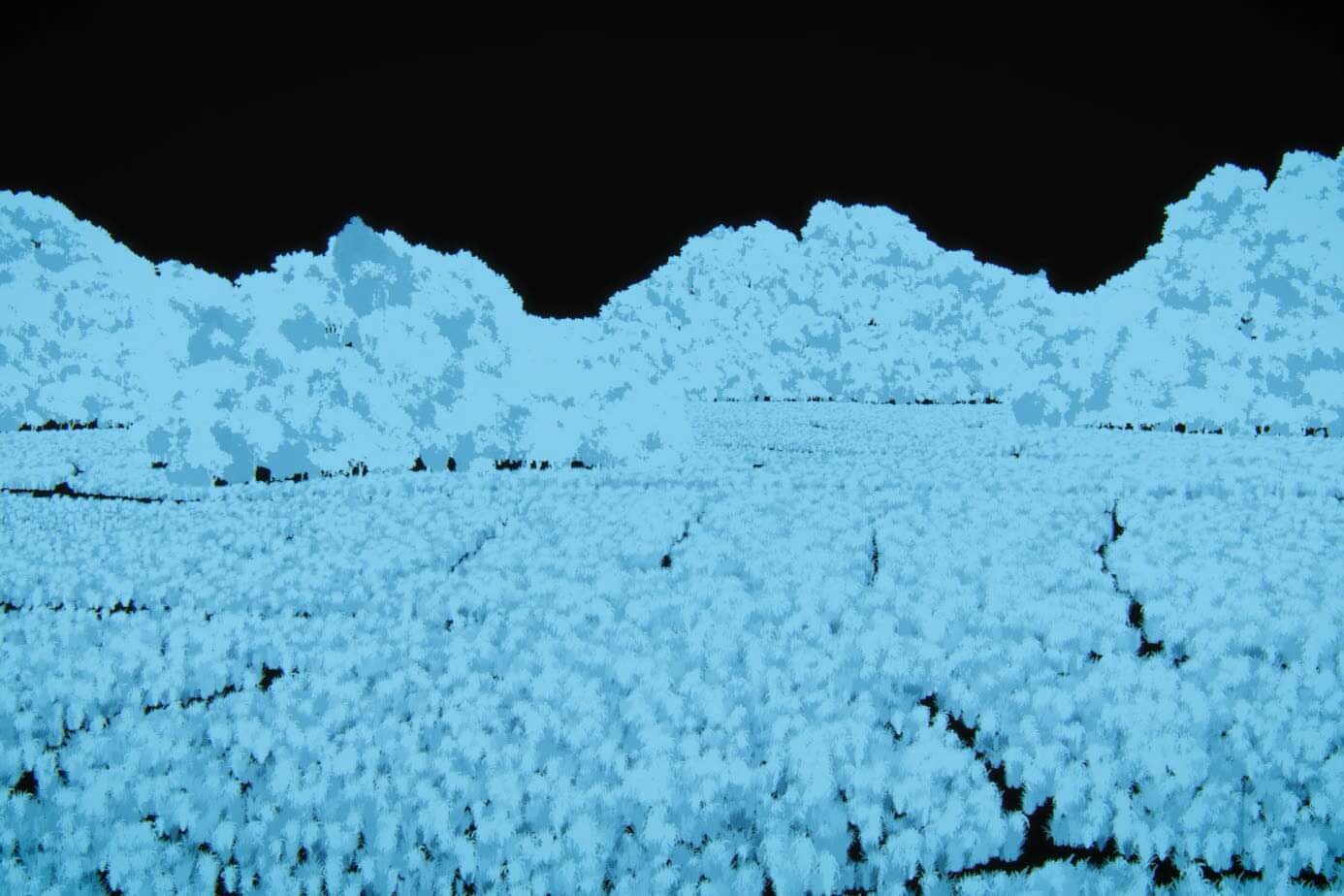

Fly once around the field boundary and obstacles to generate the operation area in real time. Then, with one click, the drone takes off for automatic operation. It returns home automatically when out of liquid or low on battery.

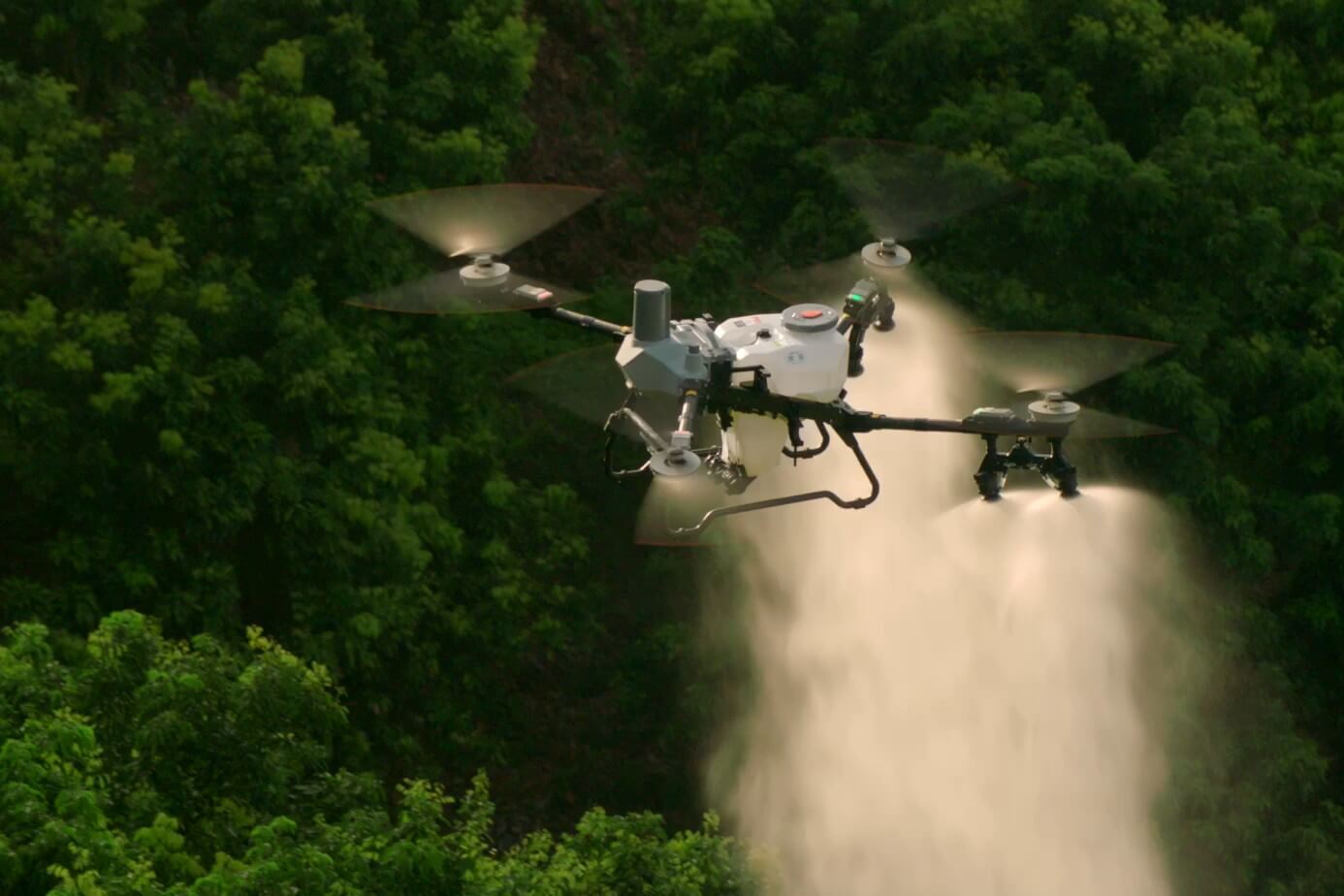

Terrain Following Without Aerial Mapping
More accurate altitude stabilization and more stable Terrain Following. The Agras T55 can precisely detect terrain relief, allowing standard orchards to carry out Terrain Following operations without aerial mapping, making operation simpler and more efficient.

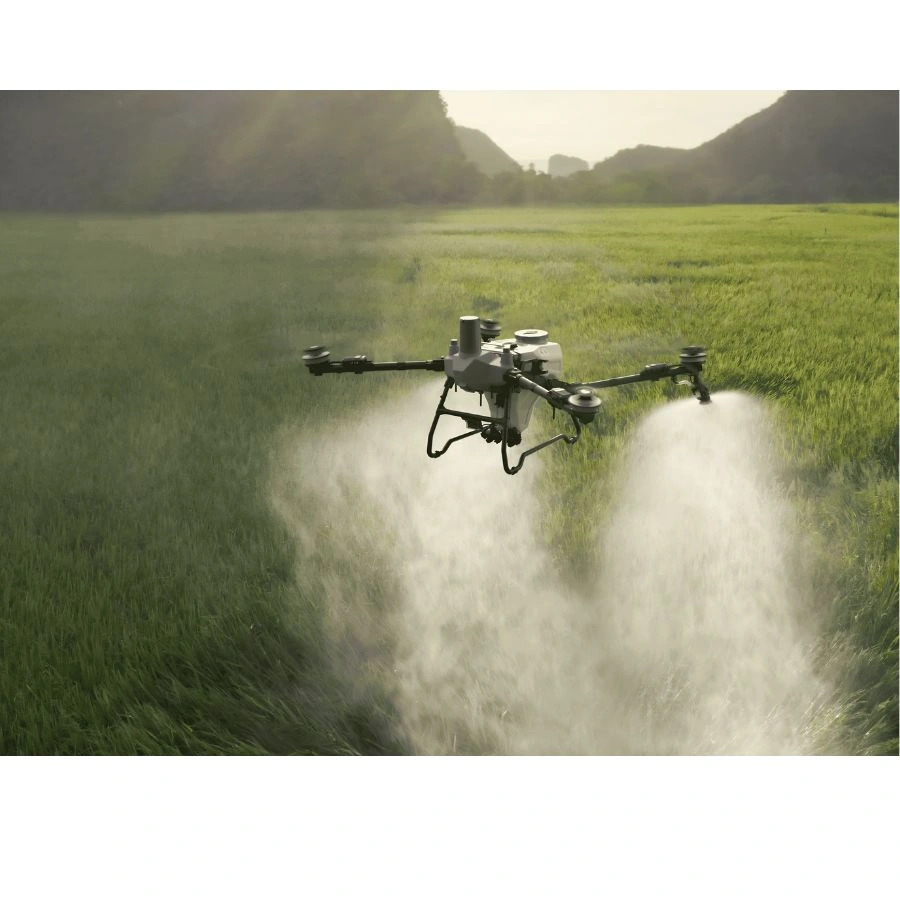

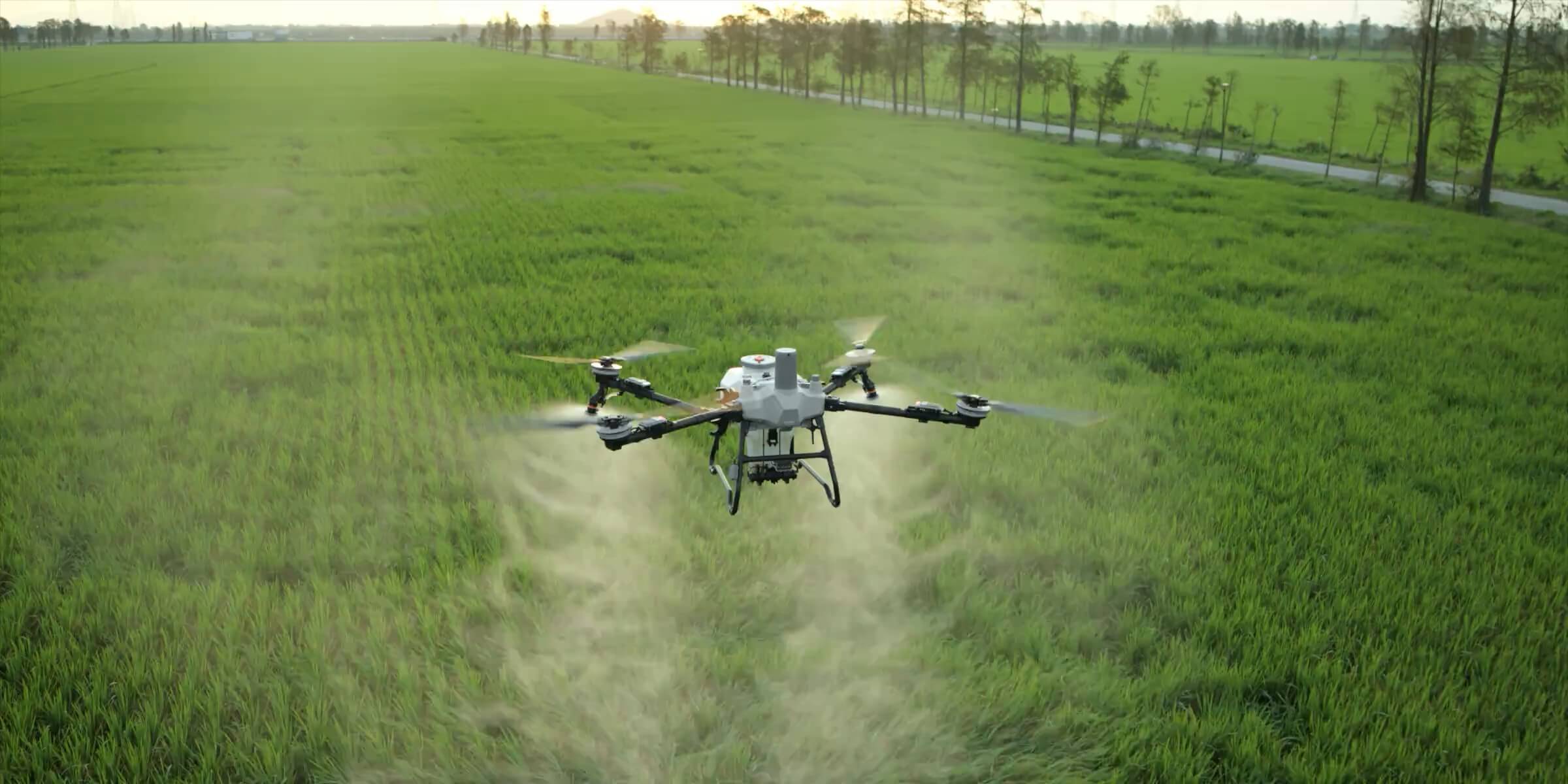

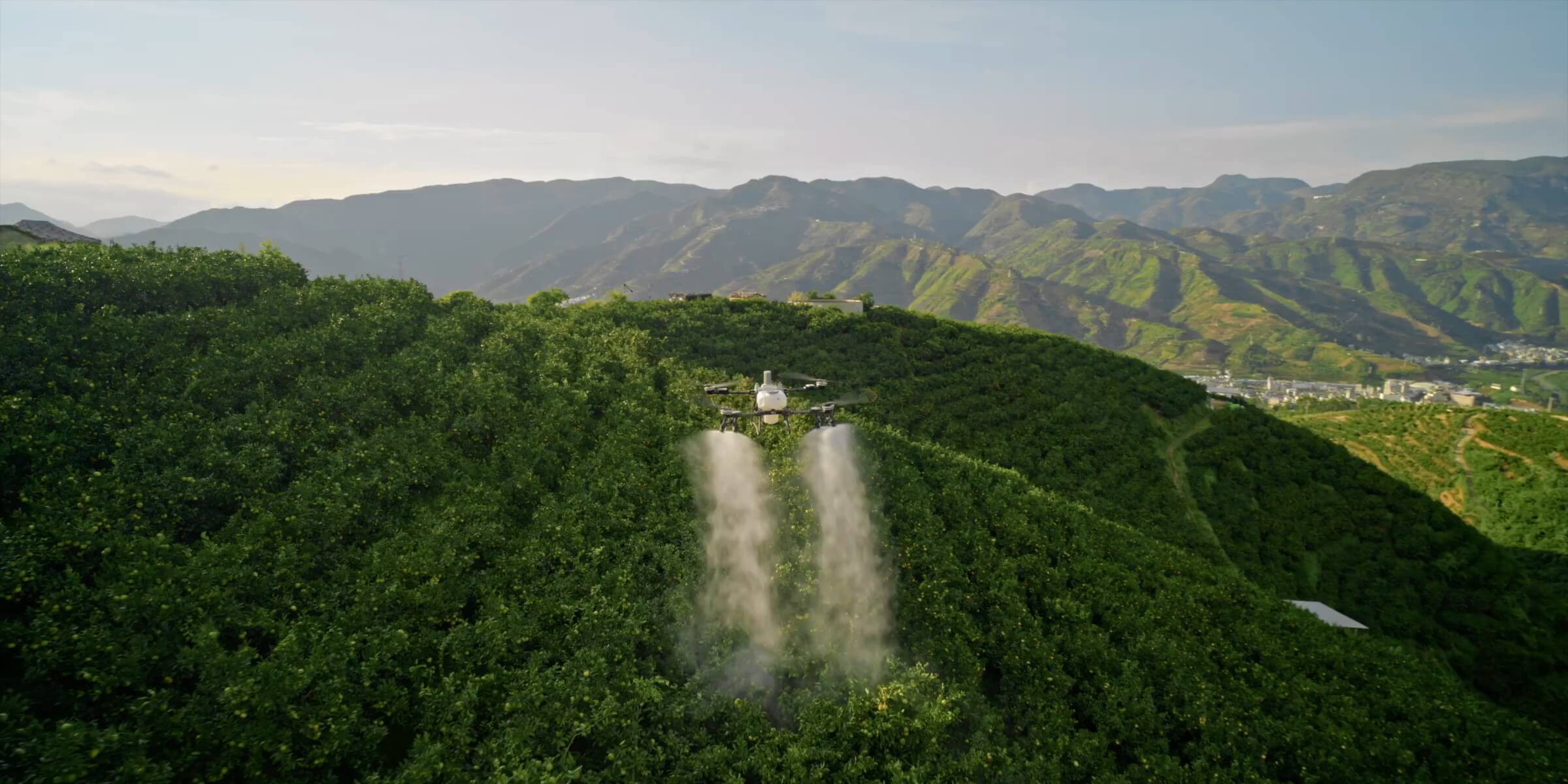

High Flow Rate,
Strong Penetration

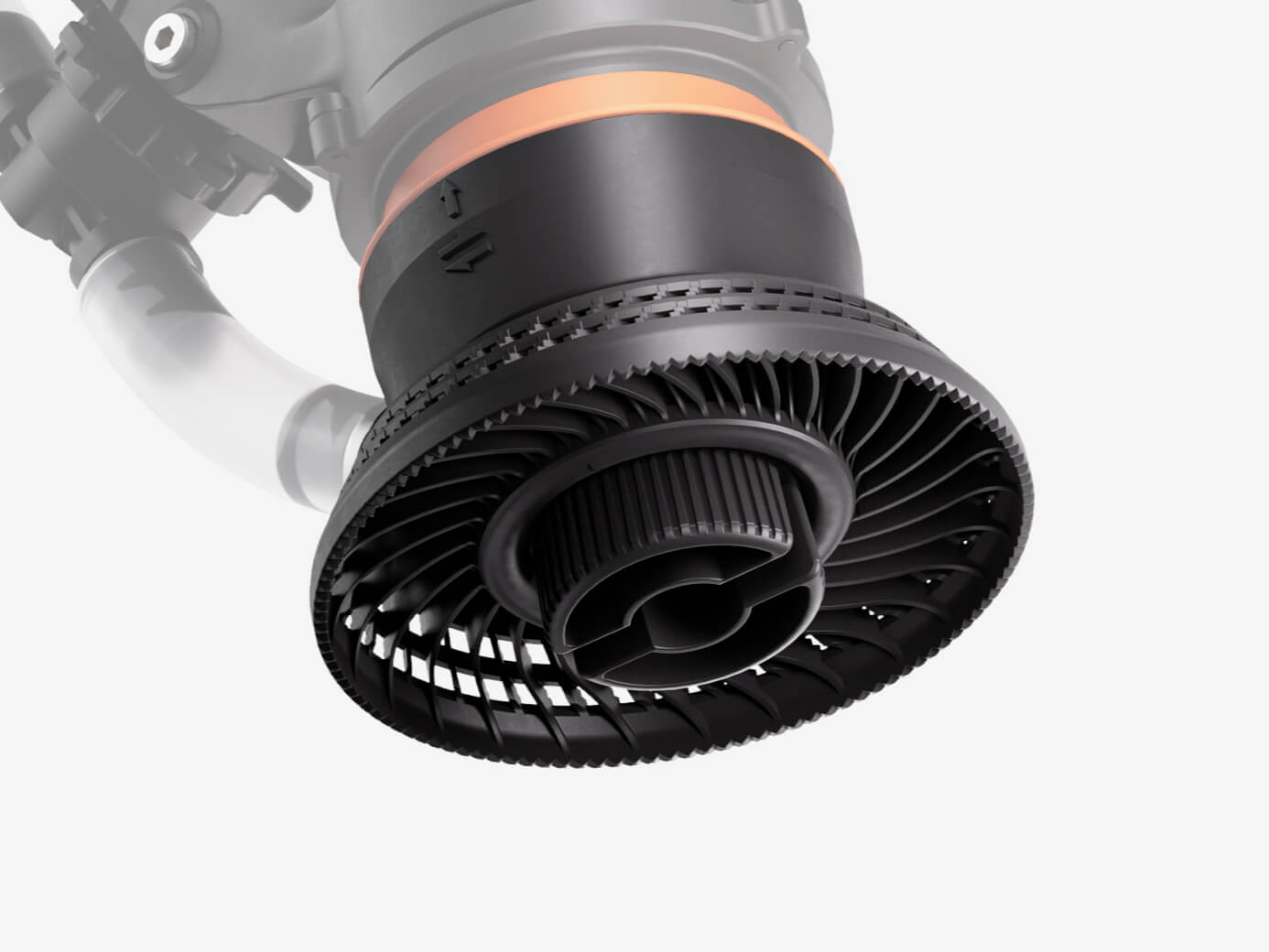

Precise Spraying, Outstanding Durability
Efficient and Precise

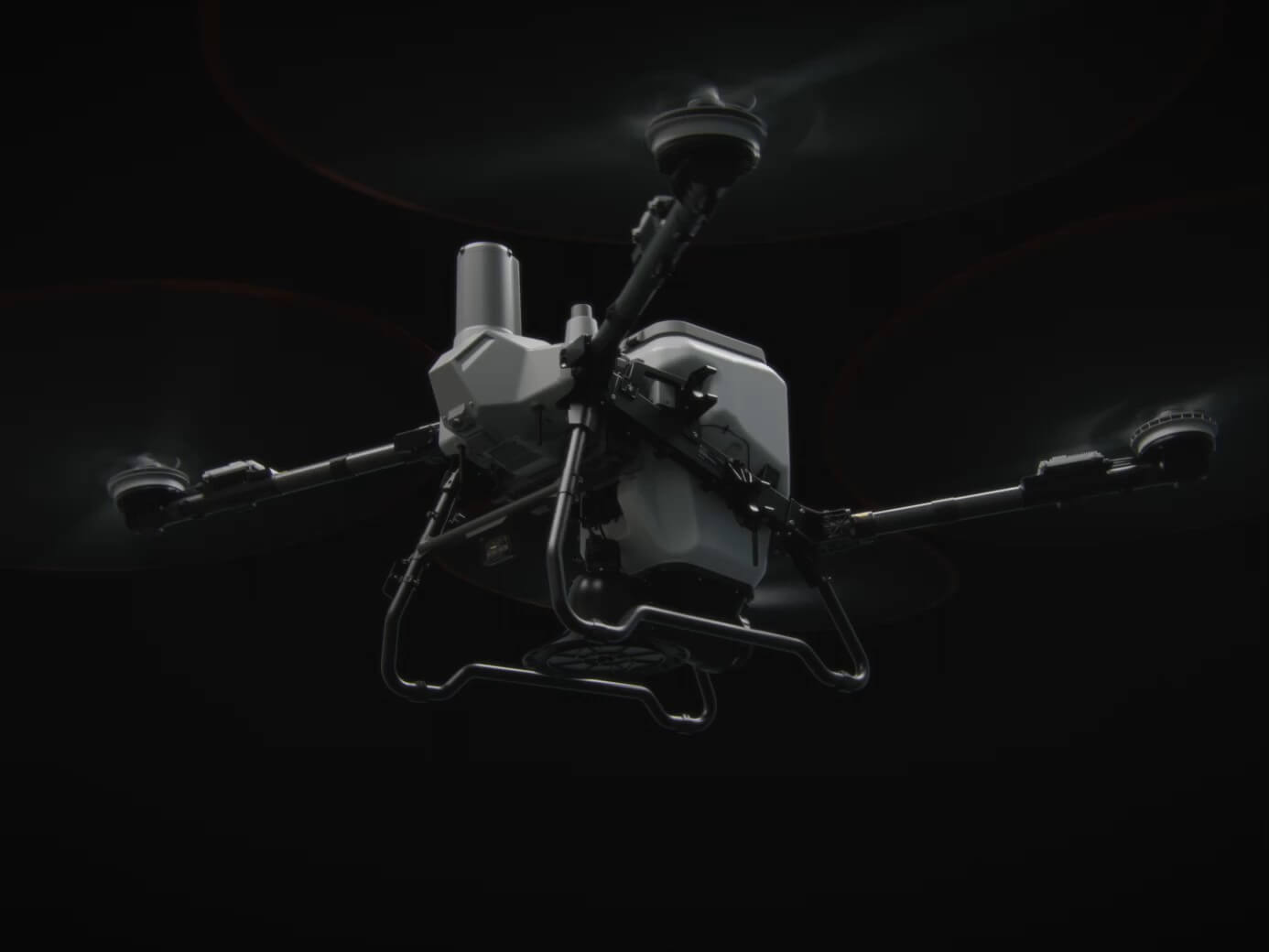

Large Capacity

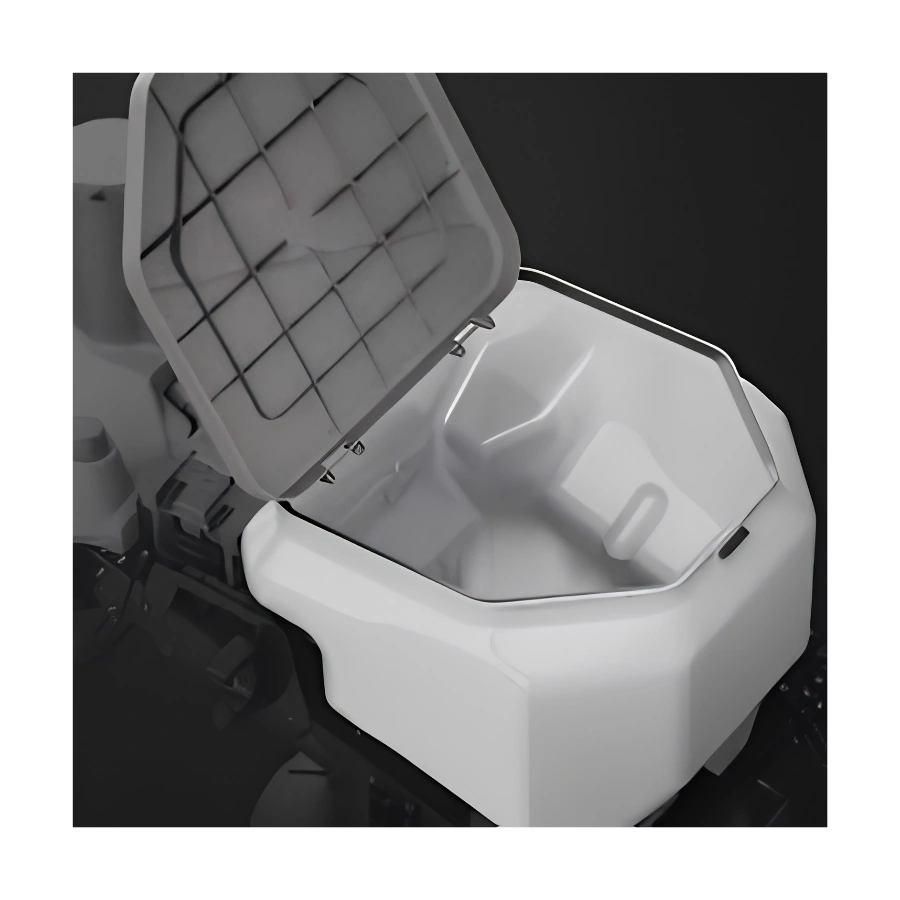

The 80 L high-capacity spreading tank meets the needs of operations on small and medium-sized plots.

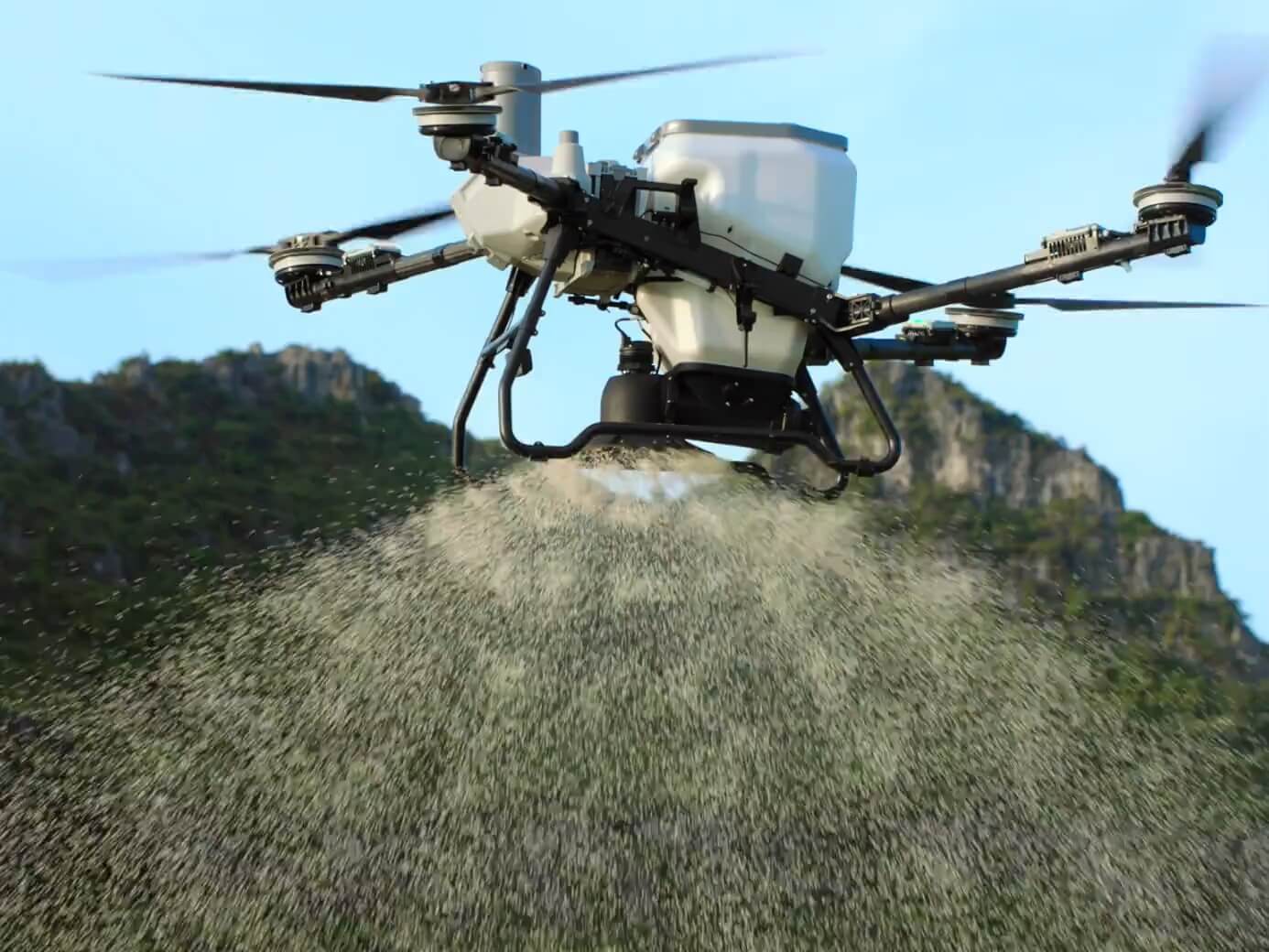

High Flow Rate
With a maximum flow rate of 400 kg/min, it delivers highly efficient fertilizer spreading.

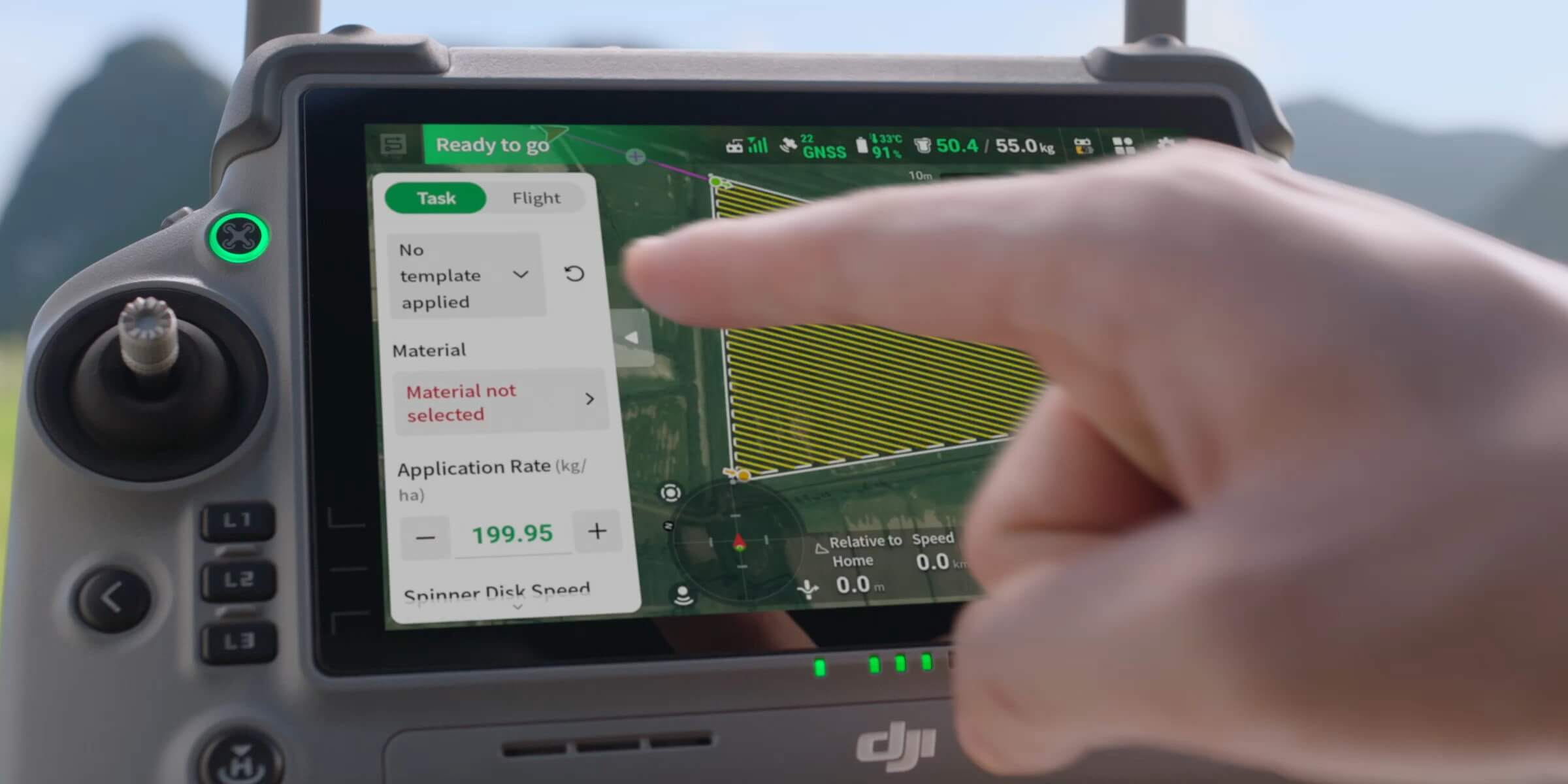

Precise Dosing, Efficient Spreading
One click loads material templates to reduce preparation time. During operation, the system automatically adjusts the spreading flow rate to precisely control application across the entire field.

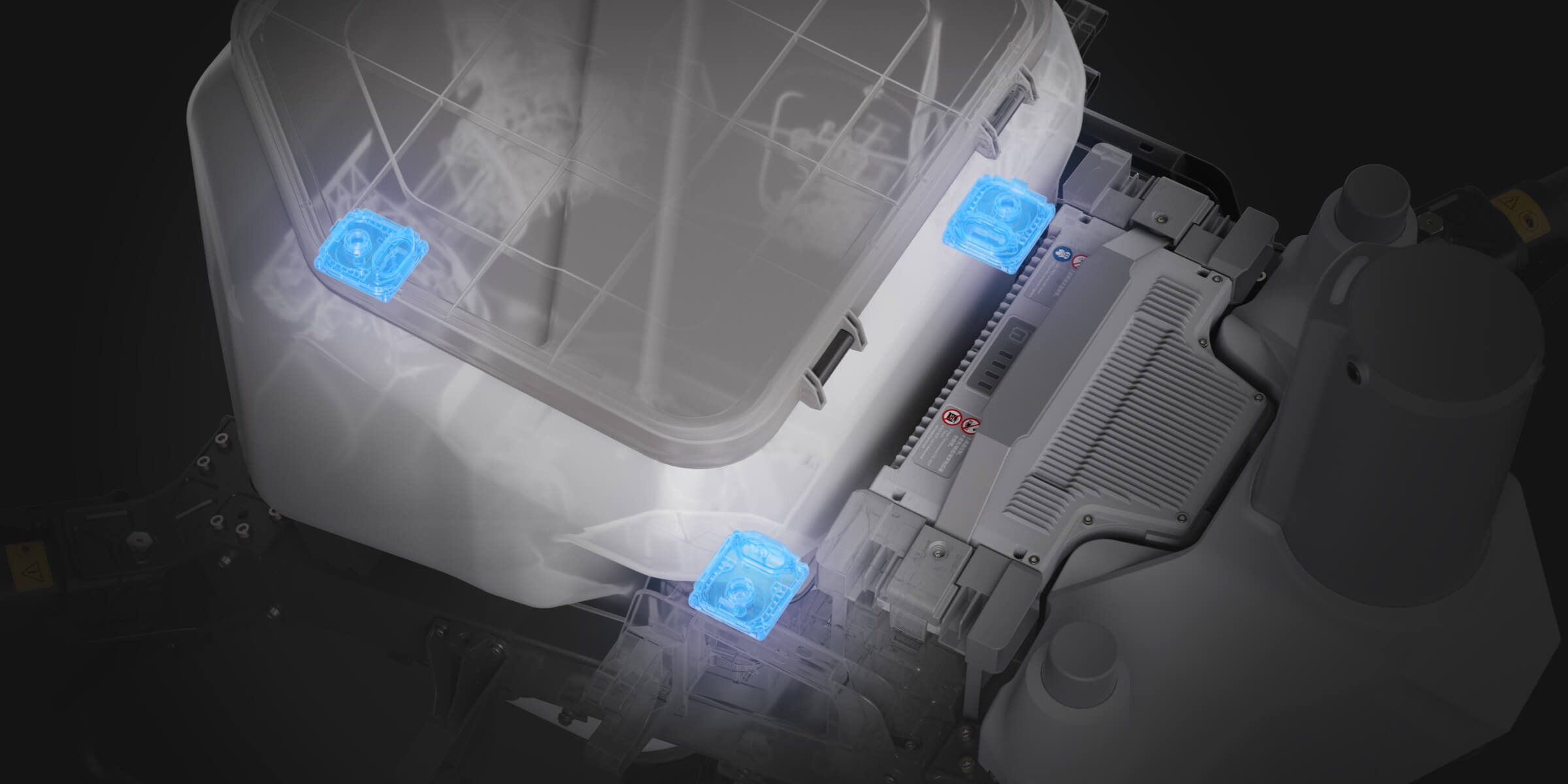

Provides a real-time, accurate display of remaining material, allowing precise refilling and helping reduce waste.
Ensures uniform spreading across the entire flow range with excellent results. Features a stainless steel construction for durability and strength.

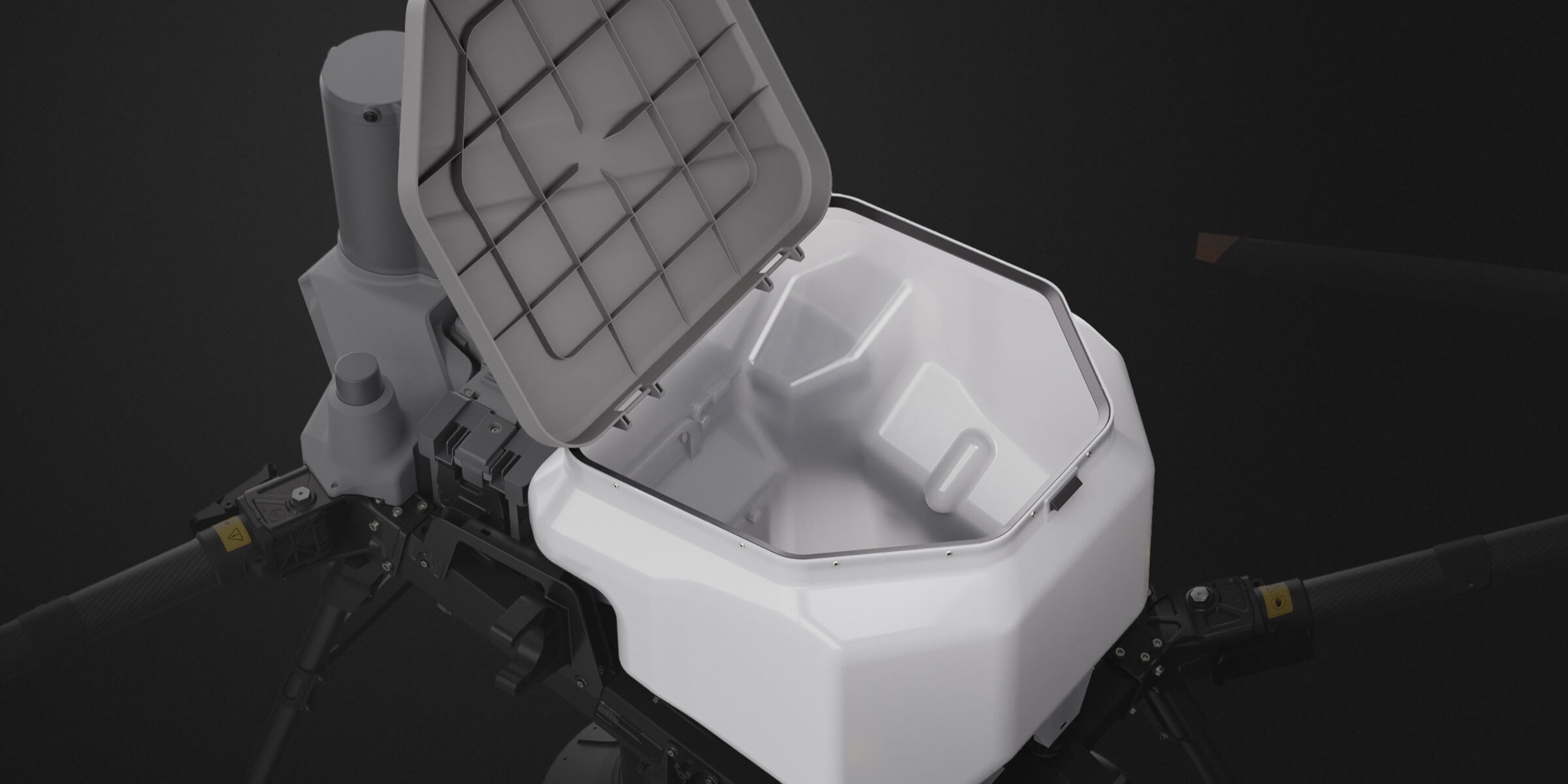

Makes bulk loading easy and convenient.

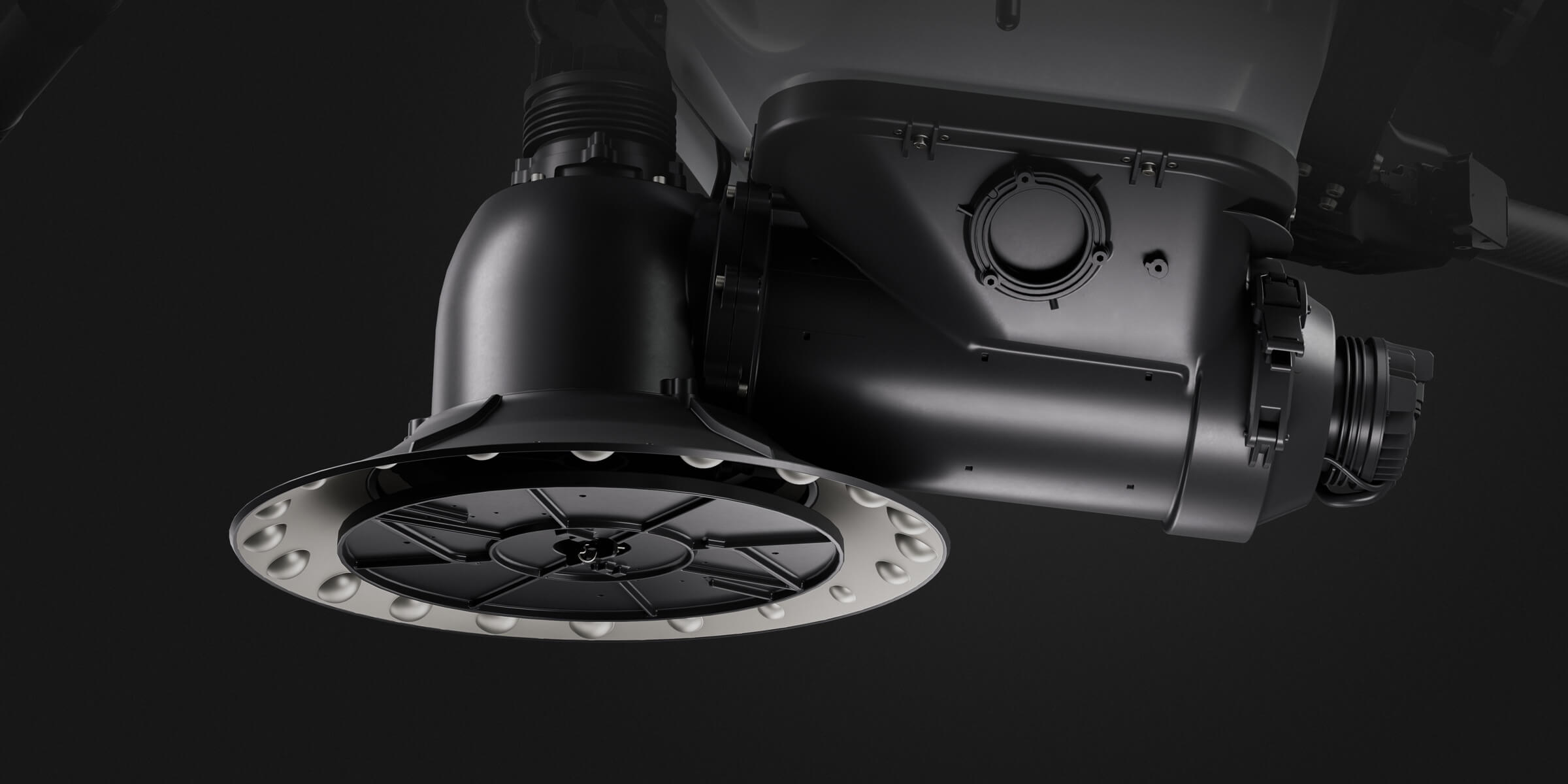

An optimized chamber design, paired with a high-torque motor, helps prevent clogging and leakage.

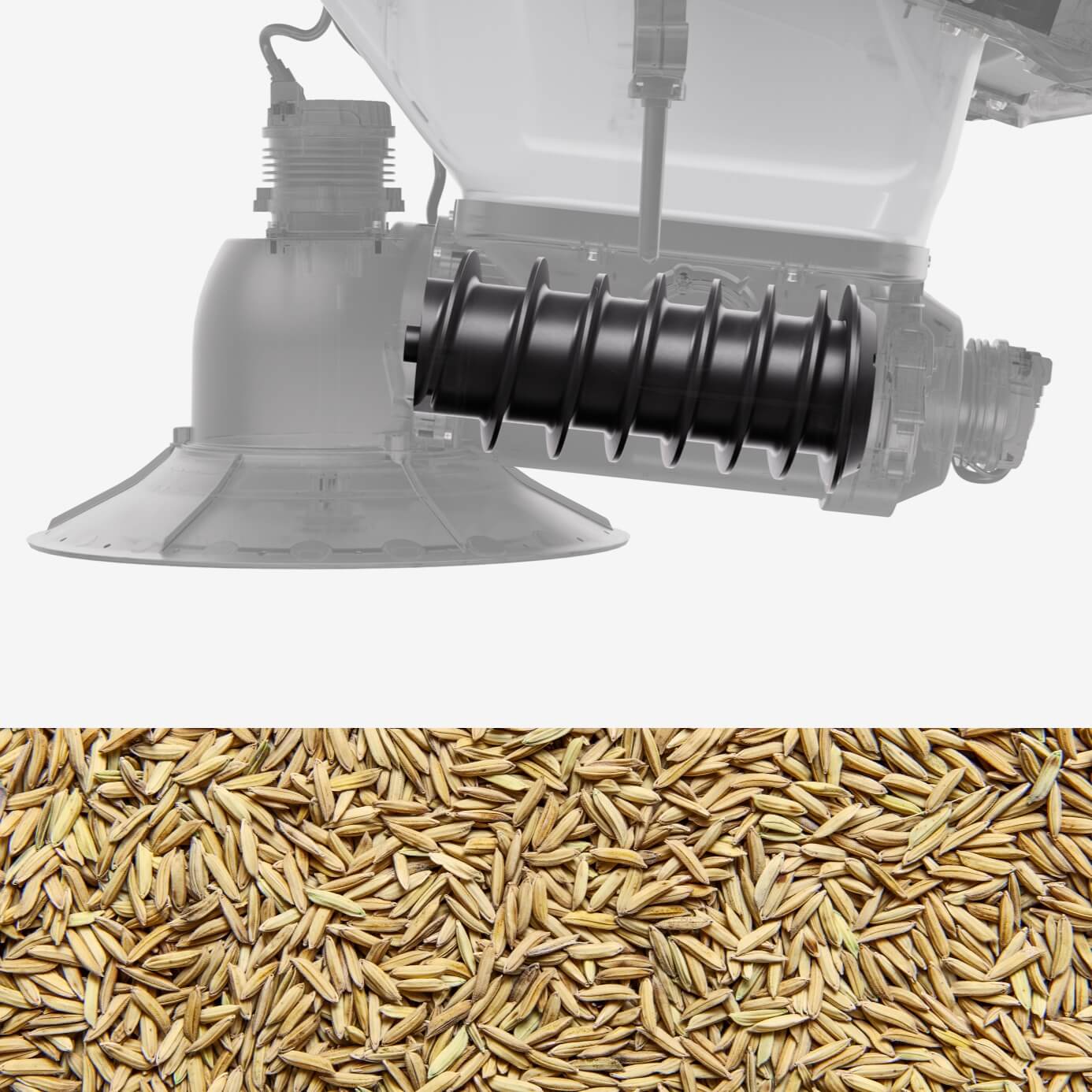

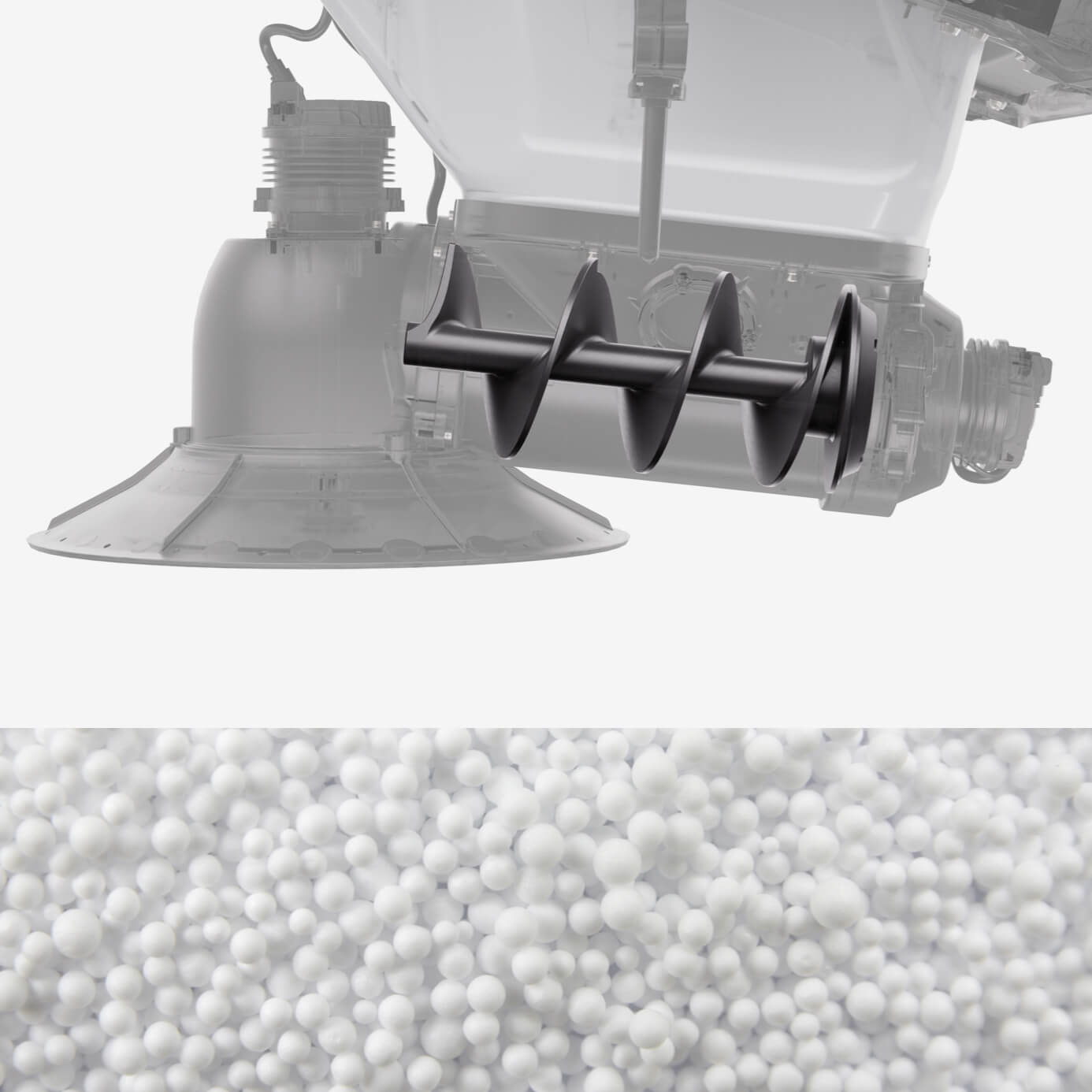

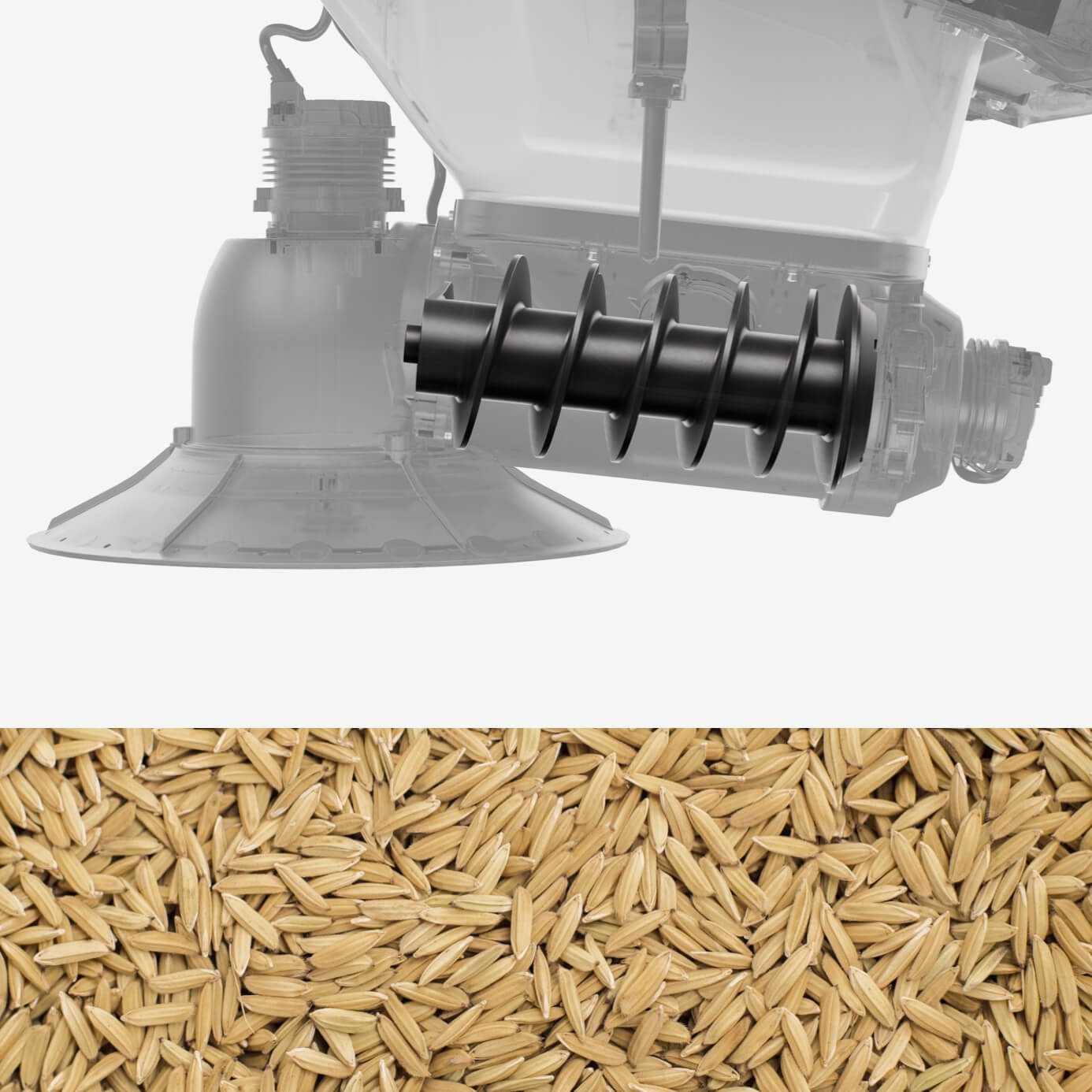

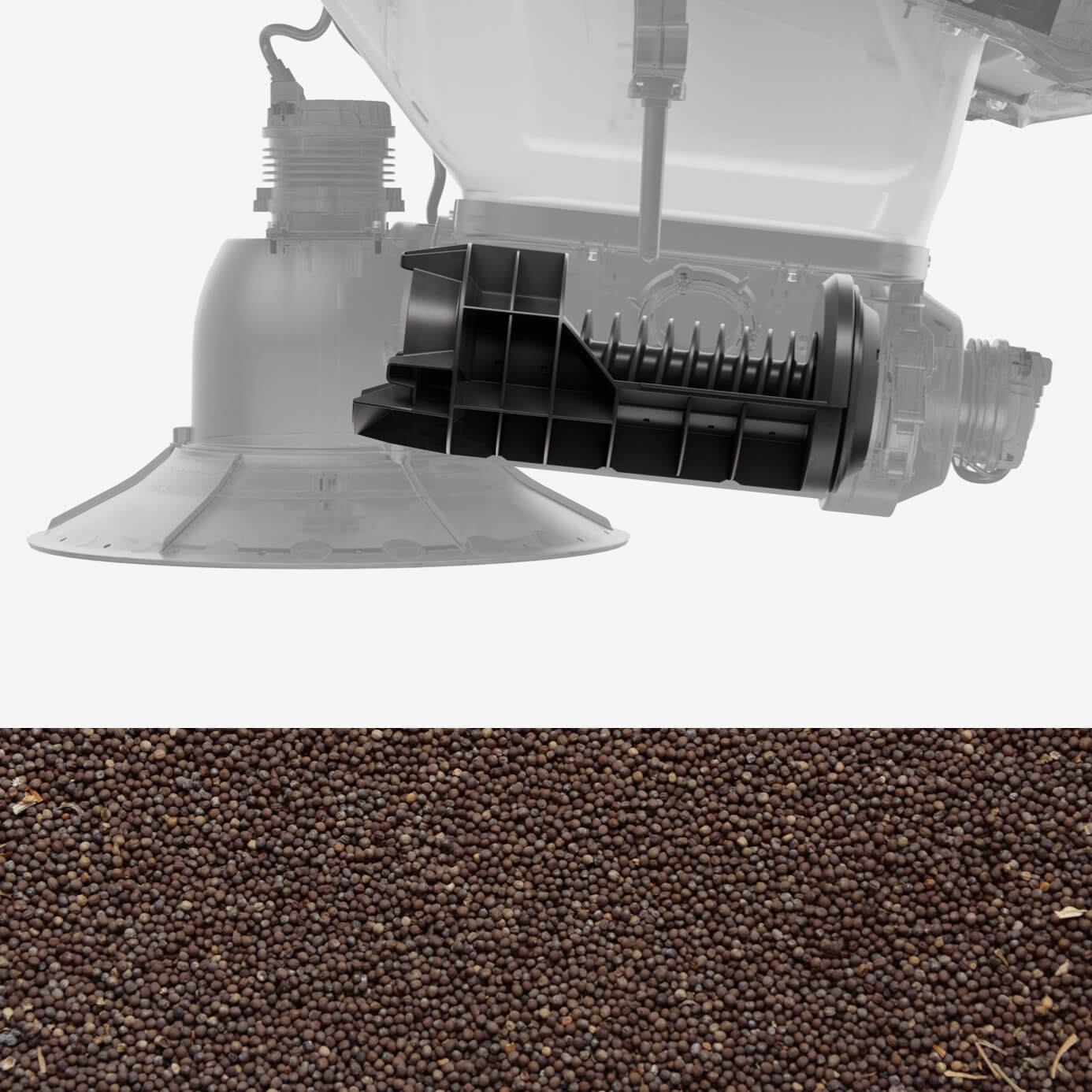

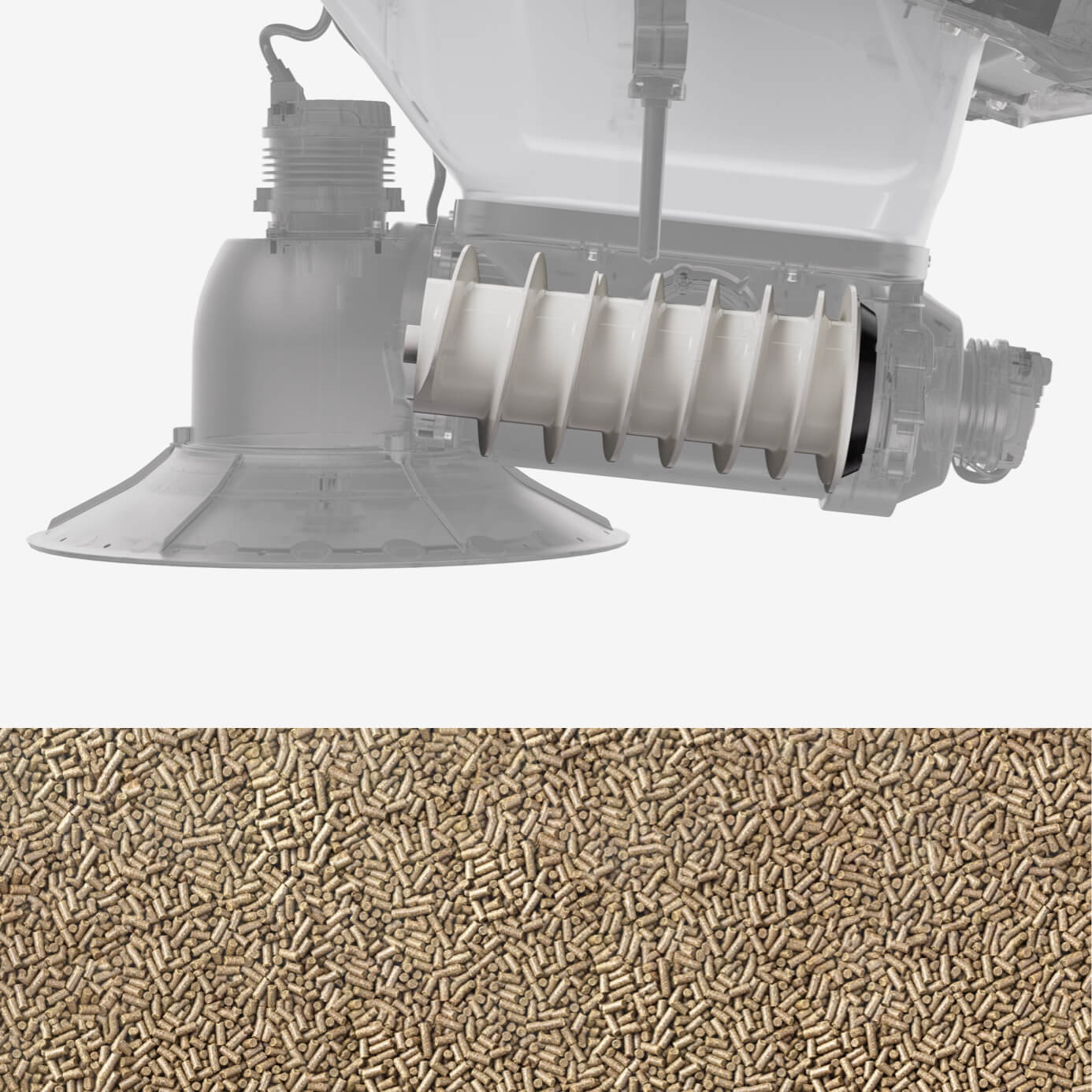

Five Feeder Types
Supports five interchangeable feeder sizes for more precise flow and greater adaptability across seeding, fertilizing, and feeding.
Recommended application rate: 75–750 kg per hectare.
Recommended particle size: 0.5–10 mm
Recommended application rate: 75–270 kg per hectare.
Recommended particle size: 4–10 mm
Recommended application rate: 22.5–120 kg per hectare.
Recommended particle size: 4–6 mm
Recommended application rate: 22.5–120 kg per hectare.
Recommended particle size: 0.5–2 mm
Recommended application rate: 3–22.5 kg per hectare.
Recommended particle size: 0.5–4 mm

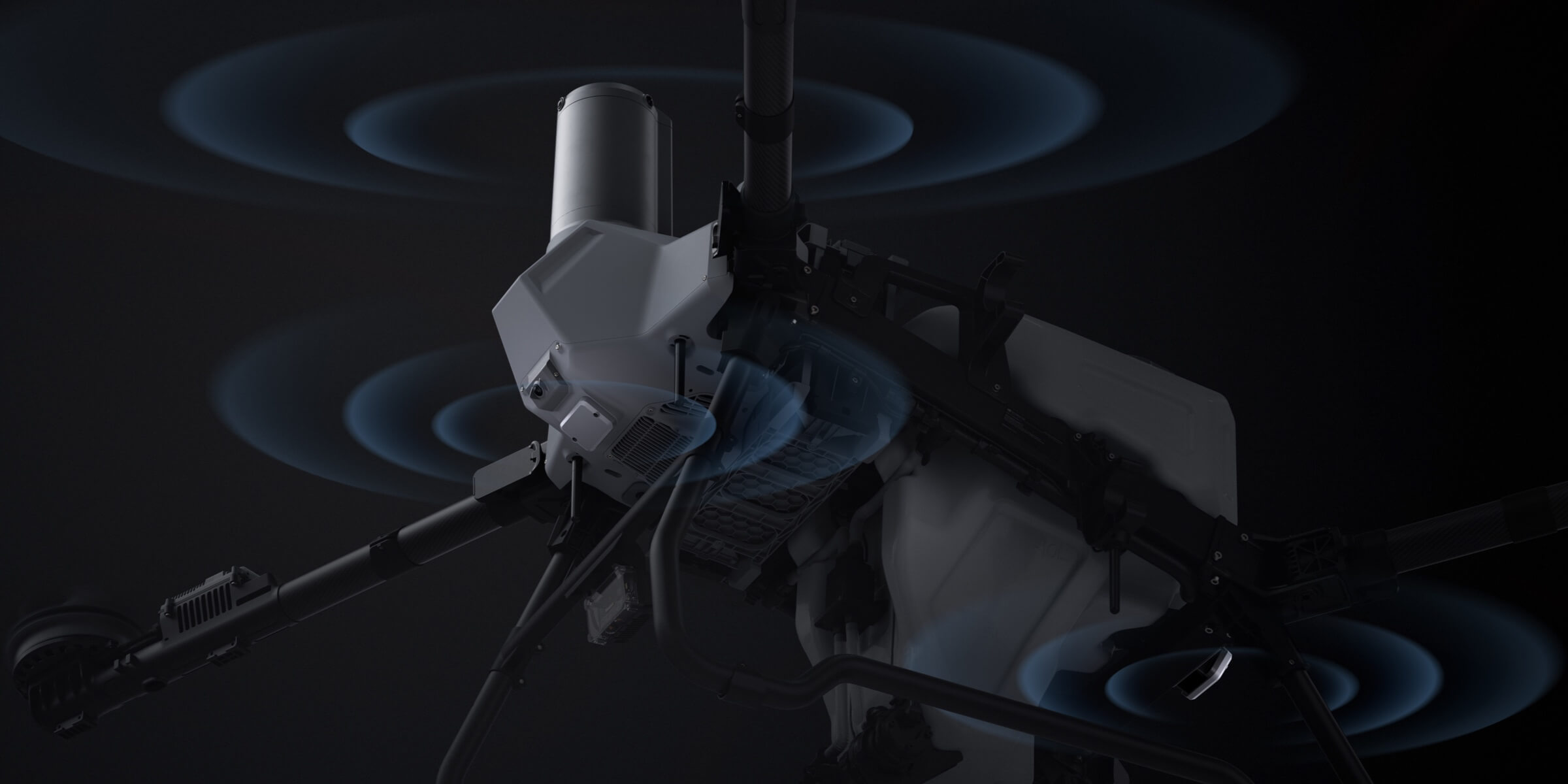

More Precise Obstacle Detection
The all-new millimeter-wave radar delivers a point cloud density of up to 250,000 points per second for more precise obstacle detection. With upgraded hardware and algorithms, it also ensures reliable operation in rain and fog.

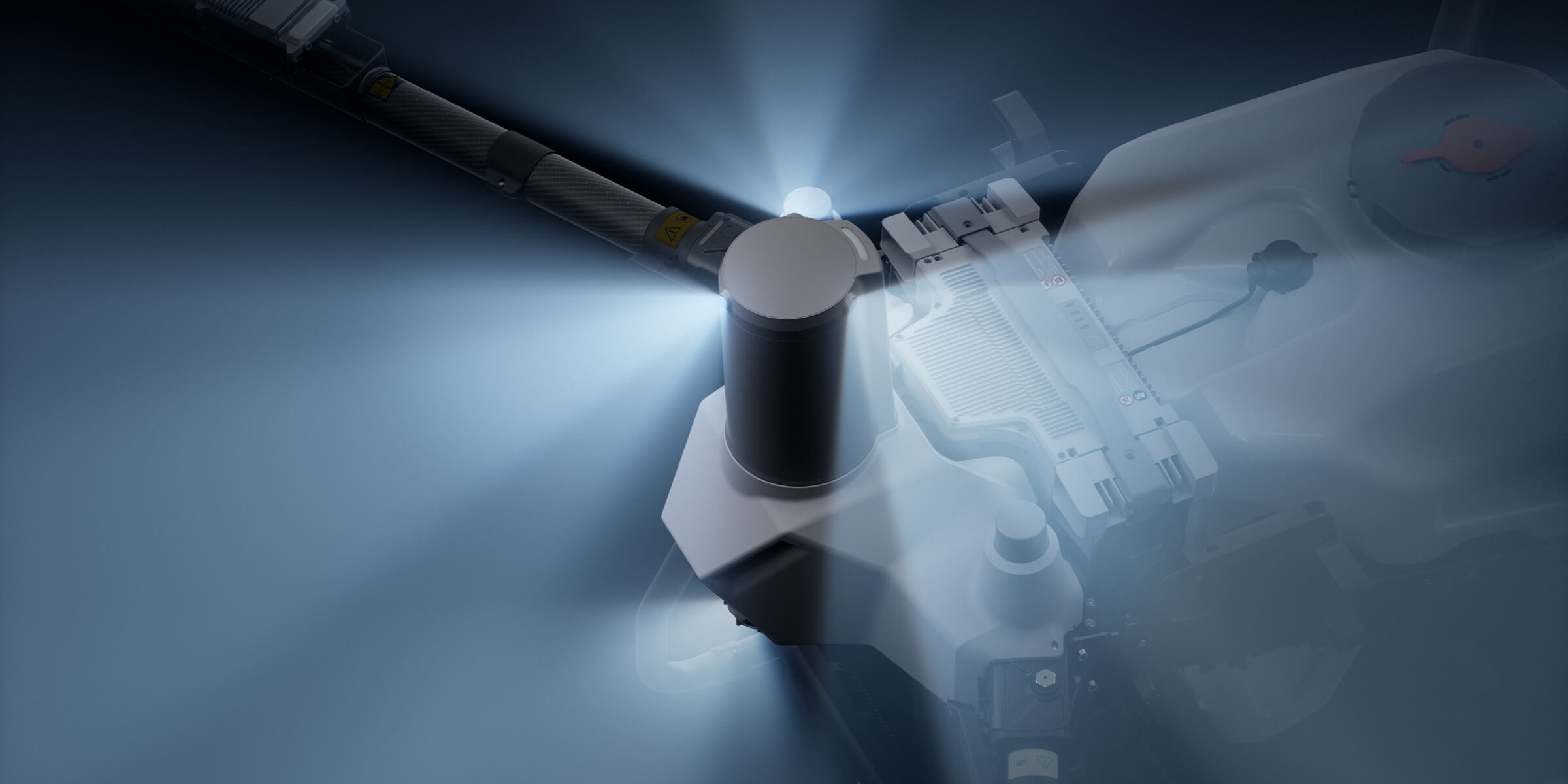

A Broader View
The all-new quad-vision system combines three top-mounted cameras with a low-light full-color FPV camera, helping pilots view scenes in front, behind, to the left, to the right, and below the drone.

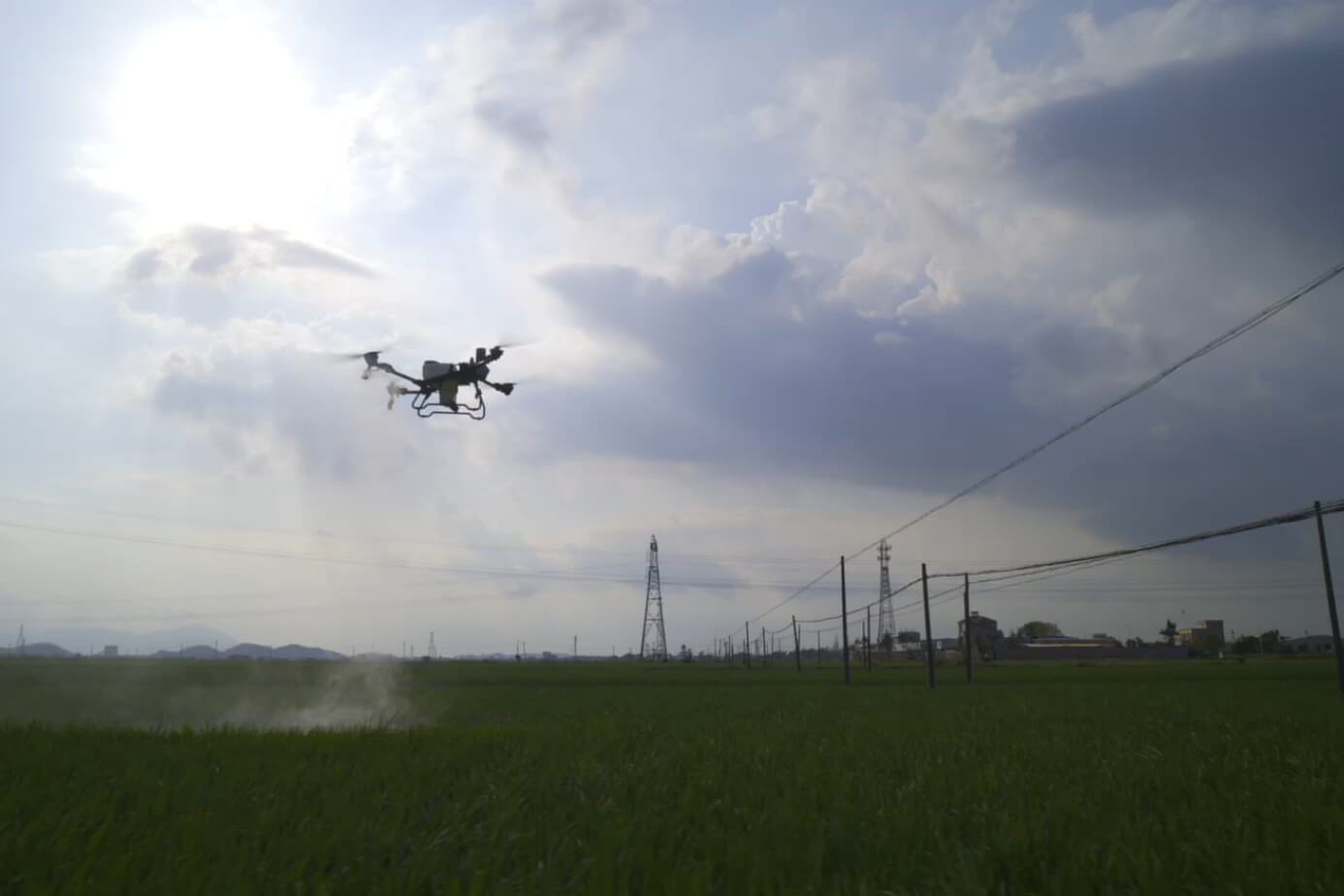

Smoother Obstacle Bypassing
It accurately detects and bypasses obstacles such as power lines. In complex scenarios, it can also proactively find a new path around obstacles[1].
Safer With Every Flight
During flight, the system can automatically detect obstacles such as power lines and utility poles, and save them to field information for safer, smoother flights later on[1].

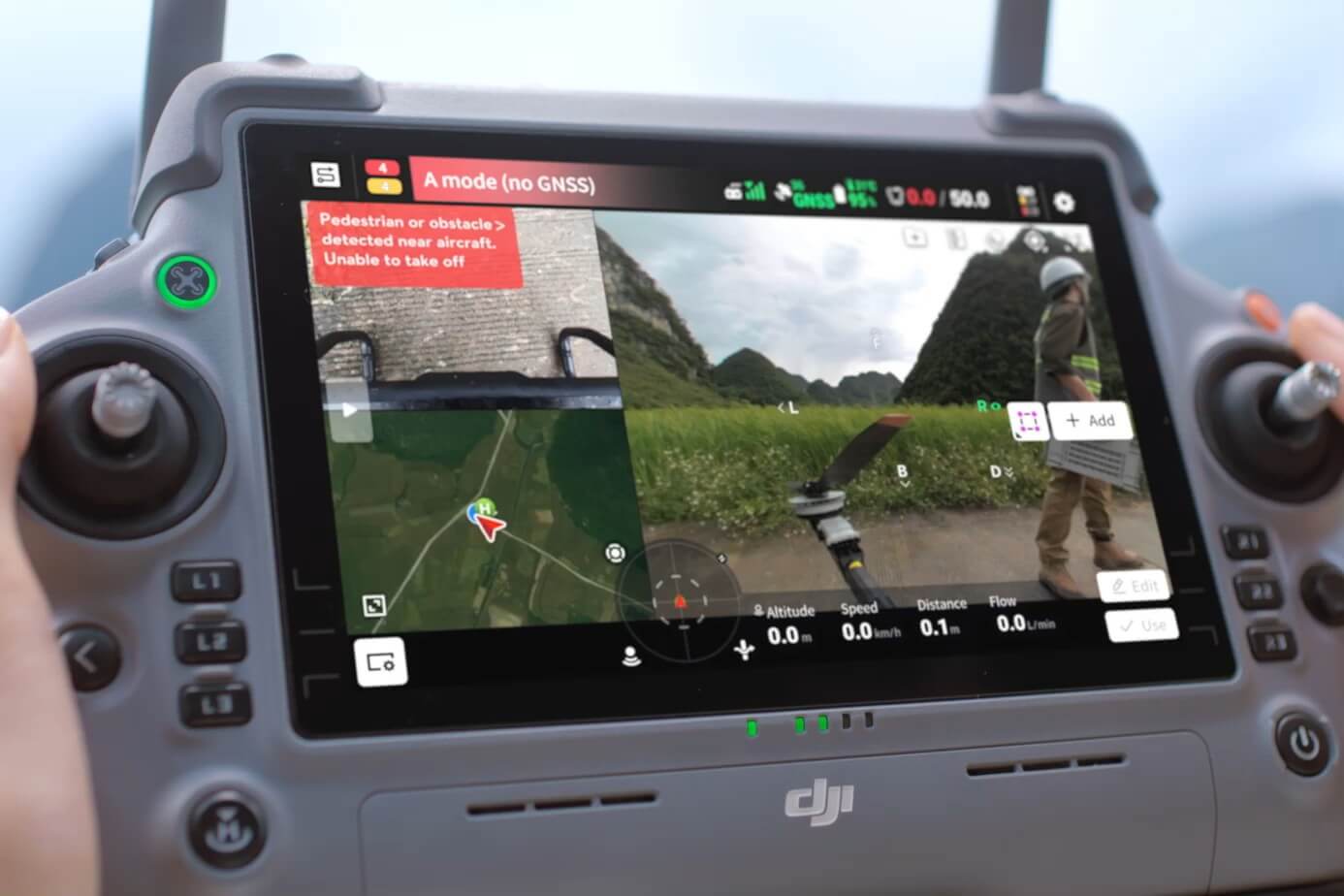

AR Enhanced Display
Multi-directional auxiliary views and the main FPV view provide pilots with a more comprehensive view, all with AR-enhanced display features that clearly display field boundaries, obstacles, breakpoints, and more[5].
Steady Lifting, Safer Handling
The Agras T55 Lift System supports a lifting payload of 40 kg and features Cargo Obstacle Avoidance[5] and Emergency Cable Release. Equipped with a Triaxial Force Sensor as standard, it enables Auto Balance Control and Automatic Weighing for stable and safe lifting.
The all-new Cargo Obstacle Avoidance algorithm slows the drone in advance based on obstacle positions during flight, reducing the risk of entanglement and improving safety[1].
The all-new Lever-action Emergency Cable Release can complete release in just 3 seconds, helping resolve risky situations quickly. The cable can also be conveniently reinstalled for repeated use.
Using a triaxial force sensor to detect the cargo's swing direction and angle, the drone automatically adjusts its posture to reduce swinging. This makes lifting easier to handle, speeds up unloading, and reduces the risk of cargo striking the drone body.
The cargo weight will be displayed and easy to find, and can cumulate lifting weight for easier settlement.
Seamless Signal Stability
O4 video transmission helps keep the signal stable for smooth operations in challenging signal conditions.
Cooling During Flight,
Built for the Heat

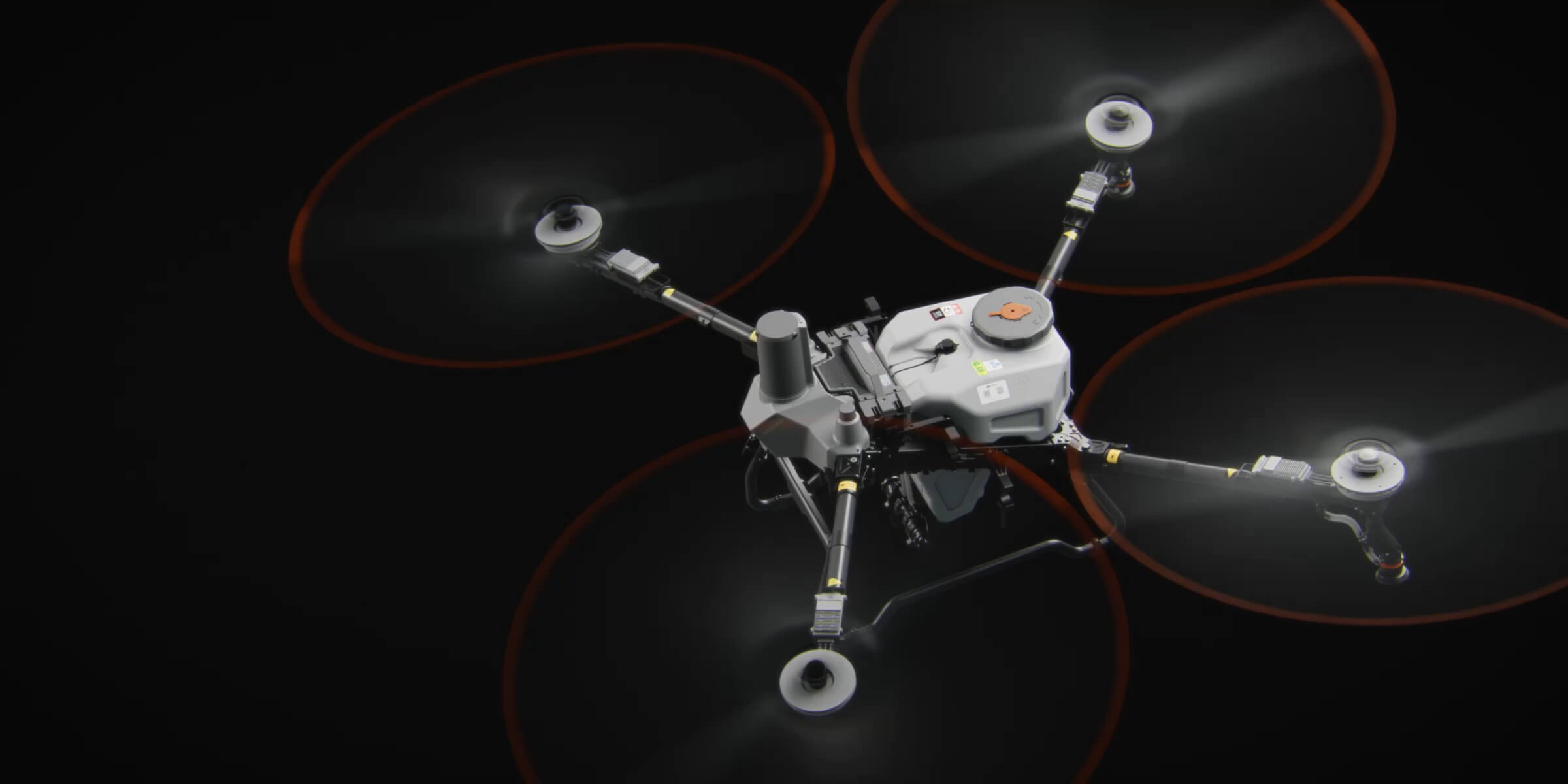

Onboard Battery Heat Sink
The innovative Onboard Battery Heat Sink features a built-in air-cooled system and a new battery cooling air duct to enable cooling during flight. Combined with a ground-based air-cooled heat sink, it ensures continuous operation without overheating.
Multiple Charging Options
DB1050 Intelligent Flight Battery
20 Ah Ultra-Fast Charging Weight: 8.3 kg Ergonomic handle
DB1580 Intelligent Flight Battery
30 Ah Ultra-Fast Charging Weight: 11.7 kg Ergonomic handle Compatible with the D14000iE Multifunctional Inverter Generator and C12000 Intelligent Power Supply
D8000iE Multifunctional Inverter Generator
15% more fuel-efficient power generation[7] 6500 W fast charging[8] 48 V / 500 W DC output 1.8 m charging cable
C7000 Intelligent Power Supply
Three-phase power input 7000 W fast charging[8] Adaptive power protection 1.8 m charging cable
C10000 Intelligent Power Supply
Single-phase power input 9000 W fast charging[8] Adaptive power protection 1.5 m charging cable
Specs
| Aircraft | |
| Weight (with battery) |
45 kg (standard configuration: two nozzles, 50 L tank, and DB1050 battery) 48.4 kg (standard configuration: two nozzles, 50 L tank, and DB1580 battery) |
| Max Takeoff Weight |
With DB1050 battery installed: Maximum spraying takeoff weight: 95 kg (standard with 2 spray nozzles) Maximum spraying takeoff weight: 99 kg (with optional 4-nozzle setup) Maximum spreading takeoff weight: 104 kg (with spreading system installed) Maximum hoisting takeoff weight: 84 kg (with hoisting system installed) With DB1580 battery installed: Maximum spraying takeoff weight: 99 kg (standard with 2 nozzles) Maximum spraying takeoff weight: 103 kg (with optional 4 nozzles) Maximum spreading takeoff weight: 108 kg (with spreading system installed) Maximum hoisting takeoff weight: 89 kg (with hoisting system installed) |
| Maximum Wheelbase (Diagonals Wheelbase) | 2415 mm (Diagonals Wheelbase) |
| Dimensions |
Frame arm unfolded, propellers unfolded: 3190 mm × 3570 mm × 934 mm; Frame arm unfold, propellers folded: 1800 mm × 2170 mm × 934 mm; Frame arm folded, propellers folded: 1120 mm × 896 mm × 934 mm; |
| Hovering Accuracy Range (with strong GNSS signal) |
RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical) RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical) |
| Max Configurable Flight Radius | 2 km |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Max Wind Speed Resistance | 6 m/s |
| Propulsion system - Motors | |
| Stator dimensions | 155 × 16 mm |
| KV | 55 rpm/V |
| Propulsion system - Propeller | |
| Material | Carbon Fiber Composite |
| Dimensions | 62 inches |
| Quantity | 4 pairs |
| Spraying system - Spray tank | |
| Material | HDPE |
| Volume | 50 L |
| Operating Payload | 50 kg |
| Spraying system - Sprinklers | |
| Model | LX09050DX (standard centrifugal nozzle) / LX09510DX (optional mist nozzle) |
| Quantity | 2 (standard) / 4 (optional) |
| Nozzle Distance | 1800 mm (Standard Two Nozzles) |
| Droplet size | 50 - 500 μm |
| Effective spray width | 4 - 11 m |
| Spraying system - Delivery Pumps | |
| Type | Impeller pump (Magnetic Drive) |
| Quantity | 2 |
| Maximum flow rate | 40 L/min (standard 2 nozzles), 50 L/min (optional 4 nozzles) |
| DS80L Spreading System | |
| Volume | 80 L |
| Operating Payload | 55 kg |
| Compatible Material Diameter |
Standard configuration: Extra-large auger: 0.5 mm–10 mm granules (fertilizer, wheat, feed, etc.) Medium auger: 4 mm–6 mm granules (rice) Optional: Large auger: 4 mm–10 mm granules (rice, fertilizer) Small and medium-sized auger: 0.5 mm–2 mm pellets (crayfish and prawn feed) Small auger: 0.5 mm–4 mm granules (rapeseed, granular herbicides, granular insecticides) |

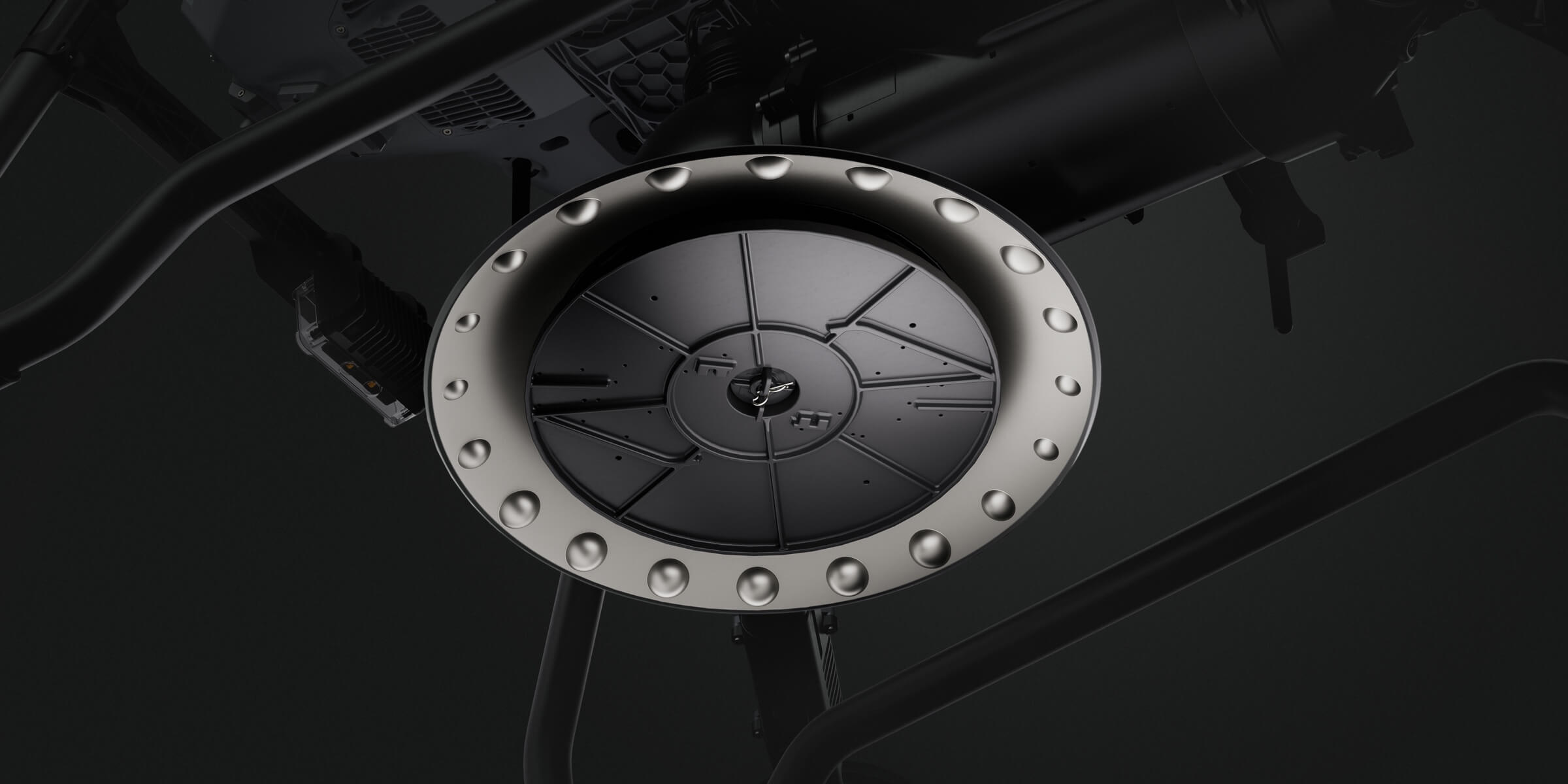

| Spreader structure type | Centrifugal Disc |
| Discharge structure type | Screw Feeder Feeding |
| Maximum discharge rate | 400 kg/min (compound fertilizer) |
| Effective spreading width | 3 - 10 m |
| DL100 lifting system | |
| Operating Payload | 40 kg |
| Lifting Cable Length | 10 m |
| Recommended cable length | 10–15 m |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Safety System | |
| Radar EIRP |
< 20 dBm (NCC / KC / CE / FCC) < 13 dBm (MIC) |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Operating Environment Requirements | Normal light intensity, rich Scene texture features, and no dirt. |
| Operating Power Consumption |
Front Radar: 36 W (peaking) Downward Vision Radar: 3.5 W (peaking) Rear Radar: 3.5 W (peaking) |
| Field of View (FOV) |
Front Radar: horizontal 360°, vertical ± 45° Top Radar: Left and Right ± 45°, Front and Back ± 45° Downward Radar: Left and Right ± 45°, Front and Back ± 45° Rear Radar: Left and Right ± 45°, Front and Back ± 45° Tri-vision system: horizontal 360°, vertical 180° FPV camera: 86° horizontal, 155° vertical |
| Measurement Range | 60 m |
| Effective safe obstacle Bypass speed | ≤ 13.8 m/s |
| Effective obstacle avoidance Height | ≥ 1.5 m |
| Safety distance | 2.5 m (distance from the obstacle after the aircraft brakes and stabilizes in Hover) |

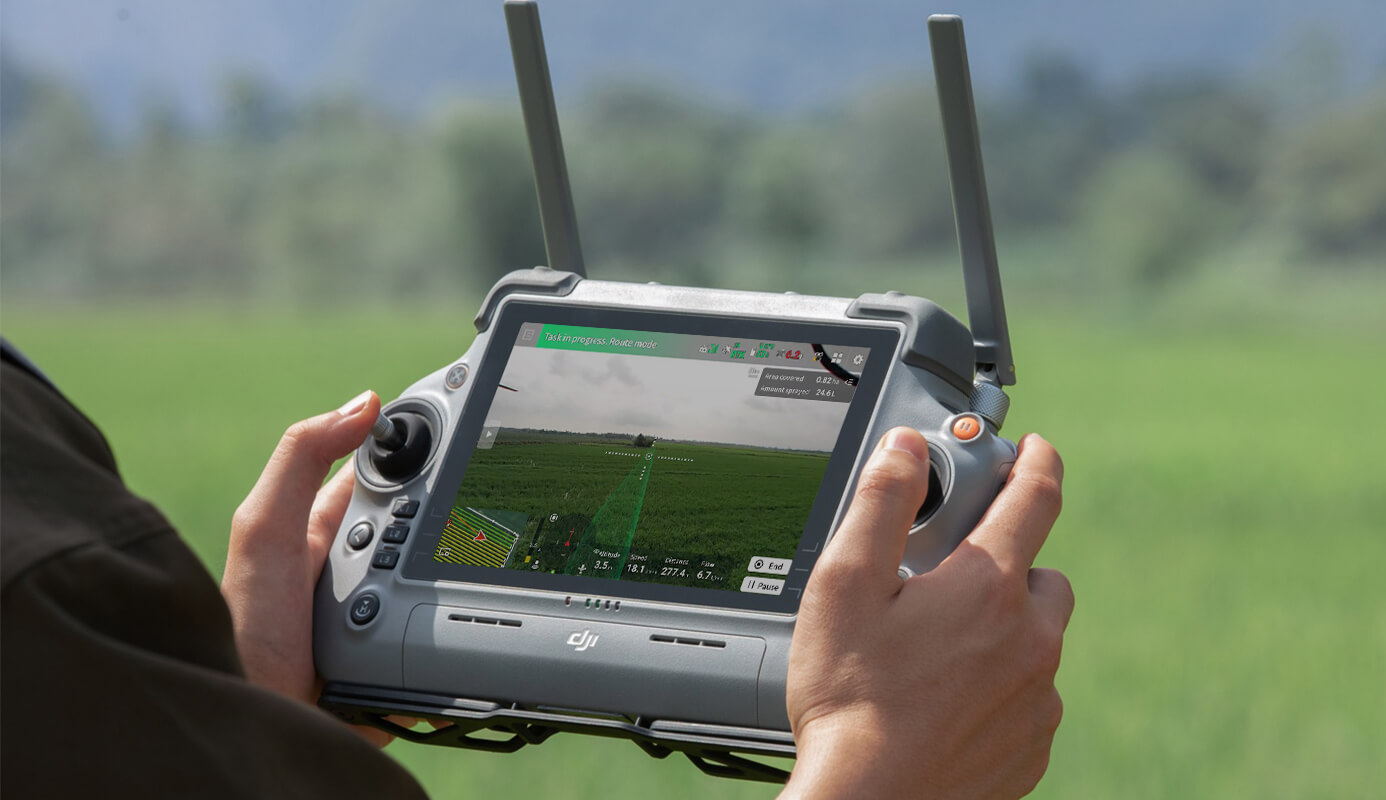

| DJI RC Plus 2 AG | |
| Model | TKPL 2 |
| Screen | 7-inch LCD touchscreen; Resolution: 1920 × 1200; LIGHTEN: 1,400 cd/m² |
| Storage Temperature |
Within one month: -30° to 45° C (-22° to 140° F) One to three months: -30° to 35° C (-22° to 113° F) Three months to one year: -30° to 30° C (-22° to 86° F) |
| Recharging Temperature | 5° to 40° C (41° to 104° F) |
| Internal Battery Runtime | 3.8 hours |
| External Battery Runtime | 3.2 hours |
| Charging Type | Use a USB-C Fast recharge charger with a Max Power output of 65 W (maximum voltage 20 V); the DJI Portable Charger is recommended. |
| Charging Time | 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger) |
| DB1050 Intelligent Flight Battery | |
| Weight | 8.3 ± 0.3 kg |
| Capacity | 20000 mAh |
| Voltage | 52.5 V |
| DB1580 Intelligent Flight Battery | |
| Weight | 11.7 ± 0.3 kg |
| Capacity | 30000 mAh |
| Voltage | 52 V |
| D8000iE Multifunctional Inverter Generator | |
| Output Channels |
1. DC recharge output 42–61.6 V/6500 W 2. Air-cooled radiator charge 12 V/6 A/4.5 A 3. DC output 48 V/500 W |
| Charging Time | 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% level) |
| Fuel tank capacity | 20 L |
| Starting method | One-button start |
| Operating Temperature | -20° to 40° C (-4° to 104° F) |
| Compatible Battery | DB1050 / DB1580 / DB2160 Intelligent Flight Battery |
| Dimensions | 452 mm × 566 mm × 600 mm |
| Weight | 46 ± 0.5 kg |
| Fuel type |
Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10% (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%) |
| Reference fuel consumption | 500 mL/kWh |
| Engine Oil Capacity | 0.8 L |
| Engine Oil Type | SN 15W-50 |
| C7000 Smart Charger | |
| Charger Model | CSX711-7000 |
| Dimensions | 460 mm × 160 mm × 80 mm |
| Weight | 8.5 kg |
| Input Voltage |
Single-phase 220 - 240 V Three-phase 380 - 480 V |
| Output Voltage | 50 - 62 V |
| Rated Output Current |
Single-phase 40 A Three-phase, 140 A |
| Rated Power |
7000 W (three-phase 380 V input) 2000 W (single-phase 220 V input) |
| Charging Time | 8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95% charge) |
| Protection Functions | Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protection functions |
| Operating Temperature | -20° to 40° C (-4° to 104° F) |
| Output Channels | 1 |
| Compatible Battery | DB1050 / DB1580 / DB2160 Intelligent Flight Battery |

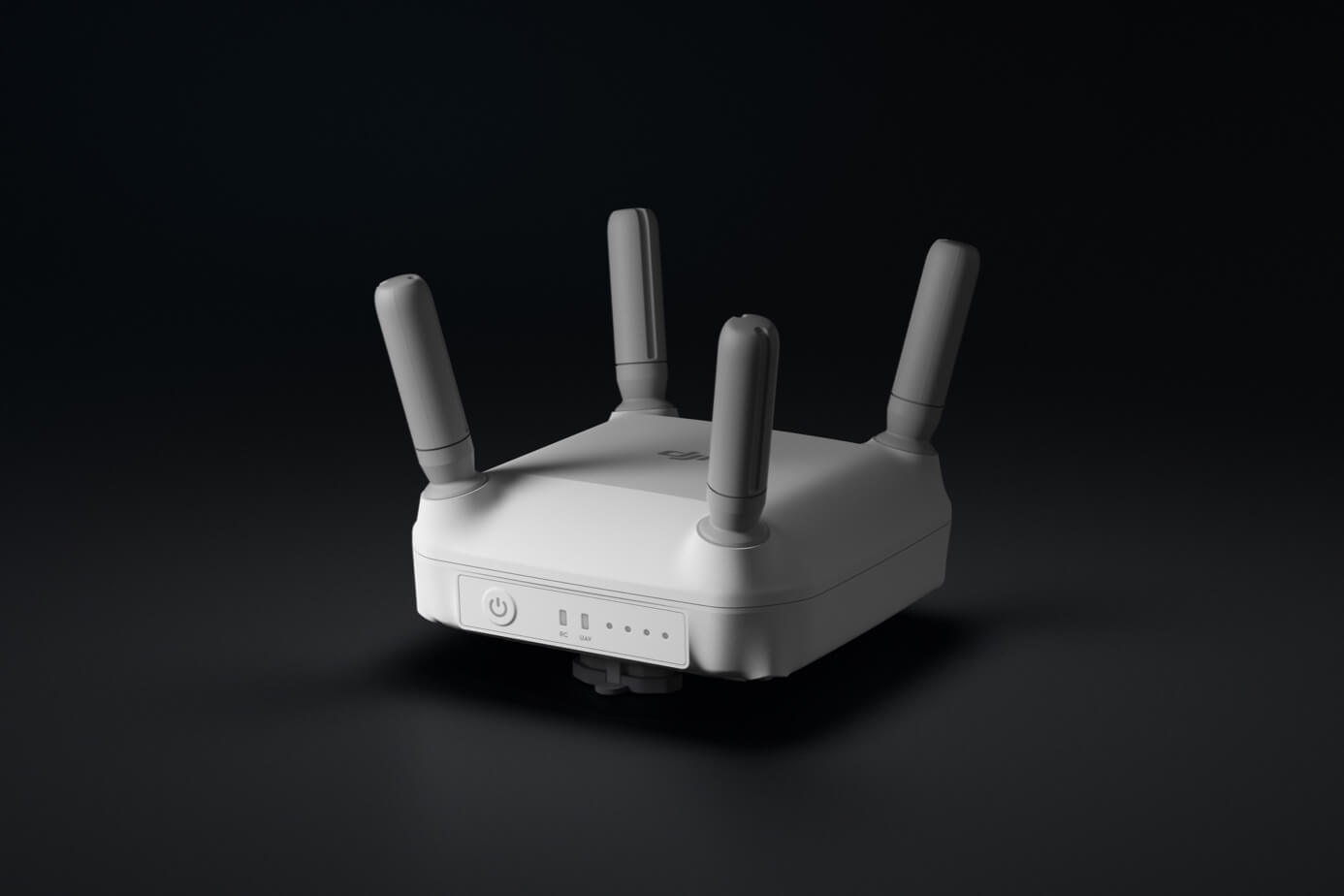

| Relay | |
| Model | RL0265 |
| Dimensions |
112 mm × 112 mm × 51 mm (no Antenna) 120 mm × 112 mm × 101 mm (with Antenna) |
| Weight | 630 g |
| Input Voltage | 2.7 V to 24 V |
| Power consumption | 10.48 W (FCC) |
| Total Capacity | 6500 mAh |
| Operating Time | 5 hours |
| Operating Frequency | 2.4000-2.4835 GHz, 5.170-5.250 GHz, 5.725-5.850 GHz |
| Signal range |
4 km (MIC/KCC/CE), 8 km (FCC) (in a None-interference, unobstructed environment, at a flight altitude of 2.5 m) |
| Charging Time | 2.5 hours (30 W recharge) |
| Ingress Protection Rating | IP55 |

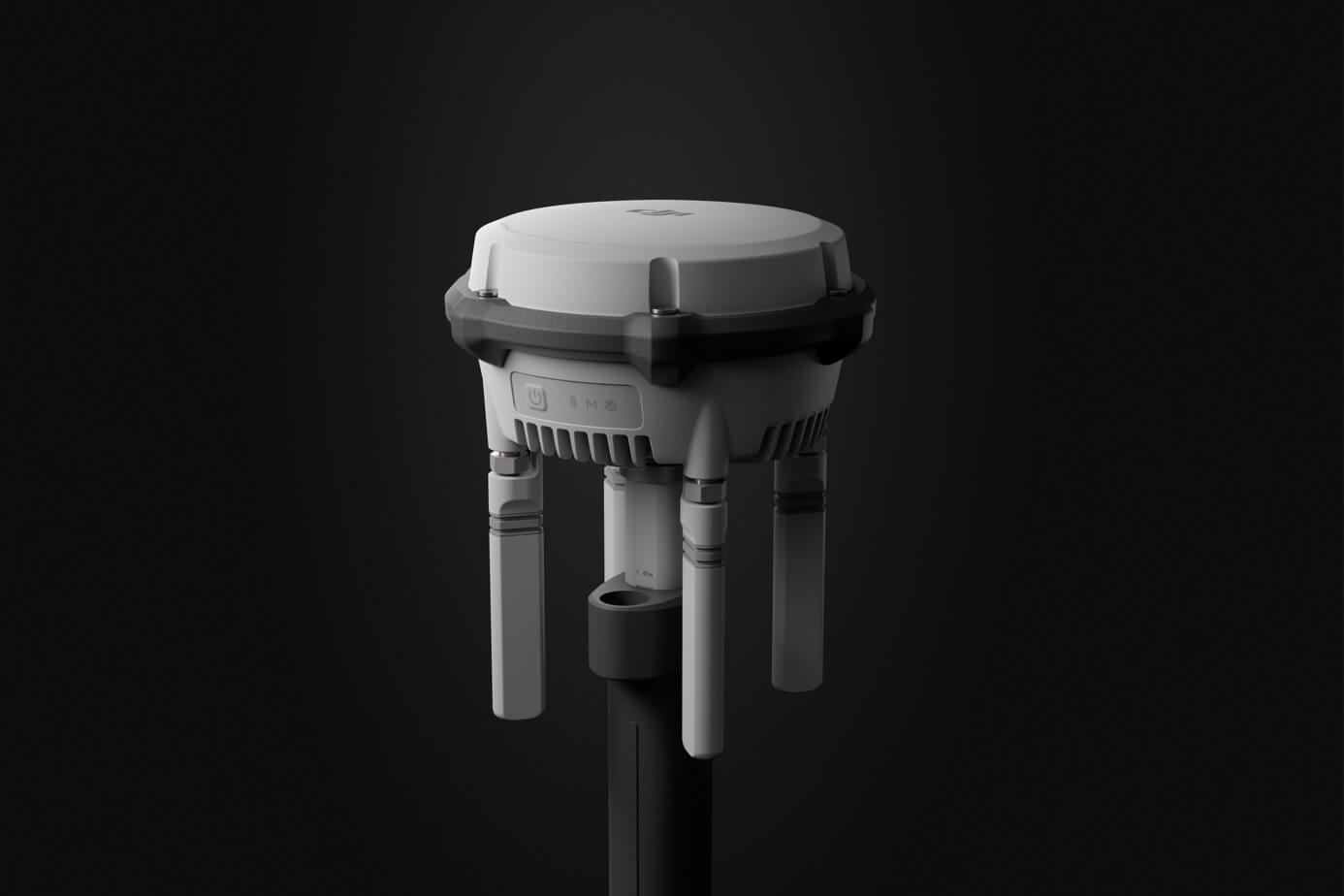

| D-RTK 3 AG | |
| Supports satellite systems |
GPS: L1/L2/L5 BeiDou: B1I/B2I/B3I/B1C/B2A/B2B Galileo: E1/E5a/E5b/E6 GLONASS: G1/G2 QZSS: L1CA/L2C/L5 L-BAND |
| Dimensions | 345 mm × 244 mm × 300 mm |
| Weight | 3.77 kg (including packaging) |
| Power consumption | 7 W |
| Total Capacity | 6500 mAh |
| Operating Time | 7 hours |
| Operating Frequency |
Broadcast mode: O4: 2.4 GHz/5.8 GHz |
| Signal range |
FCC: 15 km CE/JP: 8 km |
| Charging Time | 2.5 hours (30W recharge) |
| Ingress Protection Rating | IP67 |
| Positioning Accuracy |
PPP satellite-based service accuracy: Convergence Time: 20 minutes Horizontal: 30 cm (RMS) Elevation: 40 cm (RMS) Network RTK Calibration: Horizontal: 0.8 cm + 1 ppm (RMS) Vertical: 1.5 cm + 1 ppm (RMS) 1 ppm: For every additional 1 km between the aircraft and the base station, accuracy decreases by 1 mm. For example, if the aircraft is 1 km from the base station, the accuracy is 1.1 cm. |
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Common Questions About the AGRAS T55
What operations can the DJI AGRAS T55 perform?
The AGRAS T55 supports three agricultural operations from a single aircraft: spraying (50 L tank, up to 50 L/min with mist nozzles, 4–11 m effective spray width), spreading with the DS80L system (55 kg payload, up to 400 kg/min, 3–10 m width), and lifting with the DL100 system (40 kg payload, 10 m cable, Auto Balance Control and Emergency Cable Release).
Does the T55 require an aerial mapping mission before flying a field?
No. The AGRAS T55 features Terrain Following Without Aerial Mapping. Its downward radar and vision system continuously measure ground clearance and adjust altitude in real time. Operators simply fly once around the field boundary to generate the operation area, then the drone executes automatically — no pre-flight survey required.
How does the T55's obstacle detection system work?
The T55 uses an all-new millimeter-wave radar generating up to 250,000 point-cloud data points per second for high-density obstacle mapping, operating reliably in rain and fog. Detected obstacles are logged in memory so the drone avoids them automatically on future flights in the same field — the safety system improves mission by mission. Effective bypass speed is up to 13.8 m/s with a 2.5 m safety brake distance.
How quickly does the T55 battery recharge?
The DB1050 (20000 mAh) charges from 30% to 95% in just 8–9 minutes using the C7000 Smart Charger at 7000 W (three-phase) or the D8000iE field generator. The DB1580 (30000 mAh) is also supported. The DJI RC Plus 2 AG controller charges fully in 2 hours via USB-C (max 65 W).
What granular materials can the DS80L Spreading System handle?
The DS80L handles granules from 0.5 mm to 10 mm depending on the auger fitted — compound fertiliser, wheat, and feed (extra-large auger 0.5–10 mm), rice (medium auger 4–6 mm), rapeseed and granular herbicides (small auger 0.5–4 mm), and crayfish/prawn feed pellets (small-medium auger 0.5–2 mm). This covers grain, horticulture, and aquaculture applications from one platform.
