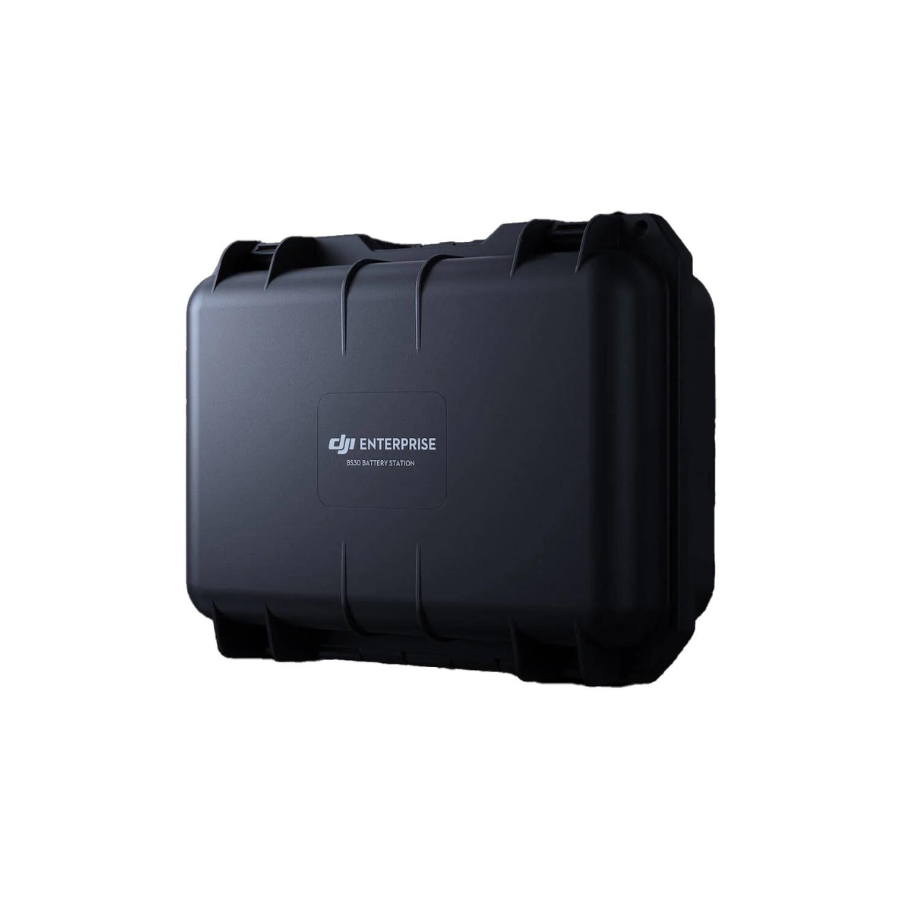

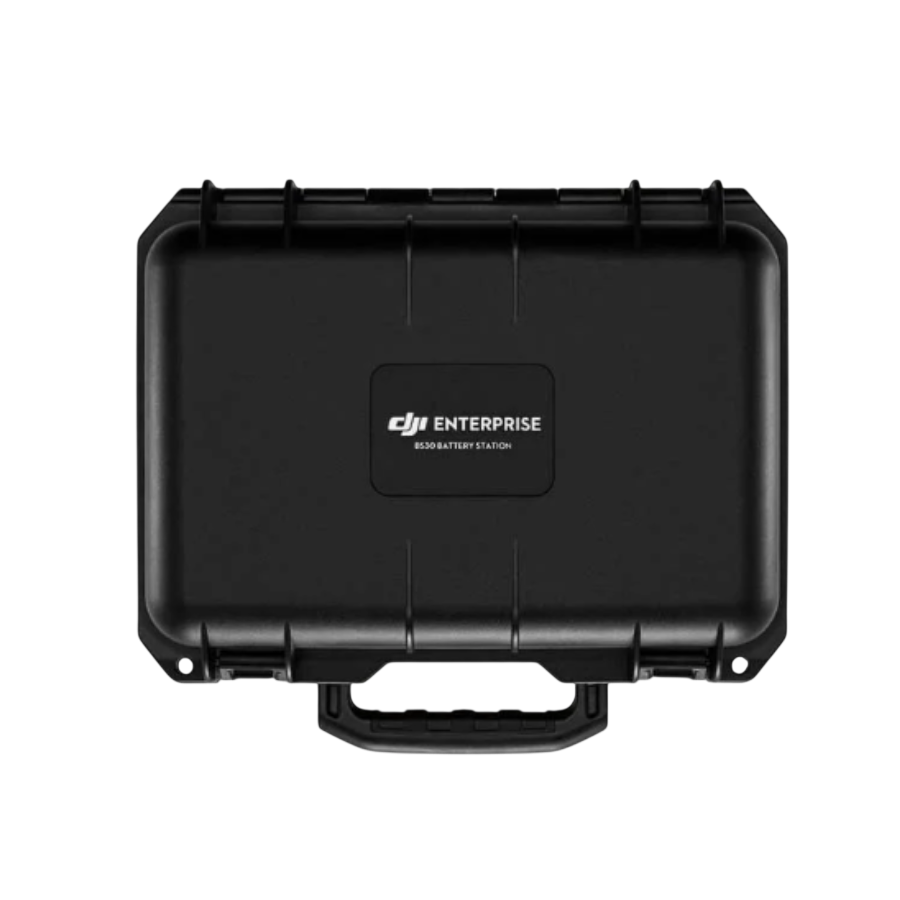

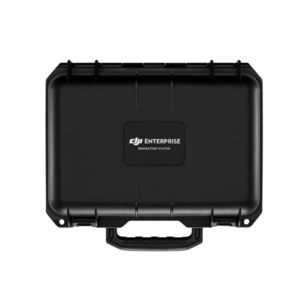

BS30 Battery Station for DJI M30
The new fast-charging BS30 charging case allows quick battery charging for 4 pairs of TB30 batteries from 20% to 90% in 30 minutes.
DJI M30’s self-heating TB30 battery design allows fast charging and can support at least 400 charge cycles and allows a 41-minute flight time for the new Matrice 30 Drone.
|Net Weight||3.95 kg|
|Compatible Battery Type||TB30 Intelligent Flight Battery WB37 Intelligent Battery|
|Input||100-240 VAC, 50/60 Hz|
|Output||TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery: 8.7 V, 6 A|
|Output Power||525 W|
|USB-C port||Max. output power of 65 W|
|USB-A port||Max. output power of 10 W (5 V, 2 A)|
|Power Consumption (when not charging battery)||< 8 W|
|Output Power (when warming up battery)||Approx. 30 W|
|Operating Temperature||-20° to 40° C (-4° to 104° F)|
|Ingress Protection Rating||IP55 (with the cover closed properly)|
|Charging Time||Approx. 30 min (charging two TB30 batteries from 20%-90%) Approx. 50 min (charging two TB30 batteries from 0%-100%)|
|Protection Features||Anti-Backflow Protection Short Circuit Protection Over Voltage Protection Over Current Protection Temperature Protection|
