EchoLogger ECT D052S Dual-Frequency Echo Sounder for Drones
- Dual-frequency 50/200 kHz single-beam (SBES) echo sounder.
- Measures 1.00 to 200 m at 50 kHz and 0.50 to 200 m at 200 kHz, with 1.0 mm range resolution and 0.2% depth accuracy.
- Conical beams of 27° / 7° (50 kHz / 200 kHz, -3 dB), and suitable for sediment measurements.
- Integrated tilt/roll and temperature sensors, with an RS232 interface and a connector for the SkyHub onboard computer (2.5 m cable).
- Kit includes a harness with carabiner, stainless steel protective housing, data cable and a hard transport case. The echo sounder weighs 1.85 kg and all components weigh 2.45 kg.
- Supports M400/M350/M300, Inspired Flight IF800/IF1200A, WISPR RangerPro and other Pixhawk/Cube-based drones of comparable size.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

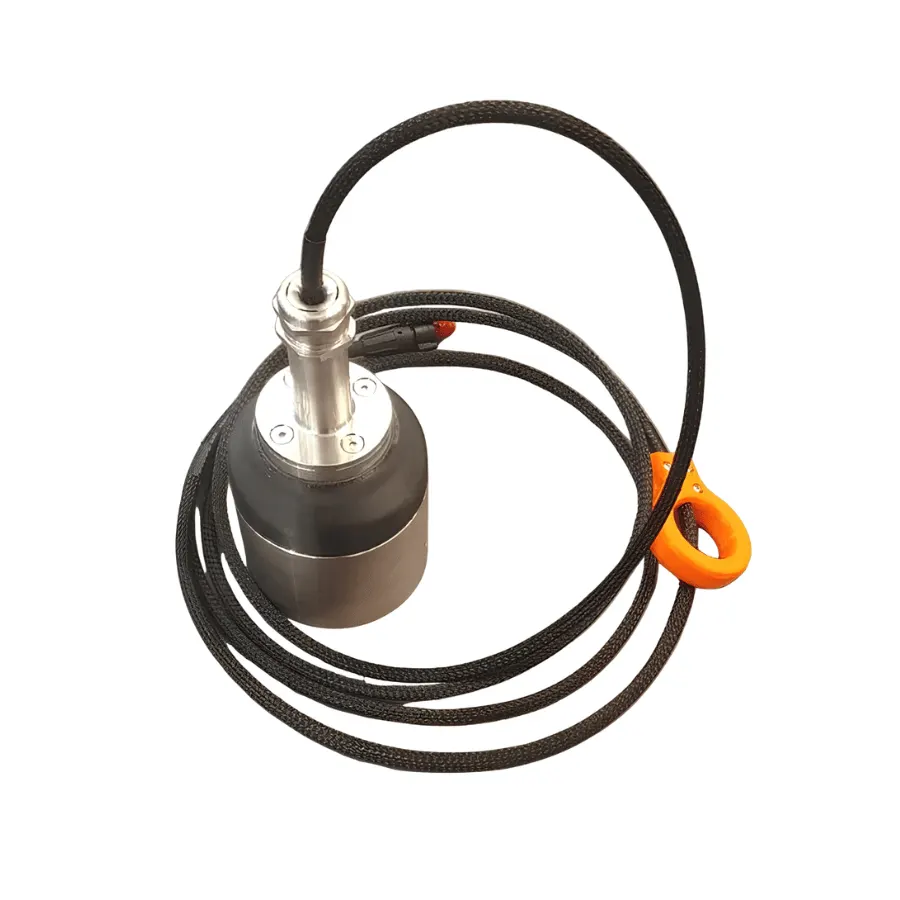

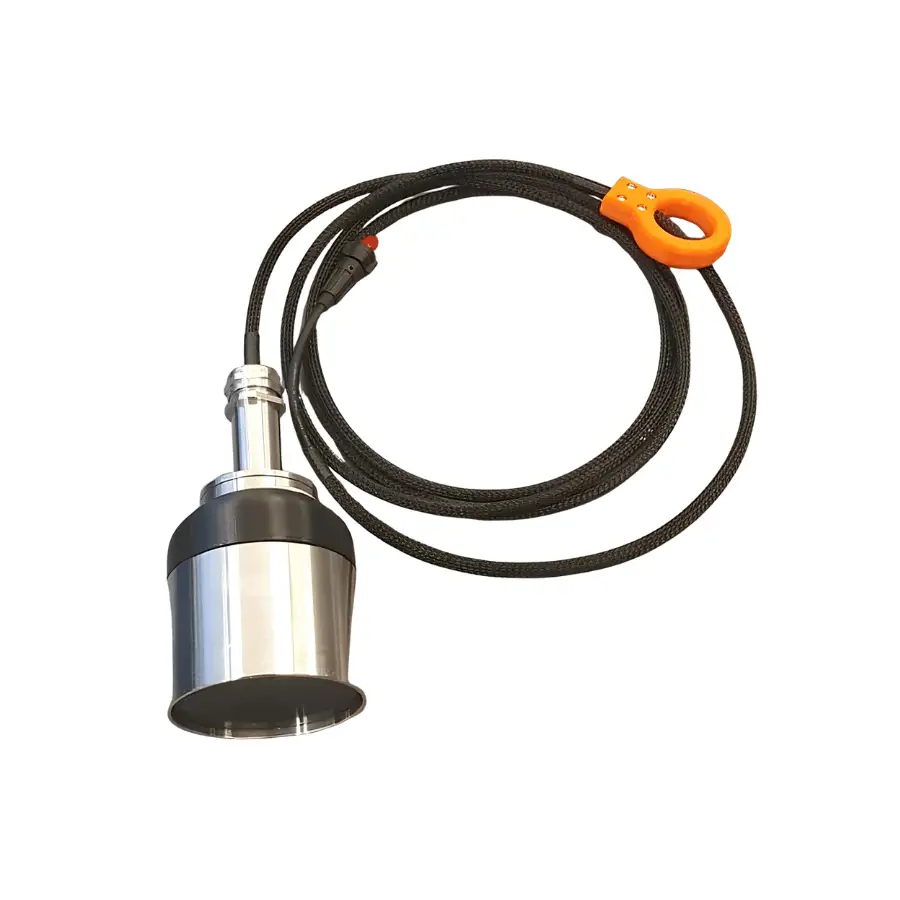

EchoLogger ECT D052S Dual-Frequency Echo Sounder

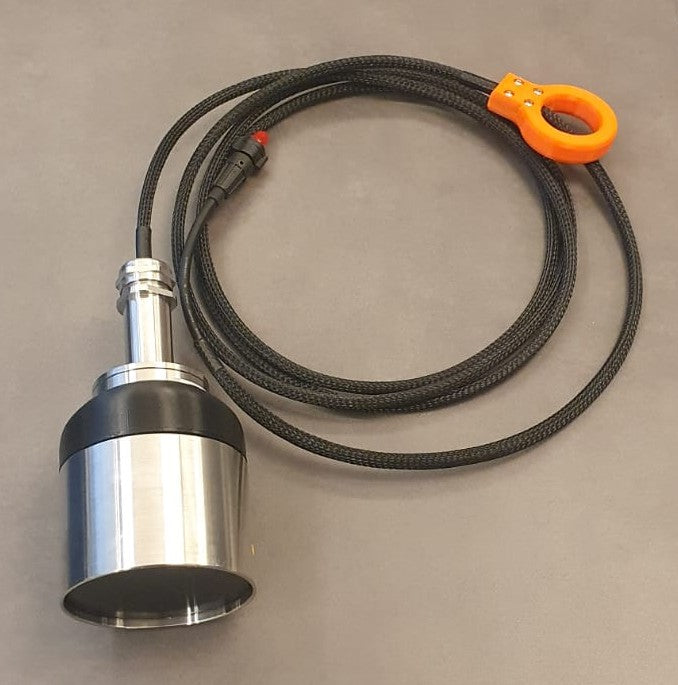

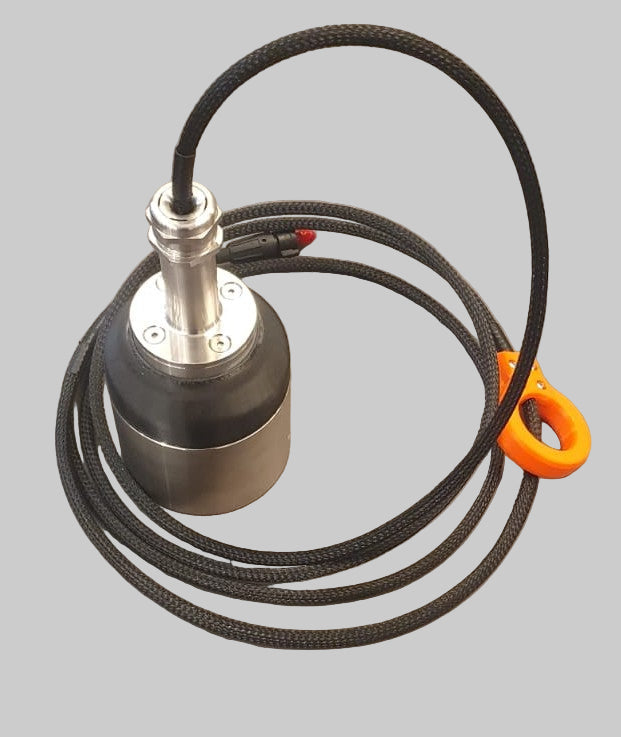

EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor. The kit includes a harness, housing, and mountings for the drone.

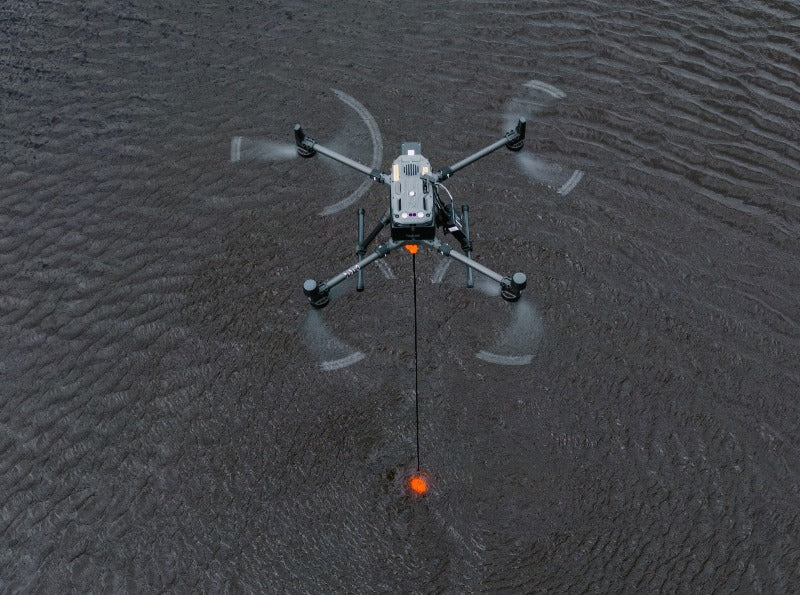

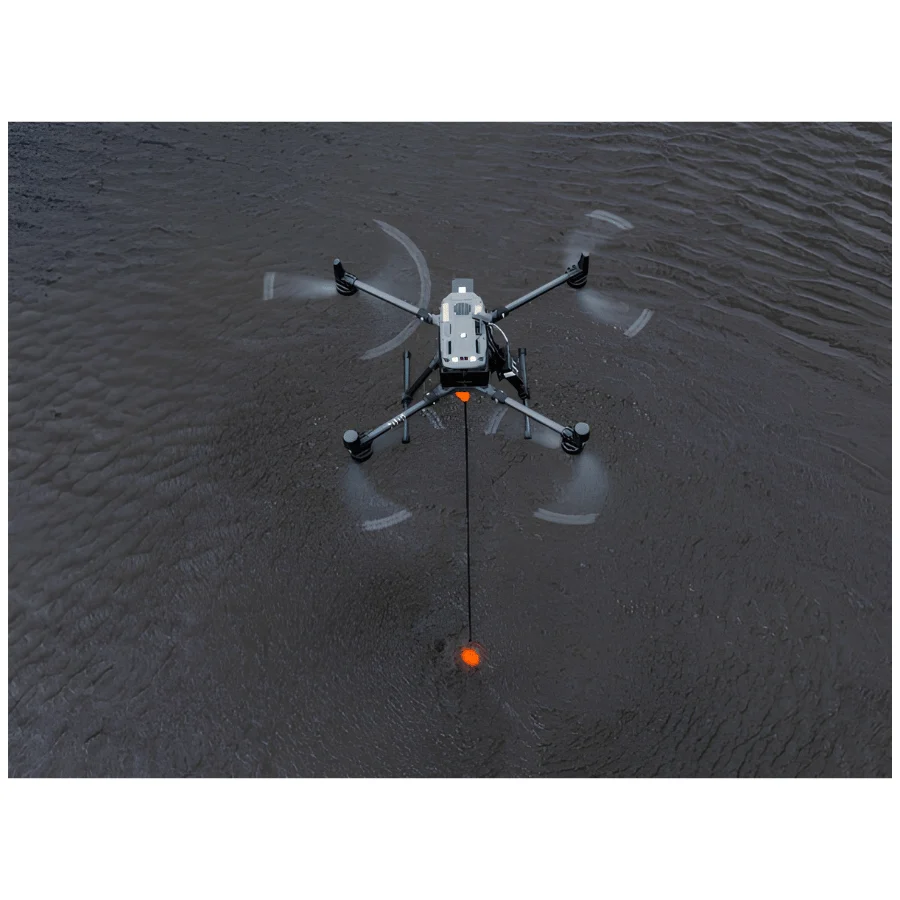

The echo sounder cable is protected by a plastic sleeve, which also supports the echo sounder and housing weight.
Key Highlights
A dual-frequency echo sounder supplied as a kit with harness, housing and hard case.
Dual-Frequency Sounding
50/200 kHz single-beam (SBES) echo sounder with conical beams of 27° / 7° (50 kHz / 200 kHz, -3 dB).
Integrated Sensors
Integrated tilt/roll sensor and integrated temperature sensor.
SkyHub Connection
Comes with an RS232 interface and connector for the SkyHub onboard computer. Cable length: 2.5 m.
Complete Kit
Harness with carabiner, stainless steel protective housing, data cable and a transportation/protective hard case.
Measurement Performance
Range, Resolution and Accuracy
Measurement range of 1.00 to 200 m at 50 kHz and 0.50 to 200 m at 200 kHz.
Range resolution of 1.0 mm, with accuracy of 0.2% of the depth measurement.

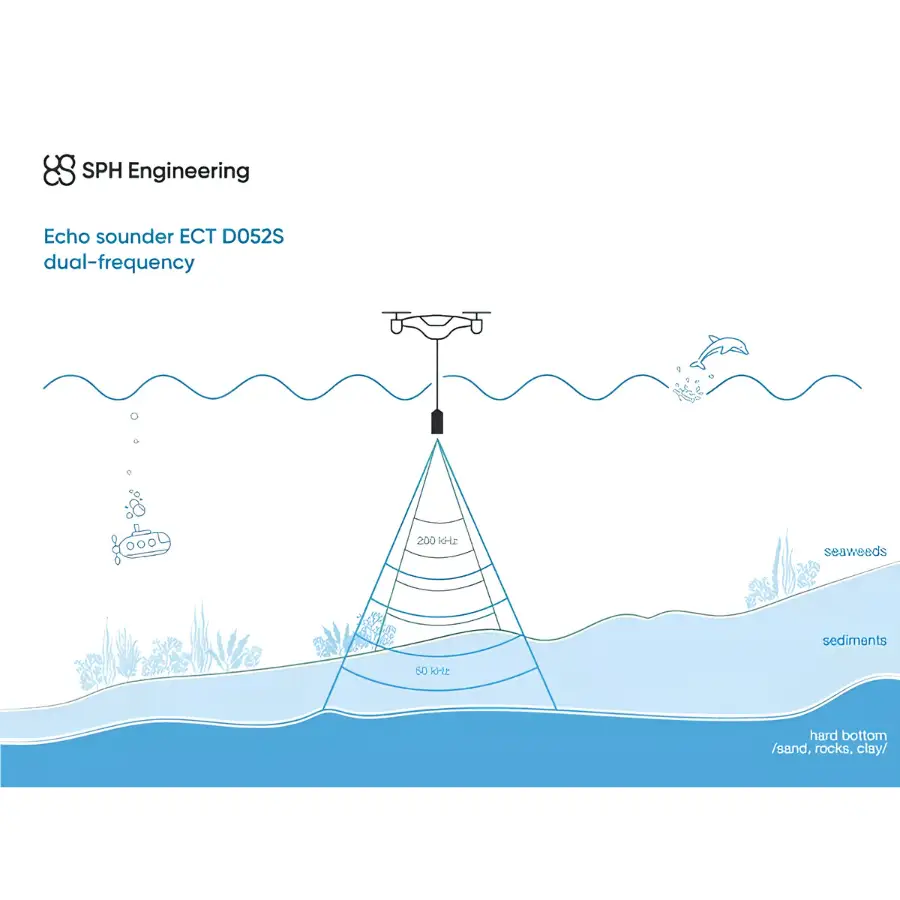

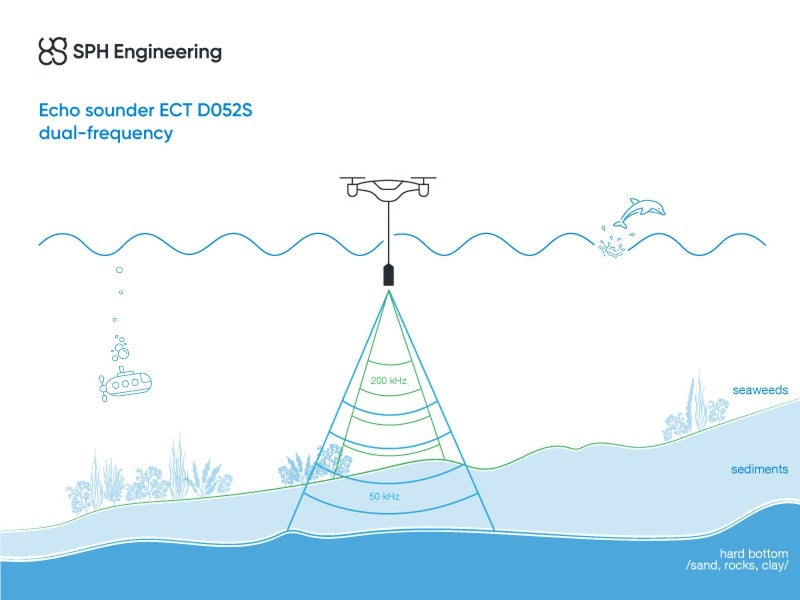

Suitable for sediment measurements.
By Frequency
- 50 kHzRange 1.00 to 200 m · Beam width 27°
- 200 kHzRange 0.50 to 200 m · Beam width 7°
Beam: conical (-3 dB).
Kit and Drone Compatibility
What's in the Kit
- EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor
- Harness with carabiner
- Stainless steel protective housing
- Data cable with RS232 interface and connector for SkyHub onboard computer
- Transportation/protective hard case
Supported Drones
- M400 / M350 / M300
- Inspired Flight IF800 / IF1200A
- WISPR RangerPro
- Other Pixhawk/Cube based drones of comparable size
Additional components and software must be purchased to use this sensor with drones.
Specifications
| Product | EchoLogger ECT D052S echo sounder |
|---|---|
| SKU | IS-EL-ECT-D052S |
| Type | SBES, dual-frequency |
| Acoustic frequency | 50/200 kHz |
| Measurement range | 1.00 to 200 m (50 kHz); 0.50 to 200 m (200 kHz) |
| Beam width | 27°/7° (50 kHz/200 kHz), conical (-3 dB) |
| Range resolution | 1.0 mm |
| Accuracy | 0.2% of the depth measurement |
| Suitable for sediment measurements | Yes |
| Integrated tilt/roll sensor | Yes |
| Integrated temperature sensor | Yes |
| Interface | RS232, with connector for SkyHub |
| Cable length | 2.5 m |
| Weight of echo sounder (in the air) | 1.85 kg |
| Weight of all components (in the air) | 2.45 kg (sensor, SkyHub, altimeter, housing, cables, mountings) |
| Kit size (L x W x H) | 28 x 25 x 16 cm |
| Kit weight | 3.5 kg |
| HS Code | 90158040 |
Gallery
Videos
Documentation
Frequently Asked Questions
What frequencies does the ECT D052S use?
It is a dual-frequency SBES echo sounder with 50/200 kHz acoustic frequencies.
What is the measurement range?
1.00 to 200 m at 50 kHz and 0.50 to 200 m at 200 kHz, with a range resolution of 1.0 mm and accuracy of 0.2% of the depth measurement.
Does it have built-in tilt and temperature sensors?
Yes. It has an integrated tilt/roll sensor and an integrated temperature sensor.
How does it connect to the drone's onboard computer?
It comes with an RS232 interface and a connector for the SkyHub onboard computer. The cable length is 2.5 m.
What is included in the kit?
The echo sounder with tilt and temperature sensor, a harness with carabiner, a stainless steel protective housing, a data cable with RS232 interface and SkyHub connector, and a transportation/protective hard case.
Which drones are supported?
M400/M350/M300, Inspired Flight IF800/IF1200A, WISPR RangerPro, and other Pixhawk/Cube based drones of comparable size.
Is anything else needed to use it with a drone?
Yes. Additional components and software must be purchased to use this sensor with drones.
