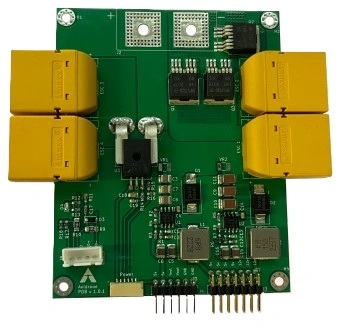

200A Power Distribution Board for Drones and UAVs
- High-Current Power Distribution – Handles up to 200A maximum current, making it suitable for high-power drones, UAVs, robotics, and other demanding electrical systems.
- Wide Input Voltage Range – Supports 12V to 60V input, compatible with battery systems up to 14S LiPo.
- Integrated 200A Current Sensor – Provides current monitoring for power-management and telemetry applications.
- Four XT90 Power Outputs – Includes 4 × XT90 connectors, each rated for up to 50A, for connecting compatible ESCs or motor power systems.
- Built-In 5V BEC Output – Provides regulated 5V at up to 5A for powering compatible flight controllers and onboard electronics.
- 12V Power Output – Includes a regulated 12V at up to 5A output for compatible UAV peripherals and electronic systems.
- Anti-Spark Soft Switching – Features soft power switching to help reduce inrush current and sparking when powering inductive loads.
- Analog Voltage & Current Outputs – Provides analog sensing outputs for integration with compatible flight controllers, robotics systems, and monitoring equipment.
- Compact & Lightweight Design – Measures approximately 105 × 105 × 12 mm and weighs around 90g, offering efficient integration into larger UAV platforms.
- Suitable for High-Power UAV Systems – Designed for demanding drone, multirotor, robotics, and other high-current applications requiring organized power distribution and regulated auxiliary outputs.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
200A Power Distribution Board
The 200A Power Distribution Board is a genuine AxlDrone PDB, built for heavy-lift drones and high-current UAV systems — four XT90 outputs, an integrated Hall-effect current sensor, and anti-spark switching in a compact 105×105mm footprint.
12-60V, Up to 14S
4x XT90 Outputs
5V + 12V BEC
Anti-Spark Switching
Full Specifications
| Specification | Details |
|---|---|
| Product | 200A Power Distribution Board — genuine AxlDrone hardware, an Indian-manufactured PDB built for high-current UAV systems |
| Maximum Current | 200A continuous |
| Input Voltage | 12V to 60V, compatible with battery packs up to 14S LiPo |
| Power Outputs | 4x XT90 connectors, each rated up to 50A, for ESC/motor power distribution |
| BEC Outputs | Regulated 5V at up to 5A, and regulated 12V at up to 5A, via a TPS54560 buck-converter IC (~82% efficiency) |
| Current Sensor | ACS770ECB-200U-PFF-T Hall-effect sensor, analog output for battery current monitoring up to 200A |
| xBoom SKU | xboom-145532 |
| Specification | Details |
|---|---|
| Anti-Spark Protection | Soft power switching to reduce inrush current and connector arcing on power-up |
| Analog Outputs | Voltage and current sensing outputs for compatible flight controllers and telemetry systems |
| Connectors | 4x XT90 power outputs, plus SM06B-GHS-TB, 14-pin 2.5mm header, and 6-pin 2.5mm header for sensing/BEC connections |
| Recommended Accessory | A 220µF 100V electrolytic capacitor on the input side is recommended for power stability |
| Weight | Approximately 90g |
| Dimensions | Approximately 105 × 105 × 12mm |
Organized, High-Current Power for Serious Builds
200A Power Distribution Board: Genuine AxlDrone Hardware
This is a genuine AxlDrone PDB, an Indian-manufactured power distribution board built specifically for high-current UAV and robotics systems. Rather than splicing battery leads into a tangle of solder joints, it takes a single battery input (12V to 60V, up to 14S) and cleanly distributes it across four XT90 outputs rated 50A each — enough for genuinely heavy-lift multirotor and industrial drone builds, not just small FPV quads.
Two onboard buck converters (built around a TPS54560 IC) generate regulated 5V and 12V rails at up to 5A each for your flight controller and other electronics, while an ACS770ECB-200U-PFF-T Hall-effect sensor provides analog voltage and current telemetry your flight controller can log directly. Anti-spark soft switching protects the XT90 connectors from the arcing that high-current inrush would otherwise cause on power-up — a genuinely important detail at this current level, not a marketing footnote.
200A Continuous Rating
Built for genuinely high-current, heavy-lift UAV power systems.
4x XT90 Outputs, 50A Each
Clean, organized power distribution to ESCs and motors.
Hall-Effect Current Sensing
Analog telemetry output for accurate battery monitoring.
Anti-Spark Soft Switching
Protects connectors from high-current inrush arcing.
See Every Detail
Genuinely Compact for Its Current Rating
Held in hand for scale — a 105×105×12mm board handling up to 200A continuous, small enough to integrate into most heavy-lift multirotor and industrial UAV frames.
Built for High-Current UAV Power Systems
The 200A Power Distribution Board brings genuinely organized, high-current power distribution to demanding builds.
⚡
200A Continuous Rating
Built for heavy-lift and high-power UAV systems.
🔌
4x XT90 Outputs
50A per output for organized ESC and motor power.
🔧
5V & 12V BEC Outputs
Regulated power for flight controllers and peripherals.
📊
Hall-Effect Current Sensor
Analog voltage and current outputs for battery monitoring.
🛡️
Anti-Spark Switching
Reduces inrush current and connector arcing at power-up.
⚖️
Compact, 90g Design
Small footprint relative to its 200A current handling.
Built for Heavy-Lift and High-Power UAV Systems
The 200A Power Distribution Board suits builders working on drones and robotics that draw genuinely high current.
Heavy-Lift Multirotors
Organized high-current distribution for large payload drones.
Agricultural Spraying Drones
14S-compatible power handling for large ag-drone platforms.
Industrial UAV Systems
Reliable power distribution for commercial-grade operations.
High-Current Robotics
Suits ground and marine robotics with similar power needs.
Battery Telemetry Builds
Analog current/voltage sensing feeds directly to your flight controller.
Custom High-Voltage Builds
A compact, organized power hub for custom UAV projects.
Understanding Power Distribution Boards
No dedicated video review exists for this specific high-current board, so these general PDB-concept videos explain how boards like this one fit into a UAV power system — the wiring principles apply, even though the boards shown are smaller-scale examples.
Frequently Asked Questions
How much current can the 200A Power Distribution Board actually handle?
What batteries is it compatible with?
What is anti-spark soft switching, and why does it matter?
Can this board power my flight controller?
Does it support battery current monitoring?
How big and heavy is it?
