MyCobot 280 M5

WORLD'S SMALLEST 6-AXIS COBOT: IEEE-recognised desktop arm, under 1kg net weight, 6 DOF, 280mm working radius, 250g payload

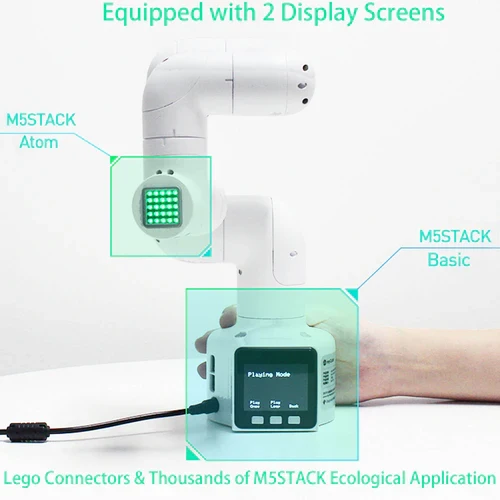

ESP32 DUAL-CORE BRAIN: 240MHz dual-core control, built-in 2" IPS display, Wi-Fi/BT 2.4G-5G, Type-C powered
MULTI-LANGUAGE PROGRAMMING: Native support for Python, C++, C#, JavaScript, Arduino, ROS1 & ROS2, myBlockly, Mind+, UiFlow
±0.5MM REPEATABILITY: 12-bit magnetic encoders, steel gears, metal shell for precise, repeatable pick-and-place work
LEGO + SCREW END-EFFECTOR MOUNTS: Swap grippers, suction pumps, pen holders and camera flanges without extra tooling
DRAG-TEACH & TRACK RECORDING: Record up to 60 minutes of hand-guided motion paths — no coding required to get started

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

myCobot 280 M5 - 6 DOF Collaborative Robot

Elephant Robotics

myCobot 280 M5

The World's Smallest & Lightest Six-Axis Cobot

Under 1kg, IEEE-recognized as one of the world's smallest robot arms. Six degrees of freedom, Python and ROS support, a 2.0" onboard IPS display, and a Lego-compatible interface for fast end-effector swaps — built for robotics education, AI research and DIY prototyping.

6 DOF 280mm Reach 250g Payload ±0.5mm Accuracy ESP32 Dual-Core 800g Weight

Why It Fits Everywhere

Three Ways Teams Actually Use It

Portable enough for a classroom desk, precise enough for a research bench.

Innovation Tasks

Engrave, draw and write within a designated zone — the classic entry point for new users learning robot arm control.

Pick & Place

Reliable mobile transport and precise placement, with multiple control methods for research and maker projects.

Multi-Effector Builds

The Lego interface supports robot assistant, object recognition, image sorting and face recognition/tracking builds.

Programming

Learn Robotics With Real Code

Python, C++, C#, JavaScript, Arduino, ROS1/2, myBlockly, Mind+ and UiFlow — all on one arm.

Flexible Slider Control

Intuitive slider controls make effortless operation possible for both beginners and experienced users.

MoveIt Path Planning

Develop sophisticated robotics applications with comprehensive path planning and obstacle avoidance via MoveIt.

Optional Upgrade

AI Kit Integration

Add machine vision and robot-arm coordination for object recognition and grasping tasks.

myAGV + myCobot 280 compound mobile robot

Product Overview

Full Specifications

DOF	6
Working Radius	280 mm
Payload	250 g
Weight	800 g
Positioning Accuracy	± 0.5 mm
Working Lifespan	500 h
Power Input	DC 12V 5A, Type-C x1
Display	2.0″ 320×240 IPS panel
Main Control	ESP32, 240MHz dual-core
Wireless	Bluetooth 2.4G/5G, Wi-Fi 2.4G 3D antenna
Software	Python, C++, C#, JS, ROS1/2, myBlockly, Mind+, UiFlow, Arduino
Joint Range	J1-J5: ±165° · J6: ±179°
Shell / Gears	Metal shell, steel gears

Good to Know

Frequently Asked Questions

What is the payload and reach?

Payload is 250 g and the working radius is 280 mm.

Which programming languages are supported?

Python and ROS, plus interfaces for C++, C#, and JavaScript. Runs on Windows, Linux and Mac, with ROS1 and ROS2 support.

Can I use different end effectors?

Yes — the Lego interface supports multiple end-effector types for object recognition, sorting and assistant tasks.

Is there an AI Kit available?

Yes, an optional AI Kit adds machine vision for object recognition and grasping. Firmware and updates are managed via myStudio.
