Unitree G1 Hand Revo 2 Basic
- 6 Degrees of Freedom (DOF) with 11 precision joints for flexible and natural hand movements.
- Powerful Grip Performance delivering up to 50N whole-hand grip force and 15N single-finger pinch force.
- High Precision Motion Control with 0.1° repeat control accuracy for consistent and reliable operation.
- Compact & Lightweight Design weighing only 383g for seamless integration with the Unitree G1 humanoid robot.
- Optimized Hand Dimensions with a 160mm height (middle fingertip to palm base) for balanced dexterity and reach.
- Designed for Robotics Applications including research, AI development, human-robot interaction, and advanced manipulation tasks.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Unitree G1 Bionic Hand Revo 2 Basic
BrainCo's Revo 2 is a bionic dexterous hand for robot integration and research, providing 6 active joints and 11 degrees of freedom, with closed-loop servo control and RS485 / CAN FD communication for the Unitree G1 platform.
Closed-Loop Servo Control, Built for Integration
The Revo 2 Basic is a bionic dexterous hand designed for robot integration and research, providing 6 active joints across 11 total degrees of freedom. It supports RS485 and CAN FD communication interfaces, with SDK support for Linux, Windows, and ROS workflows. The hand includes closed-loop servo control, custom gesture definitions, and protection against current, stall, high temperature, and collision conditions — all in a lightweight 383g package available in Space Gray or Silver, with bulk color customization supported.
Four Pillars of the Revo 2 Basic
Unitree G1 Bionic Hand Revo 2 Basic

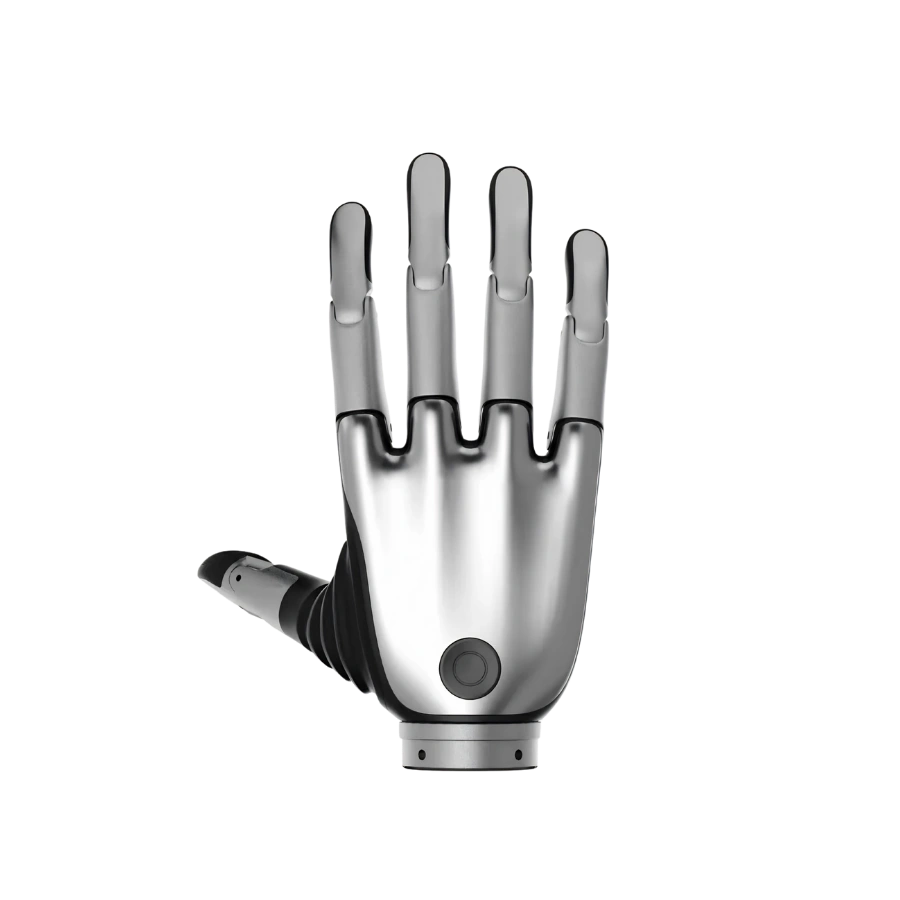

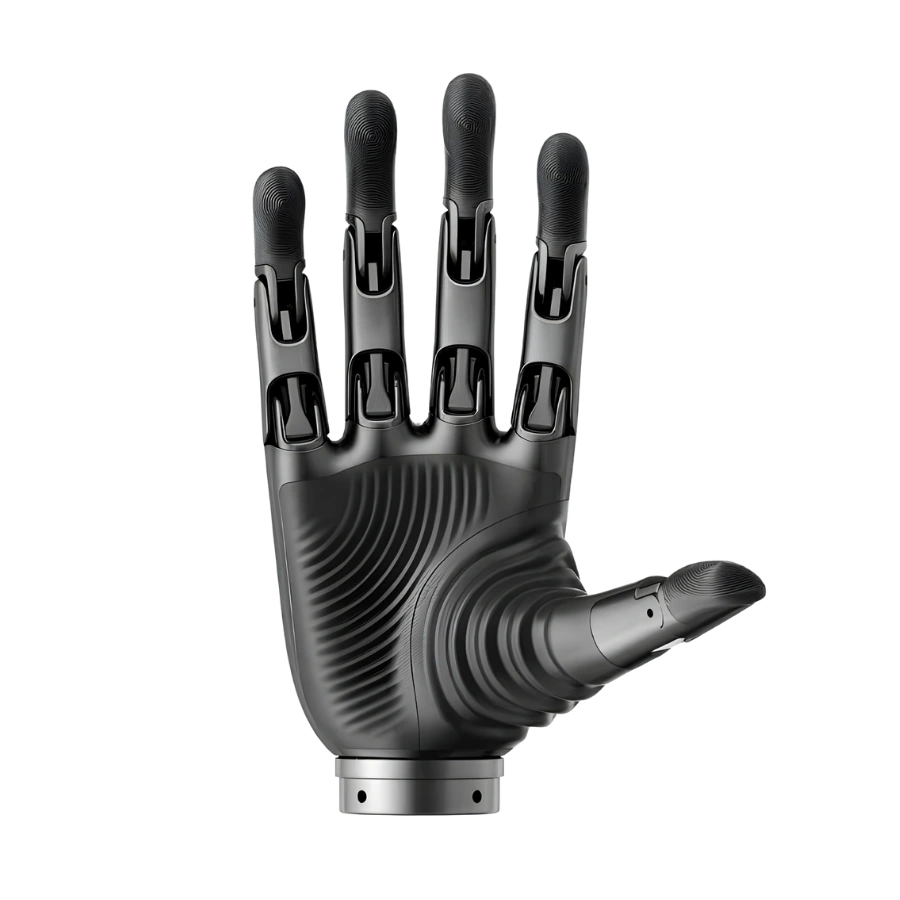

Standard colors: Space Gray, Silver (supports bulk color customization)
Dimensions & Degree of Freedom Distribution
160mm From Palm Base to Middle Fingertip
The Revo 2 Basic measures 160mm from the base of the palm to the tip of the middle finger, weighing 383g, with a maximum opening and closing distance of 100mm from thumb to index finger.
6 Active Joints, 11 Total Degrees of Freedom
The thumb has two active degrees of freedom for abduction and adduction, plus one passive degree of freedom for flexion and extension. Each of the remaining four fingers has one active degree of freedom for flexion and extension, plus one passive degree of freedom for flexion and extension.
RS485 or CAN FD, Located Beneath the Wrist
The Revo 2 Basic can communicate and control via the 485 or CAN FD communication interface. The interface is located under the wrist, with connector model BM05B-PASS-TFT(LF)(SN).
Revo 2 Basic — Complete Specification
| Specification | Details |
|---|---|
| Model | |
| Model | BASIC |
| Version Code | XRL (left) / XRR (right) |
| Main Parameters | |
| Degree of Freedom | 11 (6 active) |
| Weight | 383g |
| Height (Palm Base to Middle Fingertip) | 160mm |
| Full Fist Grip Force | ≥50N |
| Pinch Force | ≥15N |
| Max Payload | ≥20kg |
| Operating Noise (at 50cm) | ≤50dB |
| Flexion/Extension Speed | ≤0.65s |
| Communication Interface | 485, CAN FD |
| Supply Voltage | 12–28V |
| Static Current | 65mA @ 24V |
| No-Load Average Current (5-finger flexion/extension) | 350mA @ 24V |
| Maximum Current | 4.6A @ 24V |
| Repetitive Control Precision | 0.1° |
| Maximum Opening/Closing Distance | 100mm (thumb to index finger) |
| Operating Temperature | -10°C to 40°C / 90% RH |
| Tactile Module | Not included |
| Smart Control | Position, velocity, current feedback control; cascaded control; compliance control |
| Smart Protection | Current protection, stall protection, high-temperature protection, anti-collision protection |
| SDK Integration | Python/C, compatible with Linux/Windows/ROS |
| Online Upgrade | Supports OTA online upgrades |
| Range of Motion | |
| Thumb Flex (Flexion/Extension) | 0° – 59° |
| Thumb Aux (Adduction/Abduction) | 0° – 90° |
| Index / Middle / Ring / Little Finger | 0° – 81° each (Flexion/Extension) |
| Device Configuration | |
| Default Device ID | Left hand: 126 · Right hand: 127 (configurable 1–254) |
| Colors | Space Gray, Silver (bulk color customization supported) |
| Compatibility | |
| Compatible Platform | Unitree G1 |
Common Questions — Revo 2 Basic
How many degrees of freedom does the Revo 2 Basic have?
It has 11 total degrees of freedom, with 6 active joints. The thumb has 2 active DOF (abduction/adduction) plus 1 passive DOF, and each of the four fingers has 1 active DOF (flexion/extension) plus 1 passive DOF.
How much can the Revo 2 Basic grip and carry?
It delivers a full fist grip force of at least 50N, a pinch force of at least 15N, and can carry a maximum payload of at least 20kg.
Does the Basic version include tactile sensing?
No. The Basic version does not include a tactile module. For fingertip tactile sensing and Tactile Adaptive Control, see the Revo 2 Touch.
What communication interfaces are supported?
The Basic version supports RS485 and CAN FD. The Pro and Touch versions add EtherCAT support.
What SDK support is available?
The Revo 2 Basic includes SDK support for Python and C, compatible with Linux, Windows, and ROS workflows, along with OTA online upgrades.
How is the left and right hand identified?
The default device ID is 126 for the left hand and 127 for the right hand, both configurable within a range of 1 to 254.
