Unitree G1 Hand Revo 2 Touch
- 6 Degrees of Freedom (DOF) with 11 precision joints for smooth, natural, and flexible robotic hand movements.
- Powerful Gripping Performance with 50N whole-hand grip force and 15N single-finger pinch force for precise object handling.
- High Repeat Accuracy of 0.1° ensures consistent and reliable motion control for advanced robotics applications.
- Integrated Tactile Perception supports pressure, friction, direction, and proximity sensing for enhanced manipulation and interaction.
- Compact & Lightweight Design weighing only 383g with a 160mm hand height, making it ideal for humanoid robot integration.
- Optimized for AI & Robotics suitable for research, automation, human-robot interaction, and intelligent manipulation tasks.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

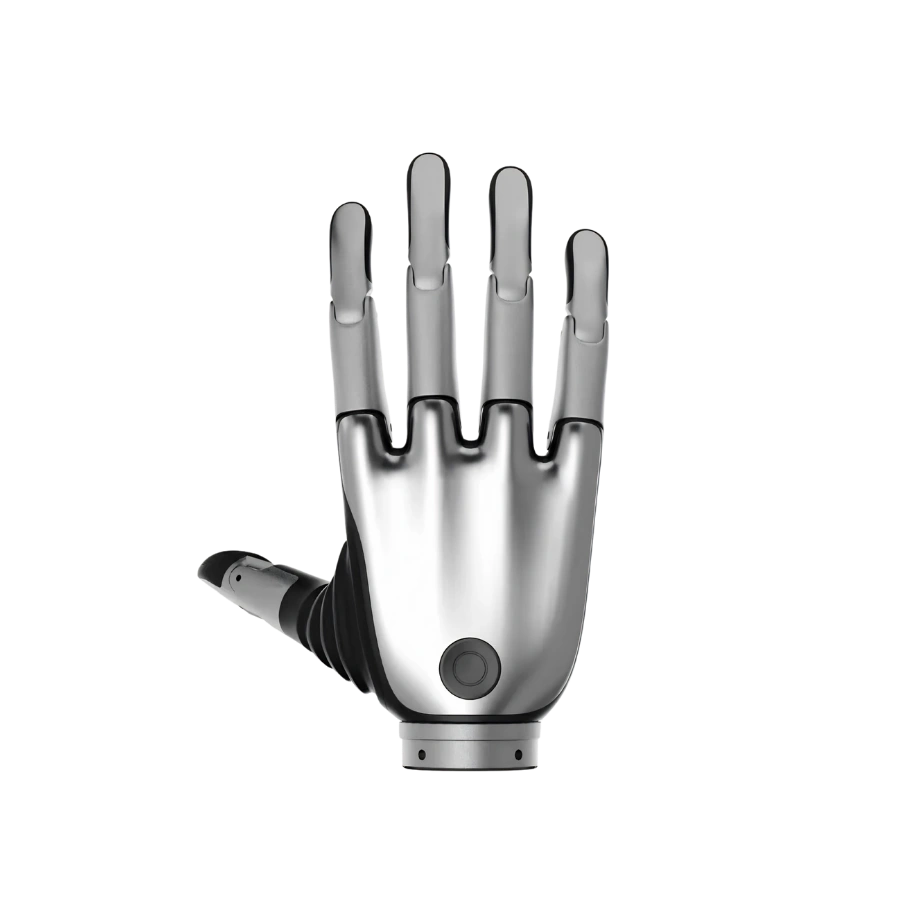

Unitree G1 Bionic Hand Revo 2 Touch
BrainCo's Revo 2 is a bionic dexterous hand for robot integration and research, providing 6 active joints and 11 degrees of freedom, with closed-loop servo control and RS485 / CAN FD communication for the Unitree G1 platform.
Closed-Loop Servo Control, Built for Integration
The Revo 2 Touch is a bionic dexterous hand designed for robot integration and research, providing 6 active joints across 11 total degrees of freedom. It supports RS485 and CAN FD communication interfaces, with SDK support for Linux, Windows, and ROS workflows. The hand includes closed-loop servo control, custom gesture definitions, and protection against current, stall, high temperature, and collision conditions — all in a lightweight 383g package available in Space Gray or Silver, with bulk color customization supported.
Four Pillars of the Revo 2 Touch

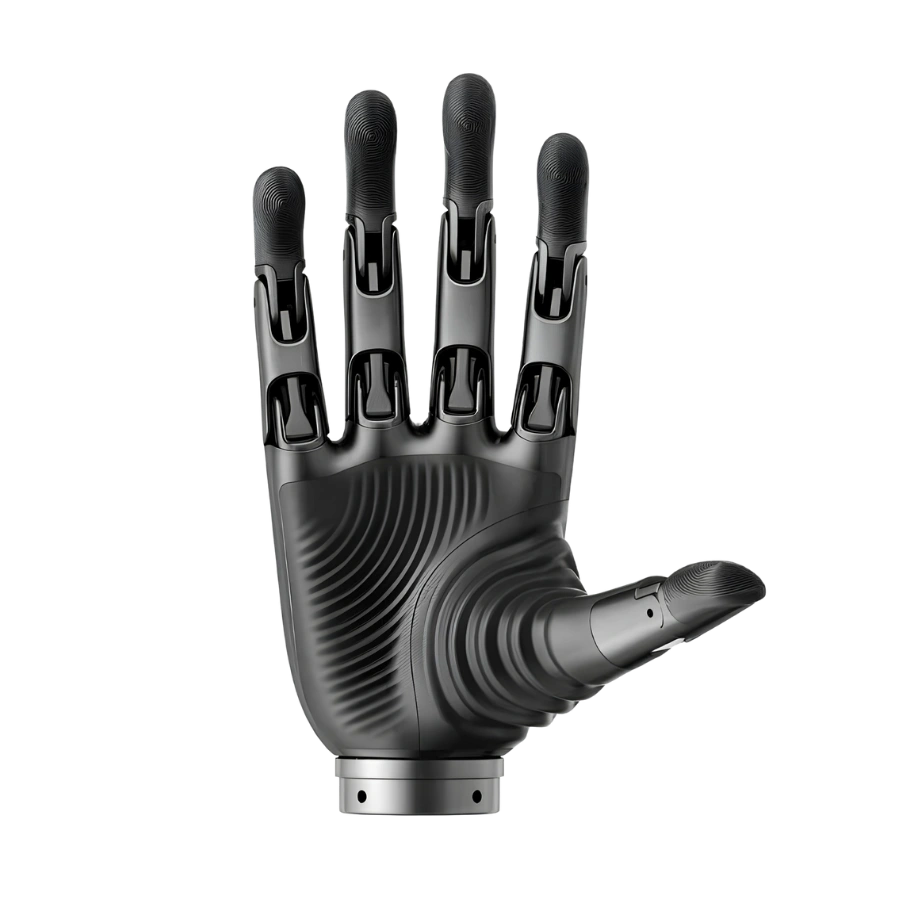

Unitree G1 Bionic Hand Revo 2 Touch
Dimensions & Degree of Freedom Distribution
160mm From Palm Base to Middle Fingertip
The Revo 2 Touch measures 160mm from the base of the palm to the tip of the middle finger, weighing 383g, with a maximum opening and closing distance of 100mm from thumb to index finger.
6 Active Joints, 11 Total Degrees of Freedom
The thumb has two active degrees of freedom for abduction and adduction, plus one passive degree of freedom for flexion and extension. Each of the remaining four fingers has one active degree of freedom for flexion and extension, plus one passive degree of freedom for flexion and extension.
RS485, CAN FD or EtherCAT, Located Beneath the Wrist
The Revo 2 Touch supports three communication interfaces — RS485, CAN FD, and EtherCAT — for communication and control, with the interface located below the wrist.
| Interface | Connector Model |
|---|---|
| 485 | A1257WV-S-2P-6T |
| CAN FD | A1257WV-S-2P-6T |
| EtherCAT | A1257WV-S-5P-6T |
| VCC | XT30UPB-M |
Revo 2 Touch — Complete Specification
| Specification | Details |
|---|---|
| Model | |
| Model | TOUCH |
| Version Code | XTL (left) / XTR (right) |
| Main Parameters | |
| Degree of Freedom | 11 (6 active) |
| Weight | 383g |
| Height (Palm Base to Middle Fingertip) | 160mm |
| Full Fist Grip Force | ≥50N |
| Pinch Force | ≥15N |
| Max Payload | ≥20kg |
| Operating Noise (at 50cm) | ≤50dB |
| Flexion/Extension Speed | ≤0.65s |
| Communication Interface | 485, CAN FD, EtherCAT |
| Supply Voltage | 12–64V |
| Static Current | 115mA @ 24V |
| No-Load Average Current (5-finger flexion/extension) | 390mA @ 24V |
| Maximum Current | 4.65A @ 24V |
| Repetitive Control Precision | 0.1° |
| Maximum Opening/Closing Distance | 100mm (thumb to index finger) |
| Operating Temperature | -10°C to 40°C / 90% RH |
| Tactile Module | Multi-dimensional fingertip tactile module |
| Smart Control | Position, velocity, current feedback control; cascaded control; compliance control; Tactile Adaptive Control |
| Smart Protection | Current protection, stall protection, high-temperature protection, anti-collision protection |
| SDK Integration | Python/C, compatible with Linux/Windows/ROS |
| Online Upgrade | Supports OTA online upgrades |
| Range of Motion | |
| Thumb Flex (Flexion/Extension) | 0° – 59° |
| Thumb Aux (Adduction/Abduction) | 0° – 90° |
| Index / Middle / Ring / Little Finger | 0° – 81° each (Flexion/Extension) |
| Device Configuration | |
| Default Device ID | Left hand: 126 · Right hand: 127 (configurable 1–254) |
| Colors | Space Gray, Silver (bulk color customization supported) |
| Compatibility | |
| Compatible Platform | Unitree G1 |
Common Questions — Revo 2 Touch
How many degrees of freedom does the Revo 2 Touch have?
It has 11 total degrees of freedom, with 6 active joints. The thumb has 2 active DOF (abduction/adduction) plus 1 passive DOF, and each of the four fingers has 1 active DOF (flexion/extension) plus 1 passive DOF.
How much can the Revo 2 Touch grip and carry?
It delivers a full fist grip force of at least 50N, a pinch force of at least 15N, and can carry a maximum payload of at least 20kg.
Does the Touch version include tactile sensing?
Yes. The Touch version includes a multi-dimensional fingertip tactile module and Tactile Adaptive Control for adaptive, feedback-driven grasping.
What communication interfaces are supported?
The Touch version supports RS485, CAN FD, and EtherCAT — the Basic version supports only RS485 and CAN FD.
What SDK support is available?
The Revo 2 Touch includes SDK support for Python and C, compatible with Linux, Windows, and ROS workflows, along with OTA online upgrades.
How is the left and right hand identified?
The default device ID is 126 for the left hand and 127 for the right hand, both configurable within a range of 1 to 254.
