Unitree R1 Battery
- Power Solution – Designed specifically for the Unitree R1 humanoid robot.
- High-Capacity Battery – Features a 6000mAh rated capacity with 194.4Wh of energy for reliable operation.
- Advanced Battery Management – Equipped with a self-developed Battery Management System (BMS) for enhanced safety, stability, and performance.
- Optimized Voltage Output – 32.4V nominal voltage with a 37.8V charge limit voltage for efficient power delivery.
- Compact & Lightweight Design – Measures 85 × 83 × 146.5 mm, making it easy to install and replace.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

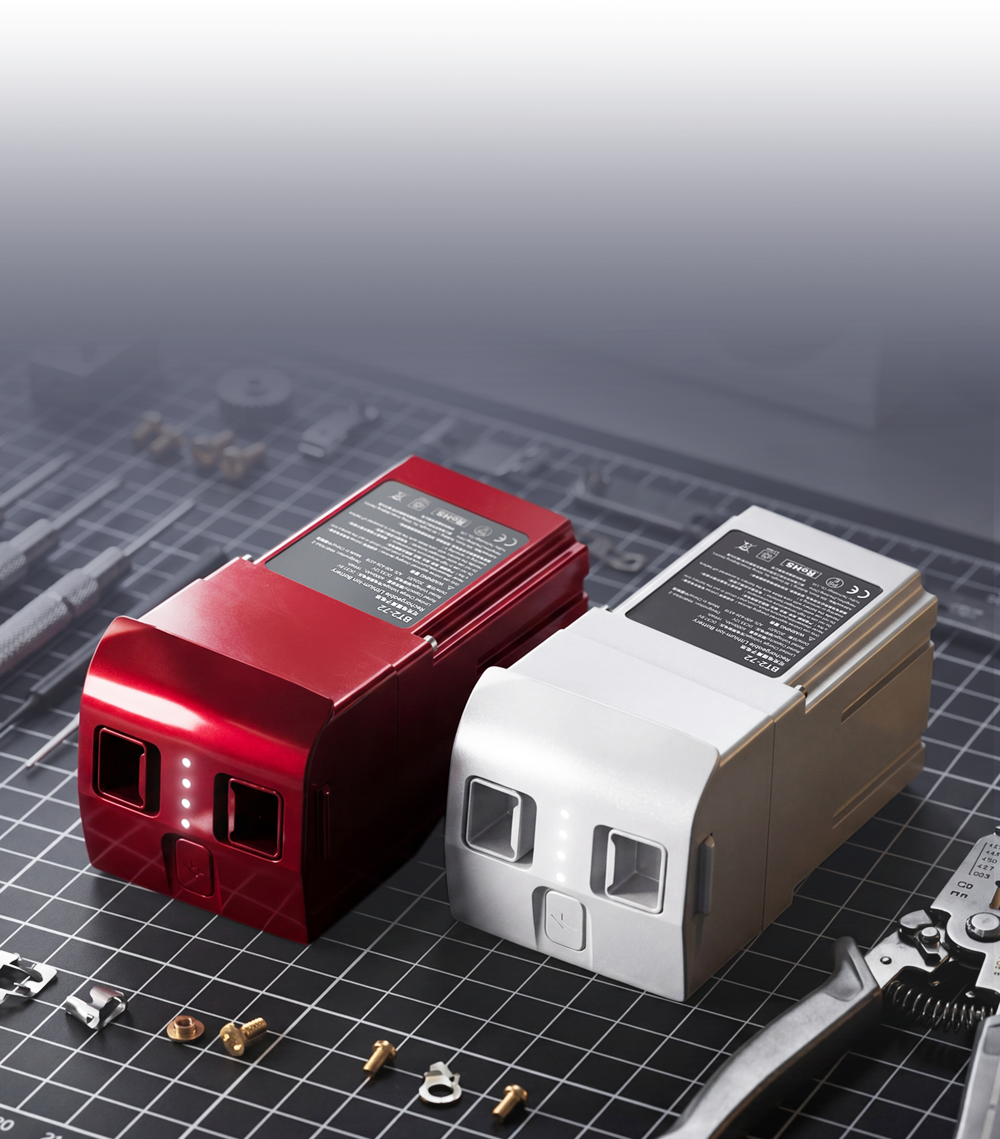

Unitree R1 Robot Battery
Fast charging, long-lasting standby — powering your R1 with unstoppable energy. Featuring next-generation battery technology and Unitree's proprietary advanced Battery Management System.
Unstoppable Energy for the R1
The Unitree R1 Robot Battery features next-generation battery technology, built on Unitree's proprietary, self-developed Battery Management System (BMS) to deliver powerful electricity to the R1 robot. It measures 85mm × 83mm × 146.5mm, with a charge limit voltage of 37.8V and a nominal voltage of 32.4V, delivering a rated capacity of 6000mAh (194.4Wh). The ultra-high-strength engineering plastic casing perfectly protects the battery cells from impact in the event of accidental drops.
Four Pillars of the R1 Battery
7 Levels of Safety Protection
The R1 Battery's self-developed BMS provides comprehensive, multi-layered protection to keep the battery — and the robot — safe under all operating conditions.
- ✓Battery load detection protection
- ✓Balanced charge protection
- ✓Overcharge protection
- ✓Charging temperature protection
- ✓Charging current protection
- ✓Short circuit protection
- ✓Over discharge protection
R1 Battery — Complete Specification
| Specification | Details |
|---|---|
| Design | |
| Product Dimensions | 85mm × 83mm × 146.5mm |
| Electrical | |
| Charge Limit Voltage | 37.8V |
| Nominal Voltage | 32.4V |
| Rated Capacity | 6000mAh, 194.4Wh |
| Battery Management | |
| BMS | Self-developed Battery Management System |
| Battery Load Detection Protection | Included |
| Balanced Charge Protection | Included |
| Overcharge Protection | Included |
| Charging Temperature Protection | Included |
| Charging Current Protection | Included |
| Short Circuit Protection | Included |
| Over Discharge Protection | Included |
| Compatibility | |
| Compatible Platform | Unitree R1 |
Common Questions — R1 Battery
What is the rated capacity of the R1 Battery?
The R1 Battery has a rated capacity of 6000mAh (194.4Wh).
What safety protections does it include?
The self-developed BMS provides 7 levels of safety: battery load detection, balanced charge, overcharge, charging temperature, charging current, short circuit, and over-discharge protection.
Is the casing durable?
Yes, the ultra-high-strength engineering plastic casing protects the battery cells from impact in the event of accidental drops.
Is this compatible with the R1 humanoid robot?
Yes, this battery is built specifically for the Unitree R1.
