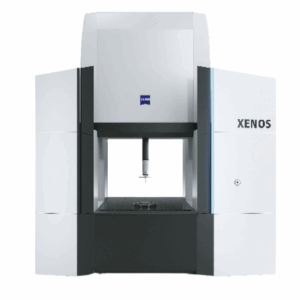

Carl Zeiss Metrology XENOS

Overview

What makes it work

Specification	Details
Model	XENOS
Type	Bridge-type Coordinate Measuring Machine
Measurement Range	X: 1000–4000 mm, Y: 800–1500 mm, Z: 600–1200 mm (depending on configuration)
Accuracy	Up to 0.7 + L/350 µm (depends on size and configuration)
Probing System	Supports tactile and scanning probes
Sensor Options	VAST XXT, VAST XT, Tactile probes, Optical/Scanning sensors
Repeatability	0.3–1 µm (depending on probing system)
Software	ZEISS CALYPSO metrology software
Temperature Compensation	Integrated sensors for thermal stability
Construction	Granite bridge and base for high stability
Drive System	Precision linear motors with air-bearing guidance
Applications	Automotive, Aerospace, Industrial Manufacturing, Large Component Inspection
User Interface	Touchscreen and PC-based operation
Optional Features	High-speed scanning, Multi-sensor integration, Automated part handling, Extended measurement ranges
