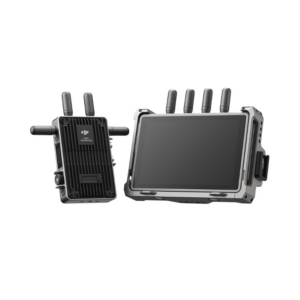

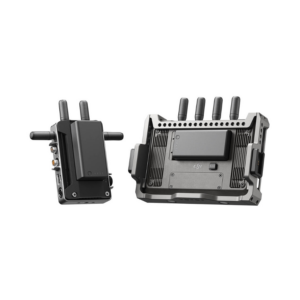

DJI Transmission Combo


  • Video Transmitter × 1
  • High-Bright Remote Monitor × 1
  • Remote Monitor Hood × 1
  • WB37 Battery Adapter (TX) × 1
  • WB37 Intelligent Battery × 2
  • WB37 Battery Charging Hub (USB-C) × 1
  • NP-F Battery Adapter (TX) × 1
  • NP-F Battery Adapter (RX) × 1
  • DJI Transmission USB-C Power Cable × 1
  • RS Gimbal Mounting Plate × 1
  • USB-C Cable × 1
  • SDI Cable × 1
  • DC Power Cable × 1
  • DC to P-TAP Power Cable × 1
  • Installation Toolkit × 1
  • Protector Case × 1
  • Ronin Video Transmission Antenna × 2

1-Year Warranty     7 days return policy     PAN India Fast Shipping

SKU: TC6176XB Categories: , ,


DJI Transmission Combo

The DJI Transmission Combo is an advanced communication system designed specifically for drone enthusiasts and professional pilots. This innovative combo includes a high-quality transmission module that enhances the signal strength and stability between the drone and the remote controller, allowing for seamless and reliable control over long distances. With its cutting-edge technology, the DJI Transmission Combo ensures minimal latency and interference, providing a smooth and immersive flying experience. Whether you’re a recreational flyer or a professional aerial photographer, this combo enables you to push the boundaries of your drone’s capabilities and capture stunning footage with ease. It’s the perfect accessory for anyone seeking enhanced control and performance from their DJI drone.

Long-Distance HD Live Feed

O3 Pro video transmission technology offers an incredible 6km/20,000ft [1] transmission distance. It also supports transmission at 1080p/60fps.

Integrated Wireless Receiver

Integrating monitor and receiver with many expansion features.

End-to-End Ultra-Low Latency

Uses the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.

Triple-Band Seamless Auto Hopping

Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS. It also automatically scans the electromagnetic environment for the optimal wireless channel.

Remote Gimbal/Focus/Camera Control

When used with devices like Ronin 4D Hand Grips or DJI Master Wheels, [2] you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds DFS bands* on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices.

By mounting high-gain antennas, [2] transmission capability is further boosted.

DJI Transmission Combo

Meanwhile, for crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can also be enabled to allow an unlimited number of receivers (transmission performance differs with Broadcast mode enabled). This brings shooting efficiency and awareness to an entirely new level.

One Transmitter with Multiple Receivers

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.

DJI Transmission Combo
DJI Transmission Combo



Panel Type Receiver: LCD
Display Size 7.0″ / 17.8 cm
Display Size Receiver: 7.0″ / 17.8 cm
Resolution Receiver: 1920 x 1200
Aspect Ratio Receiver: 16:10
Touchscreen Yes
Image Controls False Color, Focus Peaking, Screen Markers, Waveform, Zebra

Inputs / Outputs

Video I/O Transmitter: 1 x HDMI 1.4 Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI 2.0 Input
Receiver: 1 x HDMI 1.4 Output
Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Audio I/O Receiver: 1 x 1/8″ / 3.5 mm Headphone Output
Power Transmitter/Receiver: 1 x Barrel Input
Other I/O Receiver: 1 x USB-C 2.0 Input
Media/Memory Card Slot Single Slot: microSD/microSDHC
Encryption 256-Bit AES


Wireless Range 3.7 Miles / 6 km (Line-of-Sight)
# of Channels 23
Channel Bandwidth 40 MHz
Frequency Range Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency 68 ms
RF Power < 33 dBm
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth None
Mobile App Compatible No

Format Support

Video Format HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format 16-Bit 48 kHz PCM Audio
Wireless Video Compression Compressed
Timecode Support Yes


DC Input Power 6 to 18 VDC
Battery Type Transmitter/Receiver: 1 x L-Series (Interchangeable Mount)
Power Consumption Transmitter/Receiver: 11 W


Environmental Protection None
Certifications CE, FCC
*as per Manufacturer
Operating Temperature 22 to 77°F / -10 to 45°C


Dimensions Transmitter: 5 x 3.4 x 1″ / 127 x 87 x 26 mm
Receiver: 8.4 x 5.3 x 2″ / 213 x 135 x 51 mm
Weight Transmitter: 12.3 oz / 350 g, Excluding Antenna
Receiver: 1.6 lb / 727 g, Excluding Antenna
