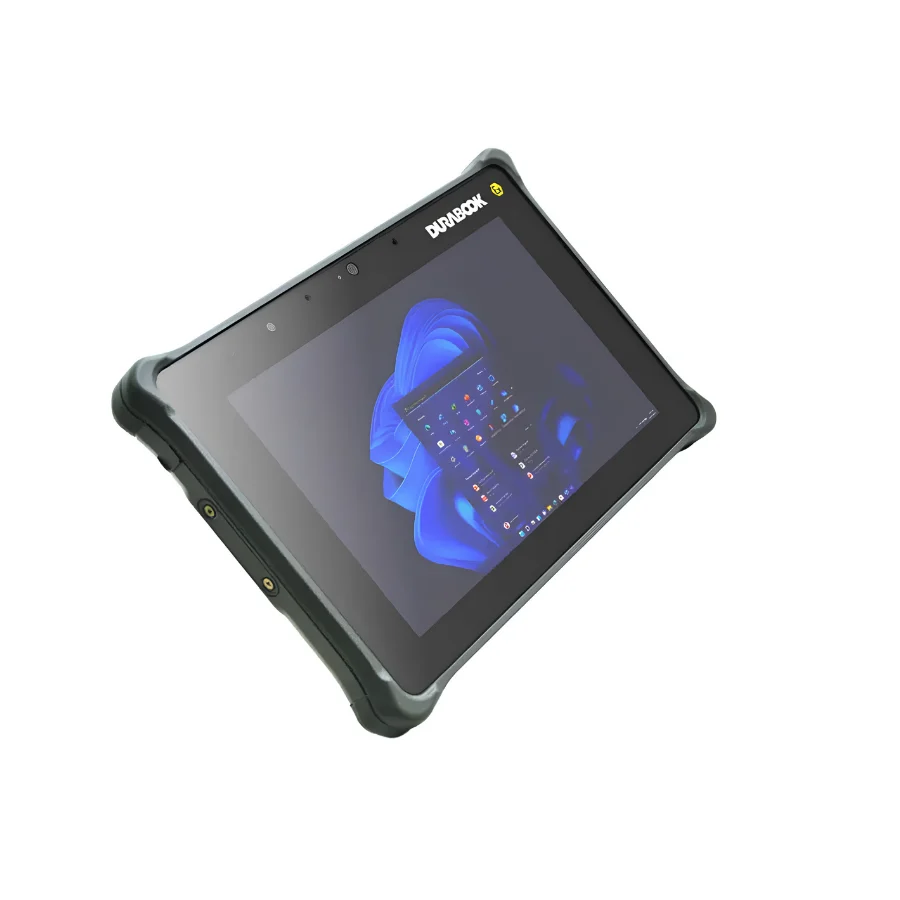

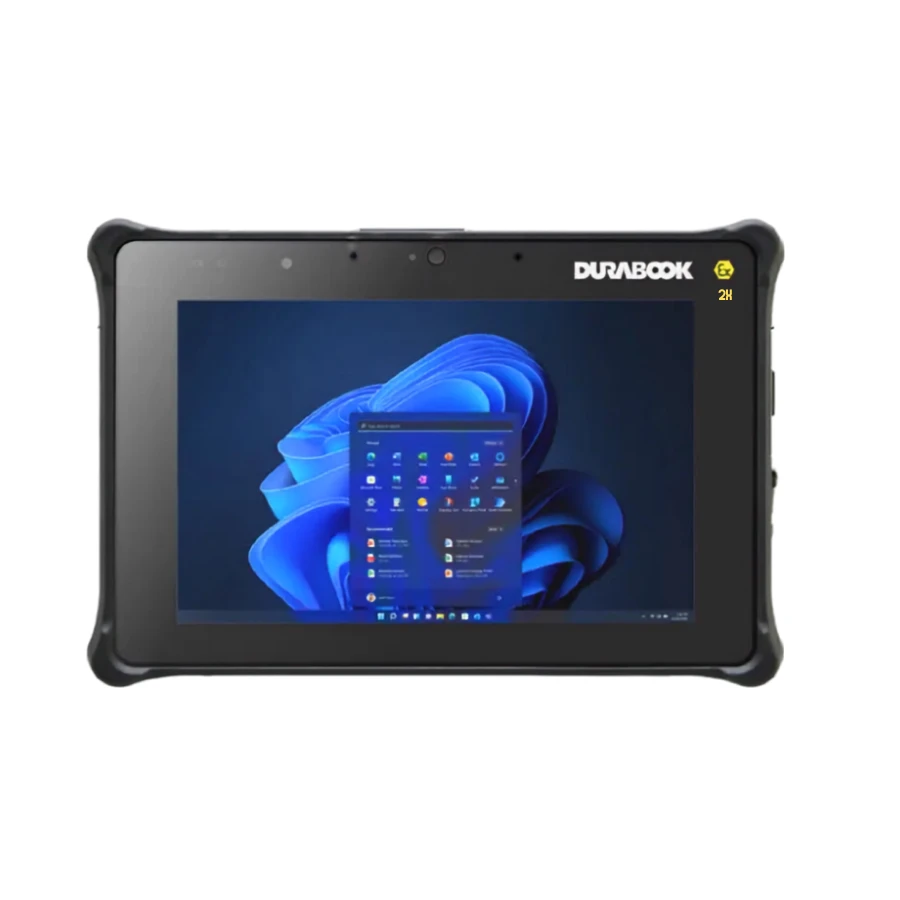

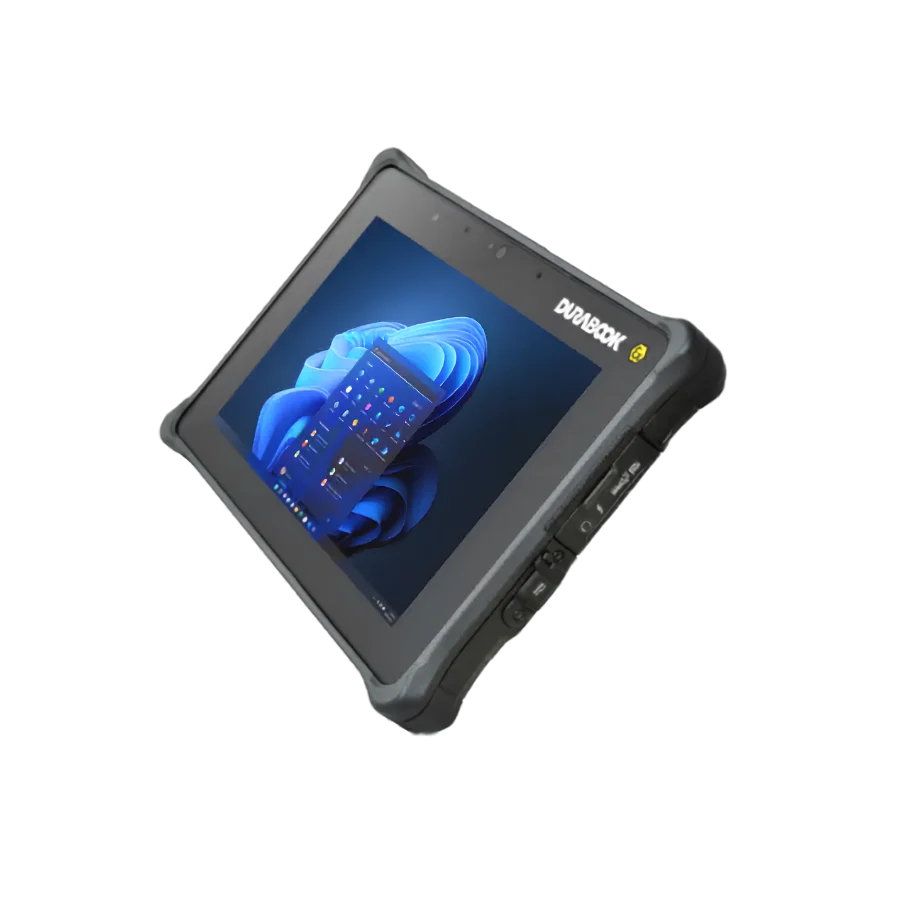

Durabook R8-EX ATEX Fully Rugged Tablet
- World's most compact ATEX Zone 2/22 certified rugged tablet — 8", only 0.88 kg
- MIL-STD-810H certified, ANSI/UL C1D2 certified, IP66 rated, 6 ft drop tested
- Intel® Core™ i5/i7 12th Gen with fanless design — no ignition risk, sealed chassis for Zone 2
- 8.0" LCD with 800 nits DynaVue® sunlight-readable display with 4 touch modes
- Expansion slot: optional barcode reader, smart card + RFID/NFC, MSR, or RS-232/RJ45

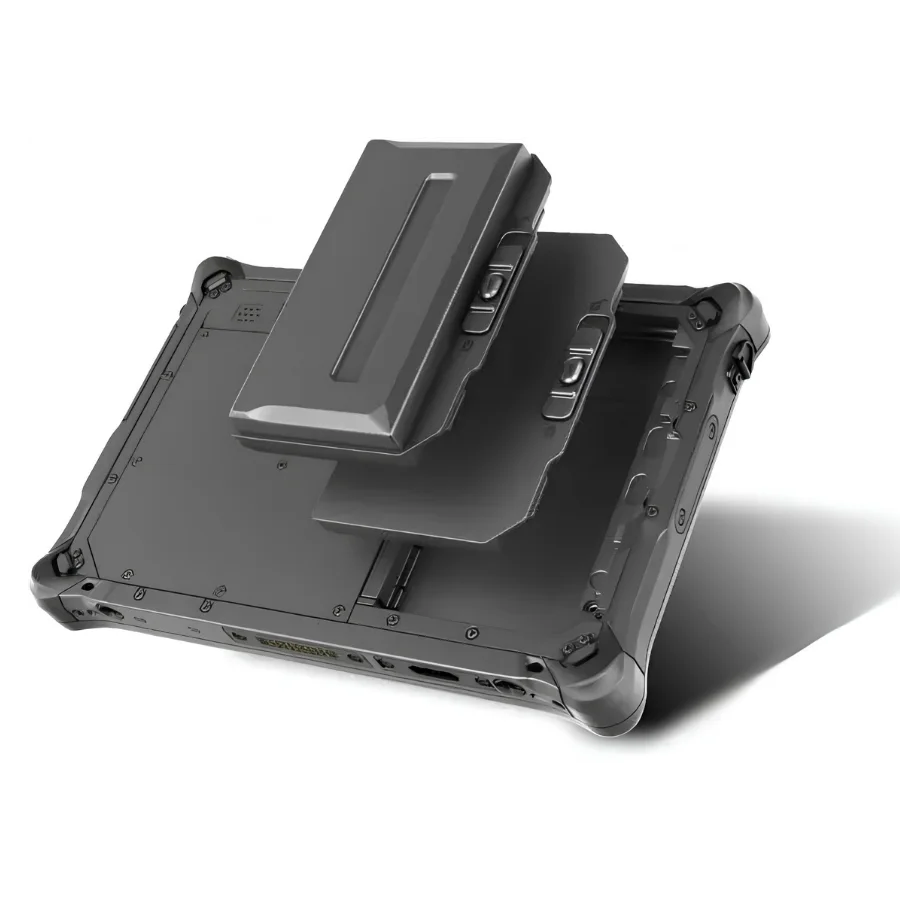

- Up to 16 hours with optional long-life battery — optional hot-swap 5-minute battery exchange
- Wi-Fi 6E, Bluetooth 5.2, optional GPS & 4G LTE — designed for oil & gas, chemical, mining operations
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Durabook R8-EX ATEX Certified 8-Inch Rugged Tablet
Extreme Power, Ultra Compact — ATEX Certified.
ATEX Zone 2/22 Certified · Intel® Core™ i5 · MIL-STD-810H · IP66 · 6 ft Drop · Coolfinity™ Fanless · 0.88 kg
At a Glance
Durabook R8-EX — Key Specifications
Full Specifications
Durabook R8-EX Technical Specifications
| Specification | Details |
|---|---|
| Tech Specs | |
| Display |
8.0" LCD (1280 × 800) 800 nits DynaVue® sunlight readable display with capacitive multi-touch screen Optional with digitizer User selectable touch mode for Finger/Water, Glove or Stylus programmable function |
| Operating System | Windows® 10/11 Pro 64-bit |
| Processors |
Intel® Core™ i7-1250U (12th Gen) Processor with vPro™ (12M Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1230U (12th Gen) Processor with vPro™ (12M Cache, up to 4.4 GHz, 2P+8E cores) Intel® Pentium® Gold Processor 8500 (8M Cache, up to 4.4 GHz, 1P+4E cores) |
| Graphics | Intel® Iris® Xe Graphics |
| Memory | Onboard 8GB up to 16GB (LPDDR4x) |
| Storage |
128GB NVMe PCIe SSD Optional 256GB/512GB/1TB PCIe SSD |
| Camera |
Integrated 2.0 MP front-facing camera Optional 8.0 MP auto-focus rear camera with flash |
| Audio |
Integrated microphone Intel® High Definition Audio Compliant Integrated speaker × 1 |
| Expansion Slot |
Optional magnetic stripe reader Optional smart card reader with LF/HF-RFID (NFC) or UHF-RFID (NFC) or RS232/RJ45/USB 3.2 Gen1 (type A) |
| I/O Interfaces |
Thunderbolt 4 x 1 USB 3.2 Gen 2 (type C) x 1 (support DP) Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 Docking connector (20-pin Pogo) x 1 Nano SIM card x 1 DC-In jack x 1 Optional USB 3.2 Gen1 (type A) x 1 Optional 10/100/1000 Ethernet (RJ45) x 1 Optional serial port (RS232) x 1 Optional 1D/2D barcode reader x 1 Optional RF antenna pass-through for GPS, WWAN and WLAN |
| Keyboard & Input | 3 buttons (1 user-definable key) |
| Communications |
Intel® Wi-Fi 6E AX211 (802.11 ax) Bluetooth® V5.2 Optional GPS and 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN and WLAN |
| Security |
Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Stealth mode Night vision mode Optional smart card reader Optional LF/HF-RFID (NFC) reader Optional UHF-RFID (NFC) reader |
| Power |
AC adapter : 100-240V, 50Hz-60Hz, 65W Main battery Li-Ion, 3.8V, 3600mAh, 8 hours Optional long life battery Li-Ion 3.8V, 7200mAh, 16 hours Optional swappable battery : 5 minutes swap time |
| Durability |
MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity) MIL-STD 461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) ATEX Zone 2/22 certified ANSI/UL 121201, Class I, Division 2 6' drop 26 faces IP 66 certified Aluminum-magnesium alloy chassis Port covers Sunlight readable display Optional swappable battery technology |
| Environment |
Temperature Operating : -20°C ~ 60°C / -4°F ~ 140°F Storage : -46°C ~ 71°C / -51°F ~ 160°F Humidity : 5% ~ 95% |
| Dimension & Weight |
227 mm (L) x 150 mm (W) x 20.5 mm (H) 0.88 kg |
Product Overview
The World's Most Compact ATEX Zone 2/22 Certified Rugged Tablet
The Durabook R8-EX is the ATEX-certified variant of the R8 — an 8-inch, 0.88 kg fully rugged tablet approved for deployment in Zone 2 and Zone 22 hazardous locations. Built on the same Intel® Core™ i5-1230U / Pentium® Gold 8500 platform with Coolfinity™ fanless design, MIL-STD-810H, and IP66 certifications, the R8-EX is the most compact ATEX-certified rugged tablet available anywhere. It delivers the complete data collection and enterprise computing capabilities of the R8 — including optional barcode reader, smart card, RFID/NFC, and RS-232 — in a form factor small enough to be carried throughout every working hour in oil & gas, chemical processing, and mining hazardous zones.
A+ Product Content
ATEX Zone 2/22 in the World's Most Compact Rugged Form
The R8-EX carries ATEX Zone 2/22 certification in an 8-inch, 0.88 kg body — making it the most compact ATEX-certified computing platform available. Zone 2 covers flammable gas and vapour environments; Zone 22 covers combustible dust zones. The R8-EX can be deployed continuously in oil refineries, LNG terminals, chemical plants, and mining operations where larger ATEX devices would be impractical for continuous carry.
Despite its compact form, the R8-EX retains full MIL-STD-810H certification, IP66 ingress protection, and 6-foot drop resistance — ensuring it performs equally well outside classified zones as within them.
Fanless Design is a Safety Requirement, Not a Feature
In Zone 2 and Zone 22 environments, fan motors are potential ignition sources. The R8-EX's Coolfinity™ fanless architecture eliminates all rotating components, removing any fan-related spark or ignition risk. Intel® Core™ i5-1230U performance is delivered entirely through passive thermal management with no compromises for the hazardous environment constraint.
The completely sealed chassis also prevents explosive dust ingress in Zone 22 environments — a critical safety requirement that cannot be satisfied by devices with fan intake vents.
Complete Data Collection Capabilities in Zone 2 Locations
The R8-EX retains the R8's full modular I/O expansion options: optional 1D/2D barcode reader, magnetic stripe reader, smart card/CAC reader with LF/HF-RFID (NFC) or UHF-RFID, and RS-232/RJ45/USB 3.2 Gen1 expansion. These options enable ATEX-zone workers to perform inspection scanning, asset tracking, access control, and equipment monitoring without leaving the classified area.
An optional 8.0 MP rear camera with flash provides visual documentation of equipment conditions, inspection findings, and maintenance records directly at the hazardous location — eliminating the need to carry a separate camera into Zone 2 areas.
Purpose-Built for Oil & Gas, Chemical & Mining Operations
The R8-EX is deployed by maintenance technicians, inspection engineers, and process operators in oil and gas upstream and midstream operations, chemical and petrochemical processing plants, pharmaceutical manufacturing facilities under explosive classification, and underground and surface mining operations.
Intel® vPro™, TPM 2.0, stealth mode, night vision mode, and optional smart card/RFID security ensure classified data and network access remain protected, while the compact 8-inch form allows the R8-EX to be worn in a belt holster or vest pocket for hands-free mobility throughout a full ATEX-zone shift.
Device Anatomy
Durabook R8-EX Rugged Tablet Anatomy
Key Features
Everything Field Professionals Demand
ATEX Zone 2/22 Certified
World's most compact ATEX tablet. Approved for gas/vapour and combustible dust zones.
Intel® Core™ i5 · Coolfinity™
Fanless sealed design — no ignition risk. Full performance at 0.88 kg.
MIL-STD-810H + IP66
Certified for drop, shock, vibration, dust, rain, altitude, temperature extremes.
800 nits DynaVue® Display
8-inch LCD with clear outdoor visibility in industrial environments.
Wi-Fi 6E · BT 5.3 · Optional LTE
Optional 4G LTE and GPS. Nano SIM. Thunderbolt 4 for wired speed.
6 ft Drop · Ultra-Compact
Fully rugged at just 0.88 kg. Carry-anywhere form for ATEX zone workers.
Up to 17 Hours Battery
8.5h standard. Optional hi-cap nearly doubles runtime for extended ATEX shifts.
Optional Barcode + RFID + MSR
Barcode scanner, magnetic stripe, smart card/CAC, RFID/NFC all available.
Intel® vPro™ + Night Vision
TPM 2.0, stealth mode, night vision. Optional Windows Hello and smart card.
41-Pin Pogo Docking
Vehicle dock and office dock support for continuous operation.
Optional RS-232 Serial Port
RS-232/RJ45/USB 3.2 expansion for industrial control system connectivity.
3-Year Standard Warranty
Enterprise coverage included as standard on every R8-EX unit.
Product Videos
See the Durabook R8-EX in Action
Frequently Asked Questions
Everything You Need to Know
What does ATEX Zone 2/22 certification mean for the R8-EX?
How does the R8-EX compare to the U11I-EX for ATEX deployments?
What data collection options does the R8-EX support in hazardous zones?
Does the R8-EX support cellular connectivity?
What security features are available on the R8-EX?
The full sheet
