FLIR ONE EDGE Thermal Imaging Camera
Refresh Rate: 8.7Hz
Weight: 153g
Radiometric Video on Camera: Yes
Accuracy: ±3 °C
Dimensions: 37.5 x 35 x 149mm
Dimensions L x W x D: 37.5 x 35 x 149mm
Application: Automotive, Electrical
Minimum Focus: 30 cm
Depth: 149mm
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
FLIR ONE EDGE Thermal Imaging Camera

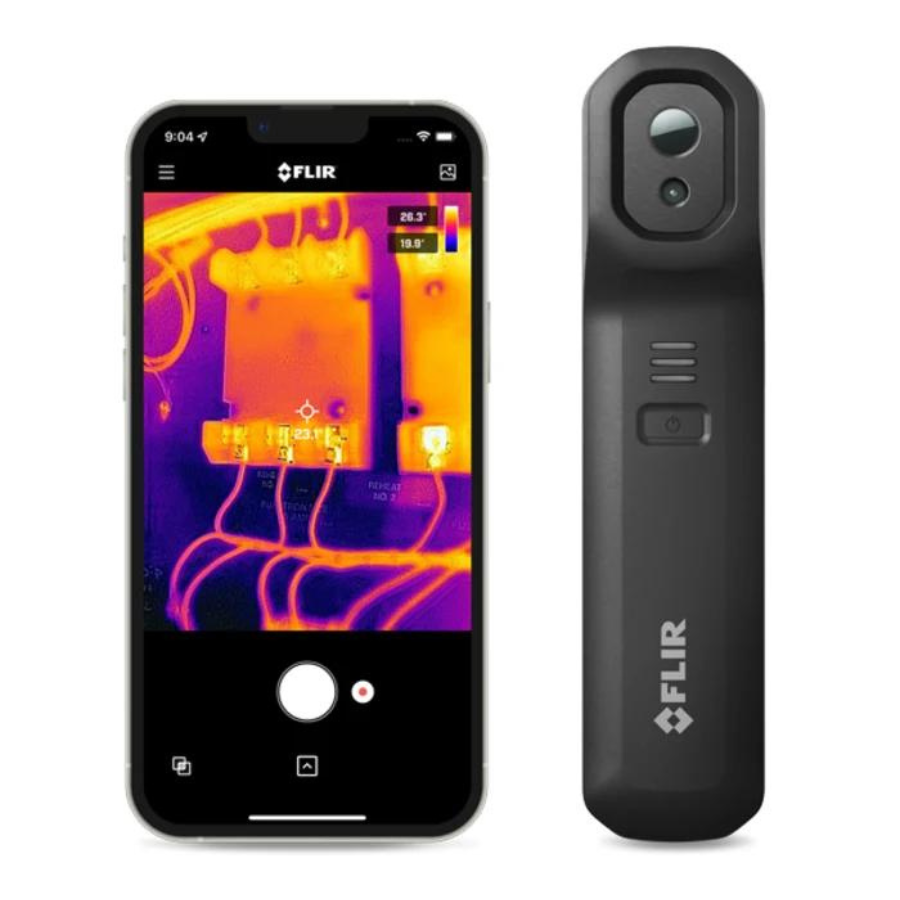

FLIR ONE EDGE Thermal Camera with Wireless Connectivity for iOS and Android Smart Devices
The FLIR ONE Edge is a cutting-edge, durable thermal imager designed for easy inspection of hard-to-reach areas from any position or angle. This smartphone-compatible thermal camera connects wirelessly, allowing you to inspect out-of-view targets or clip it onto your phone or tablet for convenient one-handed operation. With FLIR MSX® technology, you can capture detailed thermal images to pinpoint problem locations accurately. The FLIR ONE app offers guidance for troubleshooting and verifying repairs, making it ideal for DIY enthusiasts and professionals in home, automotive, commercial electrical, and mechanical inspections. The wireless connectivity ensures compatibility with both Android and iOS devices, facilitating tool sharing among team members. Thermal images and videos are saved directly to your mobile device for easy access and further use. Additionally, connecting to FLIR Ignite™ allows instant cloud uploads, enabling you to create reports, organize, store, and share data efficiently, streamlining your workflow. Shop now at XBOOM .
EASILY INSPECT ANYWHERE

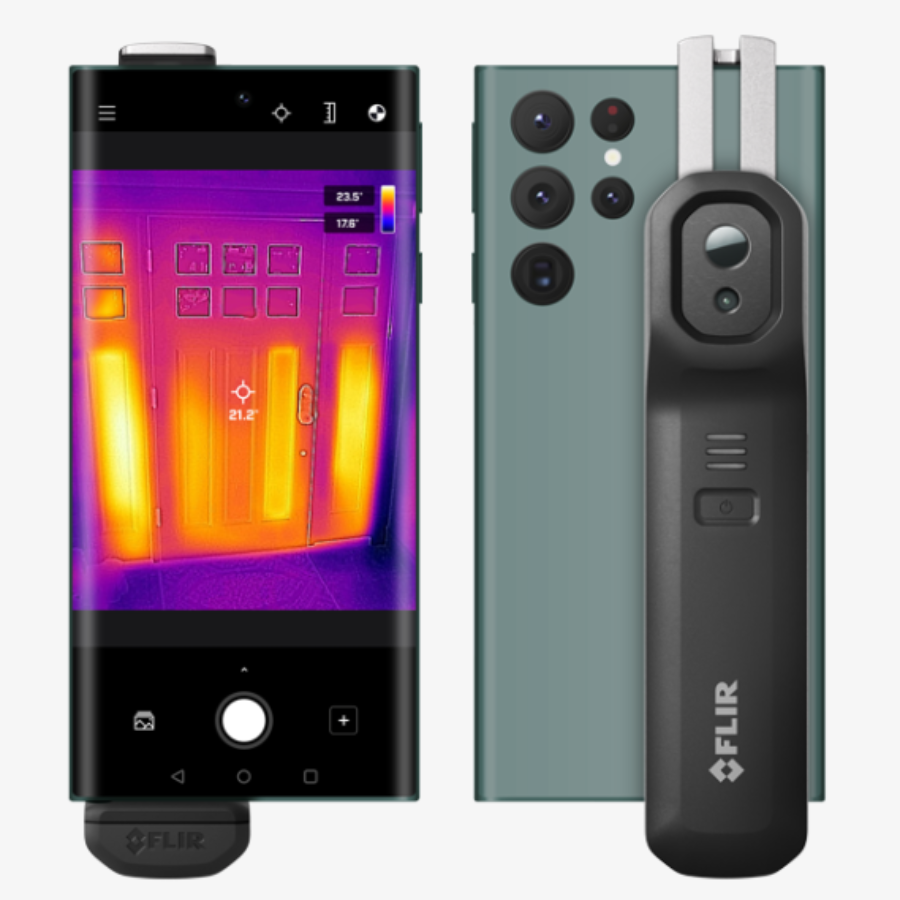

Conveniently scan targets out-of-reach or out-of-view while comfortably viewing images from your mobile device, or clip the FLIR ONE Edge to your smart device for one-handed operation with a natural grip.
IDENTIFY PROBLEMS FAST
Quickly detect and recognize where problems are located with FLIR MSX (Multi-Spectral Dynamic Imaging).
RUGGED AND READY
With a battery time of up to 2.5 hours and fast-charging capabilities, the FLIR ONE Edge is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters.
Specifications of FLIR ONE EDGE
General
SPECIFICATIONS
- Thermal Resolution
- 80 × 60 (4,800 pixels)
- Battery Life
- Approximately 2 hours 30 minutes
- Object Temperature Range
- -20°C to 120°C (-4°F to 248°F)
- Accuracy
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
IMAGING & OPTICAL
- Adjustable MSX distance
- 30 cm – Infinity
- Focus
- Fixed 30 cm – Infinity
- Frame Rate
- 8.7 Hz
- HFOV/VFOV
- 54° ±1° / 42° ±1°
- Image Modes
- MSX, Infrared, Visual
- Palette
- Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
- Shutter
- Automatic/Manual
- Thermal Resolution
- 80 × 60 (4,800 pixels)
- Thermal Sensitivity/NETD
- 70 mK
- Thermal Sensor
- Pixel size 12 µm, 8 to 14 µm spectral range
- Visual Resolution
- 640 × 480
- VividIR
- No
POWER
- Battery charge time
- 60–90 min for fully charged
15 min charging, from empty battery, gives 40 min operating time
- Battery Life
- Approximately 2 hours 30 minutes
- Charging Method
- Female USB-C (5V/1A)
MEASUREMENT & ANALYSIS
- Accuracy
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Measurement Corrections
- Emissivity; Reflected apparent temperature (22°C / 72°F)
- Object Temperature Range
- -20°C to 120°C (-4°F to 248°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
GENERAL
- Additional Integrations
- Available via device App Store. Development SDK available: https://www.flir.com/developer/mobile-sdk/
- Battery charge monitor
- 0 to 100%
- Clip Span
- 130 mm (min) / 195 mm (max)
- Compatible with FLIR software
- FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
- Device Compatibility
- iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
- Dimensions (H x W x D)
- 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
- Remote Operation
- Up to 5 m (16.4 ft) from smart device
- Weight
- 153 g (5.4 oz)
ENVIRONMENTAL & CERTIFICATIONS
- Certifications
- RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU
- Drop test
- Drop from 2 m (6.56 ft)
- Emissivity Settings
- Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- IP Rating
- IP54
- Non-Operating Temperature
- -40°C to 70°C (-40°F to 158°F)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
COMMUNICATION & DATA STORAGE
- Bluetooth
- Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
- Capture modes
- Video, Still image
- Charging
- Female USB-C (5V/1A)
- File Formats
- Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)
- WiFi
- 802.11 a/b/g/n
