GC-R8 Ground Control Station
MIL-STD-810H & IP66 certified for extreme environment readiness
Up to 36 configurable I/O channels for full control customization
5G/LTE, Wi-Fi 5, and M12 mil-grade wired connectivity
8-inch DynaVue® 800-nit sunlight-readable display
Coolfinity™ fanless design — silent, reliable thermal management
Lightweight at <1.2 kg with VESA 75/100 mount support
Operates from −20°C to 60°C (−4°F to 140°F)
Powered by R8 tablet — 19V DC, fits hi-cap battery
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

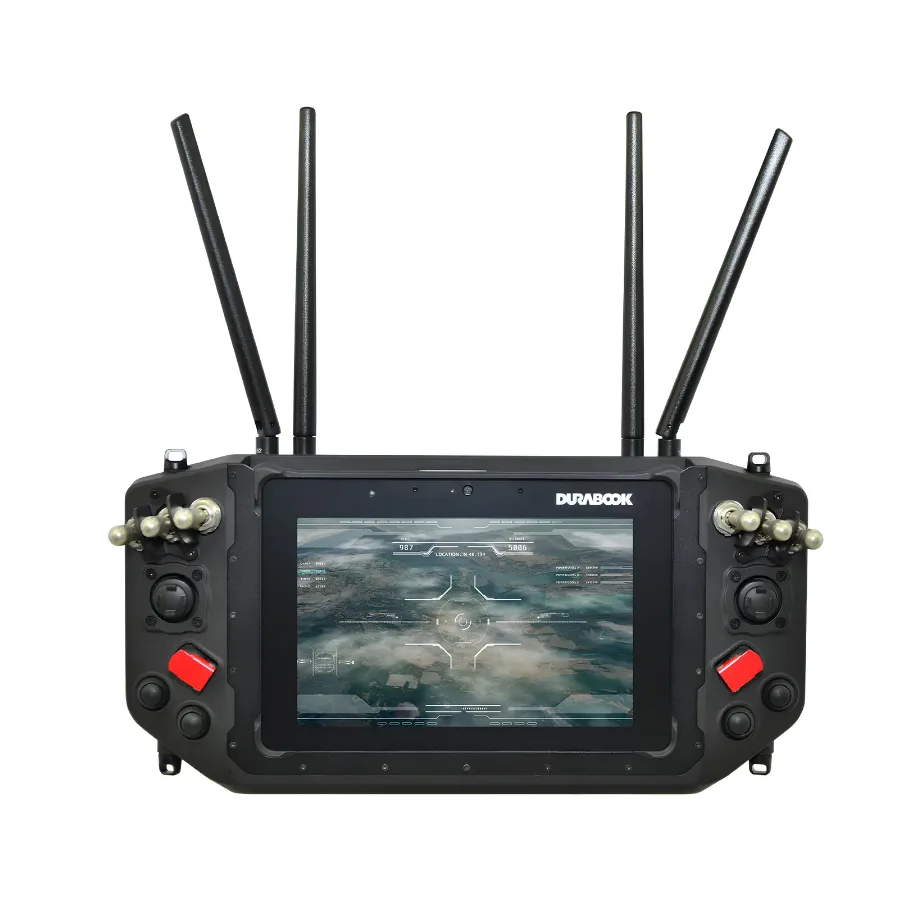

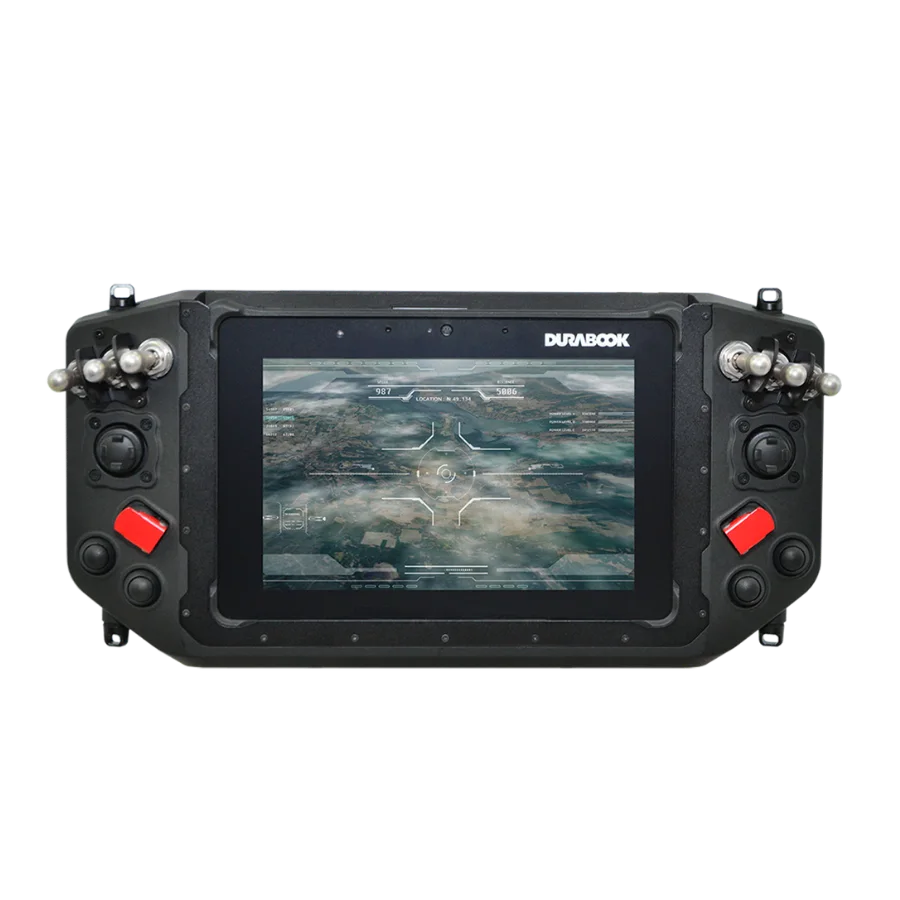

Durabook GC-R8 Ground Control Station
Equipped with R8 Rugged Tablet — Engineered for Mission-Critical UAV & Drone Operations
Command Every Mission with Confidence
The Durabook GC-R8 is a fully rugged ground control station (GCS) purpose-built for UAV, drone, and unmanned vehicle operations in the most demanding environments. Seamlessly integrating with the 8-inch R8 Rugged Tablet, it combines military-certified durability with an exceptionally flexible control interface.
Certified to MIL-STD-810H and IP66 standards, the GC-R8 operates reliably across an extreme temperature range of −20°C to 60°C. Its Coolfinity™ fanless thermal design ensures silent, maintenance-free performance under intensive workloads. The integrated DynaVue® sunlight-readable display delivers up to 800 nits of brightness, keeping critical mission data visible in full outdoor daylight.
With up to 36 configurable I/O channels—supporting hall effect joysticks, toggle switches, push buttons, flip-guard covers, and thumb wheels—operators can tailor every input to their exact workflow. Robust connectivity options including 5G/LTE, Wi-Fi 5, and military-grade M12 wired ports ensure uninterrupted data link throughout the mission.
Weighing less than 1.2 kg (2.65 lbs), it is lightweight enough to carry across extended field deployments while its VESA 75/100 mount compatibility and optional shoulder strap accessories make it just as capable when vehicle-mounted or stationed in a command post.
Full Specifications
All specifications sourced from official Durabook documentation. Dimensions and weight may vary depending on configuration.
| Specification | Details |
|---|---|
| Durability — Certification | MIL-STD-810H certified; IP66 certified |
| Durability — Drop | 6 ft (26 faces) drop resistance (R8 Tablet) |
| Display | 8-inch HD sunlight-readable DynaVue® display, up to 800 nits brightness (R8 Tablet) |
| Processor | STM32 Series (GCS controller) |
| Control — Left Side | Hall Effect Joystick ×1 (or optional Direction-Pad ×1); Push Button with Flip-Guard Cover ×1; Push Button ×2; Push Button rear ×1; Optional Toggle Switch (with Guard Walls, ON-OFF-ON, optional lock) ×3; Optional Thumb Wheel (rear) ×1 |
| Control — Right Side | Hall Effect Joystick ×1; Push Button with Flip-Guard Cover ×1; Push Button ×2; Push Button rear ×1; Optional Toggle Switch (with Guard Walls, ON-OFF-ON, optional lock) ×3; Optional Thumb Wheel (rear) ×1 |
| I/O — Wired | RJ-45 10/100/1000 (M12 Mil-Connector) ×1; USB 2.0 (M12 Mil-Connector) ×1; DC-IN (M12 Mil-Connector) ×1 |
| I/O — Wireless Ports | Optional 2× Antenna Ports (WLAN); Optional 2× Antenna Ports (WWAN) |
| Wireless Connectivity | Optional Wi-Fi 5 (802.11 a/b/g/n/ac); Optional 4G/LTE; Optional 5G; LEO Satellite (reserved) |
| Expansion / Mounting | VESA 75/100 standard hole pattern: 75×75 mm & 100×100 mm; Stylus Holder mounting holes |
| Power | 19V DC — powered by R8 Tablet (fits R8 Tablet with hi-cap battery) |
| Operating Temperature | −20°C to 60°C (−4°F to 140°F) |
| Storage Temperature | −51°C to 71°C (−60°F to 160°F) |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions (L × W × H) | 365 × 180 × 69.9 mm (14.37" × 7.09" × 2.75") |
| Weight | < 1.2 kg / < 2.65 lbs. |
| Accessories Included | DC-IN (M12 Connector) Cable; D-Ring Screws (4×) |
| Optional Accessories | 4-Point Shoulder Strap; 2-Point Shoulder Strap; Stylus with Tether; Stylus Holder |
| Thermal Design | Coolfinity™ fanless (passive cooling) |
Built for Professionals Who Cannot Afford to Fail
Military-Grade Ruggedness at Every Layer
Engineered from the ground up for the field, the GC-R8 carries dual MIL-STD-810H and IP66 certifications, confirming its resilience against shock, vibration, sand, dust, and sustained water ingress. Operating across a thermal envelope of −20°C to 60°C and surviving storage at up to 71°C, it remains functional where standard commercial hardware fails. The Coolfinity™ fanless thermal architecture eliminates rotating mechanical components, reducing maintenance intervals and points of failure while enabling completely silent operation—an important attribute in tactically sensitive deployments. Together with the R8 tablet's 6-foot 26-face drop resistance, the GC-R8 is prepared for whatever the mission demands.
Precision Control Tailored to Your Operation
No two operations are alike, and the GC-R8 Ground Control StationGC-R8 reflects that reality. The modular control system provides up to 36 configurable I/O channels across both sides of the unit. Left and right-side hall effect joysticks enable proportional flight control, with an optional direction pad available for applications that require discrete input. Push buttons with flip-guard covers prevent accidental actuation in high-vibration environments, while up to six optional toggle switches with guard walls offer ON-OFF-ON switching with an optional locking mechanism. Rear-side thumb wheels allow for fine-tuned adjustments such as gimbal trim or camera zoom, ensuring precise management of complex payloads. Every element is designed to keep the operator in command without interruption.
Next-Level Connectivity Across Every Link

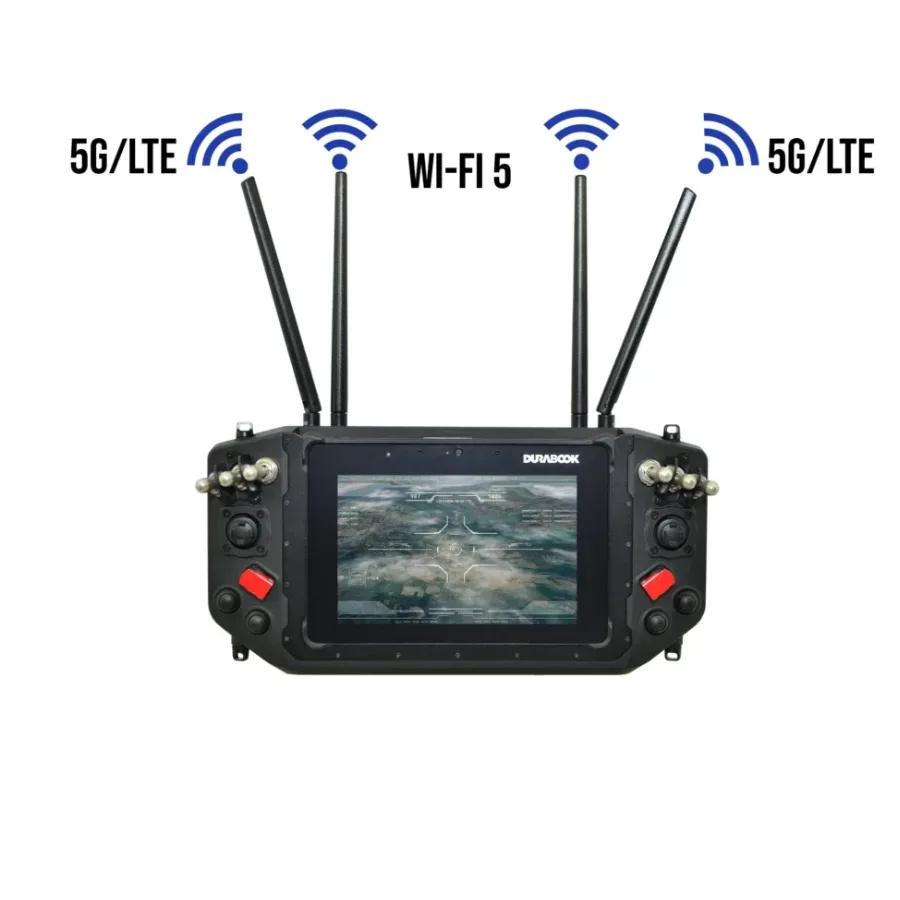

Reliable data links are the lifeline of any unmanned system mission. The GC-R8 provides a unified wired and wireless communication platform. Three M12 military-grade connectors—housing a Gigabit LAN port (RJ-45 10/100/1000), a USB 2.0 interface, and a DC power input—deliver ruggedized physical connectivity designed for quick-connect deployment. Wireless options extend to optional embedded 5G, 4G/LTE, and Wi-Fi 5 (802.11 a/b/g/n/ac) modules, each accessible via four optional external antenna ports. The wideband antenna system covers 600 MHz to 7125 MHz, ensuring broad RF compatibility with both commercial and proprietary radio link systems. Low Earth Orbit satellite connectivity is available as a reserved future integration path.
Ergonomic, Field-Ready Form Factor

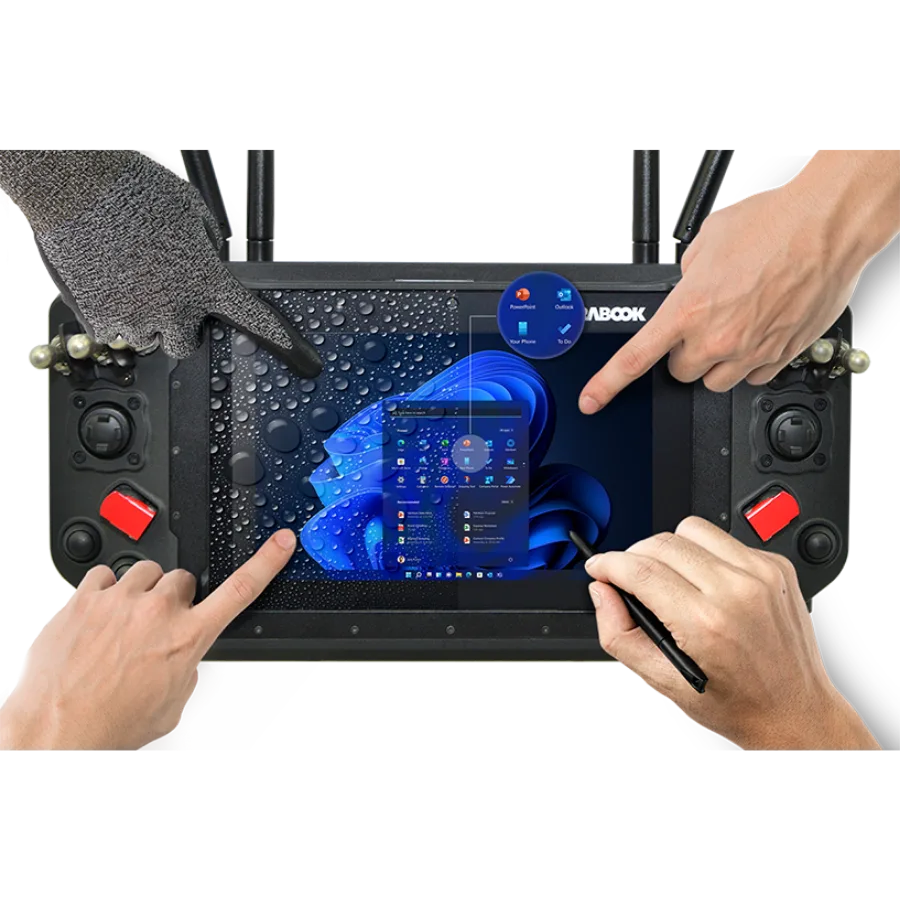

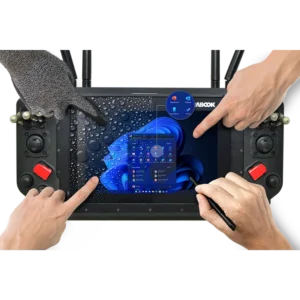

The GC-R8 is built for the operator who carries it for hours at a stretch. At under 1.2 kg (2.65 lbs) and a compact 365 × 180 × 69.9 mm, it is genuinely portable across extended field deployments without inducing operator fatigue. The integrated 8-inch HD DynaVue® display of the R8 tablet delivers up to 800 nits of sunlight-readable brightness, with four selectable touch modes supporting gloved, bare, wet-finger, and stylus input for maximum adaptability in changing field conditions. VESA 75/100 mount compatibility enables quick attachment to vehicle mounts, tripods, or operator rigs. Optional 2-point and 4-point shoulder straps, a stylus with tether, stylus holder, and D-ring screws complete a field-ready accessory ecosystem that scales to any deployment scenario.
Everything Built In. Nothing Left to Chance.
MIL-STD-810H Certified
Withstands military-grade shock, vibration, altitude, humidity, and temperature extremes as defined by the H revision standard.
IP66 Weather Sealing
Full protection against dust ingress and powerful water jets, enabling reliable use in rain, industrial wash-downs, and muddy terrain.
36 Configurable I/O Channels
Hall effect joysticks, D-pads, toggle switches with guard walls, flip-guard push buttons, and thumb wheels—all fully configurable.
DynaVue® 800-nit Display
Integrated R8 tablet with 8-inch HD display delivering sunlight-readable clarity with glove, wet, bare, and stylus input modes.
Coolfinity™ Fanless Design
Passive thermal management eliminates fan noise and mechanical wear, supporting silent operation and high-reliability in intensive-use environments.
5G / LTE & Wi-Fi 5
Optional embedded 5G, 4G/LTE, and Wi-Fi 5 modules with four external antenna ports covering 600 MHz to 7125 MHz wideband RF.
Military-Grade M12 Connectors
Ruggedized M12 mil-spec LAN (Gigabit), USB 2.0, and DC-IN ports designed for reliable quick-connect operation in harsh field conditions.
VESA 75/100 Mount Support
Standard 75 × 75 mm and 100 × 100 mm mounting hole patterns enable integration with vehicle mounts, tripods, and operator rigs.
Wide Temperature Range
Operating from −20°C to 60°C and storage down to −51°C ensures function across arctic, desert, and tropical deployment environments.
Lightweight & Ergonomic
Under 1.2 kg and 365 × 180 × 69.9 mm, the GC-R8 minimizes operator fatigue during extended on-site or mobile deployments.
Optional Shoulder Straps
2-point and 4-point shoulder strap options, D-ring screws, and stylus accessories allow flexible carry configurations for any deployment.
Flip-Guard Safety Covers
Push buttons with protective flip-guard covers prevent accidental activation in high-vibration environments and tactically critical situations.
Deployed Across the Most Demanding Industries
Defense & Tactical Missions
Manages UAVs and UGVs in intelligence, surveillance, and reconnaissance operations with military-certified durability and secure wireless datalinks including 5G and LEO satellite connectivity.
Search & Rescue (SAR)
Aerial SAR in flood, earthquake, and inaccessible terrain scenarios. Glove-compatible touch, sunlight-readable display, and long battery life ensure continuous performance in time-critical operations.
Industrial Inspection
Controls inspection drones over pipelines, electrical grids, and refineries. Vibration and dust resistance ensure stable command in harsh utility and energy environments.
Agricultural Drone Management
Operates crop-spraying UAVs, soil-analysis drones, and autonomous ground vehicles across heat, humidity, and dusty farmland with weather-resistant construction and reliable connectivity.
Construction & Surveying
Coordinates survey drones and robotic machines across construction zones. Supports mapping applications, visual feed integration, and customizable inputs to maximize site efficiency.
Product Videos
Watch the Durabook R8 rugged tablet platform — the powerful core of the GC-R8 ground control station.
DURABOOK R8 Fully Rugged Tablet — Official Introduction
Official Durabook introduction of the R8 rugged tablet — the core technology platform integrated within the GC-R8 ground control station.
Durabook R8 Rugged Tablet — Feature Walkthrough
In-depth pre-release walkthrough covering the key hardware features of the Durabook R8 rugged tablet platform that powers the GC-R8.
Top 10 Features of the Durabook R8 Tablet
Hands-on expert review covering the standout capabilities of the Durabook R8 — from display performance to rugged certifications and field connectivity.
