Unitree A2 Pro
- Dual LiDAR Sensors – Upgraded with two LiDAR sensors for enhanced environmental scanning and obstacle detection.
- Wireless Vector Positioning – Equipped with a wireless vector positioning companion module for improved positioning capabilities.
- GPS & 4G Connectivity – Integrated GPS and 4G modules support positioning and remote communication.
- Enhanced Computing Power – Features a high-computing expansion dock, increasing built-in computing capacity to three computing units.
- Autonomous Navigation & SLAM – Supports SLAM mapping, autonomous navigation, stable obstacle avoidance, and point cloud surround view.
- HD Imaging & Lighting – Supports lighting and HD image transmission for enhanced operational visibility.
- Optional Autonomous Charging – Supports autonomous charging functionality as an optional configuration.
- Industrial-Grade Protection – IP56–IP67 protection rating, with core components rated IP67 for demanding environments.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Unitree A2 Pro

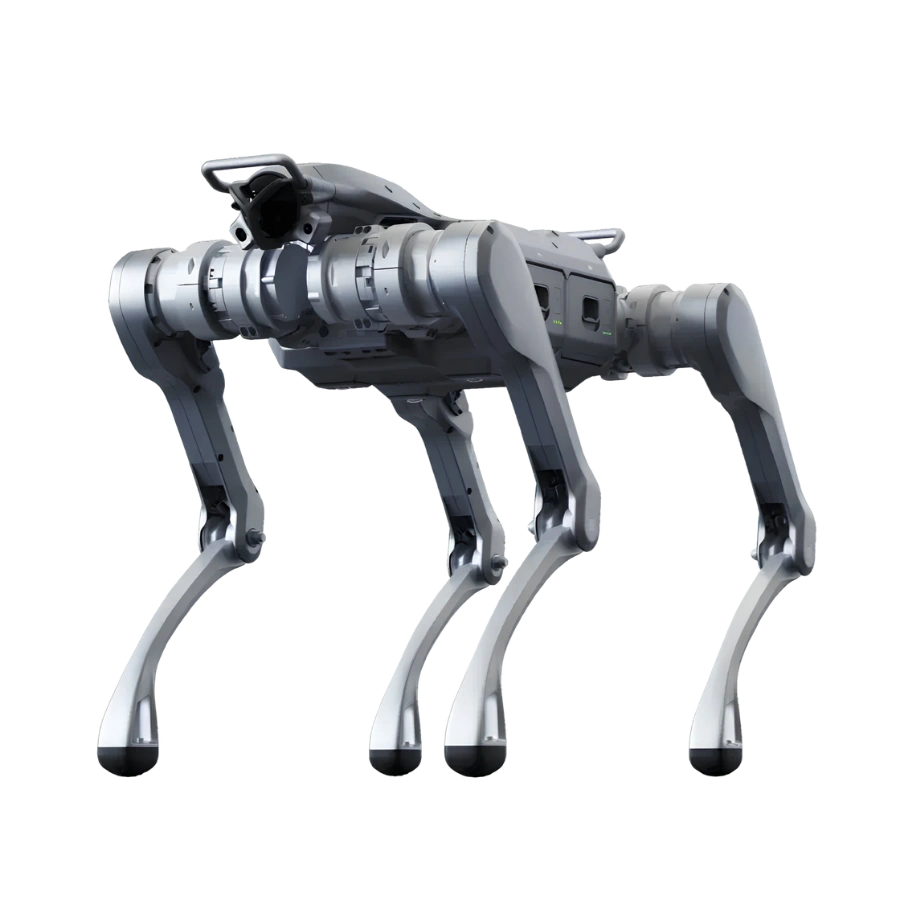

Stellar Explorer — an industrial-grade legged robot built for heavy payload and long-range missions: ~180N·m max joint torque, 100kg standing load, dual LiDAR perception with wireless vector follow, GPS and 4G expanded, hot-swappable dual batteries, and IP67-rated core components.
Agile, Swift, and Built for Heavy Industrial Work
The Unitree A2 Pro weighs about 42kg with its battery, yet delivers approximately 180N·m of max joint torque across 12 industrial-grade joint motors with crossed roller bearings — enough for a standing payload of about 100kg and a continuous walking payload of about 25kg (up to approximately 35kg ideally). It runs unloaded for more than 5 hours (about 20km) or over 3 hours (about 12.5km) carrying a 25kg load, powered by a dual-slot, dual-battery system that supports hot-swapping without stopping the mission. The Pro configuration adds a second industrial LiDAR (front and rear) for zero-blind-spot perception, a wireless vector follow module, GPS and 4G connectivity, and IP56–IP67 ingress protection with core components rated IP67 — plus the option of a high computing power expansion dock alongside its standard 8-core CPU and Intel Core i7 development platform.
Four Pillars of the A2 Pro
Lighter, Faster, Tougher
Agile & swift, lightweight and built for extended endurance — the A2 Pro conquers rugged terrain with ease.
Payload, Perception, Mobility & Power

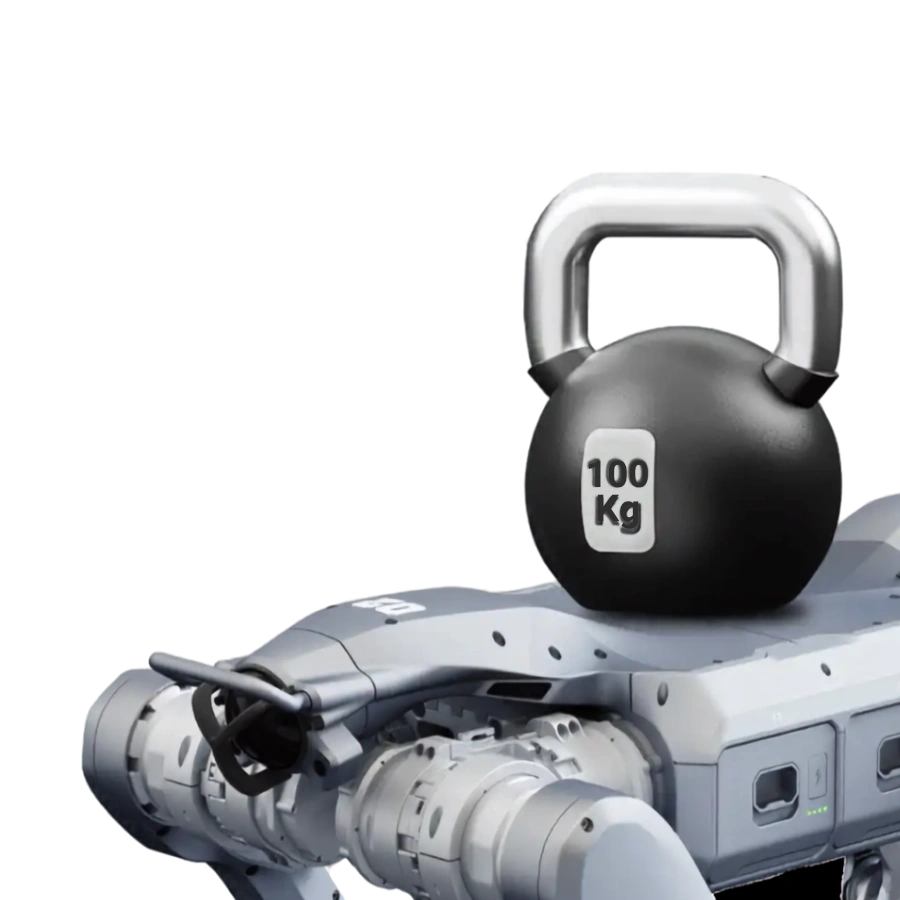

Heavy Payload Standard
The A2 Pro is a premium mobile hardware platform open for rapid development, built to carry heavy industrial payloads. Its 12 joint motors deliver approximately 180N·m of max joint torque, supporting a standing load of about 100kg.
Dual-Sided Perception — Zero Blind Spots, Greater Accuracy

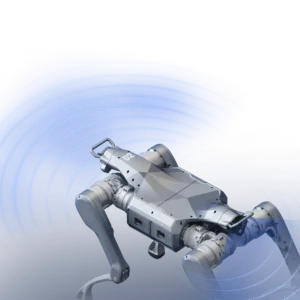

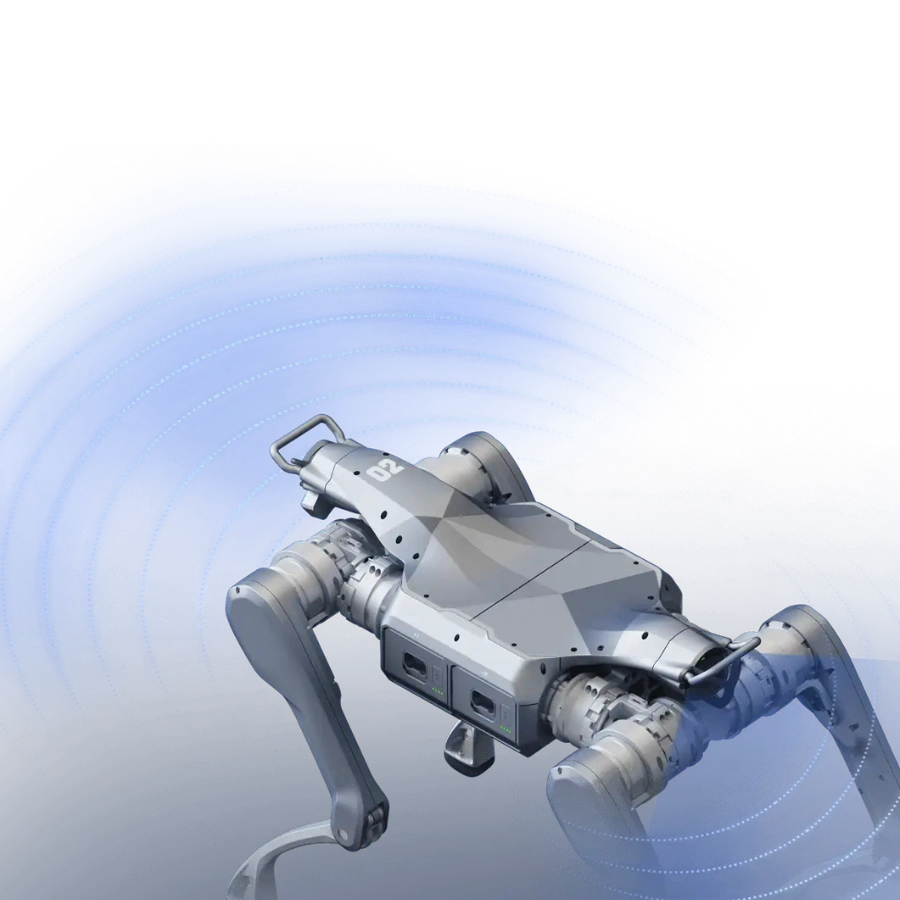

The A2 Pro carries 2 industrial LiDARs (front and rear) plus an HD camera and front light to detect the environment ahead — eliminating blind spots for safer navigation in complex industrial spaces.
Wheel-Leg Option Available — Unleash Greater Performance
Beyond its standard legged gait, the A2 platform supports a wheel-leg configuration option, combining rolling efficiency with legged versatility for demanding logistics and inspection routes.
Hot-Swappable Dual Batteries · Unlimited Runtime
A dual-battery parallel design lets operators swap batteries without stopping the mission — the eternal heart for extreme deployments. A reliable triple power system guarantees stable operation from -20°C to 55°C.
High Power, Smart Control, Multi-Scenario Ready
From logistics, industrial inspection, to emergency rescue — effortlessly navigating extreme and complex environments with confidence.
Medium Size, Powerful Performance, Industry Choice
Shared Chassis Design — A2 Pro
The A2 Pro shares its core chassis, computing platform and connectivity foundation with the standard A2, expanded here with dual LiDAR perception, wireless vector follow, GPS, 4G and IP67-rated core components.
A2 Pro — What's Included
A2 Pro — Complete Specification
| Specification | Details |
|---|---|
| Mechanical Parameters | |
| Size (Standing) | 820mm × 440mm × 570mm |
| Size (Lying Prone) | 720mm × 550mm × 220mm |
| Material | Aluminium alloy + high-strength engineering plastic |
| Weight (without battery) | About 35kg |
| Weight (with battery) | About 42kg |
| Degrees of Freedom | 12 joint motors |
| Joint Bearings | Industrial-grade crossed roller bearings (high precision, high load capacity) |
| Joint Motors | Low-inertia, high-speed inner rotor PMSM (enhanced response & heat dissipation) |
| Max Joint Torque | About 180N·m |
| Range of Motion | Body: -58°~58° · Thigh: -134°~180° / -89°~225° · Shank: -158°~-30° |
| Electrical Characteristics | |
| Supply Voltage | 50.4V |
| Joint Encoder | Dual encoders |
| Cooling System | Local air cooling |
| Power Supply | Dual slots, dual batteries |
| Battery Capacity | Single battery 9000mAh (453.6Wh) · Dual batteries 18000mAh (907.2Wh) |
| Wi-Fi 6 / Bluetooth 5.2 | Yes |
| Speaker | Yes |
| Microphone | Microphone array |
| Front Light | Yes |
| Wireless Vector Follow Module | Yes (Expanded) |
| GPS | Yes (Expanded) |
| 4G | Yes (Expanded) |
| Sensor | LiDAR ×2 + HD Camera ×1 |
| Control & Compute | Standard: 8-core high-performance CPU (platform) + Intel Core i7 (user development) · Optional: high computing power expansion dock |
| External Interfaces | RS485 ×2 · CAN ×2 · Gigabit Ethernet ×2 · USB3.0-TypeC (8-Core CPU) ×2 · USB3.0-TypeC (Intel Core i7) ×2 · Power Output: 12V / 24V / BAT |
| Performance Metrics | |
| Operating Temperature | -20°C ~ 55°C |
| Battery Life (No Load) | >5 hours continuous walking, approx. 20km |
| Battery Life (25kg Load) | >3 hours continuous walking, approx. 12.5km |
| Max Standing Load | About 100kg |
| Continuous Walking Load | About 25kg (ideally up to approx. 35kg) |
| Slope Walking Capability | About 45° |
| Stair Climbing Capability | Max step height 30cm |
| Max Climb Height | About 0.5–1m |
| Speed | 0–3.7 m/s (up to ~5 m/s) |
| Ingress Protection Rating | IP56–IP67 (core components rated IP67) |
| Other | |
| Smart OTA Upgrade | Continuous upgrades |
| Secondary Development | Supported |
| Warranty | 12 months |
Common Questions — A2 Pro
What does the A2 Pro add over the standard A2?
The A2 Pro adds a second industrial LiDAR (front and rear, vs a single LiDAR on the standard A2), an expanded wireless vector follow module, expanded GPS and 4G connectivity, an optional high computing power expansion dock, and a higher ingress protection rating (IP56–IP67 with core components at IP67, vs IP56 on the standard A2).
How much payload can the A2 Pro carry?
The A2 Pro supports a standing load of about 100kg, and can continuously walk while carrying about 25kg (up to approximately 35kg ideally).
How long does the battery last?
Unloaded, the A2 Pro runs for more than 5 hours (about 20km). Carrying a 25kg load, it runs for more than 3 hours (about 12.5km). The dual-battery system supports hot-swapping without stopping the mission.
Is a wheel-leg configuration available?
Yes. The A2 platform supports a wheel-leg option for combining rolling efficiency with legged versatility.
What is the ingress protection rating?
The A2 Pro carries an IP56–IP67 rating, with its core components specifically rated IP67 for demanding wet and dusty environments.
Does the A2 Pro support secondary development?
Yes. The A2 Pro fully supports secondary development, continuous smart OTA upgrades, and includes an 8-core CPU plus Intel Core i7 for user development, with an optional high computing power expansion dock.
