ZT-T170 Twin Cylinder UAV Engine

• 18.1hp (13.3kW) twin-cylinder, air-cooled, two-stroke engine with 170cc displacement and 51mm×41mm bore and stroke
• Delivers 35kg static thrust at 100m altitude and 31.5kg at 1800m altitude — supports UAVs up to 80kg MTOW
• Automatic advance angle CDI ignition operating at 6–8.4V DC with speed range of 1100–7500rpm
• Three-bearing crankshaft for enhanced rigidity and durability under continuous UAV operation loads
• Mixture lubrication at 50:1; compatible with both push and pull propeller installations
• Available in carburetor (6L/h) or EFI (4.5L/h) fuel delivery; recommended propellers 30×12, 32×10
• Integrated 600W generator; weighs 3.93kg with dimensions of 340×232×190mm

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

ZT-T170 Twin Cylinder Engine | 18.1hp/13.3kW | Automatic CDI Ignition

Twin Cylinder Engine

ZT-T170 Twin Cylinder Engine

Twin Cylinders · Air-Cooled · Two-Stroke · Automatic CDI Ignition · Three-Bearing Crankshaft · Push and Pull Devices

18.1hp / 13.3kW 170cc Displacement 35kg Thrust @ 100m 80kg MTOW Twin Cylinders Automatic CDI Ignition Three-Bearing Crankshaft 3.93kg

Full Specifications

ZT-T170 Technical Specifications

Specification	Details
Engine Configuration
Cylinder Configuration	Twin cylinders
Cooling	Air-cooled
Engine Cycle	Two-stroke
Ignition System	Automatic advance angle CDI ignition
Lubrication	Mixture lubrication — 50:1 ratio
Mounting	Push and pull devices
Performance
Power	18.1hp / 13.3kW
Static Thrust (100m altitude)	35kg
Static Thrust (1800m altitude)	31.5kg
Max Take-off Weight	80kg
Speed Range	1100–7500 rpm
Engine Dimensions
Bore × Stroke	51mm × 41mm
Displacement	170cc
Crankshaft	Three-bearing crankshaft
Propeller & Fuel
Recommended Propeller	30×12 \| 32×10
Fuel Consumption (Carburetor)	6L/h
Fuel Consumption (EFI)	4.5L/h
Electrical
Ignition Voltage	6–8.4V DC
Generator	600W
Physical
Weight	3.93kg
Dimensions (L×W×H)	340 × 232 × 190mm

Product Overview

ZT-T170 Twin Cylinder Engine

The ZT-T170 is a twin-cylinder, air-cooled, two-stroke engine producing 18.1hp (13.3kW) with a displacement of 170cc. It delivers 35kg of static thrust at 100m altitude and 31.5kg at 1800m, supporting platforms with a maximum take-off weight of 80kg. Featuring a three-bearing crankshaft, automatic CDI ignition, and a speed range of 1100 to 7500 rpm, the ZT-T170 is built for reliable, continuous high-load operation.

18.1hp / 13.3kW PowerTwin-cylinder two-stroke output

35kg Static ThrustAt 100m altitude

170cc Displacement51mm bore × 41mm stroke

Three-Bearing CrankshaftEnhanced rigidity and service life

Carb: 6L/h | EFI: 4.5L/hTwo fuel delivery options

600W GeneratorOnboard avionics power

Product Details

ZT-T170 — Features & Engineering

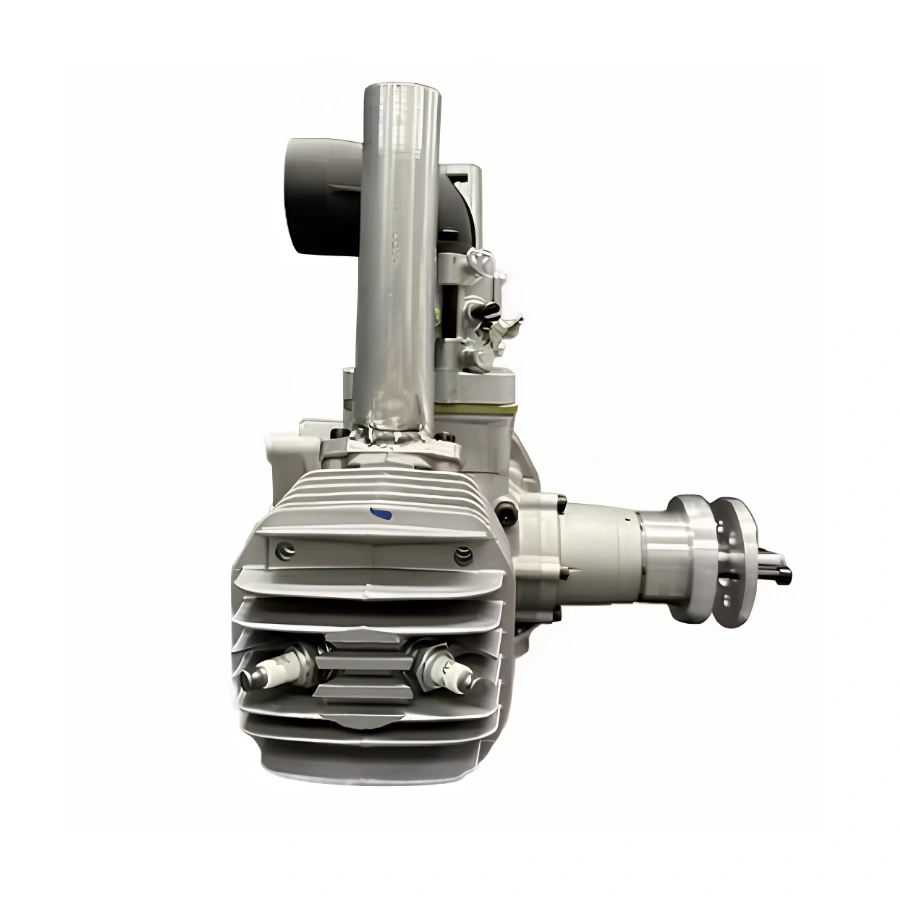

ZT-T170 — side view showing crankshaft output and cooling fins

Engine Design

Twin-Cylinder Two-Stroke with Three-Bearing Crankshaft

The ZT-T170 is built on a twin-cylinder, air-cooled, two-stroke platform with a bore of 51mm and stroke of 41mm, delivering 170cc displacement and 18.1hp (13.3kW). The speed range spans 1100 to 7500 rpm.

The three-bearing crankshaft provides superior rigidity and load distribution compared to two-bearing designs, extending service life under continuous high-load operation. Mixture lubrication is set at a 50:1 ratio.

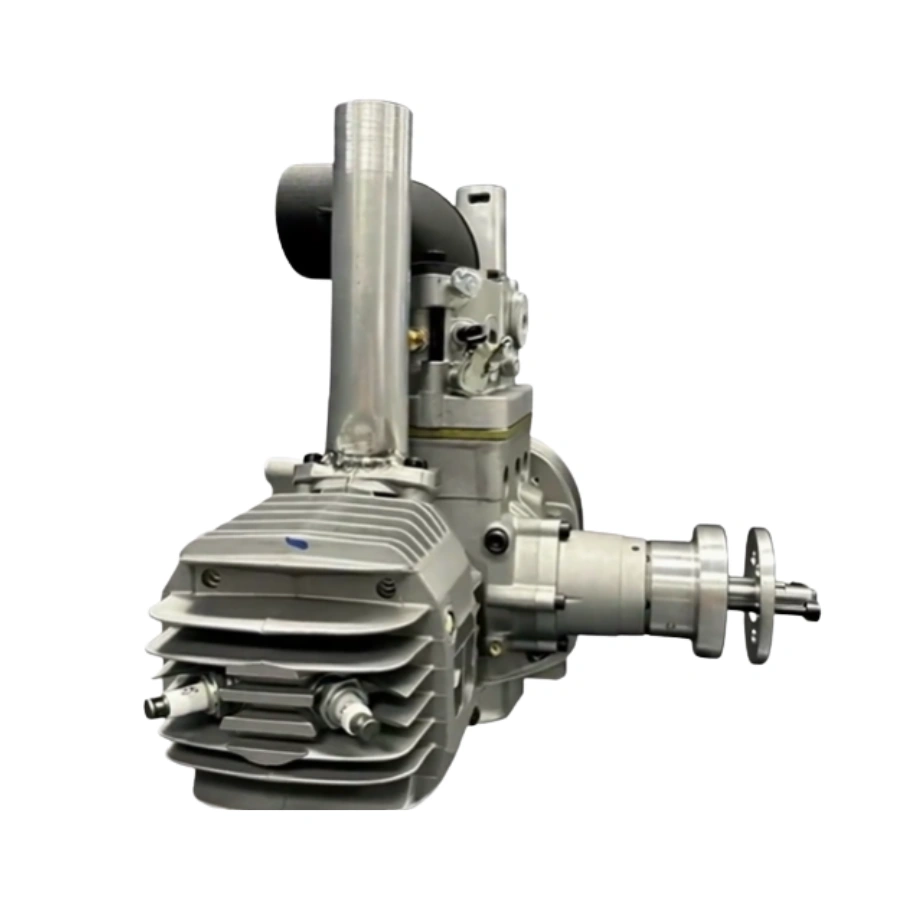

ZT-T170 — rear quarter view showing carburetor and ignition system

Ignition & Fuel

Automatic CDI Ignition — Carburetor or EFI

The automatic advance angle CDI ignition system optimises timing across the full rpm range without manual adjustment, operating at 6–8.4V DC.

The carburetor version consumes 6L/h. The EFI variant reduces consumption to 4.5L/h with improved altitude performance and more precise fuel metering. Recommended propellers are 30×12 and 32×10.

ZT-T170 — angled front view showing intake and twin exhaust pipes

Performance & Thrust

High-Output Performance at Altitude

At 100m altitude the ZT-T170 produces 35kg of static thrust. At 1800m it maintains 31.5kg — supporting platform designs up to 80kg maximum take-off weight across a wide range of operating elevations.

Compatible with both push and pull propeller mounting configurations, the engine gives airframe designers full flexibility. The integrated 600W generator provides dedicated power for avionics and payloads without affecting propulsion output.

At a Glance

ZT-T170 — Key Specifications

Power

18.1hp / 13.3kW

Displacement

170cc

Static Thrust (100m)

35kg

Static Thrust (1800m)

31.5kg

Max Take-off Weight

80kg

Speed Range

1100–7500 rpm

Bore × Stroke

51mm × 41mm

Lubrication Ratio

50:1

Ignition Voltage

6–8.4V DC

Generator

600W

Weight

3.93kg

Dimensions (L×W×H)

340×232×190mm

Frequently Asked Questions

ZT-T170 — Common Questions

What platforms is the ZT-T170 suitable for?

The ZT-T170 supports platforms with a maximum take-off weight of up to 80kg. Its twin-cylinder configuration and push/pull installation flexibility make it suitable for fixed-wing, agricultural, and medium-class multi-rotor aircraft.

What is the difference between the carburetor and EFI versions?

The carburetor version consumes 6L/h. The EFI version reduces this to 4.5L/h with more precise fuel metering and improved altitude performance. Both versions share the same engine block and mechanical components.

What propellers are recommended for the ZT-T170?

Recommended propellers are 30×12 and 32×10. Selection depends on platform thrust requirements and whether the engine is in push or pull configuration.

What crankshaft does the ZT-T170 use?

The ZT-T170 uses a three-bearing crankshaft, which provides enhanced rigidity and load distribution for reliable continuous operation under demanding conditions.

What ignition voltage does the ZT-T170 require?

The CDI ignition system operates at 6–8.4V DC. The automatic advance angle CDI adjusts ignition timing automatically across the 1100–7500 rpm operating range.
