ZT-T222 Four Cylinder UAV Engine

• 20.9hp (15.3kW) four-cylinder, air-cooled, two-stroke engine with 222cc displacement and 45mm×35mm bore and stroke
• Delivers 45kg static thrust at 100m altitude and 41kg at 1800m altitude; idle speed 1000rpm, compression ratio 7.6:1
• Automatic advance angle CDI ignition at 4.8–8.4V; specified spark plug NGK CM6
• Mixture lubrication at 30:1; compatible with push and pull propeller installations
• Available in carburetor (8.3L/h) or EFI (6.2L/h) fuel delivery; recommended propellers 32×10, 32×12, 34×10
• Main unit weight 4860g; exhaust pipe 470g; igniter 380g — three-component assembly
• Dimensions (L×W×H): 320×270×180mm

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

ZT-T222 Four Cylinder Engine | 20.9hp/15.3kW | Automatic CDI Ignition

Four Cylinder Engine

ZT-T222 Four Cylinder Engine

Four Cylinders · Air-Cooled · Two-Stroke · Automatic CDI Ignition · Mixture Lubrication · Push and Pull Devices

20.9hp / 15.3kW 222cc Displacement 45kg Thrust @ 100m Four Cylinders Automatic CDI Ignition Compression 7.6:1 NGK CM6 Spark Plug Main Unit 4860g

Full Specifications

ZT-T222 Technical Specifications

Specification	Details
Engine Configuration
Cylinder Configuration	Four cylinders
Cooling	Air-cooled
Engine Cycle	Two-stroke
Ignition System	Automatic advance angle CDI ignition
Lubrication	Mixture lubrication — 30:1 ratio
Mounting	Push and pull devices
Performance
Power	20.9hp / 15.3kW
Static Thrust (100m altitude)	45kg
Static Thrust (1800m altitude)	41kg
Idle Speed	1000 rpm
Compression Ratio	7.6:1
Engine Dimensions
Bore × Stroke	45mm × 35mm
Displacement	222cc
Propeller & Fuel
Recommended Propeller	32×10 \| 32×12 \| 34×10
Spark Plug	NGK CM6
Fuel Consumption (Carburetor)	8.3L/h
Fuel Consumption (EFI)	6.2L/h
Electrical
Ignition Voltage	4.8–8.4V
Physical
Main Unit Weight	4860g
Exhaust Pipe Weight	470g
Igniter Weight	380g
Dimensions (L×W×H)	320 × 270 × 180mm

Product Overview

ZT-T222 Four Cylinder Engine

The ZT-T222 is a four-cylinder, air-cooled, two-stroke engine delivering 20.9hp (15.3kW) with 222cc displacement. It produces 45kg static thrust at 100m altitude and 41kg at 1800m. With a compression ratio of 7.6:1, idle speed of 1000 rpm, and automatic CDI ignition operating at 4.8–8.4V, the ZT-T222 is engineered for reliable high-output performance.

20.9hp / 15.3kW PowerFour-cylinder two-stroke output

45kg Static ThrustAt 100m altitude

222cc Displacement45mm bore × 35mm stroke

Compression Ratio 7.6:1Four-cylinder architecture

Carb: 8.3L/h | EFI: 6.2L/hTwo fuel delivery options

NGK CM6 Spark PlugSpecified ignition component

Product Details

ZT-T222 — Features & Engineering

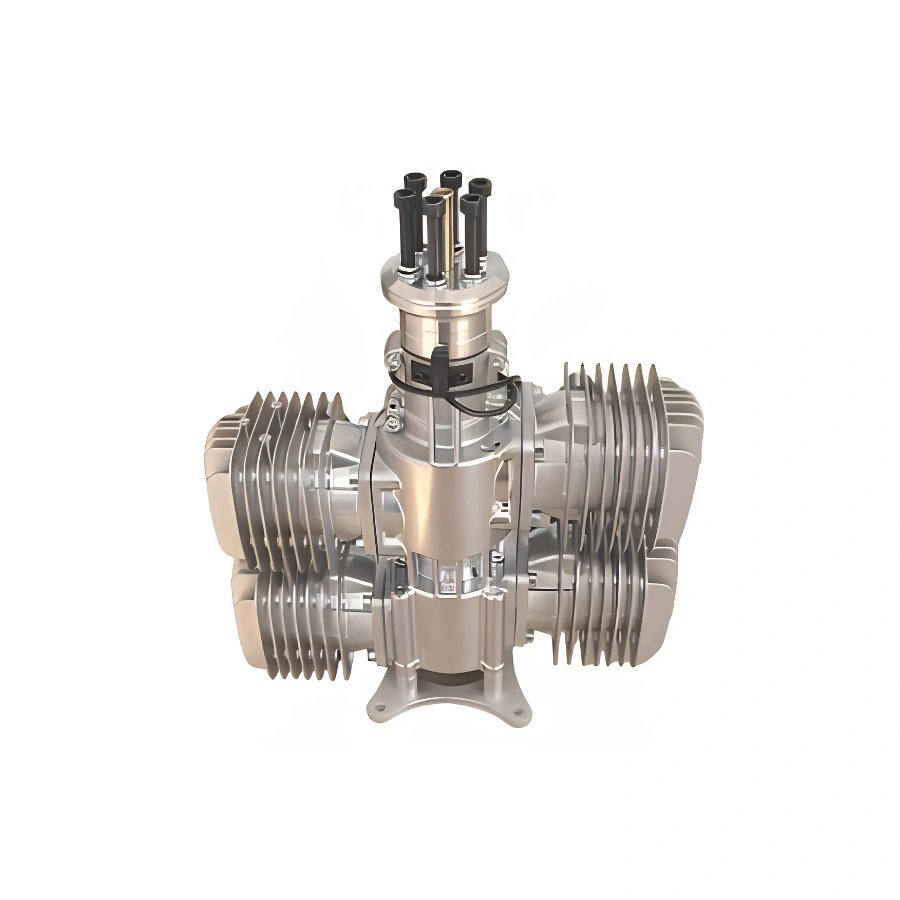

ZT-T222 — front view showing crankshaft output hub and cooling fin arrangement

Engine Architecture

Four-Cylinder Two-Stroke with High Compression

The ZT-T222 uses a four-cylinder, air-cooled, two-stroke layout. With a bore of 45mm and stroke of 35mm delivering 222cc displacement, it produces 20.9hp (15.3kW) at a compression ratio of 7.6:1.

Idle speed is 1000 rpm. Mixture lubrication is set at a 30:1 ratio. The four-cylinder configuration provides inherent balance, smoother power delivery, and reduced vibration compared to twin-cylinder alternatives.

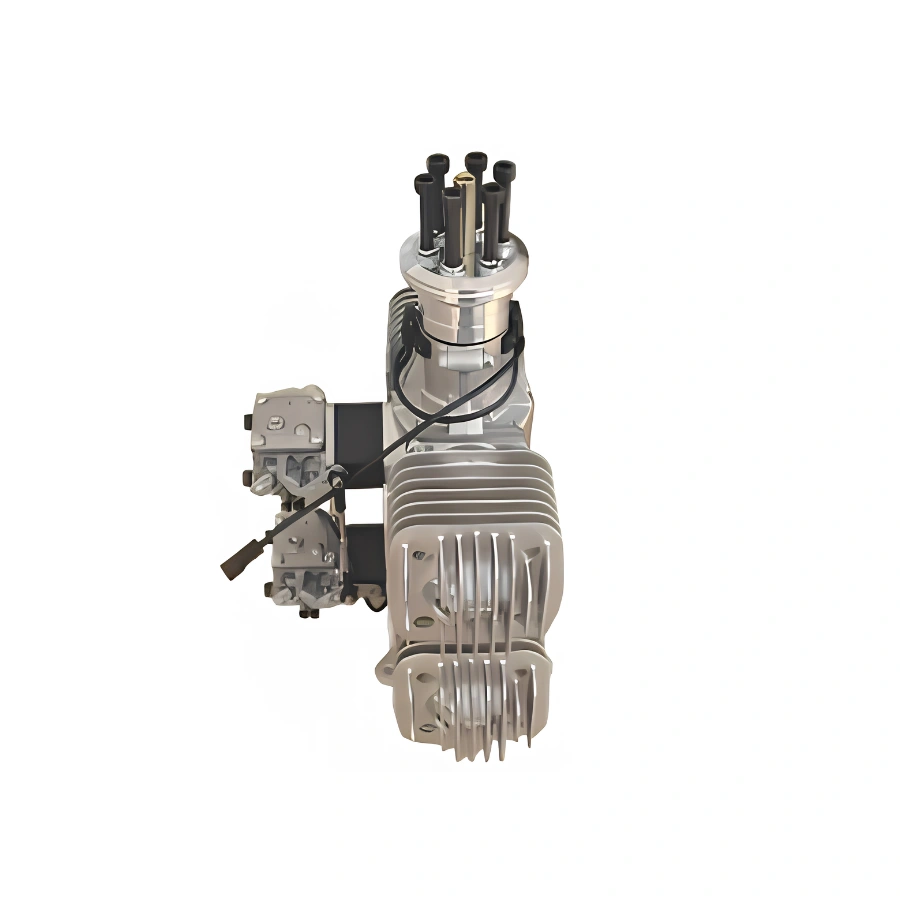

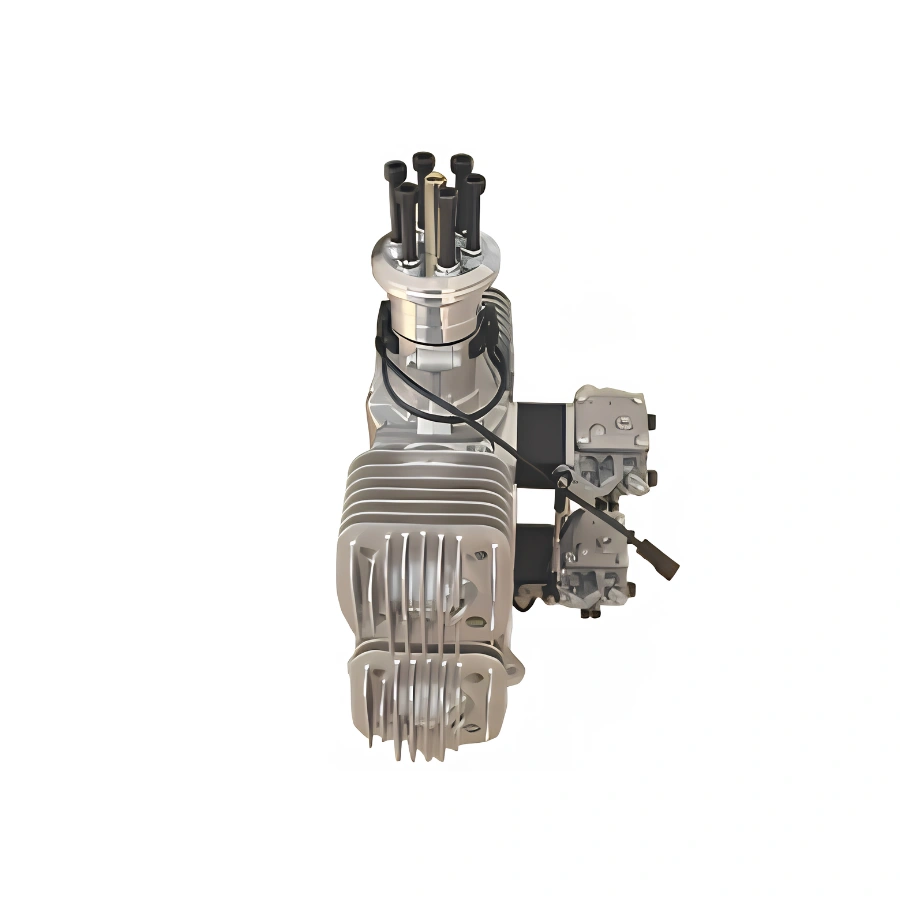

ZT-T222 — side view showing carburetor assembly and ignition wiring

Ignition & Fuel

Automatic CDI Ignition — Carburetor or EFI

The automatic advance angle CDI system operates at 4.8–8.4V and continuously adjusts ignition timing for optimum performance. Specified spark plug is NGK CM6.

Carburetor fuel consumption is 8.3L/h. The EFI version reduces this to 6.2L/h with improved metering and altitude stability. Recommended propellers are 32×10, 32×12, and 34×10.

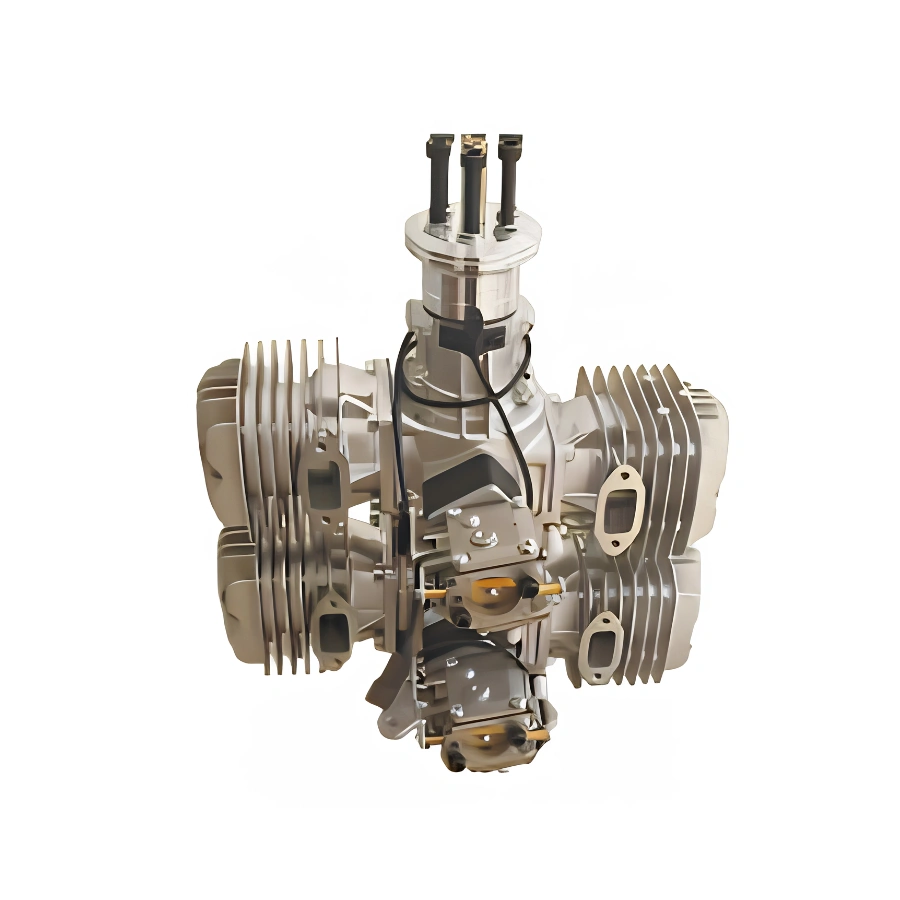

ZT-T222 — angled rear view showing exhaust ports and push-pull mounting flange

Thrust & Dimensions

High Thrust Output Across Altitude Ranges

The ZT-T222 delivers 45kg of static thrust at 100m altitude and maintains 41kg at 1800m, making it suitable for platforms with demanding performance envelopes across a range of operating elevations.

The main unit weighs 4860g, with the exhaust pipe at 470g and the igniter at 380g. Overall dimensions are 320 × 270 × 180mm. Both push and pull propeller configurations are supported.

At a Glance

ZT-T222 — Key Specifications

Power

20.9hp / 15.3kW

Displacement

222cc

Static Thrust (100m)

45kg

Static Thrust (1800m)

41kg

Idle Speed

1000 rpm

Compression Ratio

7.6:1

Bore × Stroke

45mm × 35mm

Lubrication Ratio

30:1

Ignition Voltage

4.8–8.4V

Spark Plug

NGK CM6

Main Unit Weight

4860g

Dimensions (L×W×H)

320×270×180mm

Frequently Asked Questions

ZT-T222 — Common Questions

What is the cylinder configuration of the ZT-T222?

The ZT-T222 uses four cylinders in an air-cooled, two-stroke configuration with a bore of 45mm and stroke of 35mm, giving 222cc total displacement and a compression ratio of 7.6:1.

What spark plug does the ZT-T222 use?

The specified spark plug for the ZT-T222 is the NGK CM6.

What are the weight components of the ZT-T222?

The main unit weighs 4860g. The exhaust pipe weighs 470g. The igniter weighs 380g.

What propellers are recommended for the ZT-T222?

Recommended propellers are 32×10, 32×12, and 34×10. Selection depends on platform thrust requirements and push or pull installation.

What is the difference between the carburetor and EFI versions?

The carburetor version consumes 8.3L/h. The EFI version reduces consumption to 6.2L/h with more precise fuel metering and improved performance at varying altitudes. Both share the same engine block and mechanical components.
