Obstacle Detection Radar for DJI M300/M350 RTK
- Obstacle detection system for DJI M350/M300 RTK drones, including sensor and mounts
- Detects obstacles in front of the drone at far distances, with a range of up to 40 m
- Works where the built-in DJI obstacle sensors fail: dark, snow, rain, fog and bright sun
- The trigger distance is configurable in software. On detection the drone performs return-to-home, or you can choose stop and hover
- Engages automatically above a configurable altitude and speed, so normal take-offs and landings in confined spaces are not blocked
- Uses a 77GHz radar sensor weighing 90 g (about 150 g with cable, connector and DJI mountings)
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Obstacle Detection Radar for DJI M300/M350 RTK Drones
Obstacle detection system for DJI M350/M300 RTK drone, includes sensor and mounts.
Detects obstacles in front of the drone at far distances, range is up to 40m.
Radar Highlights
A 77GHz radar sensor that watches ahead of the drone where the built-in sensors can fail.
Far-Distance Detection
Detects obstacles in front of the drone at far distances, range is up to 40m.
Works Where DJI Sensors Fail
Works in any environmental conditions where built-in obstacle sensors on DJI M350/M300 RTK will fail: dark, snow, rain, fog, bright sun.
RTH or Hover
Triggering distance is configurable in software settings. When any obstacle is detected inside the set range, RTH (return to home) is triggered. The second option is to stop and hover.
Automatic Engagement
Engaged automatically starting from a set altitude and speed (configurable), so normal take-offs and landings in confined spaces are not prevented.
Requirements and Inclusions
Requires
- SkyHub on-board computer
- Additional software package for SkyHub
- UgCS ground control software
It is the customer's responsibility to check the possibility to use a 77Ghz range sensor in a particular country.
Included

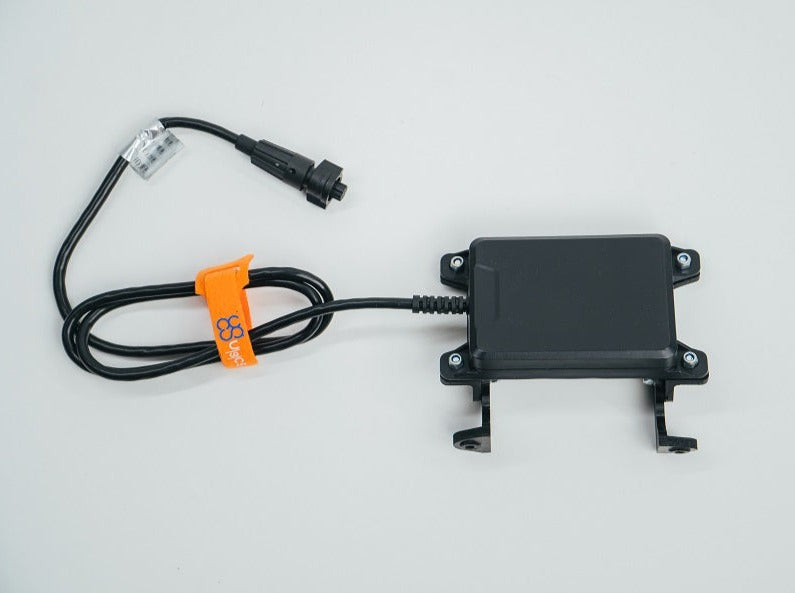

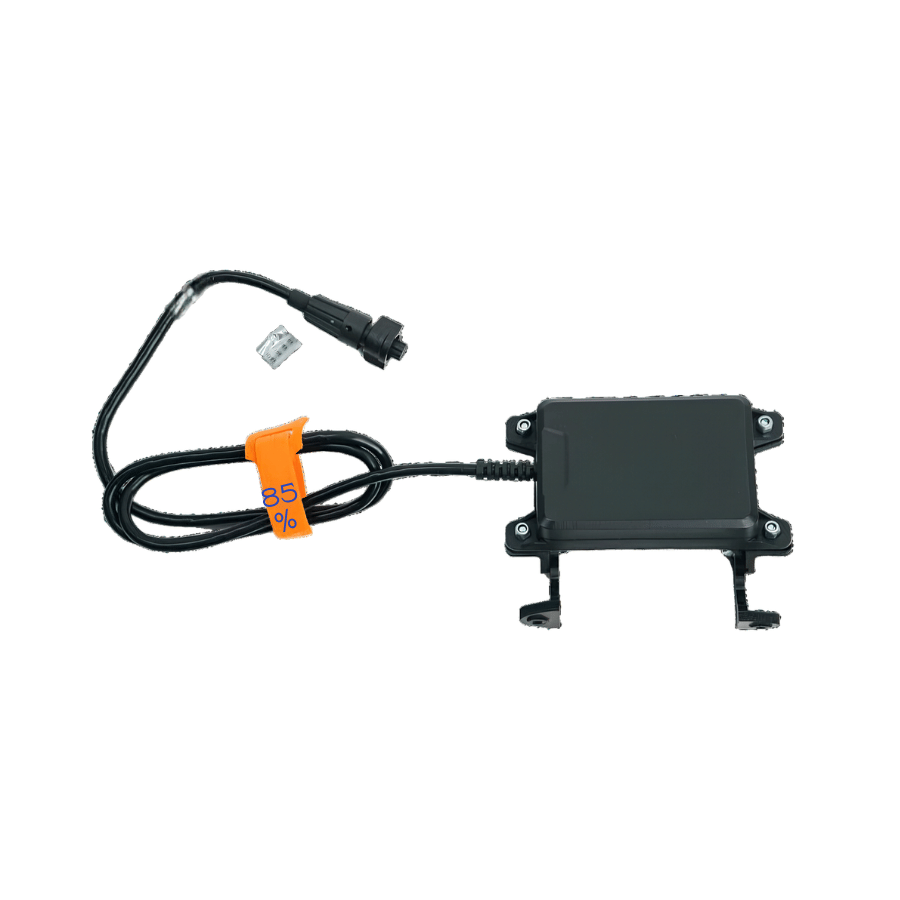

- Obstacle detection sensor (77GHz radar)

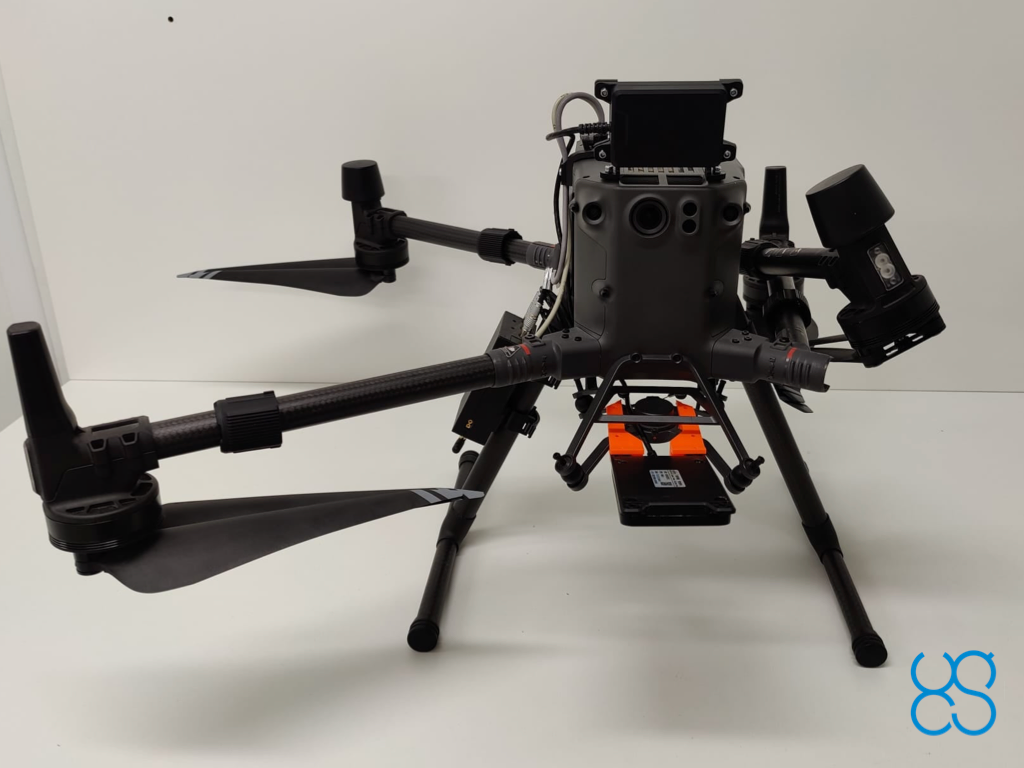

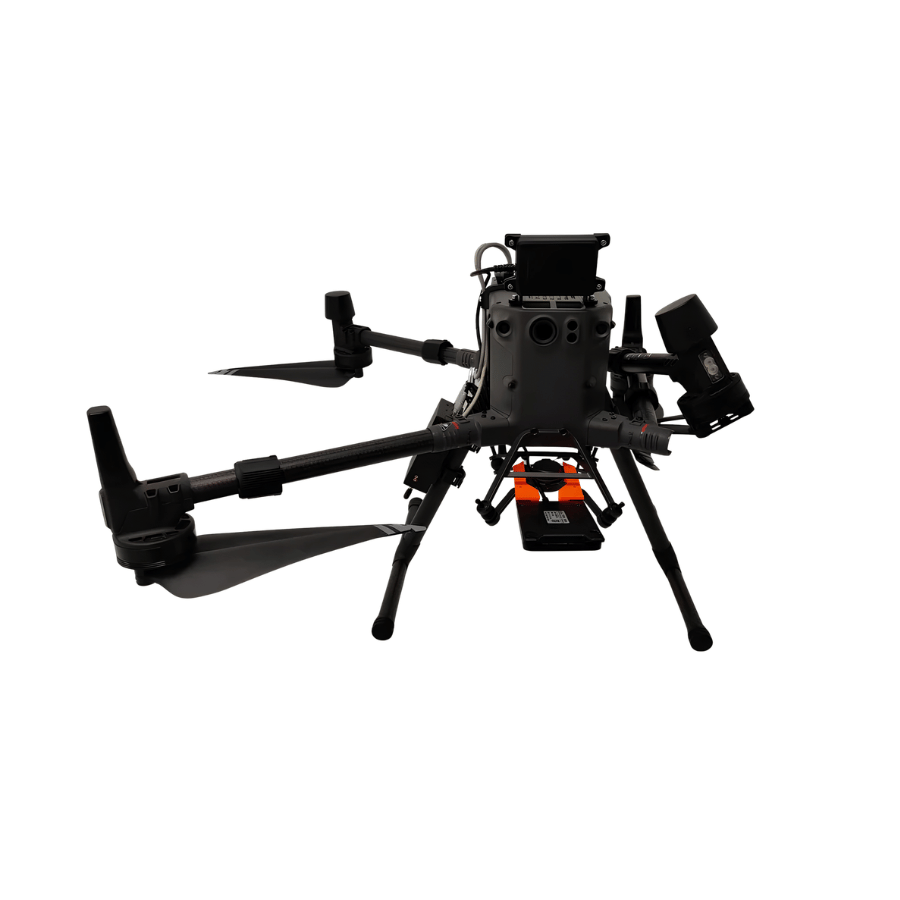

- Mounts for DJI M350/M300 RTK drone
- Cable and connector (counted in the ~150 g weight)
Specifications
| Product | Obstacle detection radar for DJI M300/M350 RTK drones |
|---|---|
| Brand | SPH Engineering |
| SKU | IS-OBSTCL-DETECT-RADAR |
| HS Code | 90151000 (rangefinders) |
| Sensor | 77GHz radar sensor |
| Detection range | Up to 40 m, in front of the drone |
| Trigger behavior | Configurable triggering distance; RTH (return to home) or stop and hover |
| Engagement | Automatic, from a configurable altitude and speed |
| Weight | Sensor: 90 g; including cable, connector and mountings for DJI M350/M300 RTK drone: approx. 150 g |
| Compatible drones | DJI M350/M300 RTK |
| Requires | SkyHub on-board computer; additional software package for SkyHub; UgCS ground control software |
Gallery
Documentation and Support
Frequently Asked Questions
What does the obstacle detection radar do?
It is an obstacle detection system for DJI M350/M300 RTK drones that detects obstacles in front of the drone at far distances, up to 40m.
When does it work?
It works in any environmental conditions where the built-in obstacle sensors on DJI M350/M300 RTK will fail: dark, snow, rain, fog, bright sun.
What happens when an obstacle is detected?
The triggering distance is configurable in software settings. When any obstacle is detected inside the set range, RTH (return to home) is triggered. The second option of behavior is to stop and hover.
Will it block normal take-offs and landings?
No. The system is engaged automatically starting from a set altitude and speed (configurable), so that normal take-offs and landings in confined spaces are not prevented.
What else do I need?
It requires the SkyHub on-board computer, an additional software package for SkyHub, and UgCS ground control software.
Can I use a 77 GHz sensor in any country?
It is the customer's responsibility to check the possibility to use a 77Ghz range sensor in a particular country.
