VF16E Electric Compound Wing
- 2600mm wingspan, 1320mm length, 612mm height
- Frame weight: 5kg | Max takeoff weight: 15kg
- Max payload capacity: 3kg
- Endurance: 180 minutes @ 1kg payload
- Cruise speed 70–120km/h, max speed 130km/h
- Rotor climb ≤3.5m/s, descent ≤1.5m/s
- Service ceiling: 5000m
- Operating range: -10°C to 45°C
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
VF16E
Electric Compound Wing VTOL UAV

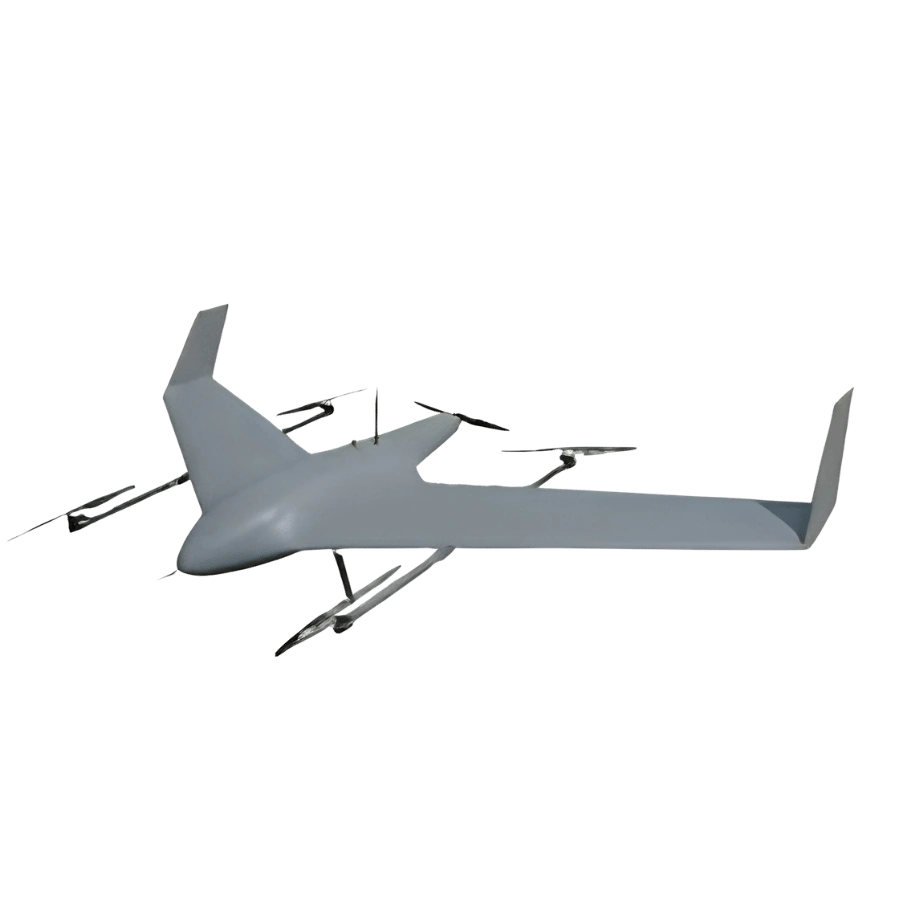

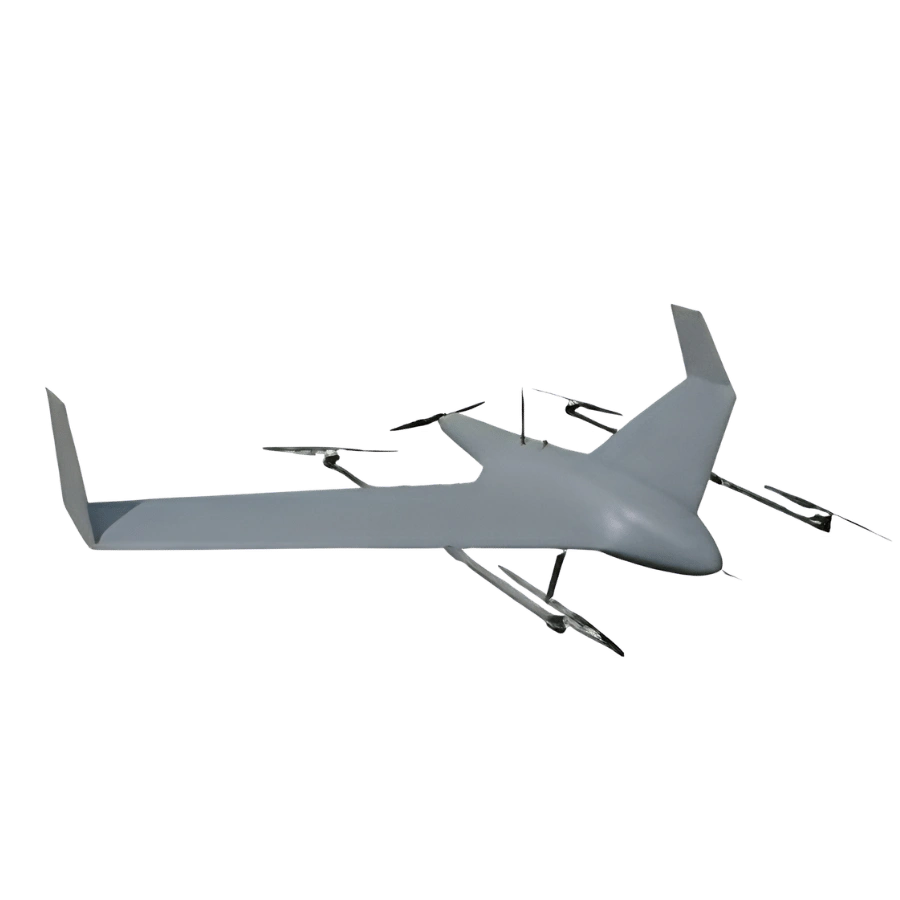

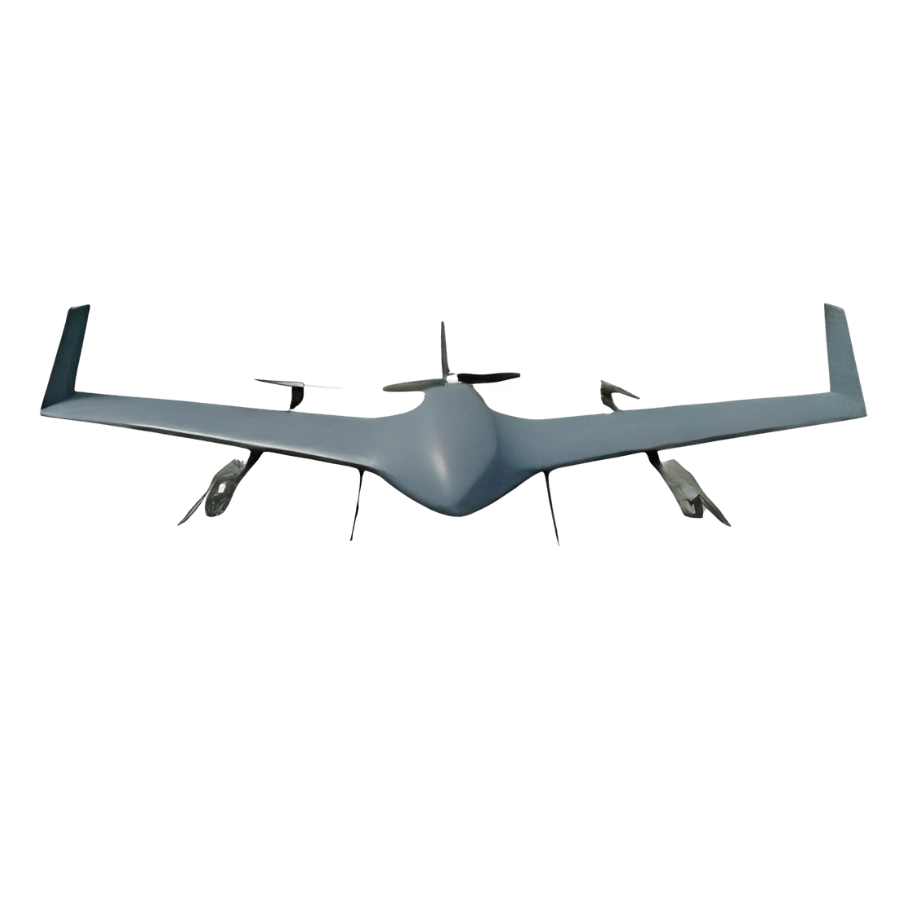

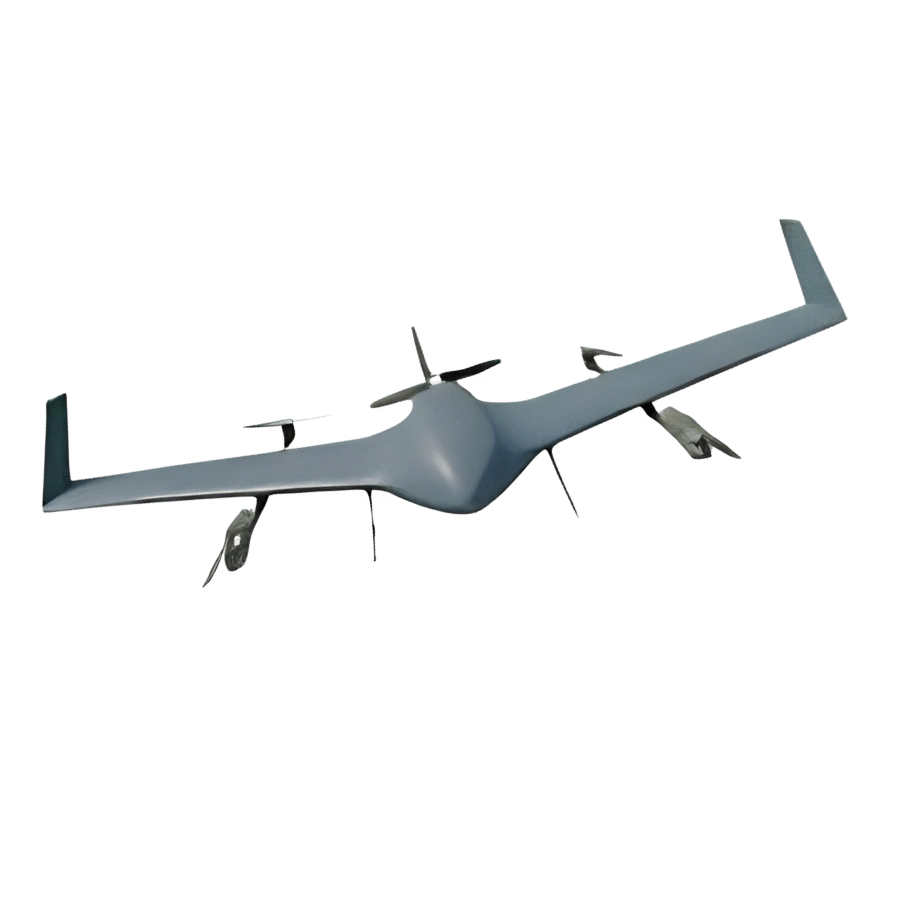

The VF16E is a electric compound wing vtol uav configured for fixed-wing efficiency with vertical takeoff and landing convenience, built for long-endurance mapping, surveillance and inspection missions.
Wingspan 2600mmMTOW 15kgMax Payload 3kgEndurance 180min @ 1kgWind Resistance Level 6IP54
15kg
Max Takeoff Weight3kg
Max Payload180min @ 1kg
Endurance130km/h
Max SpeedProduct Overview
Full Specifications
| Wingspan | 2600mm |
| Length | 1320mm |
| Height | 612mm |
| Frame Weight | 5kg |
| Max Takeoff Weight | 15kg |
| Max Payload | 3kg |
| Endurance | 180min @ 1kg |
| Cruise Speed | 70–120km/h |
| Max Speed | 130km/h |
| Rotor Climb Rate | ≤3.5m/s |
| Rotor Descent Rate | ≤1.5m/s |
| Service Ceiling | 5000m |
| Operating Temperature | -10°C ~ 45°C |
| Wind Resistance | Level 6 |
| Protection Rating | IP54 |
| Packing Dimensions | 1420×450×580mm |
Good to Know
Frequently Asked Questions
What is the VF16E's maximum takeoff weight and payload?
The VF16E has a maximum takeoff weight of 15kg and a maximum payload capacity of 3kg.
How long can the VF16E stay airborne?
Endurance is rated at 180min @ 1kg, with a cruise speed of 70–120km/h and a maximum speed of 130km/h.
What is the operating envelope for the VF16E?
Service ceiling is 5000m, with an operating temperature range of -10°C ~ 45°C and wind resistance up to Level 6.
Is the VF16E rated for outdoor / field use?
Yes. The airframe carries an IP54 ingress protection rating, suited to routine outdoor field operations.
What are the packed shipping dimensions?
Packing dimensions: 1420×450×580mm.
