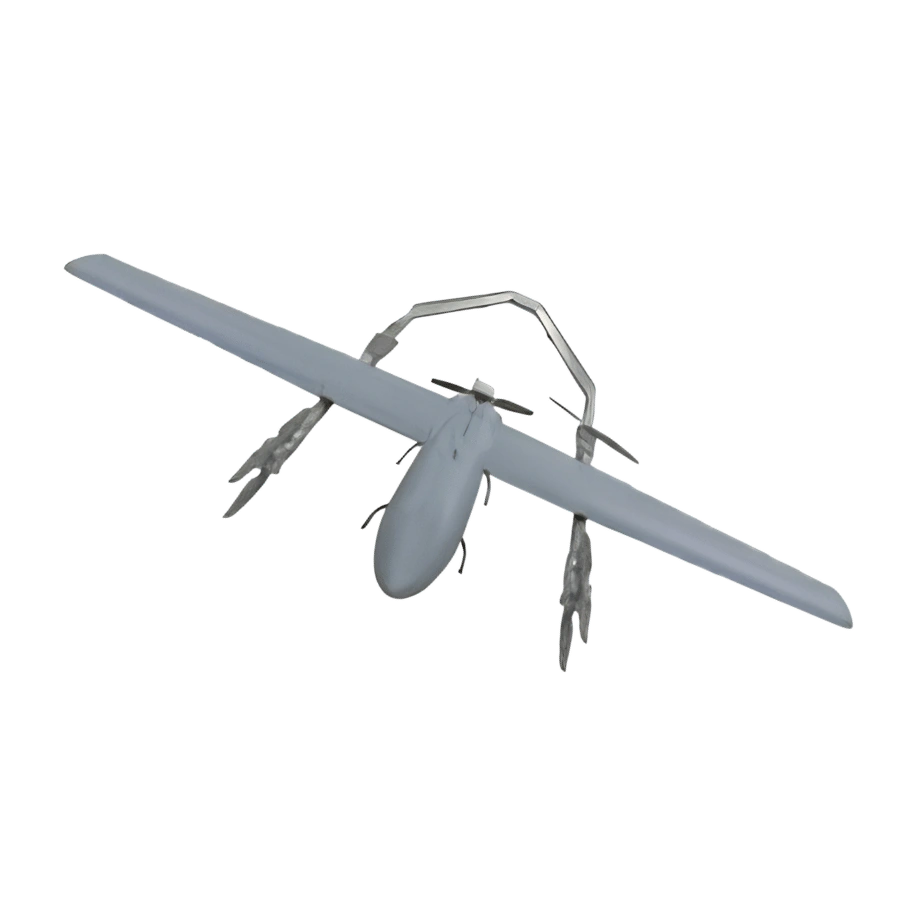

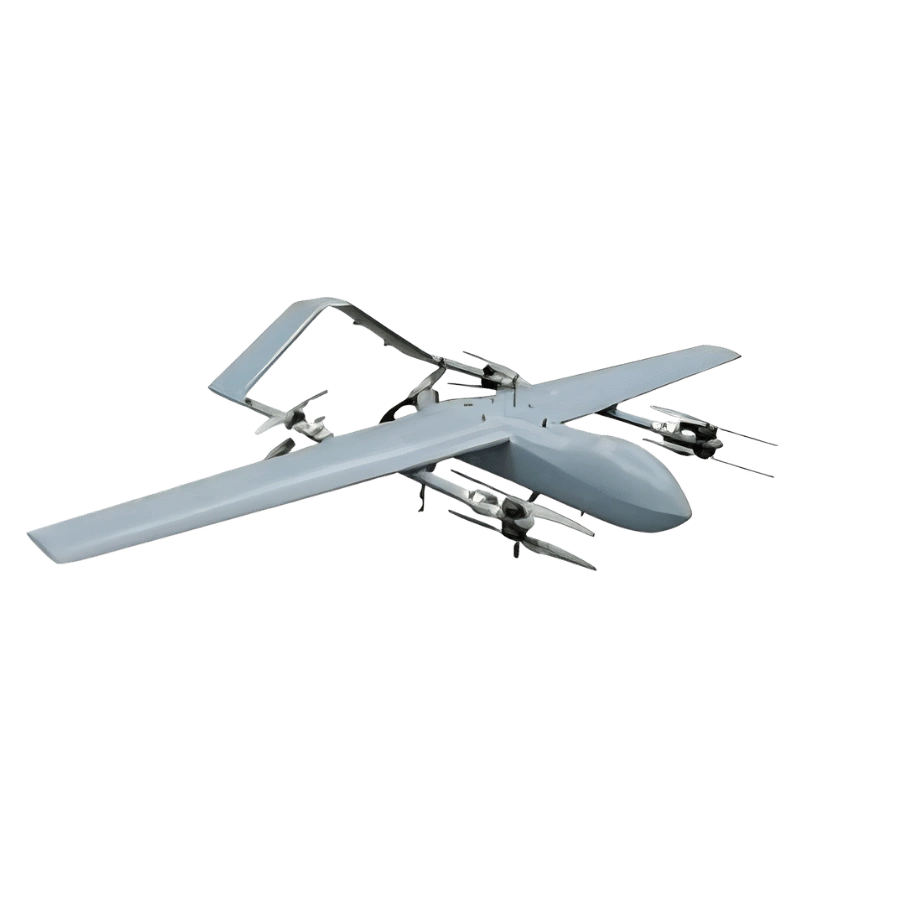

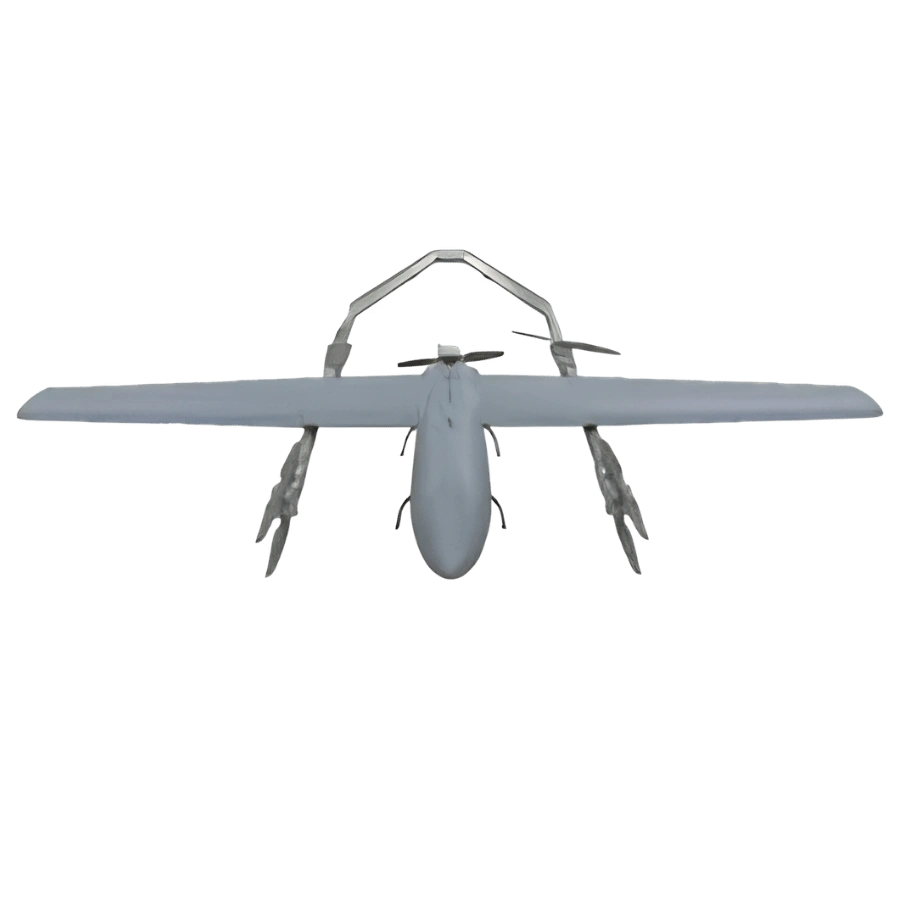

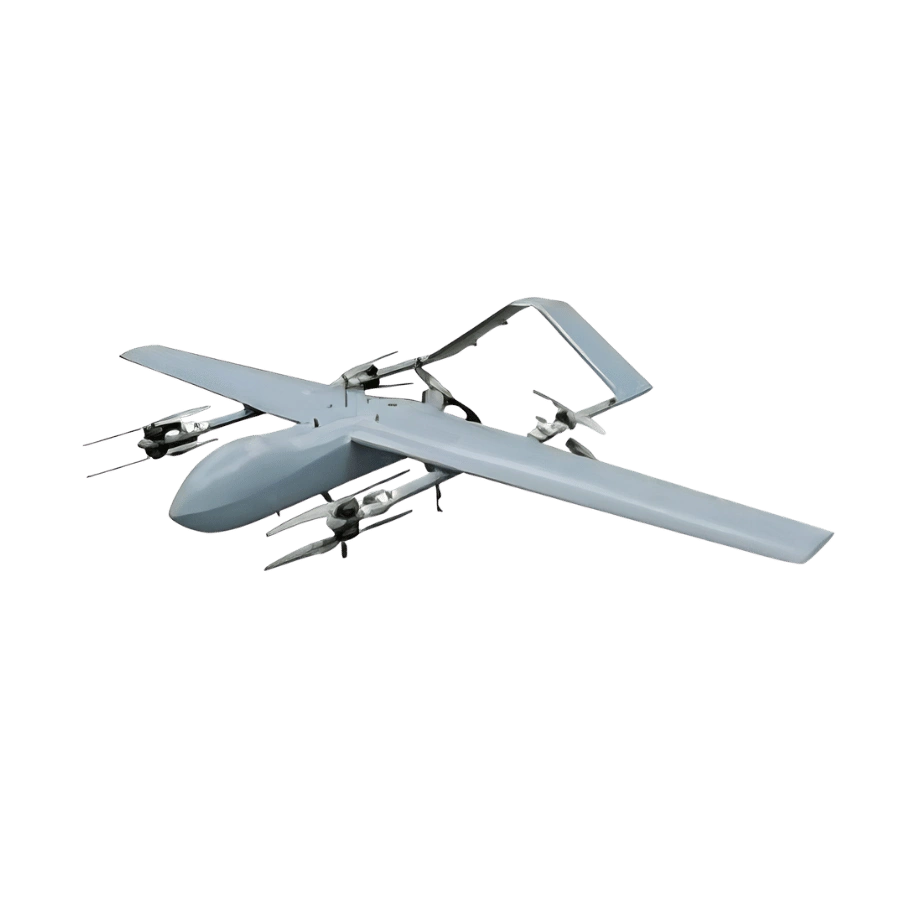

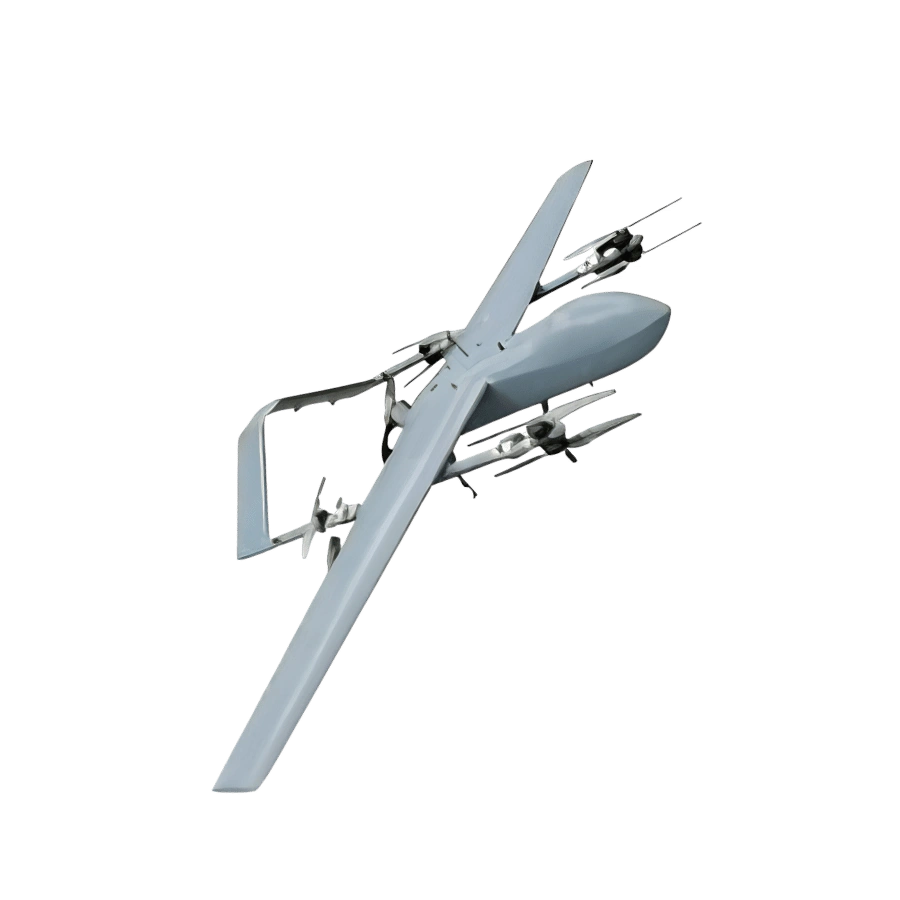

VF200P Fuel-Powered Compound Wing
- 6660mm wingspan, 3850mm length, 1260mm height
- Fuel tank capacity: 60L
- Max takeoff weight: 200kg | Max payload: 70kg
- Endurance: 240 minutes @ 40kg payload
- Cruise speed 90–130km/h, max speed 150km/h
- Rotor climb ≤5m/s, descent ≤2m/s
- Service ceiling: 5000m
- Operating range: -10°C to 45°C
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
VF200P
Fuel-Powered Compound Wing VTOL UAV
The VF200P is a fuel-powered compound wing vtol uav configured for fixed-wing efficiency with vertical takeoff and landing convenience, built for long-endurance mapping, surveillance and inspection missions.
Wingspan 6660mmMTOW 200kgMax Payload 70kgEndurance 240min @ 40kgWind Resistance Level 6IP54
200kg
Max Takeoff Weight70kg
Max Payload240min @ 40kg
Endurance150km/h
Max SpeedProduct Overview
Full Specifications
| Wingspan | 6660mm |
| Length | 3850mm |
| Height | 1260mm |
| Fuel Tank Capacity | 60L |
| Max Takeoff Weight | 200kg |
| Max Payload | 70kg |
| Endurance | 240min @ 40kg |
| Cruise Speed | 90–130km/h |
| Max Speed | 150km/h |
| Rotor Climb Rate | ≤5m/s |
| Rotor Descent Rate | ≤2m/s |
| Service Ceiling | 5000m |
| Operating Temperature | -10°C ~ 45°C |
| Wind Resistance | Level 6 |
| Protection Rating | IP54 |
| Packing Dimensions | 3420×1100×1100mm |
Good to Know
Frequently Asked Questions
What is the VF200P's maximum takeoff weight and payload?
The VF200P has a maximum takeoff weight of 200kg and a maximum payload capacity of 70kg.
How long can the VF200P stay airborne?
Endurance is rated at 240min @ 40kg, with a cruise speed of 90–130km/h and a maximum speed of 150km/h.
What is the operating envelope for the VF200P?
Service ceiling is 5000m, with an operating temperature range of -10°C ~ 45°C and wind resistance up to Level 6.
Is the VF200P rated for outdoor / field use?
Yes. The airframe carries an IP54 ingress protection rating, suited to routine outdoor field operations.
What are the packed shipping dimensions?
Packing dimensions: 3420×1100×1100mm.
