Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System

77,400

  • Wireless Video Transmitter/Receiver Set
  • Transmitter HDMI/SDI Input, SDI Loop Out
  • Receiver HDMI & 2 x SDI Outputs

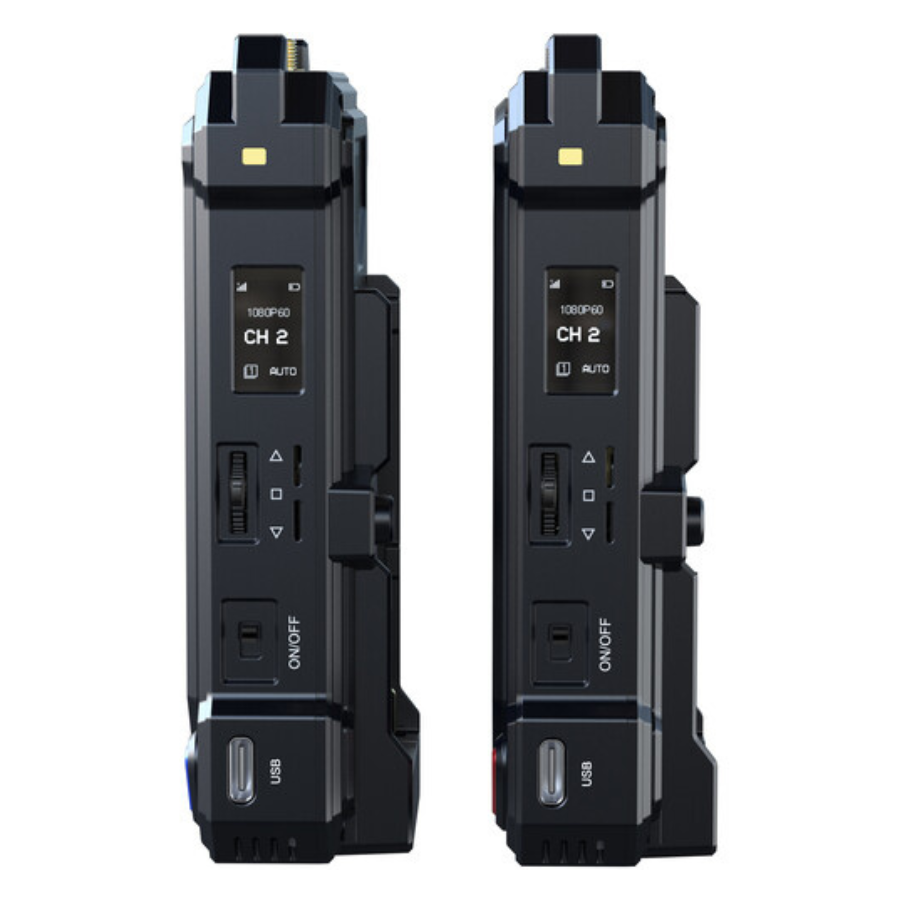

  • OLED Screen, USB Type-C Power Input
  • 1000′ Line-of-Sight 1080p60 Transmission
  • 5.1 to 5.9 GHz Frequency Range
  • AES-128 Encryption, 40 ms Latency
  • L-Series Battery Plates on TX/RX
  • DC Adapter Power or Optional Battery

1-Year Warranty     7 days return policy     PAN India Fast Shipping

SKU: CCSWVTS2340XB Category:

Description

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System

You can wirelessly transfer high-resolution video up to 1080p60 over extended distances with the Cosmo C1 SDI/HDMI Wireless Video Transmission System from Hollyland, enabling flexible video monitoring and distribution for your studio or field production. A receiver and a transmitter are included in this package.

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System
Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System

Specification

General

Antenna I/O Transmitter/Receiver: 2 x RP-SMA Male

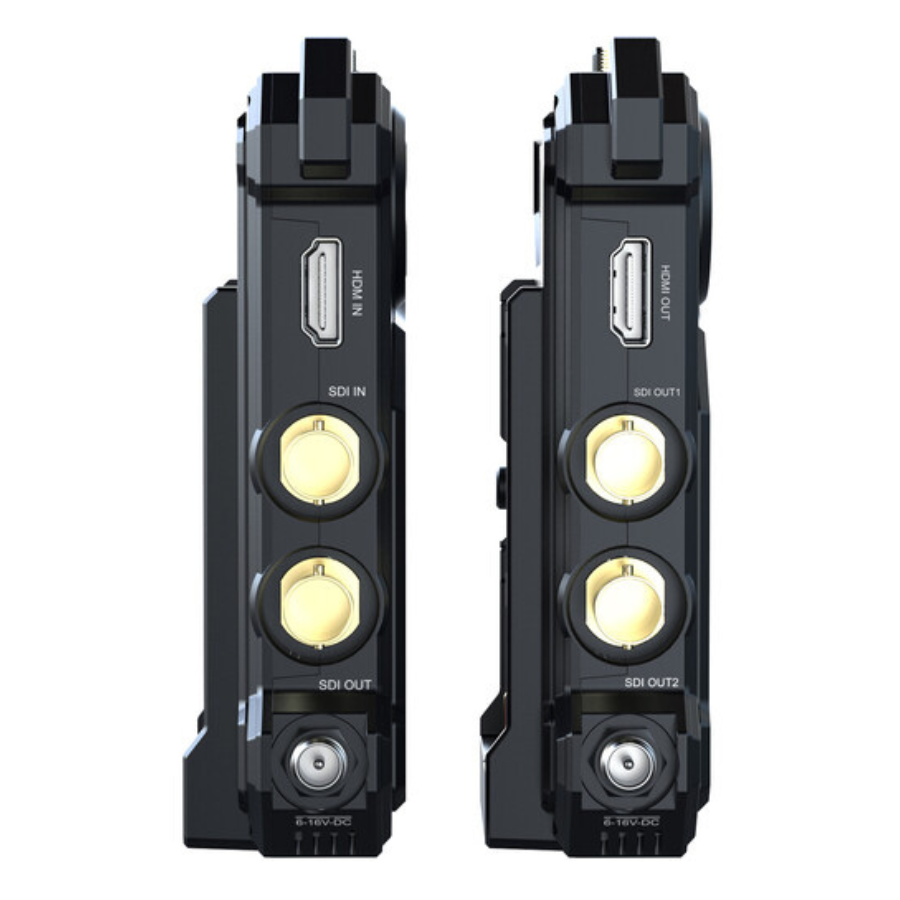

Video I/O Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x HDMI Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 2 x BNC (3G-SDI) Output
Receiver: 1 x HDMI Output
HDCP Support Not Specified by Manufacturer
Embedded Audio HDMI/SDI: 2-Channel
Audio I/O None
Power Transmitter/Receiver: 1 x USB-C (2 A / 5 VDC) Input
Other I/O Transmitter/Receiver: 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input
Encryption 128-Bit AES

Wireless

Wireless Range 1000′ / 304.8 m
Channel Bandwidth 20 MHz
Frequency Range US: 5.1 to 5.8 GHz
Latency 40 ms
RF Power 22 dBm
RF Sensitivity -80 dBm
Wi-Fi Yes
Bluetooth None

Format Support

Video Format HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format Not Specified by Manufacturer
Timecode Support Yes

Power

DC Input Power 6 to 16 VDC
Battery Type Transmitter/Receiver: 1 x L-Series
Power Consumption Transmitter/Receiver: 9 W

Packaging Info

Package Weight 4.39 lb
Box Dimensions (LxWxH) 11.6 x 10.8 x 5.5″
