DOBOT AMB-400-CE Autonomous Mobile Robot

DOBOT AMB-400-CE Autonomous Mobile Robot

1. Autonomous mobile manipulation robot with laser SLAM navigation — ±5 mm accuracy, ±0.5° angular, ≤1.5 m/s drive speed, 400 kg load capacity.
2. Dual LiDAR 360° safety scanning, dual encoder speed monitoring, proximity sensors, and configurable safety zones for safe human-robot co-existence.
3. Compatible with all CR series cobots (5–16 kg payload, 800–1300 mm reach) plus third-party grippers and vision systems via modular design.
4. Certified: IEC 61508, IEC 62061, ISO 13849, ISO 3691-4:2020, CE-MD, CE-EMC, CE-RED. ISO Class 5 cleanroom rated (ISO 14644). All parts CE compliant.
5. Supplied with charging pile. Single software for map building, path planning, calibration, task creation, and MES integration.

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

DOBOT AMB-400-CE – Autonomous Mobile Manipulation Robot | xBoom.in

Autonomous Mobile Manipulation Robot

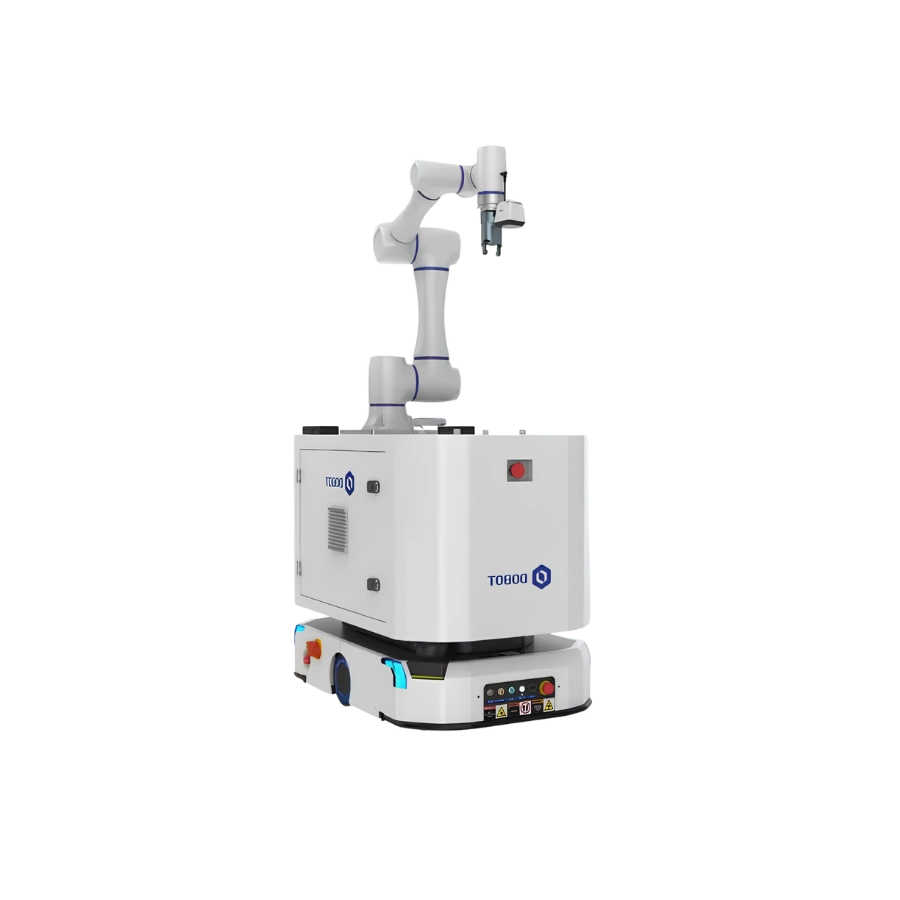

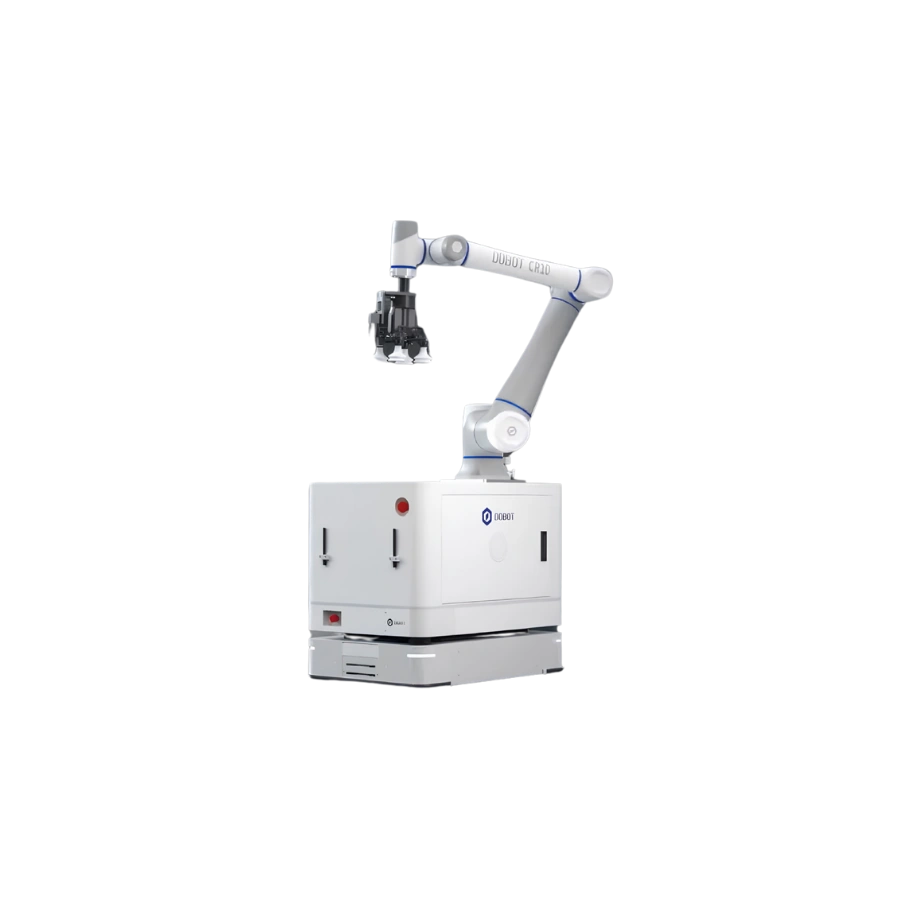

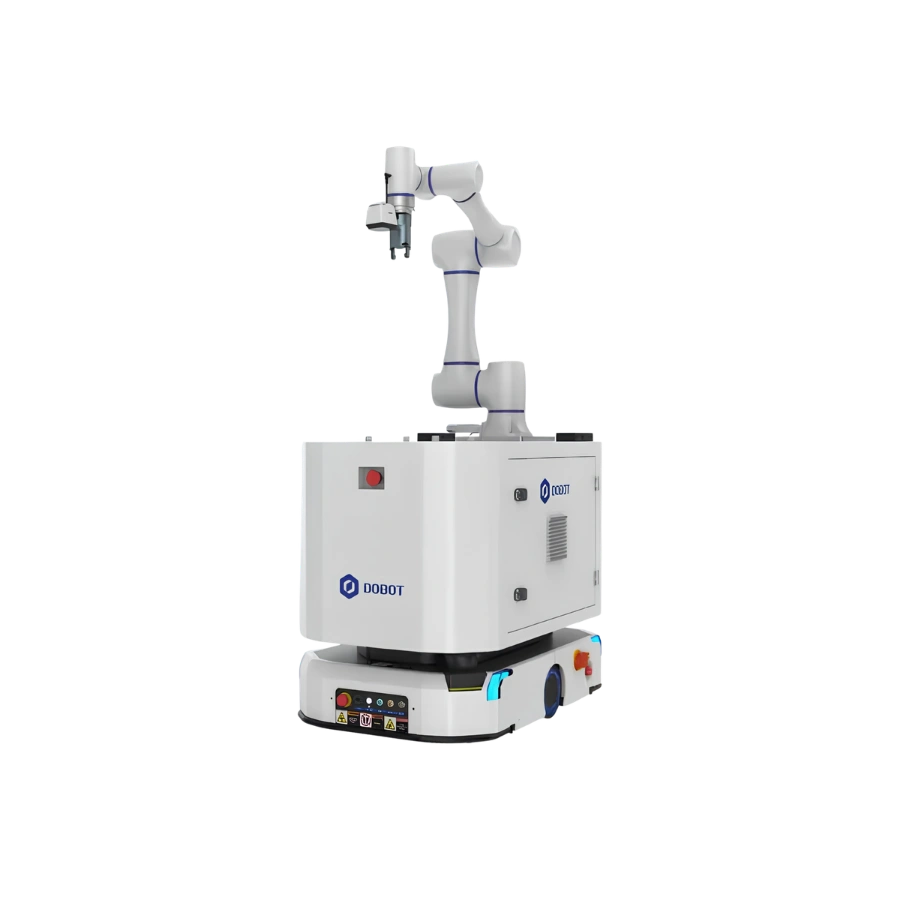

DOBOT AMB-400-CE Autonomous Mobile Manipulation Robot

An autonomous mobile manipulation robot combining laser SLAM navigation, integrated safety systems, and full CR cobot compatibility — for precise, flexible material transport and machine tending in industrial environments.

400 kg

Load Capacity

±5 mm

Navigation Accuracy

≤1.5 m/s

Drive Speed

300 kg

Weight (with battery)

Certified

Overview

Laser SLAM Mobile Manipulation Robot for Smart Factory Logistics

The DOBOT AMB-400-CE is an autonomous mobile manipulation robot (AMMR) combining cutting-edge laser SLAM navigation, human-machine interaction technologies, and integrated safety systems to deliver transportation and pick-and-place capabilities across industrial environments. With a 400 kg load capacity, ±5 mm navigation accuracy (±0.5° angular), and a maximum drive speed of ≤1.5 m/s, it operates on a two-wheel differential drive platform with dual LiDAR sensors providing 360-degree safety zone scanning. Compatible with every cobot in the CR series (5 to 16 kg payload, 800 to 1300 mm arm reach), the AMB-400-CE supports modular integration with grippers, cameras, and third-party accessories. A single software platform handles map construction, path planning, robot calibration, and task creation. MES connectivity is built in. Supplied as AMB-400-CE AMMR + Charging Pile. Certified: IEC 61508, IEC 62061, ISO 13849, ISO 3691-4:2020, CE-MD, CE-EMC, CE-RED. All parts meet CE requirements. Cleanroom rated to ISO Class 5 (ISO 14644).

Core Strengths

Four Key Characteristics

🧭

Laser SLAM Navigation

Embedded laser SLAM achieves ±5 mm repeatability and ≤±2 mm relative positioning — seamless workflow among labour, machines, and cargo across dynamic factory floors.

🛡

Integrated Safety Systems

Dual LiDAR 360° scanning, proximity sensors, dual encoders for speed monitoring, and configurable safety zones ensure safe operation around personnel.

🔗

CR Cobot Compatible

Works with every cobot in the CR series (5–16 kg payload, 800–1300 mm reach) plus popular 2D/3D vision systems and third-party grippers for full task flexibility.

🏭

Easy MES Integration

Single software for map building, POI setting, path planning, calibration and task creation. MES can be seamlessly connected for smart factory logistics management.

Key Capabilities

Six Feature Highlights

Laser SLAM Navigation

Embedded laser SLAM algorithm delivers ±5 mm repeatability and ≤±2 mm relative positioning for precise, repeatable navigation in dynamic industrial environments.

400 kg Load Capacity

Carries up to 400 kg payload on a two-wheel differential drive chassis — suitable for heavy material transport across production lines and warehouse logistics.

Dual LiDAR Safety Scanning

Two LiDAR sensors perform 360-degree environmental scanning for user-defined safety zone monitoring — proactively detecting and responding to obstacles and personnel.

CE & ISO Certified

Certified to IEC 61508, IEC 62061, ISO 13849, ISO 3691-4:2020, CE-MD, CE-EMC, CE-RED, ISO 14644. All parts meet CE requirements. Cleanroom: ISO Class 5.

Optional 2.5D Vision Kit

Optional vision kit with proprietary 2.5D calibration and visual positioning accuracy of 0.5 mm — supports measurement, QR code, and letter recognition in 3 no-code steps.

Single Software Platform

One unified software handles map construction, points of interest, path planning, robot calibration, and task creation — with built-in resource management and MES connectivity.

Technical Specifications

Complete Specification

Specification	Details
DOBOT AMB-400-CE
Navigation Type	Laser SLAM
Drive Mode	Two-wheel differential
Shell Color	Metal Gray
Dimensions (without Robotic Arm)	L 960 × W 642 × H 750 mm
Rotation Diameter	1004 mm
Weight (with battery)	300 kg
Load Capacity	400 kg
Chassis Ground Clearance	20 mm
Compatible Cobot Payload	5 / 7 / 10 / 12 / 16 kg
Compatible Cobot Arm Reach	800 to 1300 mm
Passability (slope / step / gap)	≤5% ≈2.8° / 5 mm / 30 mm
Minimum Aisle Width	771.4 mm
Navigation Accuracy	±5 mm, ±0.5°
Drive Speed	≤1.5 m/s
Navigation Laser Scanning Height	196.5 mm
Map Area (Single Frame)	≤400,000 m²
Battery
Battery Specifications	48V, 46 AH (Lithium iron phosphate)
Certification
Safety Standards	IEC 61508, IEC 62061, ISO 13849
Transport Standards	ISO 3691-4:2020, CE-MD, CE-EMC, CE-RED
Cleanroom Rating	ISO Class 5 (ISO 14644)
CE Compliance	All parts meet CE requirements
Package
Supplied As	AMB-400-CE AMMR + Charging Pile

Application Scenarios

Where It Is Used

🏭

Material Transport

Autonomous material transport across production lines, warehouses, and logistics areas — carrying up to 400 kg with ±5 mm navigation precision.

🔧

Machine Tending

Combined with a CR series cobot arm, performs loading and unloading tasks at CNC machines, injection moulding, and other industrial equipment.

🔬

Cleanroom Logistics

ISO Class 5 rated — suitable for wafer transport and other cleanroom logistics in semiconductor and pharmaceutical environments.

📦

Warehouse Logistics

Automates internal logistics — moving materials between storage, staging, and production areas with MES integration for fleet management.

⚡

Power Inspection

Configured for power infrastructure inspection tasks — navigating autonomously to equipment locations and performing defined inspection sequences.

🤝

Human Collaboration

Proximity sensors and safety zone scanning ensure safe co-existence with workers — designed for collaborative operation in shared human-robot environments.

Frequently Asked Questions

Common Questions

What certifications does the AMB-400-CE carry?

The AMB-400-CE is certified to IEC 61508, IEC 62061, ISO 13849, ISO 3691-4:2020, CE-MD, CE-EMC, and CE-RED. All parts meet CE requirements. It is also cleanroom rated to ISO Class 5 under ISO 14644, making it suitable for semiconductor and pharmaceutical environments.

Which cobot arms are compatible with the AMB-400-CE?

The AMB-400-CE is compatible with every cobot in the DOBOT CR series — covering payloads of 5, 7, 10, 12, and 16 kg, with arm reach from 800 to 1300 mm. It also supports popular third-party 2D/3D vision systems and grippers from ecosystem partners.

What is included in the AMB-400-CE package?

The AMB-400-CE is supplied as a complete package including the AMMR unit and a charging pile. The cobot arm is selected and ordered separately based on the required payload and reach for the application.

What navigation accuracy does the AMB-400-CE achieve?

The embedded laser SLAM algorithm achieves ±5 mm repeatability and ≤±2 mm relative positioning accuracy. Angular accuracy is ±0.5°. Maximum drive speed is ≤1.5 m/s.

What is the optional vision kit?

An optional vision kit is available with a proprietary 2.5D calibration process and visual positioning algorithm, achieving 0.5 mm spatial compensation accuracy. Setup requires 3 steps using no-code graphical programming. It supports measurement, QR code, and letter recognition for a wide range of vision-based applications.
