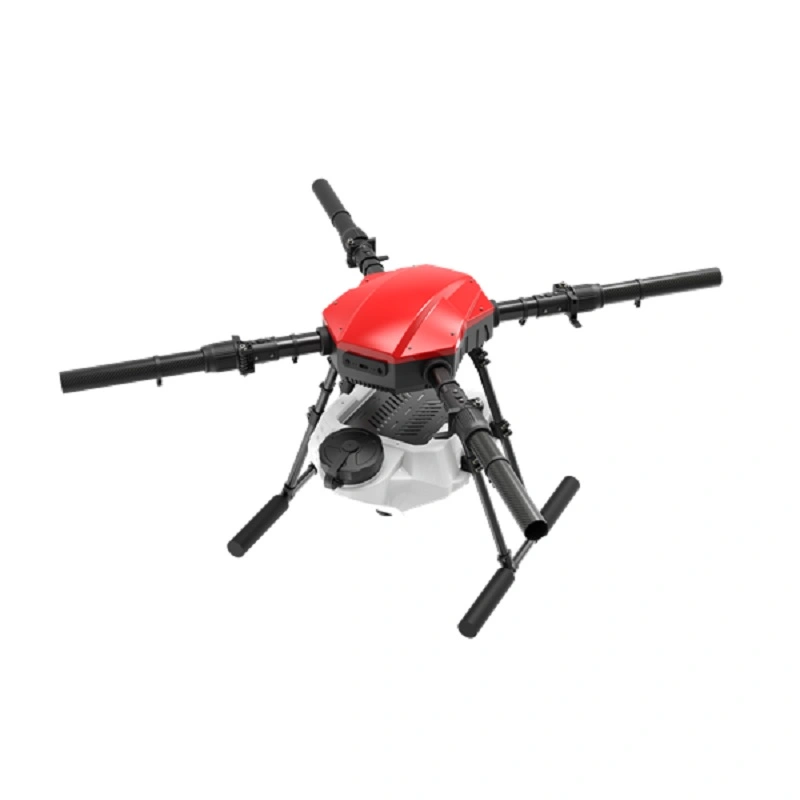

E416P 16L 4-Axis Agricultural Drone Frame
- 16L Agricultural Drone Frame – Designed for building high-capacity agricultural spraying drones with a 16-liter tank capacity.

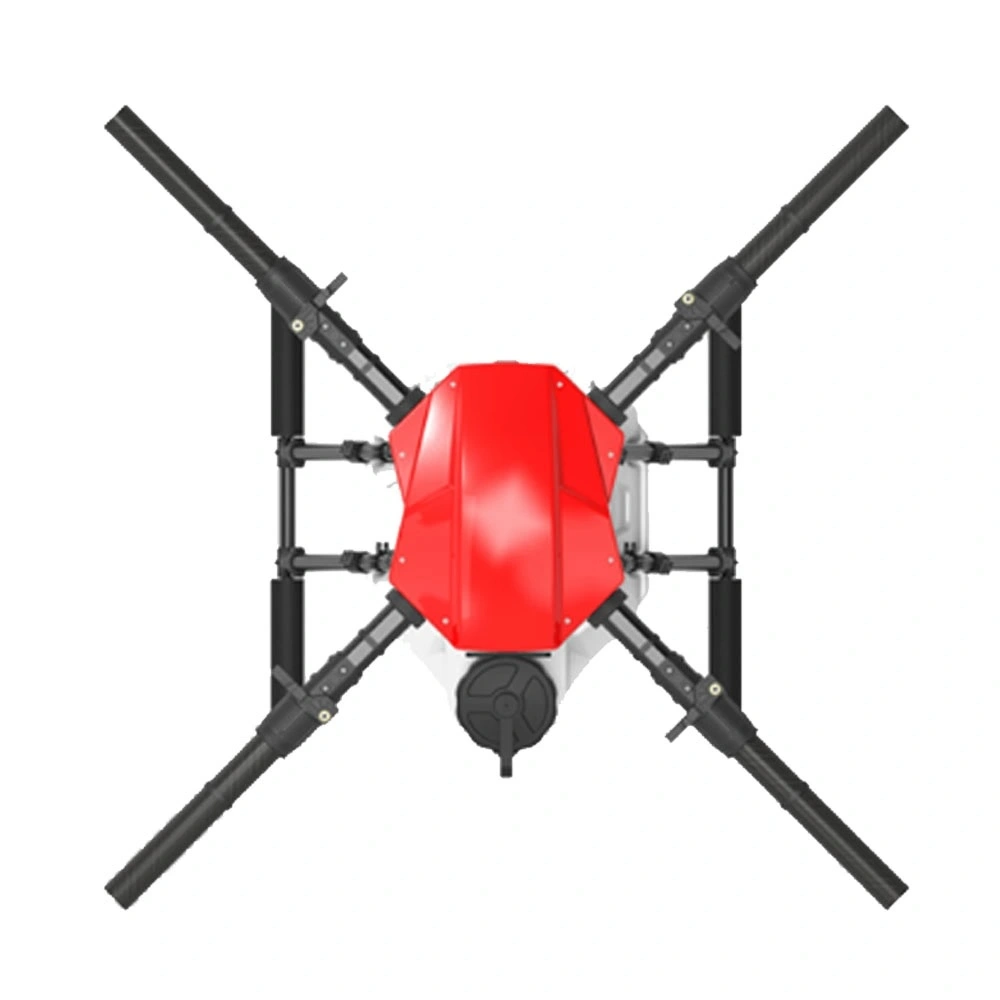

- 4-Axis Quadcopter Configuration – Features a four-motor layout designed for stable and efficient agricultural UAV operations.
- High-Strength Frame Construction – Built with durable engineering materials for reliable performance in demanding agricultural environments.
- 34-Inch Propeller Compatibility – Designed for large 34-inch folding propellers and compatible high-power propulsion systems.
- 12S Power System – Designed for use with a 12S battery system and a recommended battery capacity of approximately 22,000mAh.
- High Payload Capability – Supports a maximum take-off weight of up to approximately 37kg, depending on the complete drone configuration.
- Foldable Design for Transport – The folding frame design helps reduce the overall size for easier transportation, storage, and field deployment.
- Large 1362mm Wheelbase – Provides a spacious and stable platform for integrating motors, propulsion systems, spray equipment, batteries, and flight-control components.
- 40mm Arm Diameter – Features robust 40mm arms designed to support the requirements of large agricultural drone propulsion systems.
- Easy Assembly & Maintenance – The modular frame structure is designed to simplify assembly, disassembly, servicing, and integration of compatible agricultural drone components.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
E416P Agricultural Drone Frame

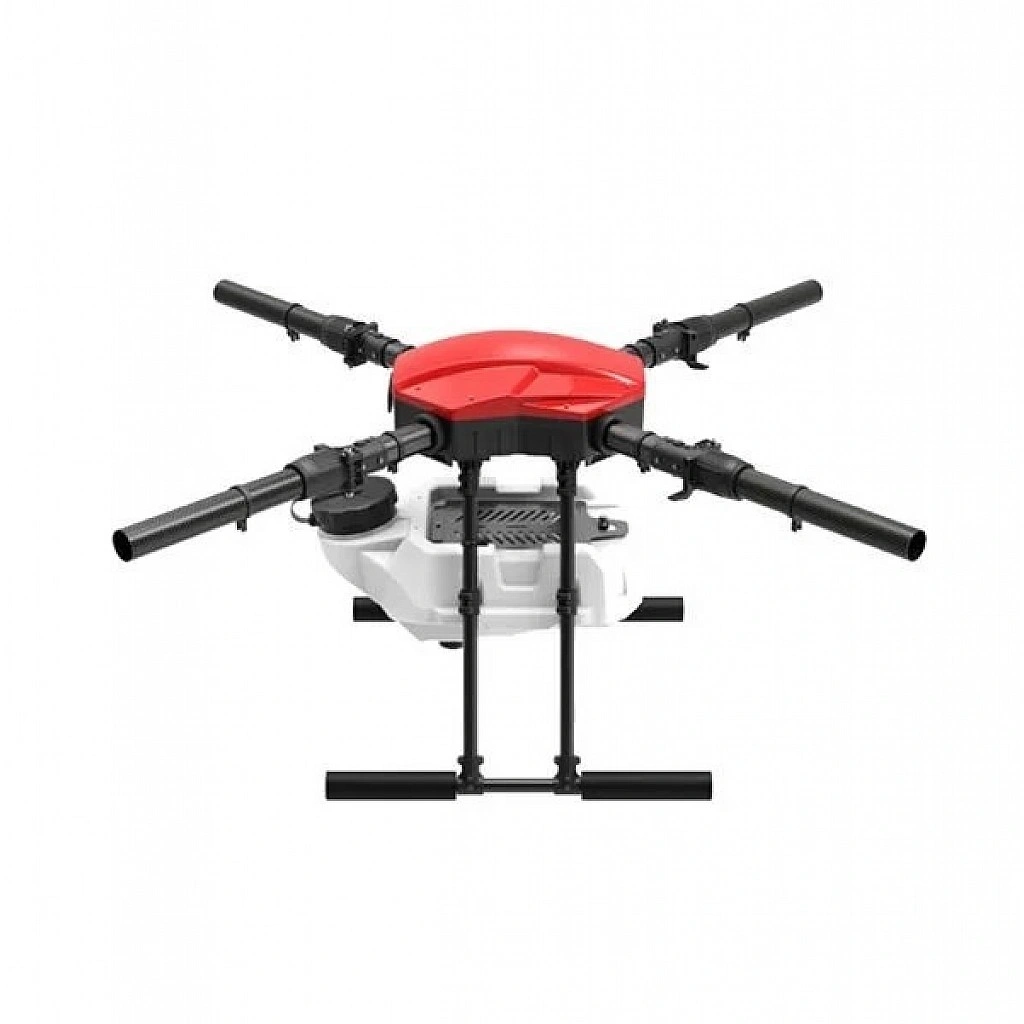

The E416P Agricultural Drone Frame is a genuine EFT 4-axis foldable frame built around a 16-liter tank — a proven platform for building high-payload spraying drones, with a 1362mm wheelbase and up to 37kg takeoff weight.
4-Axis Foldable
34″ Propellers
12S Power System
37kg Max Takeoff
Full Specifications
| Specification | Details |
|---|---|
| Product | E416P Agricultural Drone Frame — genuine EFT (Electronic Technology Co. Ltd.) hardware, confirmed via official product filenames and matching build details |
| Configuration | True 4-axis quadcopter (one motor per arm) — not a coaxial 8-motor layout, despite compatible “X8″/”T8”-series motor product names |
| Tank Capacity | 16 liters |
| Diagonal Wheelbase | 1362mm |
| Arm Diameter | 40mm carbon-fiber folding arms |
| Propeller Compatibility | 34-inch folding propellers |
| Motor Compatibility | 40mm-mount motors, including Hobbywing X8-series and Topmotor T8-series options |
| xBoom SKU | xboom-145556 |
| Specification | Details |
|---|---|
| Power System | 12S battery system, approximately 22,000mAh recommended capacity |
| Maximum Takeoff Weight | Approximately 37kg, depending on complete configuration |
| Frame Weight | Approximately 6.5kg bare frame; approximately 15kg with motors, propellers, and power equipment installed |
| Unfolded Dimensions | Approximately 1844 × 1844 × 628mm |
| Folded Dimensions | Approximately 648 × 671 × 628mm |
| Operating Temperature | Approximately 10°C to 50°C |
| Color | Red top cowling with white tank body |
| Optional Spray System | 4x high-pressure spray nozzles with extension pipes, plus a 12S brushless spray pump with integrated ESC (sold separately) |
| Battery Connectors | Customizable — AS150, AS150U, or XT90 options with varying cable gauges, depending on configuration ordered |
A Proven Foundation for Serious Spraying Drones
E416P Agricultural Drone Frame: Genuine EFT Hardware
This is a genuine EFT frame — EFT (Electronic Technology Co., Ltd., founded 2015) is a well-established manufacturer of modular agricultural drone frames, and the E416P is one of its most widely-used quadcopter platforms. Despite being compatible with motor product lines named “X8” and “T8,” this is a true 4-axis quadcopter — one motor per arm — not an 8-motor coaxial configuration; those names simply refer to specific 40mm-mount motor series from Hobbywing and Topmotor that happen to fit this frame.
Built around a 16-liter tank with a 1362mm wheelbase and 40mm carbon-fiber folding arms, it’s designed to take 34-inch propellers on a 12S power system, supporting up to 37kg at takeoff. The folding design collapses the frame from roughly 1844×1844mm unfolded down to about 648×671mm for transport — a meaningful difference when you’re moving a heavy-lift frame between fields. A fully-built E416P spraying drone can realistically cover 25-40 acres per day depending on terrain, battery sets, and pilot skill, making it a genuine working tool for row crops like paddy, wheat, cotton, and sugarcane, not just a hobbyist showpiece.
16L Tank Capacity
High-payload spraying without excessive refill downtime.
Foldable for Transport
Collapses to roughly a third of its unfolded footprint.
40mm Arms, 34″ Props
Built for genuinely high-payload propulsion systems.
Modular, Easy to Service
Designed for straightforward assembly, upgrades, and repair.
See Every Detail
Modular, Serviceable Design
The red top cowling separates cleanly from the black electronics bay and white tank body below it — a modular design built for straightforward assembly, wiring access, and field maintenance.
Built for Serious Agricultural Spraying
The E416P Agricultural Drone Frame brings a proven, widely-used platform to your spraying drone build.
💧
16L Tank Capacity
Fewer refill stops across large spraying sessions.
🔧
40mm Carbon Arms
Robust arms built for genuinely high-payload propulsion.
📁
Foldable Frame Design
Collapses down significantly for transport and storage.
🌀
34″ Propeller Ready
Sized for large, high-payload propulsion systems.
🔋
12S Power System
Supports up to 37kg maximum takeoff weight.
🔩
Modular Construction
Simplifies assembly, disassembly, and field maintenance.
Built for Real Agricultural Spraying Work
The E416P Agricultural Drone Frame suits builders creating dedicated spraying and crop-protection drones for real field use.
Paddy & Wheat Spraying
High-payload spraying for staple row-crop fields.
Cotton & Sugarcane Fields
Large tank capacity suits tall, dense crop coverage.
Commercial Ag-Service Fleets
A proven, widely-adopted platform for daily field use.
Specialized Payload Platforms
The same frame adapts to non-spraying dispenser payloads.
Custom Heavy-Lift Builds
A robust foundation for custom high-payload drone projects.
Field Teams on the Move
Foldable design suits crews transporting between fields.
See the E416P Platform in Use
A genuine E416P application video from EFT’s own channel, plus two official EFT assembly tutorials for the same E-series frame family — one covers the related hexacopter EP frame rather than this exact quad, noted where relevant.
Frequently Asked Questions
Is the E416P Agricultural Drone Frame a quadcopter or an 8-motor coaxial design?
Does this frame include motors, battery, or a flight controller?
What propeller size does it use?
How much does the frame weigh, and how much can it lift?
Does the frame fold for transport?
What crops is this frame typically used for?
