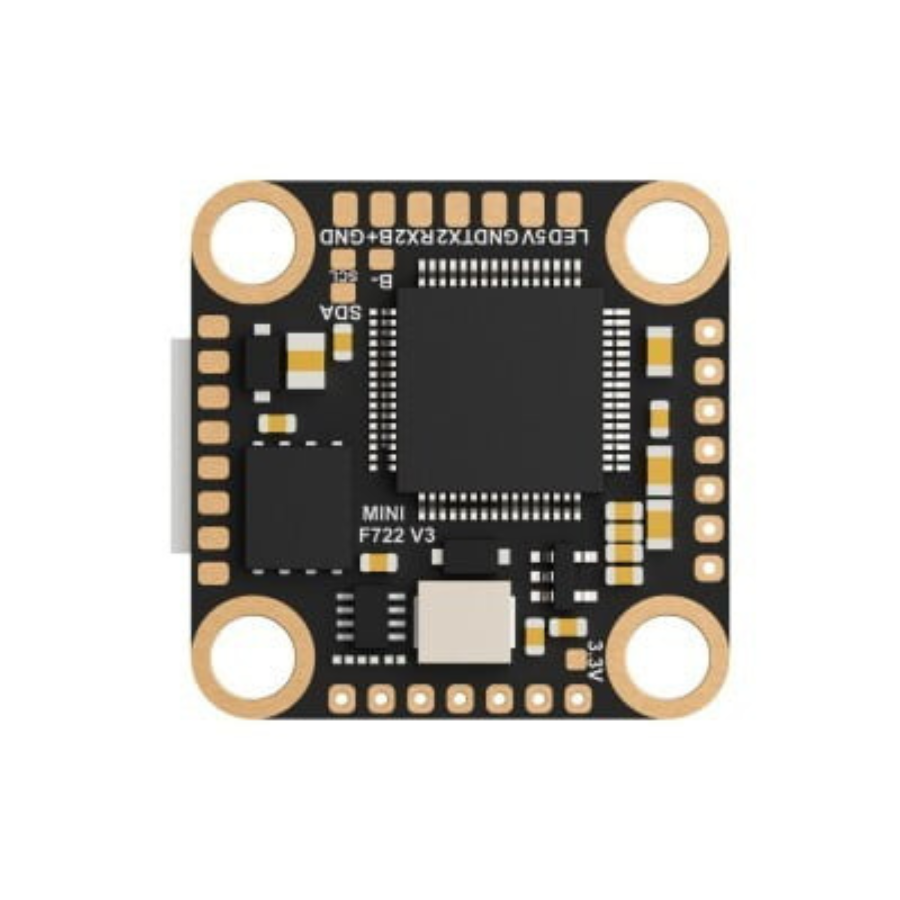

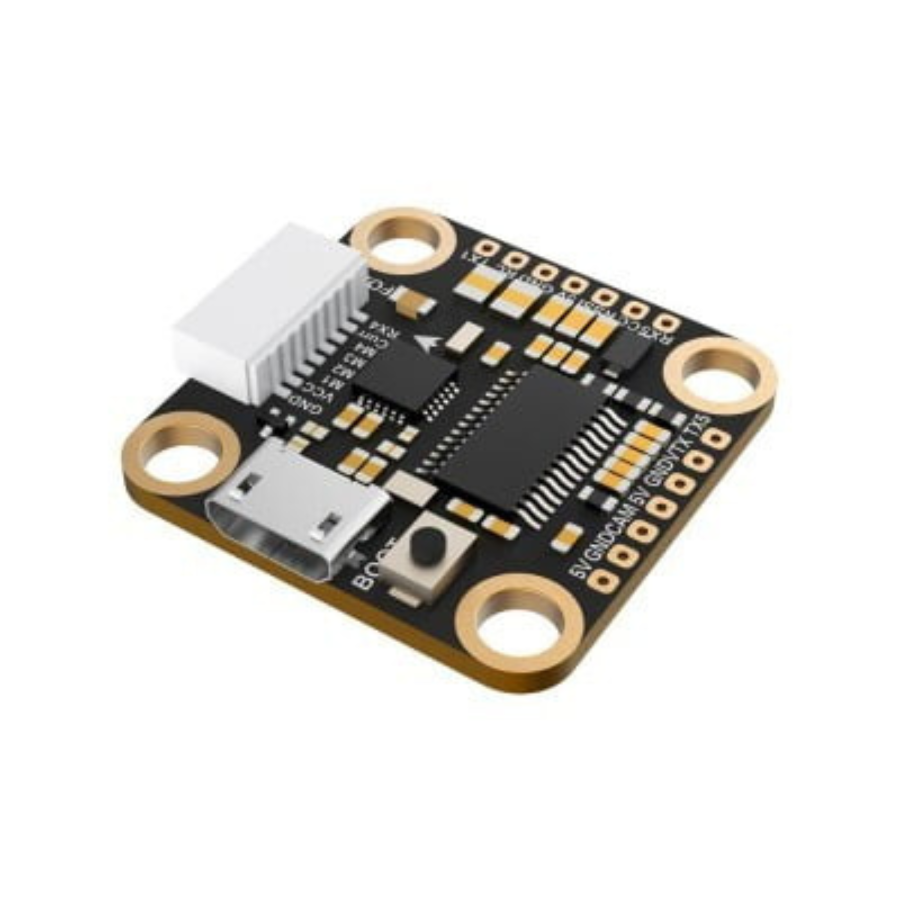

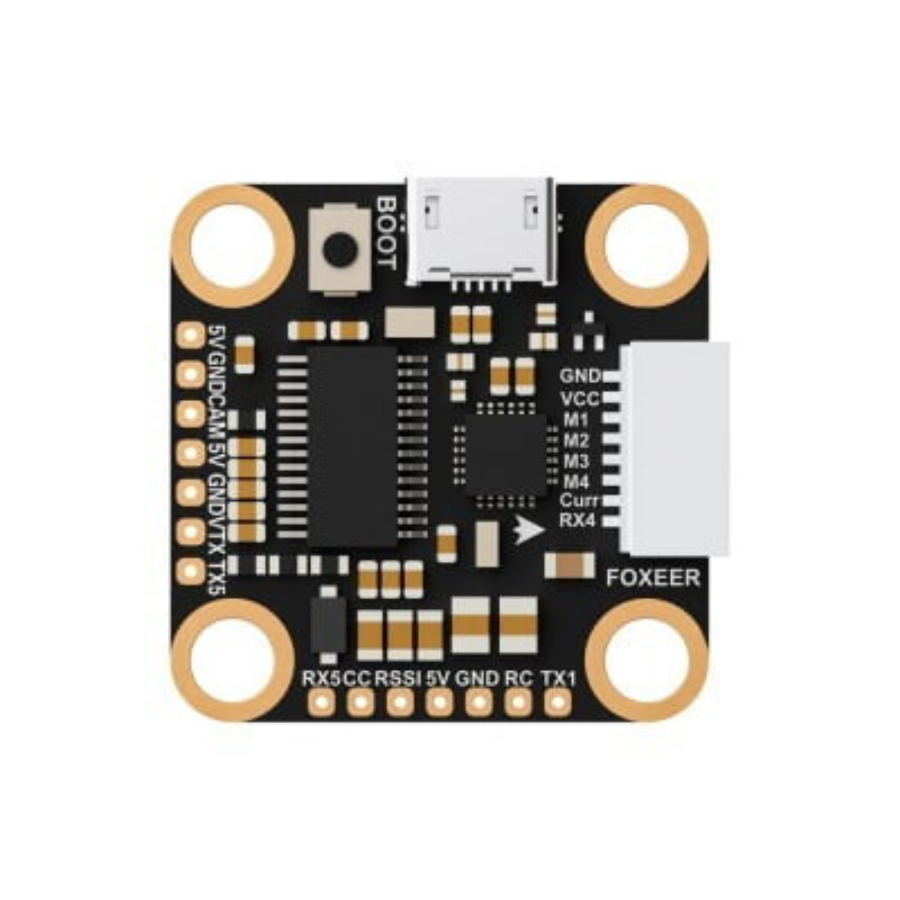

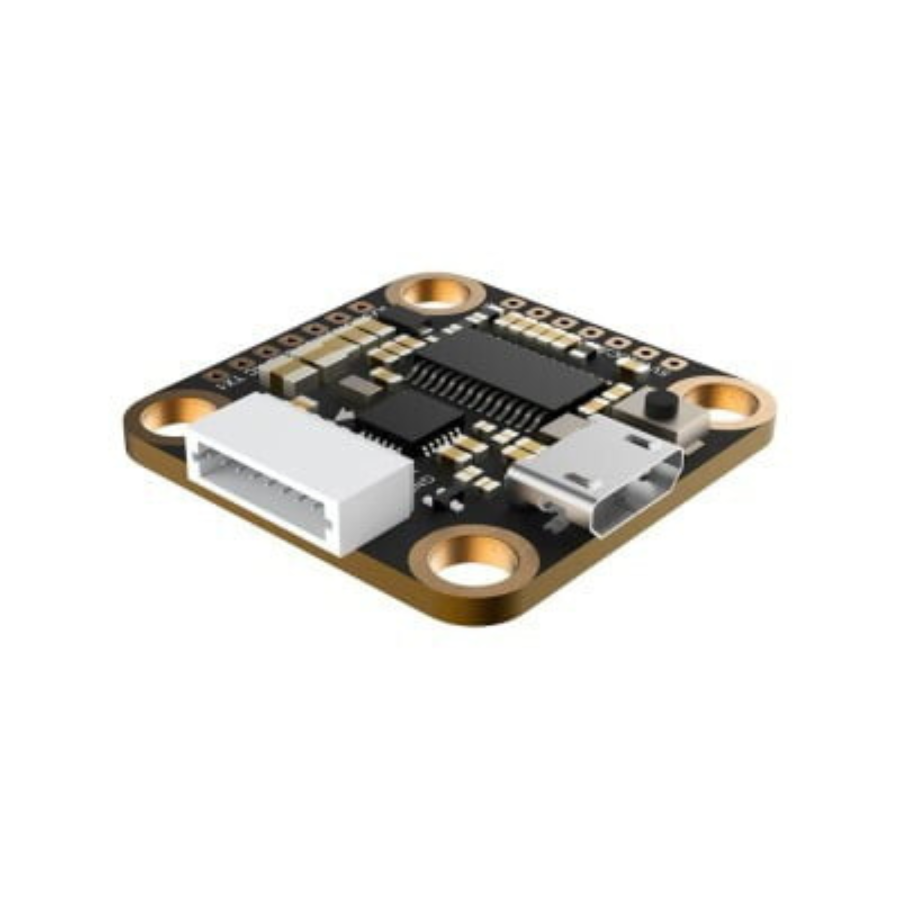

FOXEER-F722 V3 MINI FLIGHT CONTROLLER

The FOXEER F722 V3 Mini Flight Controller is a compact yet powerful unit engineered for high-performance FPV drone builds. Built around the reliable STM32F722RET6 CPU, this flight controller delivers robust processing power and rapid response, making it ideal for both freestyle and racing drones. Designed with precision and versatility in mind, it supports a wide input voltage range of 2S to 6S LiPo (6.5V~30V), ensuring compatibility with a broad range of setups.

One of its standout features is the integrated BEC output of DC 5V/3A, which reliably powers essential peripherals such as receivers, VTXs, and LED systems. The Betaflight OSD (BF OSD) allows real-time data like voltage, current, and flight time to be displayed directly on your FPV feed, enhancing situational awareness during flights.

The FOXEER F722 V3 Mini is equipped with 16MB of onboard flash memory for black box data logging, which is invaluable for tuning and analyzing flight performance. With 4 UART ports, pilots have flexibility for connecting external components such as GPS modules, receivers, and telemetry systems. It also supports ESC telemetry via RX4, allowing detailed feedback from your ESCs.

Additional features include Smart Audio, a built-in buzzer, and a 2812 LED output, enabling efficient configuration, audible warnings, and customizable lighting. Its micro USB port ensures easy firmware updates and configuration via Betaflight, and it comes preloaded with FOXEERF722V3 firmware, optimized for stability and performance.

With dimensions of 28.5mm x 28.5mm and a 20x20mm mounting hole pattern (Φ4mm), this flight controller is perfectly sized for mini and micro drone frames. Weighing just 4.4 grams, it adds minimal weight to your build while offering maximum functionality.

Built to endure, the FOXEER F722 V3 Mini operates within a temperature range of -20°C to +55°C and up to 95% humidity, ensuring reliable performance in a wide array of environments. The package includes the flight controller and four rubber dampening columns to reduce vibration and improve flight stability.

Ideal for demanding pilots, the FOXEER F722 V3 Mini is a top-tier flight controller that combines power, compactness, and precision. Shop now at XBOOM .

FOXEER-F722 V3 – In The Box

Specifications Of FOXEER-F722 V3
