Description

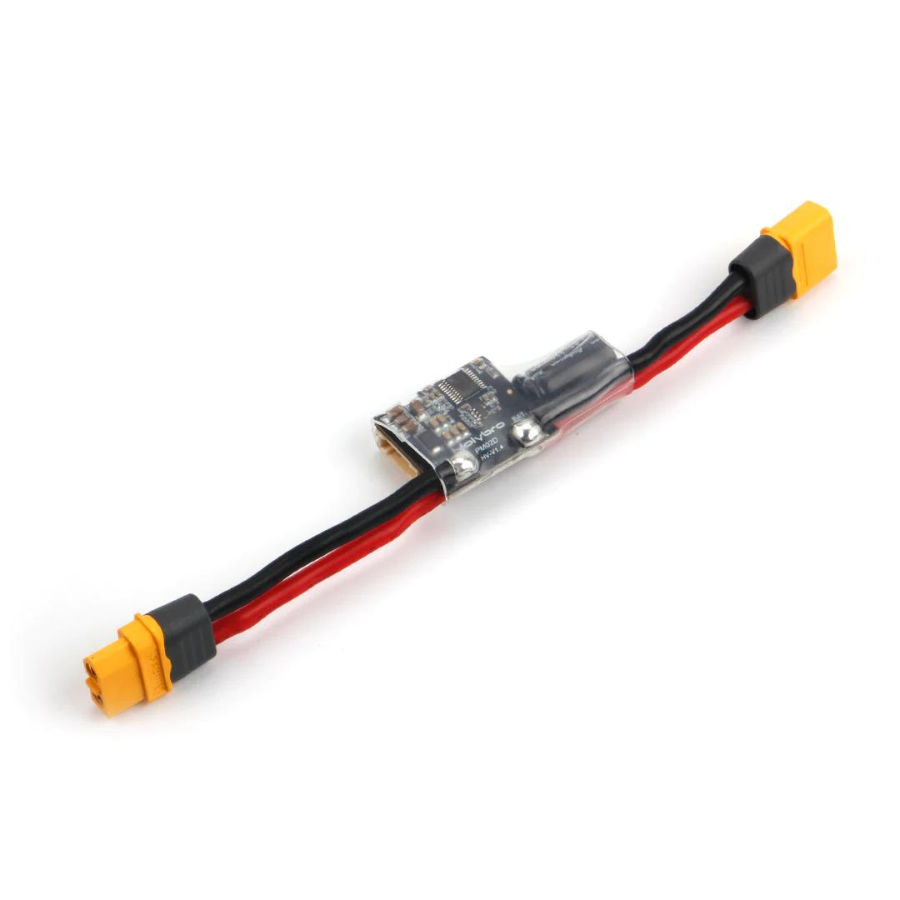

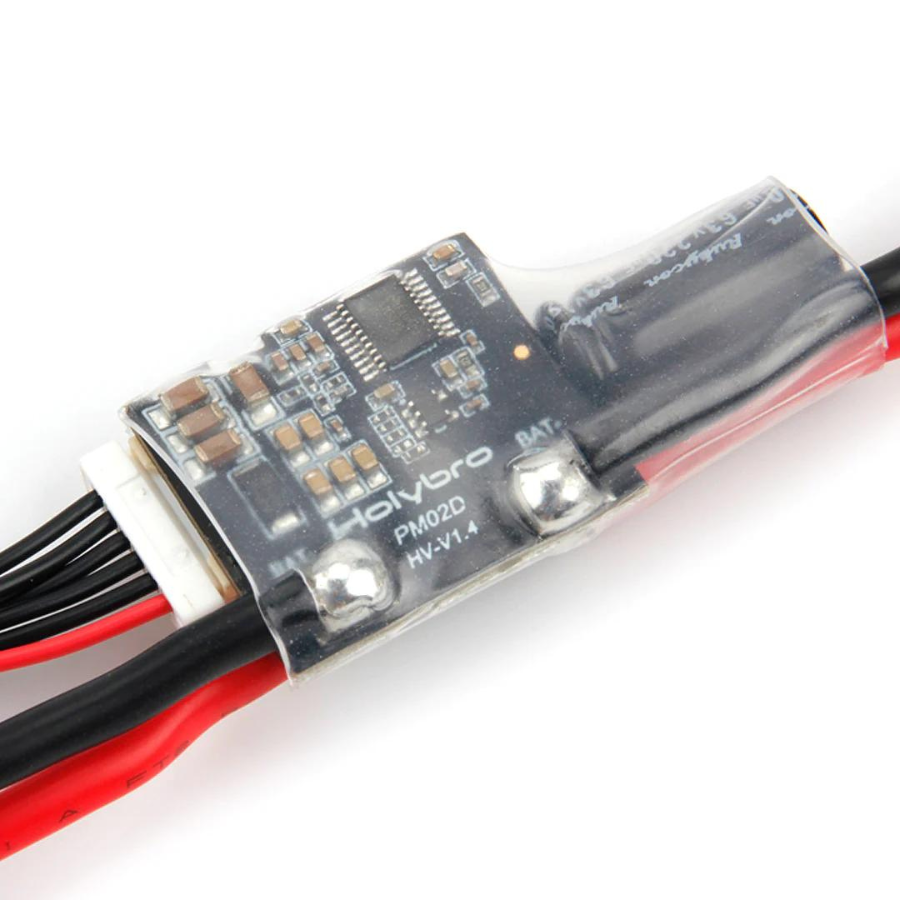

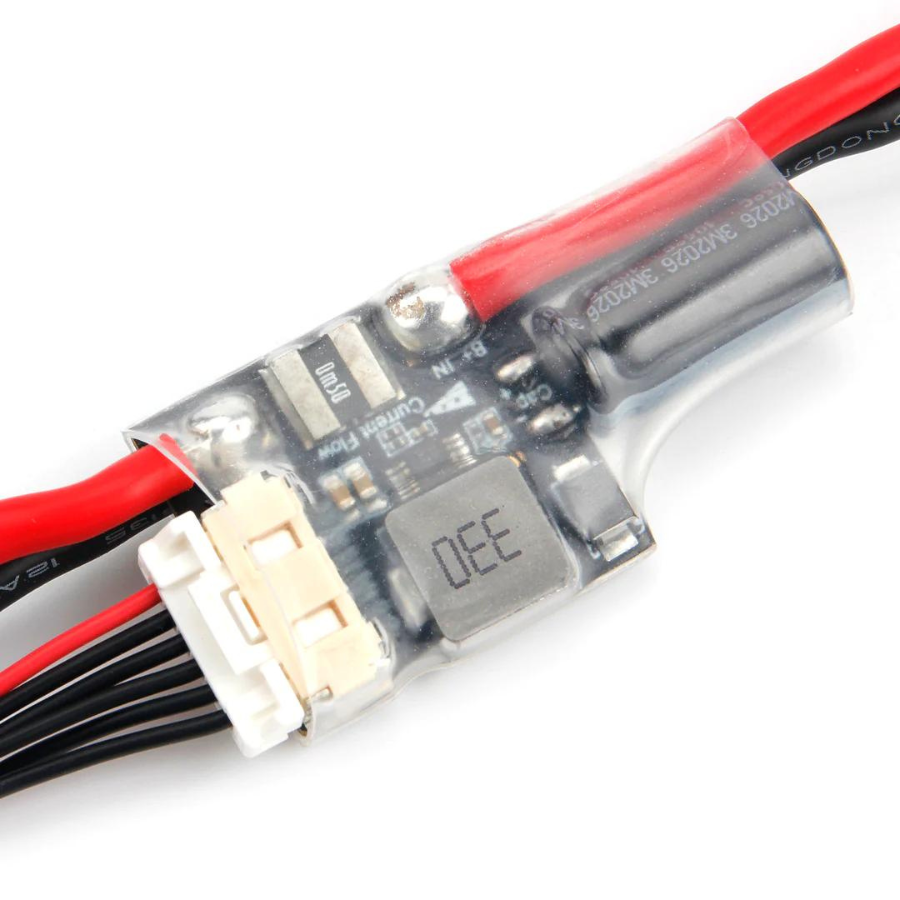

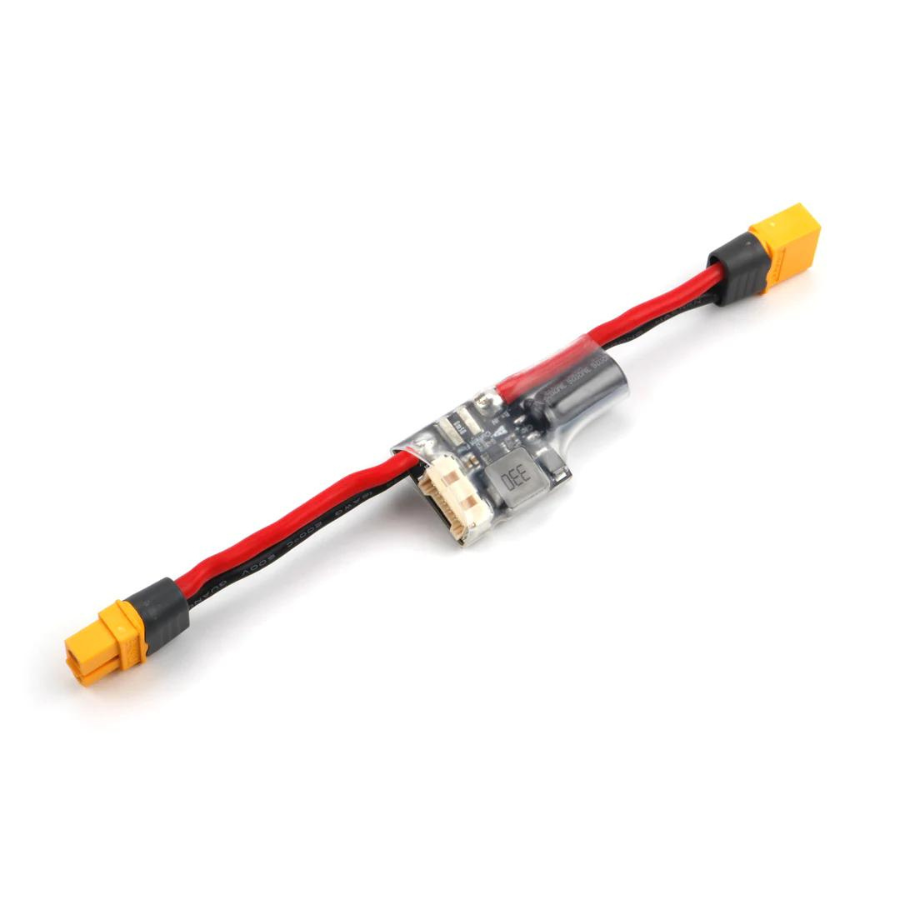

PM02D Power Module
The PM02D Power Module is your dependable power supply solution for a variety of RC projects. With voltage regulation to ensure stable power output and real-time current monitoring, this module offers precise control over your power supply. Its compact design allows for easy installation and compatibility with a range of setups. Crafted with durability in mind, it’s built to withstand the demands of your RC applications. Designed for straightforward integration, the PM02D Power Module helps maintain stable power during flight or operation, making it a versatile and essential component for your RC projects.
PM02D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 6S (LV) or 12S (HV). The Power Module comes completely assembled with XT60 connectors, wrapped in shrink tubing for physical damage protection.
Specification
- Input voltage

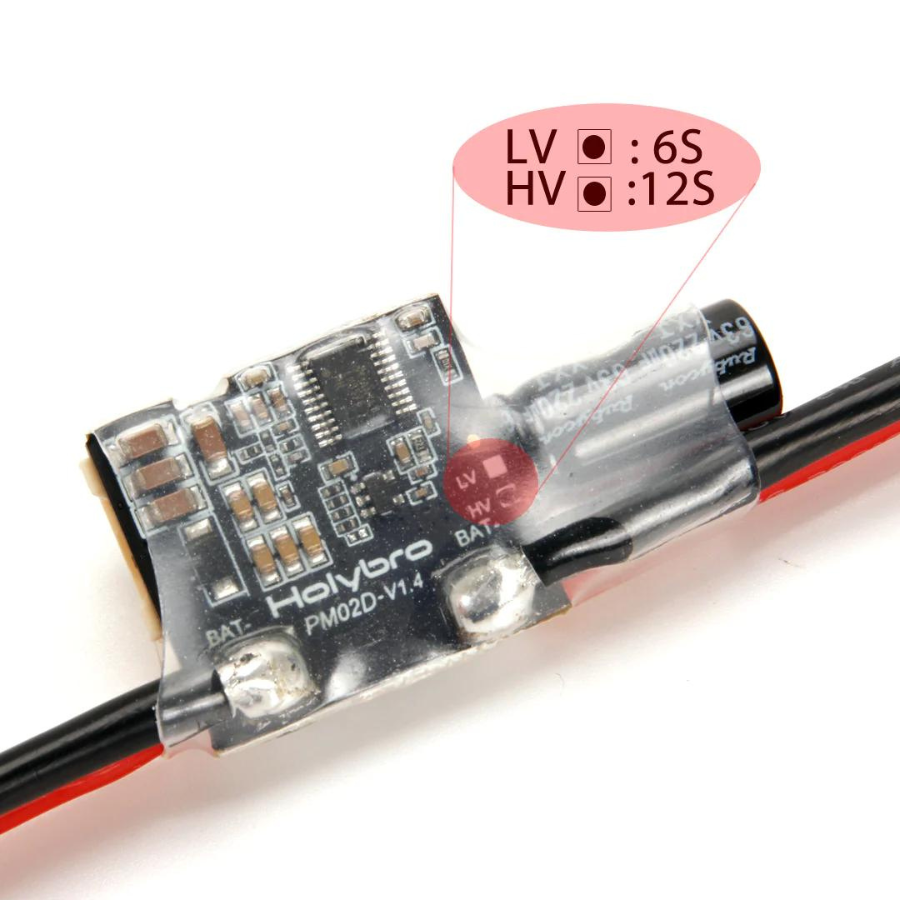

- LV: 2S-6S
- HV: 2S-12S
- PCB Cont. Current Rating: 60A
- PCB Burst Current Rating: 100A (<60 Sec)
- Max current sensing:
- LV: 164A
- HV: 327A
- Voltage and current monitor with I2C compatible interface
- Outputs 5.2V and 3A max
- Weight: 20g
