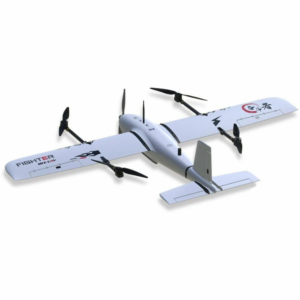

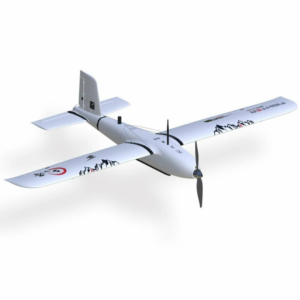

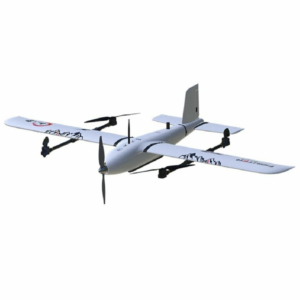

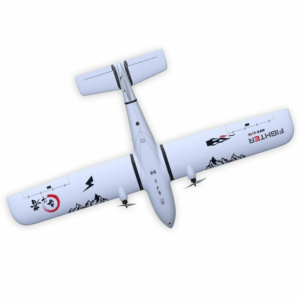

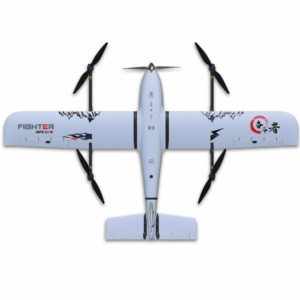

MFE Fighter 2430mm Wingspan Compound Wing EPO VTOL Aerial Survey FPV RC Airplane KIT

MFE Fighter 2430mm Wingspan Overview

The fighter is a fixed-wing flight platform weighing 10 kg (hand parachute/VTOL) that is portable, user-friendly, sturdy, and long-lasting. The fighter is positioned as a heavy-duty, long-endurance fixed wing, which considerably decreases aerial survey difficulty, further frees productivity, and enhances aerial survey efficiency.

The aeroplane is simple and quick to assemble because to the modular design philosophy. The aircraft is practical, portable, and user-friendly because to its readily detachable wings, folding arms, and tail fins. The Sony A7R2 full-frame camera with 4200W pixels and a lightweight, 1.5kg lidar can be mounted in the open flight control cabin, which is compatible with Pixhawk flight control. The lithium polymer battery with a maximum support of 12s@22000mah allows for extremely long range and high-quality shooting.

The final mapping would meet the 1:1000 and 1:2000 aerial survey standards with the use of appropriate control points, realizing a wide range of applications including geography surveys, farmland, forestry land and grassland protection, power line inspection, environmental protection, water conservancy, and others.

Specifications

Brand Name: MFE

Item Name: Fighter

Material: EPO,EVA,carbon fiber,PC,engineering plastics and etc.

Wingspan: 2430mm

Fuselage Length: 1450mm

Fuselage Height: 180mm

Wing Area: 72.5dm²

Suggested Flight Speed: 17~20m/s

Stalling Speed: 10m/s

Maximum Payload: 1.5kg

Payload Cabin Size: 280*160*110mm

Longest Flight Range: >150km(600g load)

Max. Take-off Weight: 11.5kg

Practical Ceiling Height: 4000m

Wind Resistance: 5

Take-off and Landing Approach: VTOL

Dismounting Way: Tool-free

Transport Case Size: 1.25mx0.34mx0.49m

CG: Under the raised position of fuselage hook and the wing root plastic(same position)
