Description

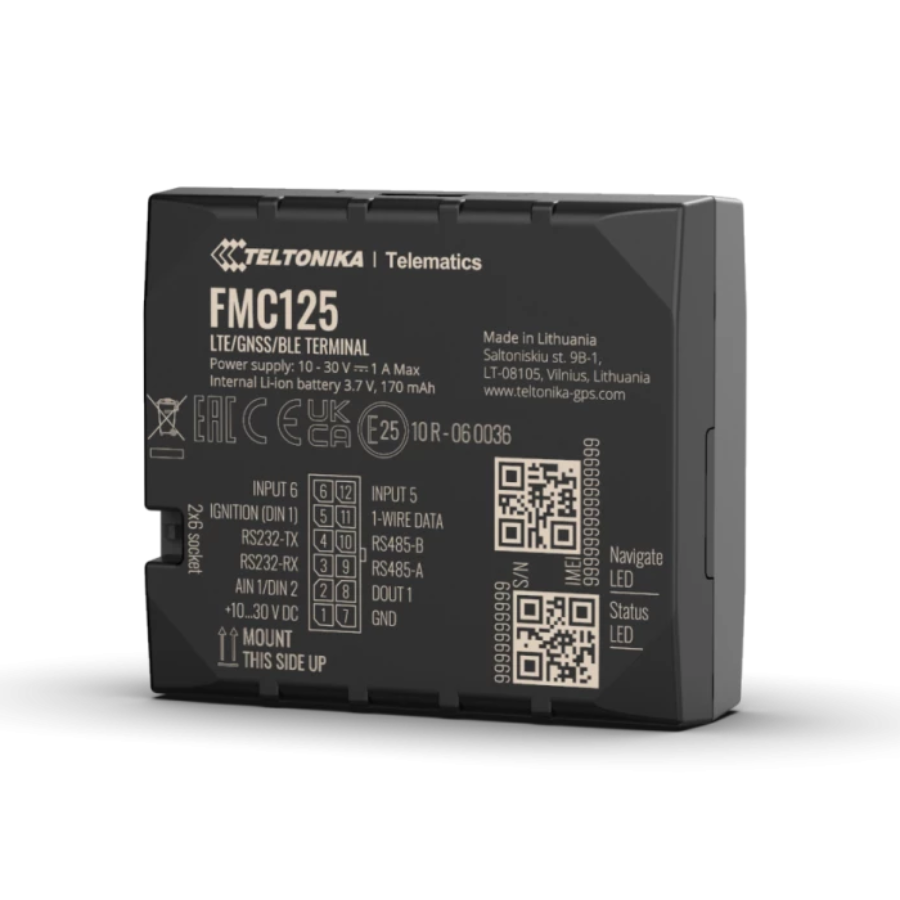

Teltonika FMC125 GPS Tracker
The Teltonika FMC125 GPS Tracker is a reliable and versatile device designed for efficient and accurate tracking of vehicles, assets, and personnel. This compact and feature-rich tracker offers a wide range of functionalities to meet various tracking needs. Equipped with a high-sensitivity GPS receiver, the FMC125 provides precise and real-time location information. It supports multiple satellite systems, including GPS, GLONASS, and GALILEO, ensuring reliable positioning even in challenging environments.
Specifications
Module
Name FMC125-MBIB0: MeiG SLM320-E with Teltonika TM2500
FMC125-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Position accuracy < 2.5 CEP
Velocity accuracy < 0.1m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
Technology LTE Cat 1, GSM
2G bands FMC125-MBIB0: GSM: B2/B3/B5/B8
FMC125-MCIB0: GSM: B2/B3/B5/B8
4G bands FMC125-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41
FMC125-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40
Data transfer
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Power
Input voltage range 10 – 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Operating environment
Operating temperature
(without battery) -20 °C to +85 °C
Storage temperature (without
battery) -20 °C to +85 °C
Operating temperature (with
battery) -20 °C to +40 °C
Storage temperature (with
battery) -20 °C to +40 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Interface
Digital Inputs 2
Digital Outputs 1
Analog Inputs 1
CAN Adapter Inputs 1
1-Wire 1
RS232 1
RS485 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM 2x SIM Card (Dual-SIM)
Memory 128MB internal flash memory
