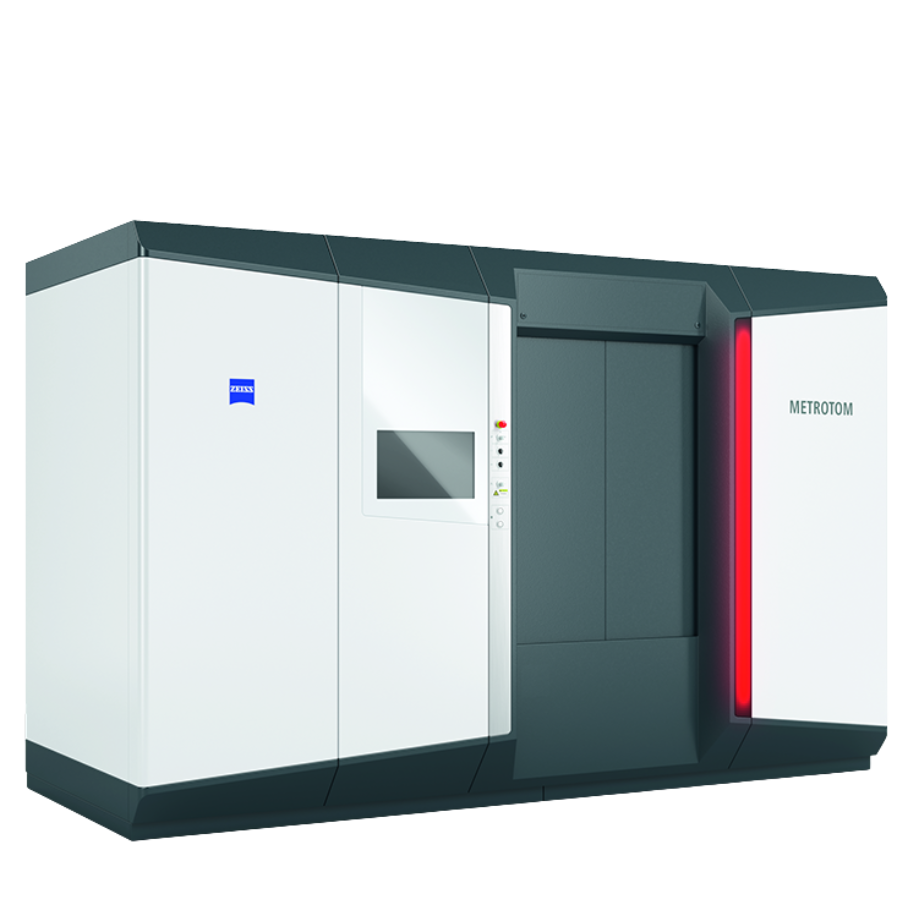

Carl Zeiss Metrology METROTOM
-
Advanced industrial CT system for dimensional measurement and defect analysis.
-
Enables non-destructive 3D inspection of internal and external part geometries.
-
Ideal for plastic, composite, and light metal components.
-
Provides detailed visualization of internal structures and porosity.
-
Ensures accurate quality control and reverse engineering applications.
- Authorised dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Specification |
Details |
|---|---|
| Brand | Carl Zeiss Metrology |
| Model | METROTOM Series |
| Type | Industrial Computed Tomography (CT) System |
| Measurement Method | Non-destructive 3D X-ray scanning |
| Resolution | Up to submicron precision (depending on configuration) |
| Maximum Workpiece Size | Up to 500 mm (varies by model) |
| Maximum Workpiece Weight | Up to 50 kg (varies by configuration) |
| X-ray Source | 225 kV or 300 kV microfocus X-ray tube (depending on model) |
| Detector Type | High-resolution flat panel detector |
| Scan Volume | Approx. 300 × 300 × 300 mm (typical) |
| Accuracy | Up to (3.5 + L/100) µm |
| Software | ZEISS CALYPSO / GOM Volume Inspect / VGStudio MAX |
| Applications | Internal defect detection, wall thickness analysis, dimensional measurement, assembly inspection |
| Data Output | 3D point clouds, volume data, CAD comparison reports |
| Operating Environment | Temperature-controlled metrology labs |
| Connectivity | Ethernet, USB, optional remote control |
| Power Supply | 230V AC, 50/60 Hz |
| Certifications | CE Certified, ISO-compliant metrology standards |
| Typical Industries | Automotive, Aerospace, Medical Devices, Electronics, Plastic Components |
