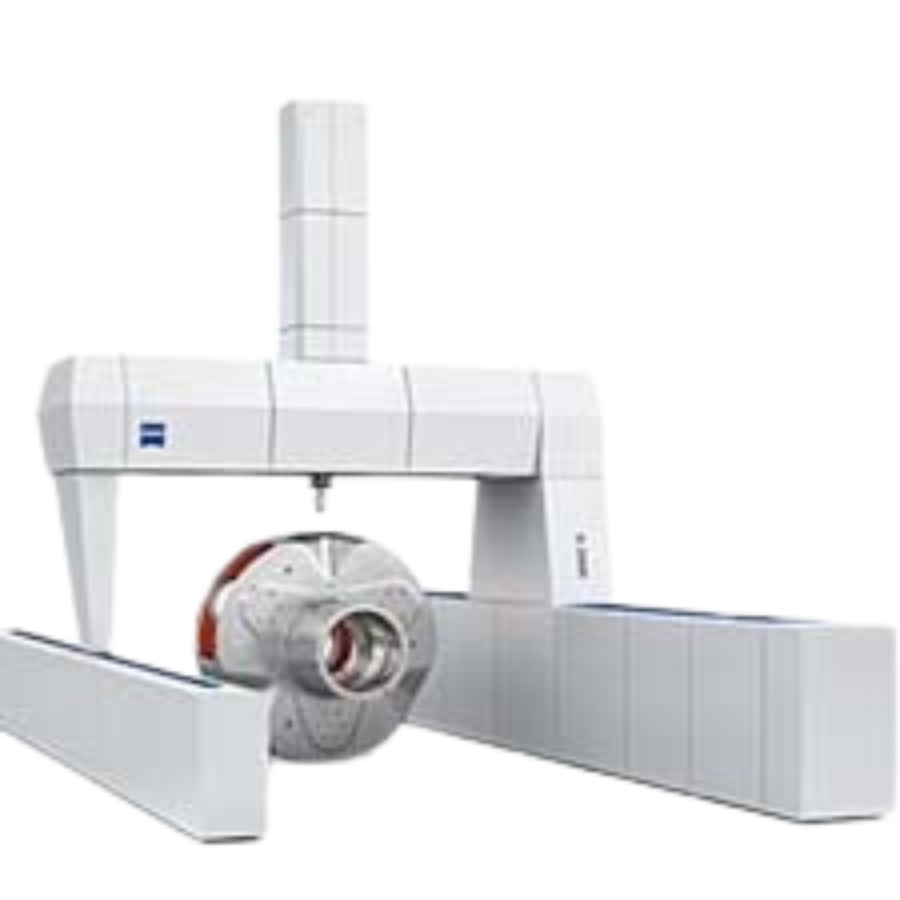

Carl Zeiss Metrology MMZ G Bridge-Type CMM

Bridge-type CMM designed for precise measurement of extremely large and heavy workpieces.
Ideal for aerospace, automotive, and industrial manufacturing.
Ensures high accuracy, repeatability, and long-term stability.
Equipped with advanced ZEISS probing systems for 3D measurements.
Supports both contact and non-contact measurement methods.
Robust and stable construction for heavy-duty inspection tasks.
Flexible software integration for comprehensive quality control and analysis.

Overview

What makes it work

Specification	Details
Product Name	Carl Zeiss Metrology MMZ G Bridge-Type CMM
Manufacturer	Carl Zeiss Industrial Metrology
Machine Type	Bridge-Type Coordinate Measuring Machine (CMM)
Measuring Range (X/Y/Z)	Up to 20,000 × 3,000 × 3,000 mm (varies by model)
Design Type	Bridge-type construction for very large and heavy workpieces
Accuracy (MPEE)	Starting from 3.5 + L/250 µm
Drive System	CNC-controlled motorized drives on X, Y, Z axes
Measuring Principle	Contact and optional non-contact measurement
Probing Systems	ZEISS VAST XT, VAST, or RDS-CAA systems
Workpiece Load Capacity	Several tons depending on configuration
Software Compatibility	ZEISS CALYPSO, PiWeb, and other ZEISS software
Material	Granite base with stable steel/ceramic bridge
Operating Environment	Temperature-controlled rooms recommended
Applications	Aerospace components, automotive body parts, heavy machinery
Key Features	High precision, large volume measurement, long-term stability
Power Supply	230/400 V AC, 50/60 Hz
Maintenance	Low-maintenance linear guides and drives
Additional Options	Rotary tables, automatic probe changers, safety enclosures
