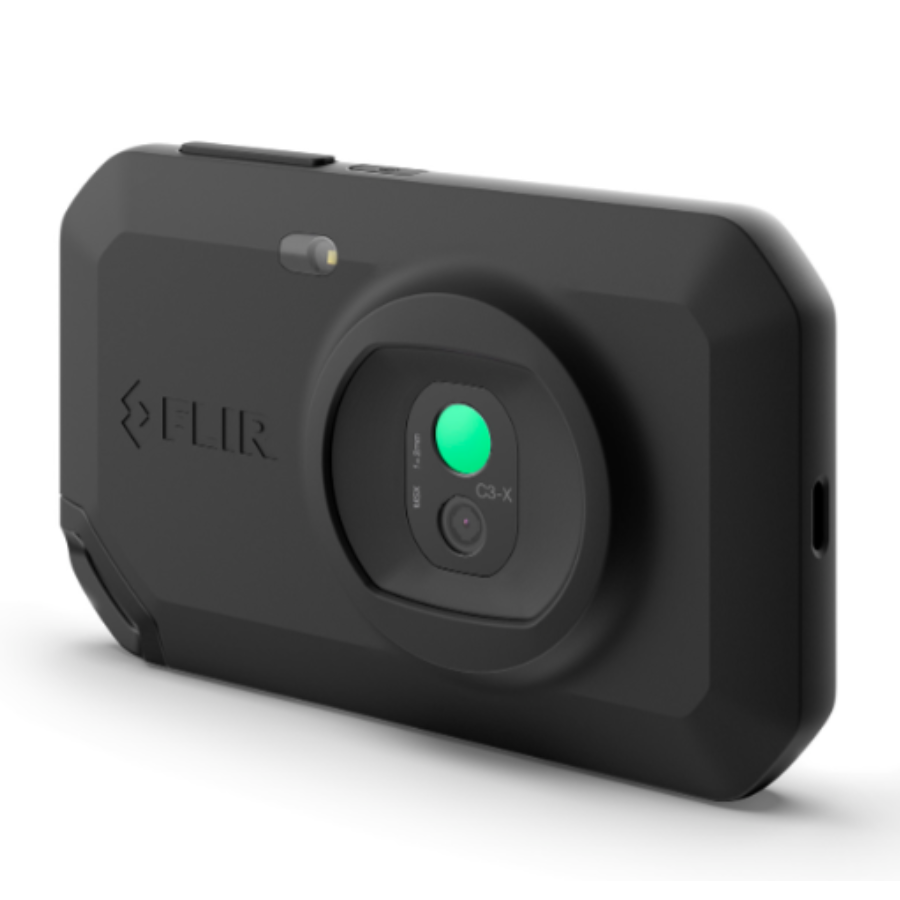

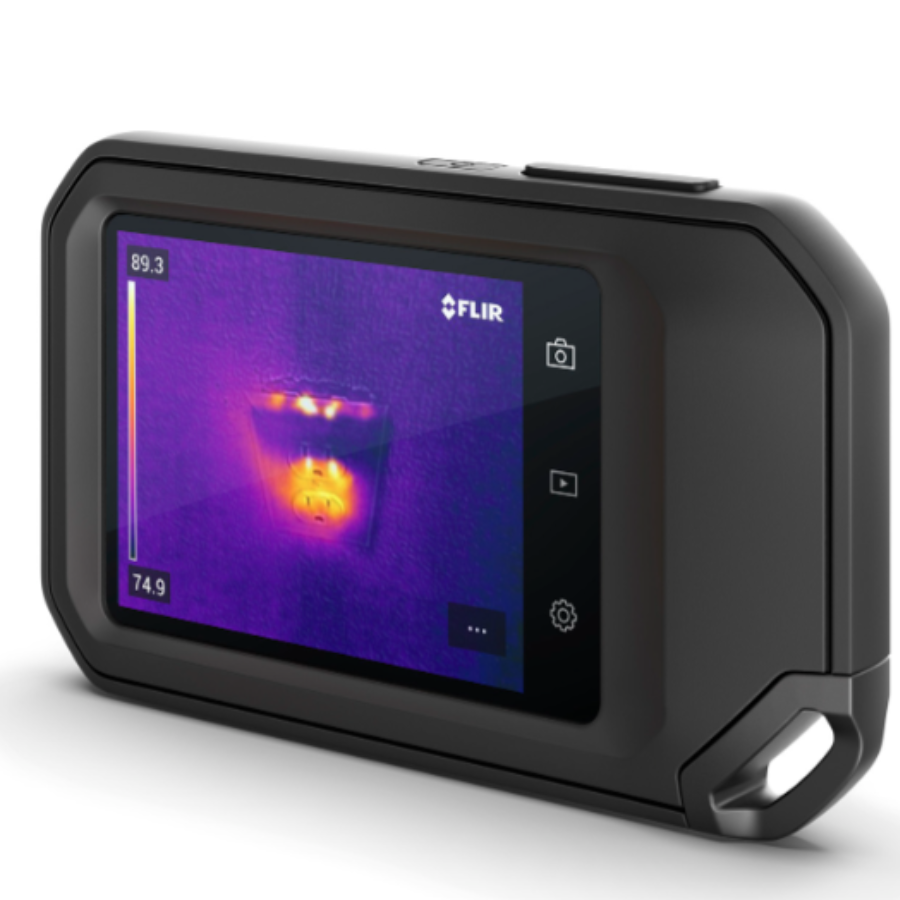

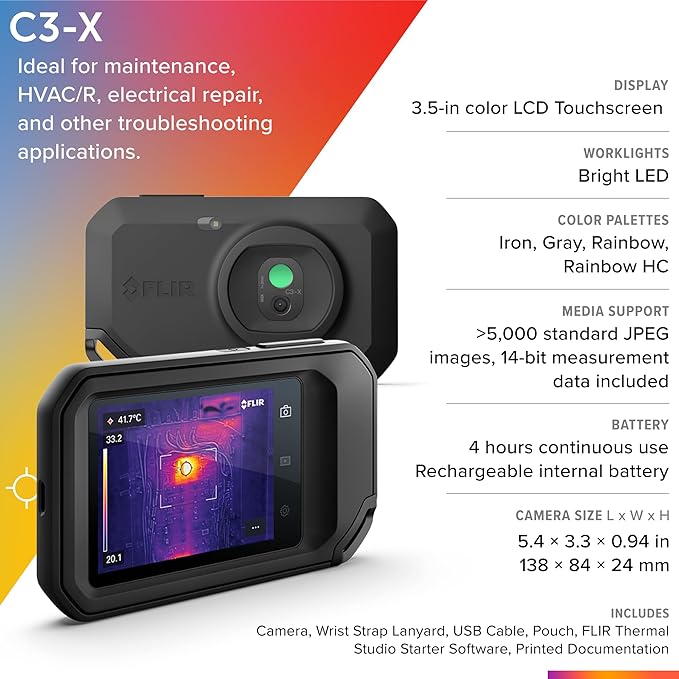

FLIR C3-X Compact Thermal Imaging Camera
- C3-X: Handheld IR camera measures temperatures from -20 to 300°C (-4 to 572°F)
- IDENTIFY AND TROUBLESHOOT - Quickly find hidden faults and reduce diagnostic time with MSX and 128 × 96 true thermal imaging (12,288 pixels)

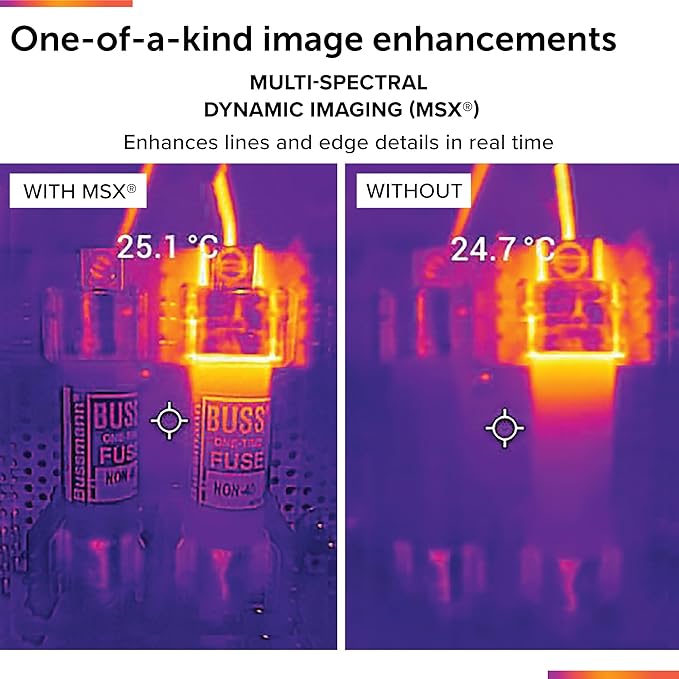

- PATENTED TECHNOLOGY - Patented MSX embosses visual details on the thermal image to create sharper, easier to understand picture
- DOCUMENT AND SHARE - Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers

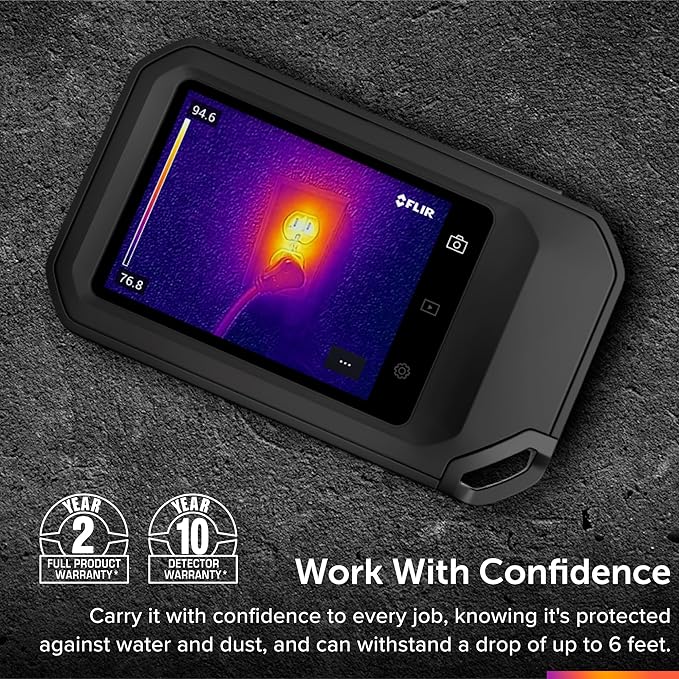

- RUGGED, RELIABLE, COMPACT - Take the pocket-portable C3-X with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

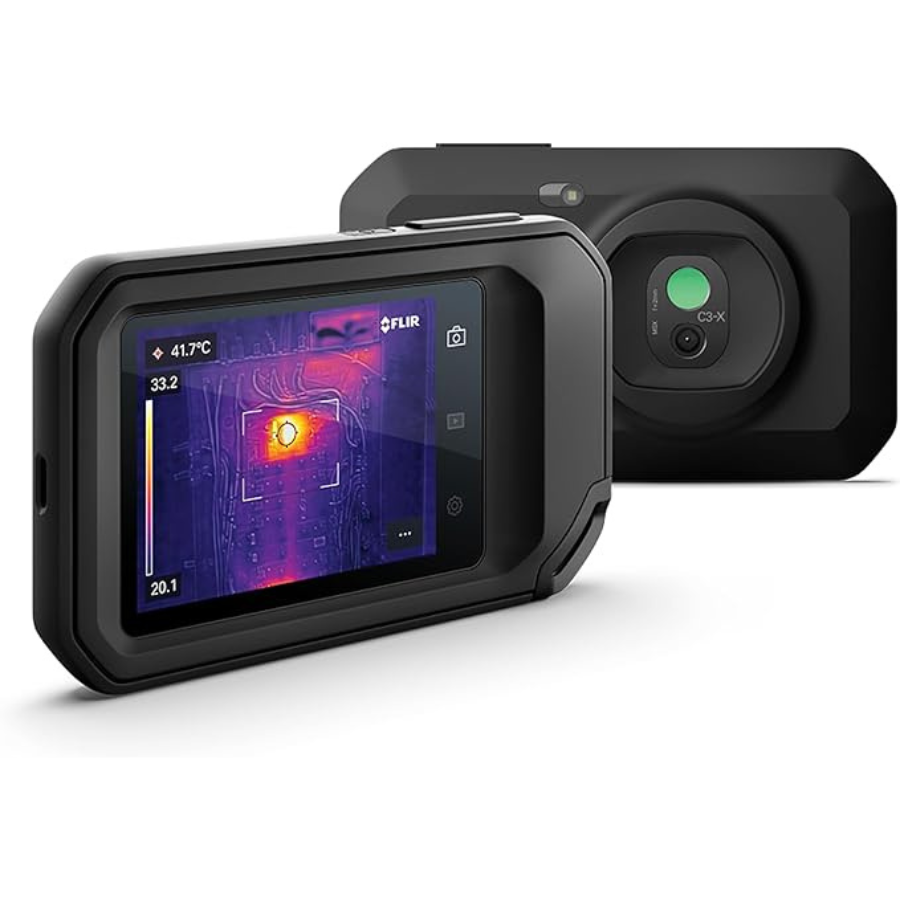

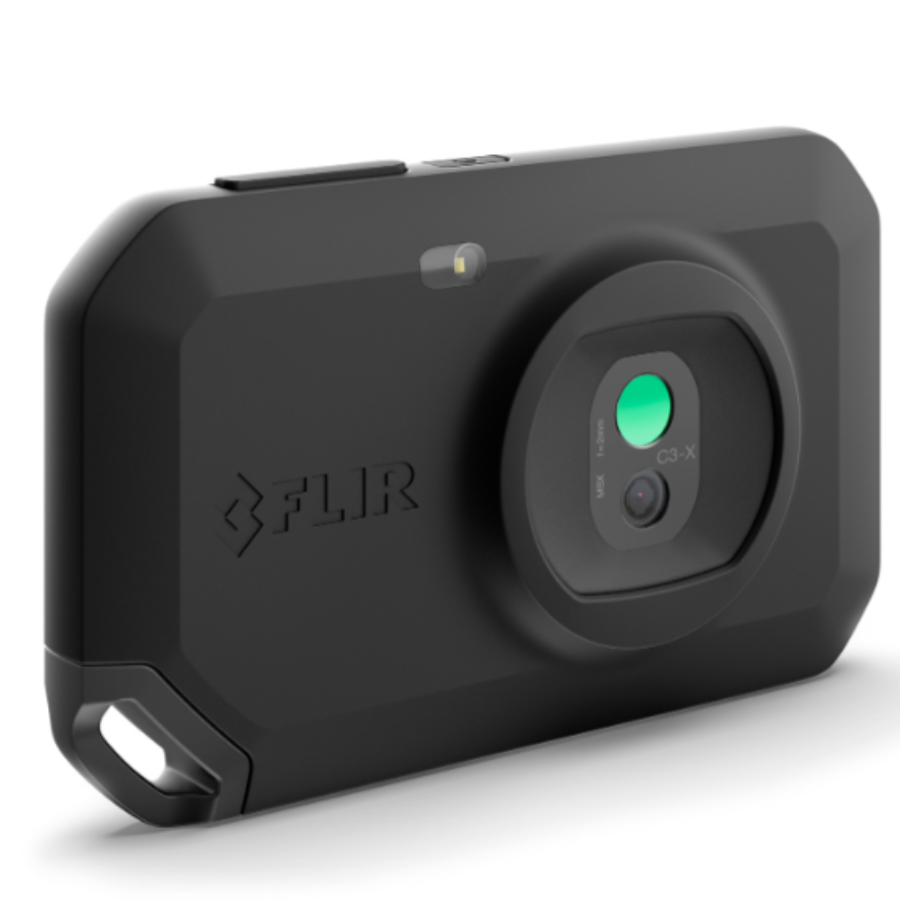

FLIR C3-X
Compact Thermal Imaging Camera with Wi-Fi for Inspection, Electrical/Mechanical, Building, and HVAC Applications
The FLIR C3-X simplifies the process of inspecting hidden issues, documenting repairs, and sharing evidence with customers. Equipped with a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and an LED flashlight, the C3-X is a cost-effective inspection tool ideal for electrical, mechanical, building, and maintenance applications. Its compact design and user-friendly interface make it accessible for both professionals and DIY enthusiasts. With the ability to directly upload and store images to the FLIR Ignite™ cloud, you can easily organize and back up your files. This ensures that all your thermal images and reports are safely stored and accessible from anywhere. Additionally, you can instantly share images with customers or create professional reports using a mobile device or computer, streamlining the workflow and enhancing communication with clients. The FLIR C3-X is an essential tool for efficient and effective inspections, offering high-quality imaging and seamless data management. Shop now at XBOOM .
Specifications of FLIR C3-X
General
Here’s a table summarizing the specifications of the FLIR C3-X:
| Category | Specifications |
|---|---|
| IR Resolution | 128 × 96 pixels |
| Thermal Sensitivity/NETD | <70 mK |
| Accuracy | 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] |
| Field of View (FOV) | 53.6° |
| Digital Camera | 5 MP resolution |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| Auto Orientation | Yes |
| Camera Software Update | Automatic over Wi-Fi, USB via computer |
| Color | Black |
| Color Palettes | Iron, Gray, Rainbow, Rainbow HC |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera FOV | 71.5° × 56° (84° diagonal) |
| Digital Zoom | No |
| Display Resolution | 640 × 480 pixels |
| f-number | 1.1 |
| Focus | Focus free |
| Gallery | Thumbnails and custom folder structure |
| Image Frequency | 8.7 Hz |
| Minimum Focus Distance | Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft) |
| Spatial Resolution (IFOV) | 7.9 mrad/pixel |
| Spectral Range | 8 to 14 µm |
| Video Lamp | Yes |
| Camera Size (L x W x H) | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
| Measurements Correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Object Temperature Range | -20 to 300°C (-4 to 572°F) |
| Set-up Commands | Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low) |
| Display Technology | IPS |
| Languages | Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Text | Soft keyboard on touchscreen |
| Touchscreen | Capacitive touch |
| Battery Capacity | 1800 mAh |
| Battery Charge Life | >500 cycles |
| Battery Operating Time | 4 hours |
| Battery Type | Rechargeable built-in Lithium ion battery |
| Battery Voltage | 3.7 V |
| Battery Weight | 40 g (1.4 oz) |
| Charging System | USB-C (1 A) |
| Charging Temperature | 35°C (95°F) |
| Charging Time | 2 hours |
| External Power Operation | 5 V, USB-C |
| Power Management | Adjustable stand-by and automatic shut-down |
| Drop Test | 2 m (6.56 ft) |
| EMC | EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B |
| Encapsulation | Camera housing and lens: IP54 rated (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles |
| Magnetic Fields | EN 61000-4-8 level 5 |
| Operating Temperature Range | -10 to 50°C (14 to 122°F) |
| Radio Spectrum | ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2 |
| Relative Humidity | 95% relative humidity 25 to 40°C (77 to 104°F) non-condensing |
| Safety | EN 62368-1 |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| Tripod Mounting | UNC ¼”-20 (built-in) |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | http://www.flir.com/warranty/ |
| Housing Material | PC and ABS, partially covered with TPE; aluminum |
| Packaging Size | 160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in) |
| Packaging Weight | 0.52 kg (1.14 lb) |
| Size (L x W x H) | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
The full sheet
