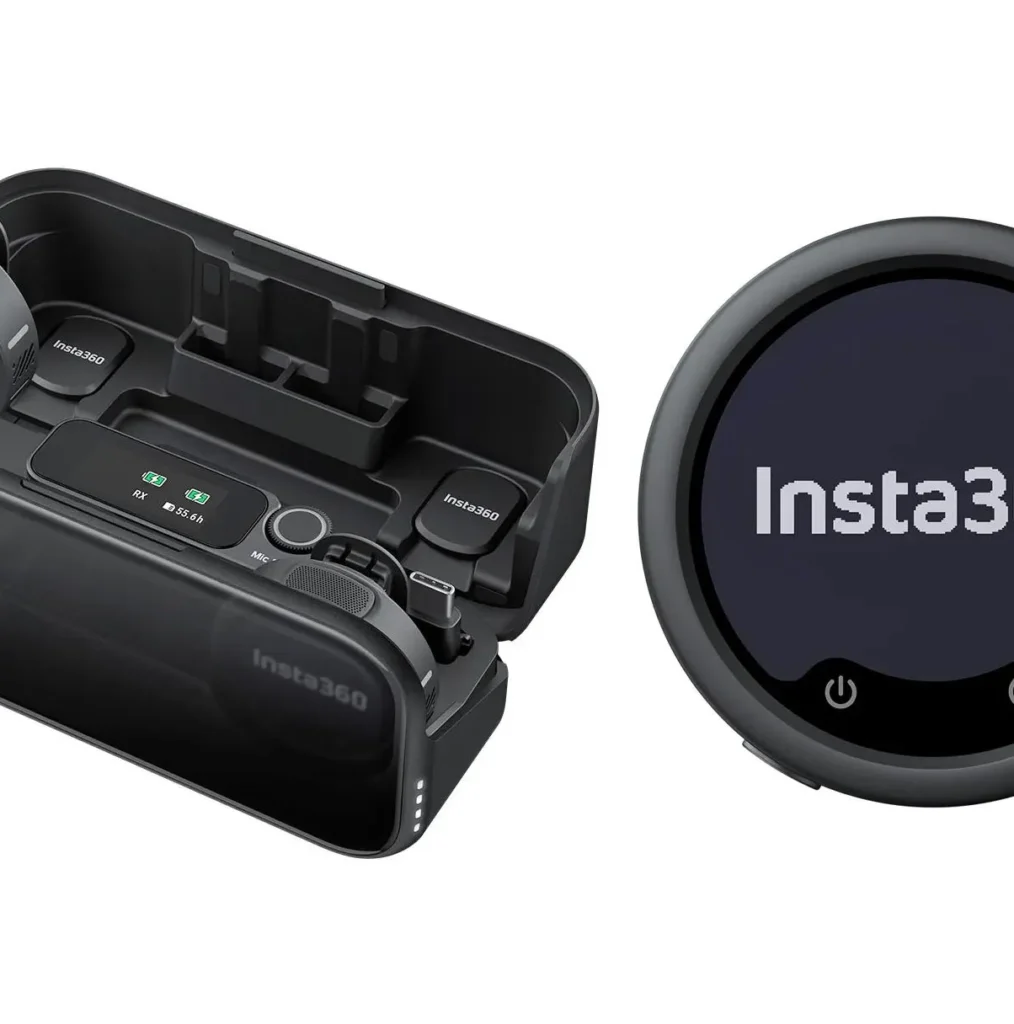

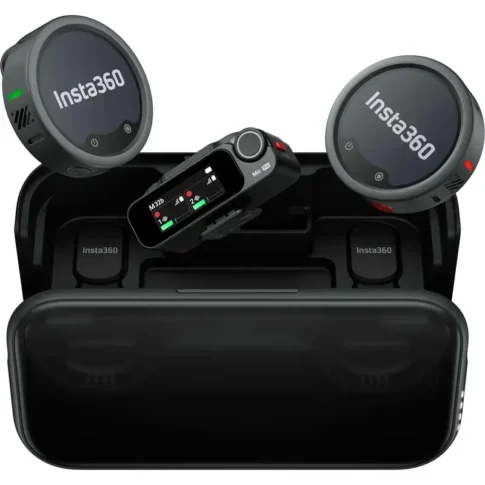

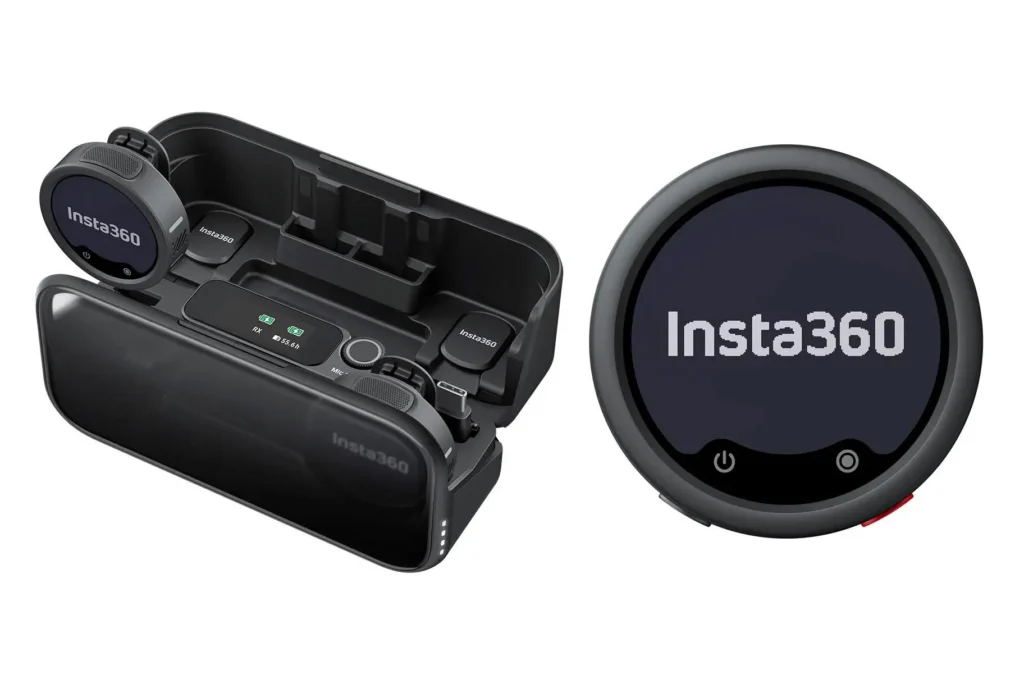

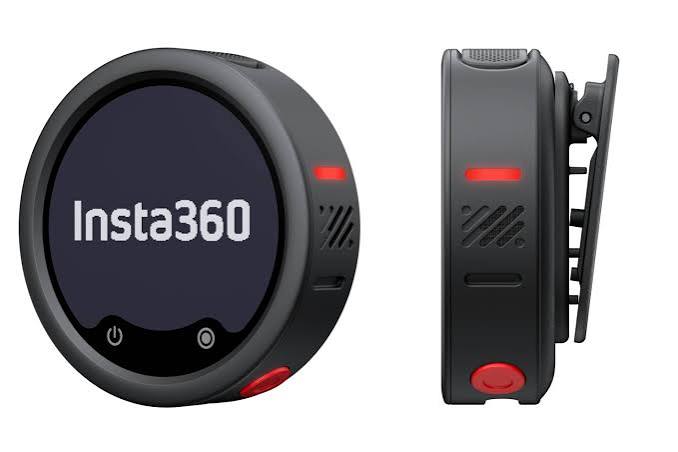

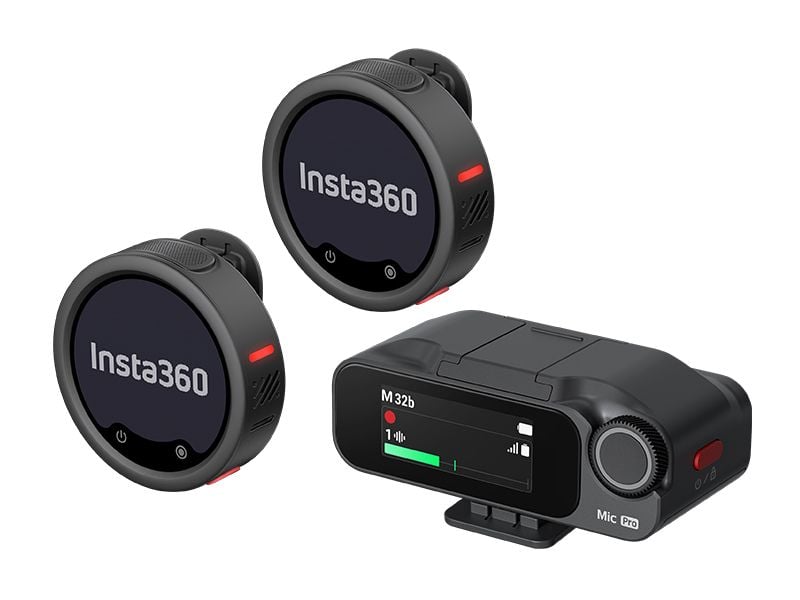

Insta360 Mic Pro

Industry-first E-Ink display — upload your logo or branding via app
3-mic array — Omni, Super-directional, Cardioid & Figure-8 modes
32-bit float internal recording — clipping is mathematically impossible
NPU-powered AI noise cancellation — vocal clarity in any environment
400 m wireless range · 32 GB onboard storage per transmitter
10 hr TX battery · 30 hr with case · 5-min charge = 1.5 hr use
Direct Bluetooth with Insta360 X5, X4 Air, Ace Pro 2 & GO Ultra
Timecode sync (TCXO) — <1 frame drift over 24 hours

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

Insta360 Mic Pro – Flagship Wireless Microphone with E-Ink Display & 32-Bit Float | xBoom.in

Flagship Wireless Microphone

Insta360 Mic Pro — Your Voice, Your Brand

Industry-first E-Ink display. 3-mic array. 32-bit float recording. AI noise cancellation. Up to 400 m range.

Customizable E-Ink Display
3-Mic Array with Selectable Polar Patterns
32-Bit Float Internal Recording
AI Noise Cancellation (NPU Chip)
Up to 400 m Wireless Range
32 GB Onboard Storage
10 hr Battery · 30 hr with Case
Timecode Sync (TCXO)
Works with Cameras, Phones & Insta360

Built for Professional Creators

Every spec engineered for zero compromise in the field

🎙️

3-Mic

Array per TX

🔢

32-bit

Float Recording

📡

400 m

Wireless Range

💾

32 GB

Onboard Storage

⚡

5 min

Fast Charge → 1.5 hr

🔋

30 hr

With Charging Case

🎚️

130 dB

Max SPL

🖥️

E-Ink

Custom Display

Full Specifications

Specification	Details
Polar Pattern	Omnidirectional
Selectable Pickup Modes	Omnidirectional / Super-directional / Cardioid / Figure-8
Frequency Response	Low Cut Off: 20 Hz – 20 kHz \| Low Cut On: 100 Hz – 20 kHz
Microphone Sensitivity	Microphone Capsule: -38±1dBV@1kHz, 94dB SPL
Signal-to-Noise Ratio (SNR)	72 dB (A-weighted)
Maximum Sound Pressure Level (SPL)	130dB SPL@10% THD
Sampling Frequency	48 kHz
Bit Depth	32-bit float / 24-bit (32-bit float applies to internal recordings only)
Maximum Input Level (3.5 mm)	-8 dBV
Equivalent Noise	22 dB (A-weighted)
Monitor Interface Output Power	Max Output Power: 20mW@1kHz, 32 Ω
Max Transmission Range	400 m (open, interference-free environment)
Wireless Mode	GFSK 1 Mbps and 2 Mbps
Equivalent Isotropic Radiated Power (EIRP)	2.400-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
Wireless Mode Operating Frequency	2.400-2.4835GHz
Bluetooth Protocol	Bluetooth V5.4
Bluetooth Operating Frequency	2.400 – 2.4835 GHz
Bluetooth Transmitter Power (EIRP)	BLE: ≤ 20dBm \| BR/EDR: ≤ 20dBm
Onboard Memory	32 GB
Internal Recording Available Duration	24-bit (Mono): 60 hours \| 24-bit (Stereo): 29.7 hours \| 32-bit (Mono): 44.8 hours \| 32-bit (Stereo): 22.2 hours
Battery Type	Li-ion
Battery Capacity	240 mAh
Battery Energy	0.94 Wh
Battery Voltage	3.89 V
Charging Specification	Max 5 V
Charging Time	Approx. 1 hour (full); 80% in ~24 min
5-Minute Fast Charge	1.5 hours of use
Operating Time	10 hours
Charging Temperature	0 °C to 45 °C
Operating Temperature	-10 °C to 45 °C
Dimensions	38 × 12.2 mm (Diameter × H)
Weight	19.7g (Without Clip)

Specification	Details
Wireless Mode	GFSK 1 Mbps and 2 Mbps
Equivalent Isotropic Radiated Power (EIRP)	2.400 GHz-2.4835 GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
Operating Frequency	2.400GHz-2.4835GHz
Bluetooth Protocol	Bluetooth V5.4
Bluetooth Operating Frequency	2.400 – 2.4835 GHz
Bluetooth Transmitter Power (EIRP)	BLE: ≤ 20 dBm
Battery Type	Li-ion
Battery Capacity	410 mAh
Battery Energy	1.60 Wh
Battery Voltage	3.89 V
Charging Specification	Max 5 V
Charging Time	Approx. 60 min (full); 80% in ~30 min
5-Minute Fast Charge	1.5 hours of use
Operating Time	11 hours
Charging Temperature	0 °C to 45 °C
Operating Temperature	-10 °C to 45 °C
Dimensions	55.80 × 27.65 × 21.00 mm (L × W × H)
Weight	29.8 g

Specification	Details
Battery Type	Li-ion
Battery Capacity	2815 mAh
Battery Energy	10.951 Wh
Battery Voltage	3.89 V
Charging Specification	Max 5 V
Charging Time	Approx. 2 hours
Charging Temperature	0 °C to 45 °C
Operating Temperature	-10 °C to 45 °C
Operating Time with Charging Case	30 hours
Charging Cycles for TX and RX	Approx. 2 full charges for 2 TX + 1 RX simultaneously
Dimensions	122.00 × 61.90 × 42.20 mm (L × W × H)
Weight	174 g (case only, without accessories)

Specification	Details
Supported Frame Rates	23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 30DF, 50F, 60F
Offset / Drift	Less than 1 frame within 24 hours
Input	LTC
Input Port	3.5 mm TRS
Input Voltage	Not greater than +6 dBu
Output	LTC, Audio-TC
Output Port	3.5 mm TRS, USB-C

Product Overview

The Flagship Wireless Microphone That Makes Your Identity Visible

The Insta360 Mic Pro is the brand's first flagship wireless microphone system, engineered from the ground up for content creators, filmmakers, journalists, podcasters, and event professionals who demand professional-grade results without professional-grade complexity. It debuted at NAB Show and introduced two category-first technologies that redefine what a compact wireless microphone can do: a fully customizable E-Ink display on every transmitter and a three-microphone array with selectable polar patterns.

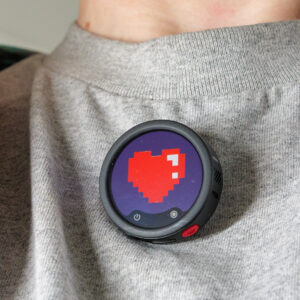

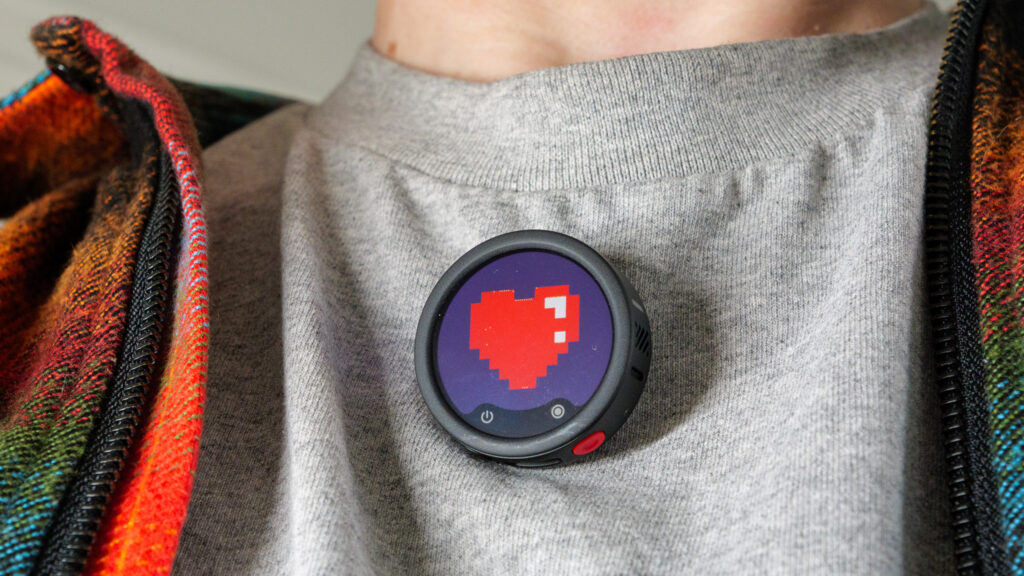

Where most wireless microphones are anonymous black capsules clipped to a lapel, Mic Pro is a statement. Via the Insta360 app, you upload any graphic — a channel logo, talent name, station identifier, or personal artwork — and the E-Ink display holds it persistently, even when the unit is powered off. On a multi-transmitter set, instant visual identification replaces guesswork. In sunlight, where OLED washes out, E-Ink stays crisp and high-contrast, drawing no power while displaying a static image.

E-Ink Display:

32-bit Float Recording:

3-Mic Array:

AI Noise Cancellation:

32 GB Onboard Storage:

Timecode Sync:

400 m Range:

10 hr Battery:

Fast Charge:

Scalable:

Universal:

Stereo Recording:

Features & Benefits

Three Microphones. Four Polar Patterns. One Transmitter.

Conventional wireless microphones rely on a single omnidirectional capsule with a fixed pickup pattern. When the recording environment changes, the hardware has to change with it. Mic Pro solves this by integrating three microphones into each transmitter and using digital signal processing to dynamically emulate four distinct polar patterns selectable directly from the receiver or the app. Omnidirectional mode captures sound from all directions, ideal for ambient vlogging and field recording. Super-directional mode uses adaptive beamforming to focus narrowly on the source in front of the mic, cutting surrounding speech noise in noisy multi-person environments. Cardioid mode, when the transmitter is mounted on a camera, functions as a directional shotgun mic — front-focused capture without additional hardware. Figure-8 mode captures from both front and rear simultaneously, the natural choice for two-person interviews with a single mic.

Behind the scenes, an onboard Neural Processing Unit powers AI noise cancellation with hardware-level precision. The NPU has been trained on millions of audio samples to distinguish the human vocal frequency range from environmental interference — wind, crowd noise, mechanical hum — stripping background noise in real time without distorting or artificially processing the speaker's voice.

Performance

32-Bit Float. Zero Clipping. Every Take Protected.

The Mic Pro's internal recording engine operates at 32-bit float, a format that captures such a wide dynamic range that clipping is mathematically eliminated. A whisper and an unexpected shout can coexist in the same recording without either being lost. Unlike 24-bit systems that require careful gain management before rolling, 32-bit float moves normalization to post-production — every take arrives with its full dynamic headroom intact, ready to be shaped in the edit rather than rescued from distortion.

Each transmitter stores recordings independently to its 32 GB of onboard memory, providing a continuous safety net against wireless dropouts or camera failure. Stereo internal recording — unique in this class — captures immersive ambient soundscapes directly to the transmitter at up to 32-bit float quality. Recordings auto-split every 30 minutes to prevent file size limitations from interrupting extended takes. With 44.8 hours of 32-bit mono or 22.2 hours of 32-bit stereo internal recording capacity per transmitter, the Mic Pro is built to outlast the longest production day.

Applications

One System. Every Scenario.

The Insta360 Mic Pro connects to virtually every device in professional use today. Mount the receiver on a DSLR or mirrorless camera's cold shoe and run the included 3.5 mm cable to the mic input for a stable, plug-and-play camera audio setup. Connect via USB-C or Lightning to smartphones for mobile recording and live streaming. Or pair the transmitter directly with compatible Insta360 cameras — including the X5, X4 Air, Ace Pro 2, and GO Ultra — via Bluetooth, eliminating the receiver entirely for the lightest possible carry.

For multi-camera productions, the 4-to-1 mode connects four transmitters to one receiver delivering four isolated tracks, while 2-to-4 mode feeds audio simultaneously to four receivers for synchronized multi-camera capture. From solo vloggers and on-camera journalists to broadcast field teams and event producers, the Mic Pro scales to the complexity of the production without requiring additional hardware.

Why Mic Pro?

Every feature designed to solve a real production pain point

🖥️

Customizable E-Ink Display

Upload any graphic — logo, channel art, talent name — via the Insta360 app. Displays persist without power draw. Sunlight-readable, unlike OLED.

🎙️

3-Mic Array with Selectable Modes

DSP combines three capsules to emulate Omnidirectional, Super-directional, Cardioid, or Figure-8 patterns — all from a single transmitter.

🔢

32-Bit Float Internal Recording

Eliminates clipping across all audio levels. 32 GB onboard storage with stereo internal recording, unique in its class.

🤖

NPU-Powered AI Noise Cancellation

Dedicated Neural Processing Unit strips wind, crowd, and environmental noise in real time while preserving natural vocal clarity.

🔗

Universal Connectivity

Works via 3.5 mm with cameras, USB-C / Lightning with phones, and direct Bluetooth with Insta360 X5, X4 Air, Ace Pro 2, and GO Ultra.

⏱️

Precision Timecode Sync

TCXO oscillator maintains less than one frame of drift across 24 hours. LTC input and output for multi-camera post-production alignment.

⚡

5-Minute Fast Charge

5 minutes of charging delivers 1.5 hours of use. 10 hours per transmitter, 11 hours per receiver, 30 hours with the charging case.

📡

Up to 400 m Wireless Range

Stable GFSK wireless transmission up to 400 m in open, unobstructed, interference-free conditions. No cables, no limits.

🔀

Scalable Multi-Channel Audio

4-to-1 mode: four transmitters to one receiver, four isolated tracks. 2-to-4 mode: two transmitters to four receivers for multi-camera setups.

See It in Action

Official launch video and creator reviews

Official Introduction — Meet Insta360 Mic Pro: Your Voice, Your Style

Creator Review — Custom E-Ink Display, 32-Bit Float & AI Noise Cancellation Tested

In-Depth Review — 4 Things No Other Wireless Mic Can Do

Frequently Asked Questions

Everything you need to know before you buy

The Mic Pro works with DSLR and mirrorless cameras via 3.5 mm audio cable, smartphones via USB-C or Lightning adapters, and pairs directly via Bluetooth with compatible Insta360 cameras including the X5, X4 Air, Ace Pro 2, and GO Ultra — no receiver required for Insta360 cameras.

32-bit float captures a dynamic range so wide that audio clipping is mathematically eliminated. Unlike 24-bit recording where audio distorts if the input level is too high, 32-bit float preserves every whisper and every sudden loud sound without distortion. You set gain in post-production, not on set — saving takes that would otherwise be ruined by unexpected loud sounds.

Open the Insta360 app on your phone, connect to the Mic Pro transmitter, and upload any image — a logo, channel name, talent identifier, or graphic artwork. The E-Ink display updates and holds the image persistently, even when the transmitter is powered off. E-Ink consumes power only during the image update, not while displaying a static image, so there is no battery penalty for keeping your branding visible on set.

The Mic Pro supports scalable multi-channel configurations. In standard mode you can connect up to two transmitters to one receiver. In 4-to-1 mode, four transmitters send four isolated audio tracks to a single receiver. In 2-to-4 mode, two transmitters feed up to four receivers simultaneously, enabling synchronized multi-camera audio capture. Four-channel output to compatible Sony cameras is available via an optional Camera Adapter.

Each transmitter delivers up to 10 hours of operation; the receiver delivers up to 11 hours. The included charging case extends total system runtime to 30 hours and can fully recharge the transmitters and receiver approximately twice. The fast charge feature gives 1.5 hours of use from just 5 minutes on charge. A full charge takes approximately 1 hour for the transmitter and 60 minutes for the receiver.
