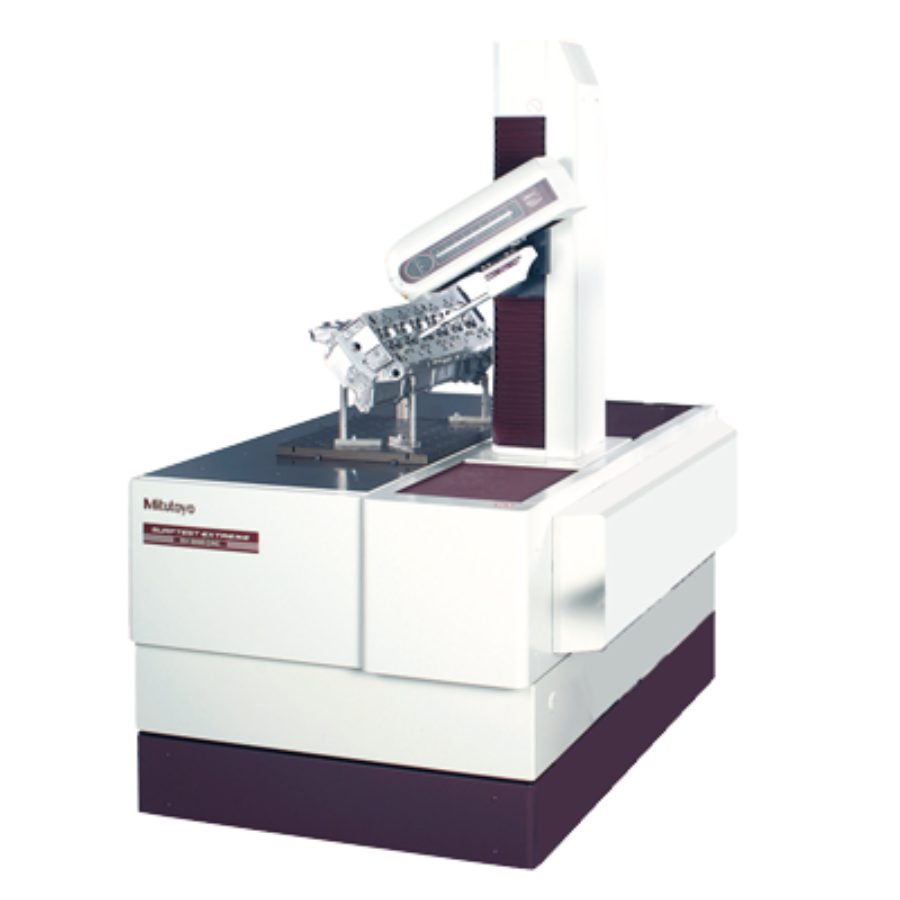

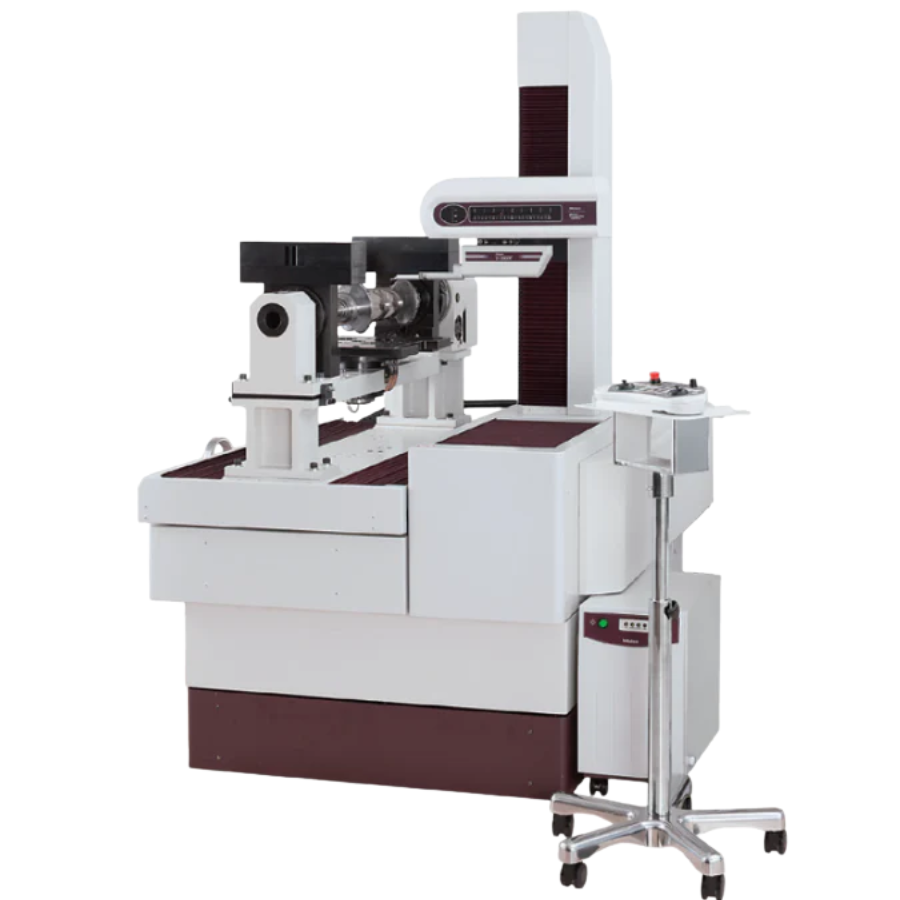

Mitutoyo Surftest Extreme SV-M3000CNC / 178-CNC series
- Automated Measurement – For large, heavy workpieces.
- Column-Moving Design – Measures sizable components easily.
- High-Speed Operation – Up to 200 mm/s for fast positioning.
- Extended Y-Axis – 800 mm travel for multiple profiles.
- Advanced Software – FORMTRACEPAK V5 compatibility.
- Safety Features – Anti-collision protection.
- Customizable – Various table sizes and configurations.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Feature |
Specification |
|---|---|
| Model | SV-M3000CNC |
| X1-Axis Measuring Range | 200 mm (7.87 inches) |
| Z2-Axis Vertical Travel | 500 mm (19.7 inches) |
| Y-Axis Travel | 800 mm (31.5 inches) |
| A-Axis Inclination Angle | -45° (CCW) to +10° (CW) |
| Drive Speed | Max. 200 mm/s |
| Resolution | 0.05 µm |
| Safety Features | Anti-collision mechanisms |
| Software Compatibility | FORMTRACEPAK V5 |
| Customization Options | Various table sizes and configurations |
