RealWear Navigator 520

HyperDisplay: 20% larger, sharper HD view for easier reading and framing.
Fully hands-free voice control (accurate up to 100 dBA) for safer, faster work.
Rugged to IP66 and 2 m drop; built for harsh industrial environments.
48 MP camera with 1080p60 video; great in low-light, with stabilization.
Hot-swappable 2,600 mAh battery for full-shift use.
Snapdragon 662, Android 11 (AOSP) + WearHF; 4 GB RAM / 64 GB storage (microSD up to 512 GB).

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

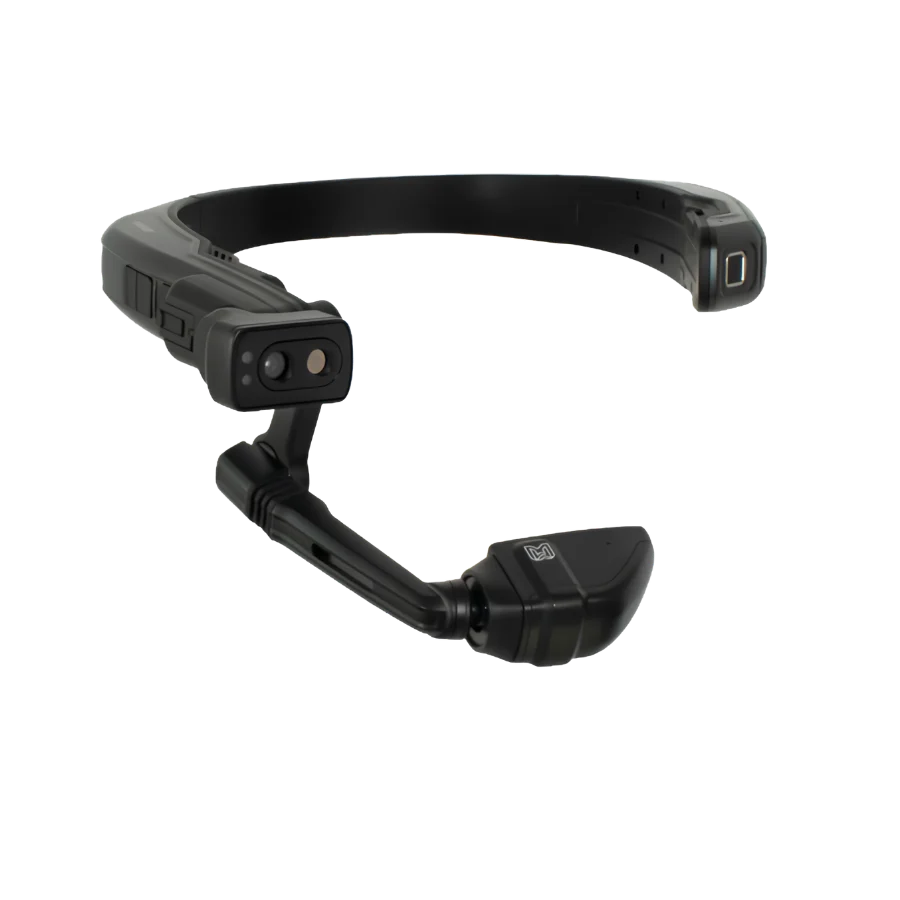

RealWear Navigator 520

The world’s most advanced rugged, voice-controlled assisted reality headset — purpose-built for industrial frontline workers operating in the harshest environments on earth.

Category	Details
Display	0.35″ LCD HyperDisplay, HD 1280×720, 24-bit color, 24° FOV, outdoor-visible; 30 mm eye relief; 14×14 mm eye box.
Camera & Video	48 MP sensor, PDAF, LED flashlight; video up to 1080p @ 60 fps, >6× zoom (HD), stabilization; codecs: VP8, VP9, H.264, H.265 (HEVC).
Audio	4 digital mics with active noise cancellation; accurate voice recognition up to 100 dBA; internal 94 dBA loudspeaker.
Processor & GPU	Qualcomm Snapdragon 662 (8-core, 2.0 GHz) with Adreno 610 GPU (OpenGL ES 3.2, OpenCL 2.0).
Memory & Storage	4 GB RAM / 64 GB internal; microSD slot (up to 512 GB).
Operating System & UI	Android 11 (AOSP) with WearHF™ hands-free interface and enterprise features.
Connectivity	Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz & 5 GHz), Bluetooth 5.1.
Positioning & Sensors	Dual-frequency GNSS (L1+L5): GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS; Qualcomm Sensor-Assisted Positioning; 3 IMUs (accelerometers, gyros, eCompass).
Battery	2,600 mAh / 10 Wh Li-polymer, hot-swappable, rechargeable.
Ruggedization	IP66, MIL-STD-810H, 2 m/6.5 ft drop tested; operating temp –20 °C to +50 °C, RH 5–95% (non-condensing).
Weight	274 g (9.7 oz).
Controls & Ports	Power button with integrated fingerprint sensor; programmable action/left/right buttons; USB-C, 3.5 mm audio jack.
Boom Arm & Fit	6-way adjustable; left or right eye; display swings out of the way; works with many PPE (hard hats, eyewear, masks).
Languages (voice)	Supports major languages incl. English, Spanish, French, German, Italian, Japanese, Korean, Chinese (Cantonese, Mandarin), Portuguese, Russian, Thai, Dutch, Czech, Indonesian, Polish.
Security	Qualcomm Trusted Execution Environment, Crypto Engine, Secure Boot.
Included Apps	Document Navigator, Camera with barcode reader, Audio/Video recorder, Web viewer, Cloud sync, Media player, Calculator, Pedometer, Timer.
In-box / Accessories	Workband and USB-C charging cable included; modular accessories available (e.g., Thermal Camera Module)

Full Specification Sheet

Every component rigorously tested and validated for industrial deployment.

Built for the Toughest Work Environments

Every specification of the Navigator 520 is engineered around one priority: keeping your frontline workers connected, informed, and hands-free without compromise.

How Navigator 520 Compares

Stacked against generic tablets and office-first smart glasses in industrial deployment scenarios.

Hands-Free Intelligence for Industrial Frontlines

The RealWear Navigator 520 is a head-mounted, fully rugged Android tablet designed for the modern industrial frontline workforce. It delivers real-time information, remote expert guidance, and hands-free workflow execution directly in the worker’s field of view — without interrupting their physical tasks.

Powered by the Qualcomm XR2 Gen 1 platform and running Android 11, the Navigator 520 represents a significant leap forward in processing power, camera resolution, and connectivity over its predecessors. It is purpose-built to replace paper-based processes, reduce error rates, and connect field workers with remote expertise through live video collaboration.
