VF20E Electric Compound Wing
- 3200mm wingspan, 1720mm length, 640mm height
- Frame weight: 7.2kg | Max takeoff weight: 20kg
- Max payload capacity: 5kg
- Endurance: 240 minutes @ 2kg payload
- Cruise speed 80–100km/h, max speed 110km/h
- Rotor climb ≤3.5m/s, descent ≤1.5m/s
- Service ceiling: 5000m
- Operating range: -10°C to 45°C
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

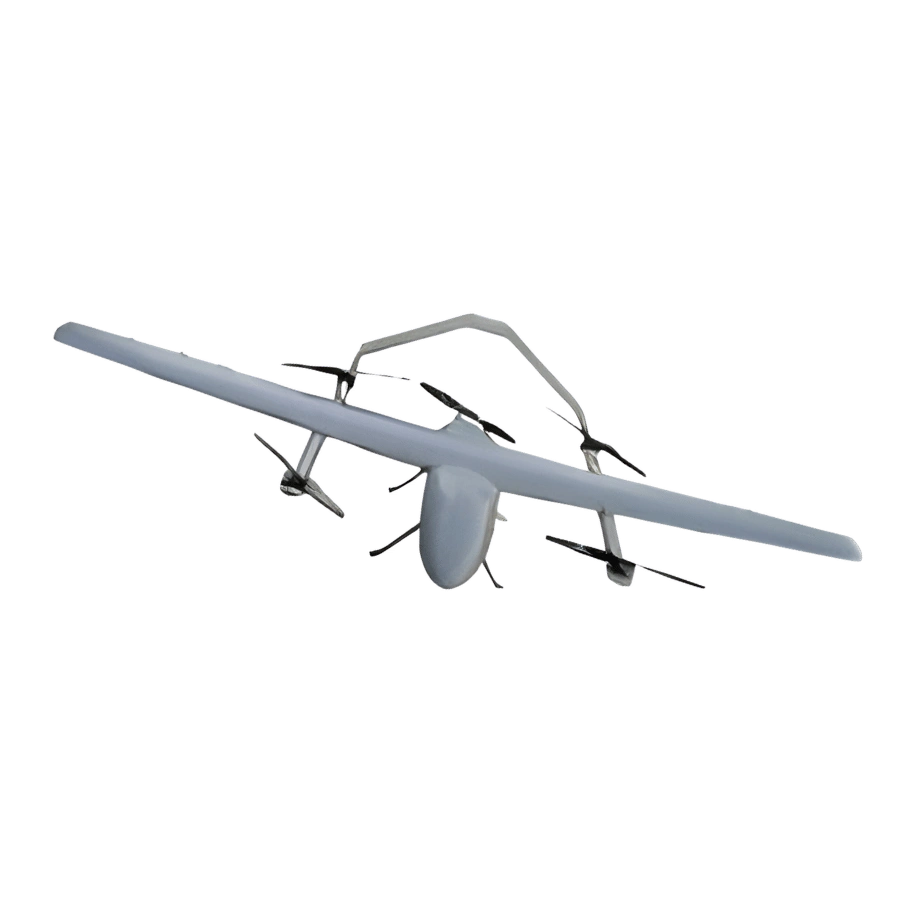

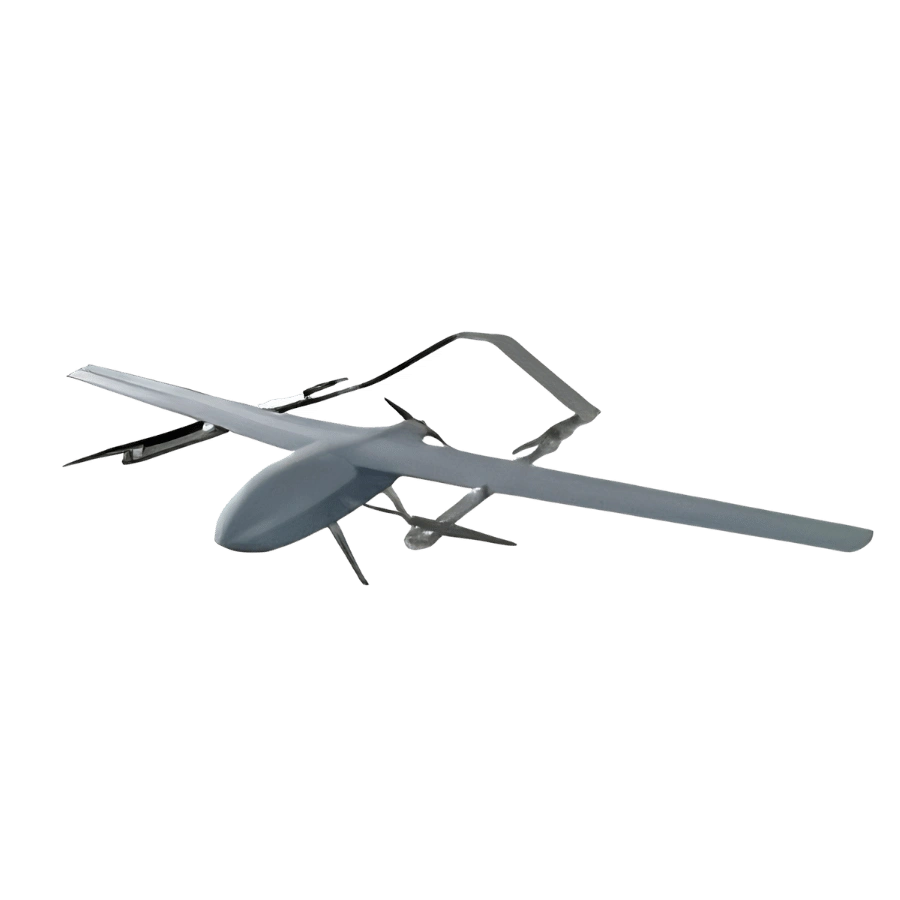

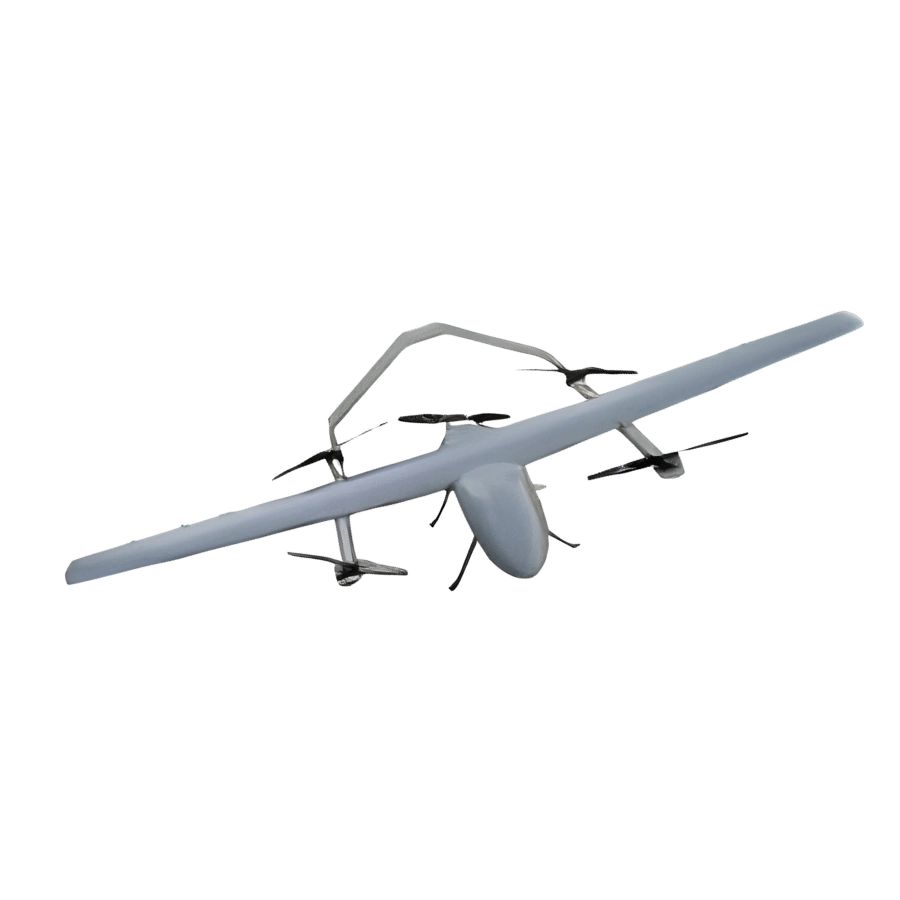

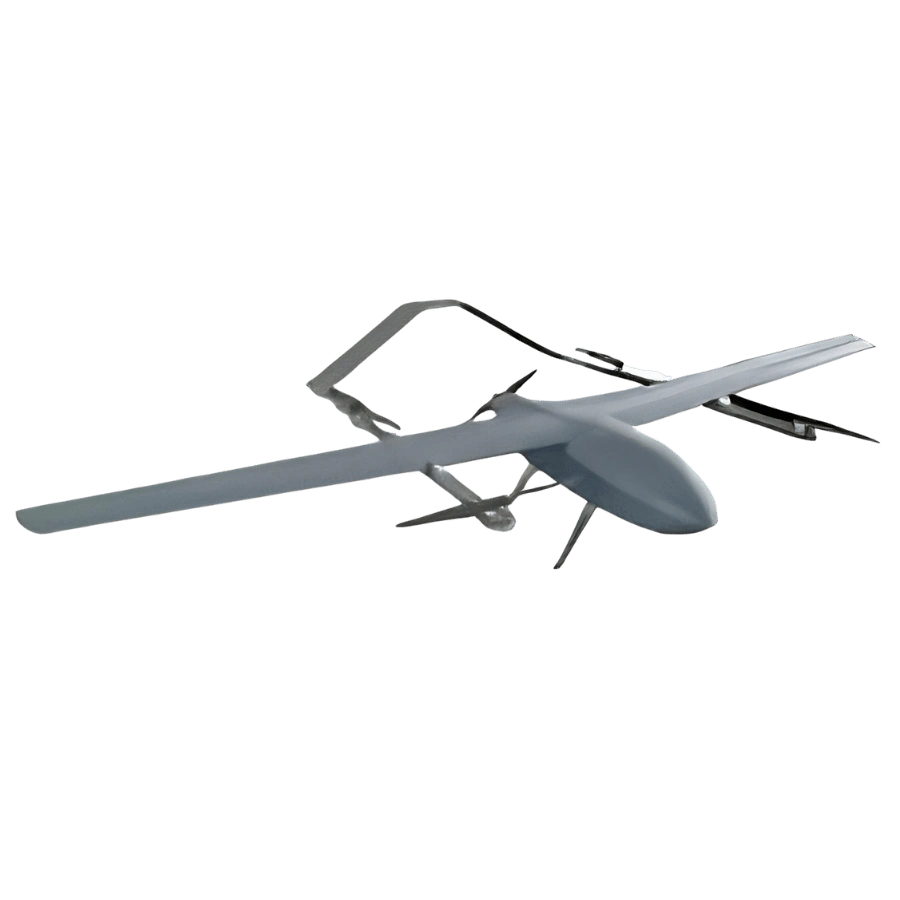

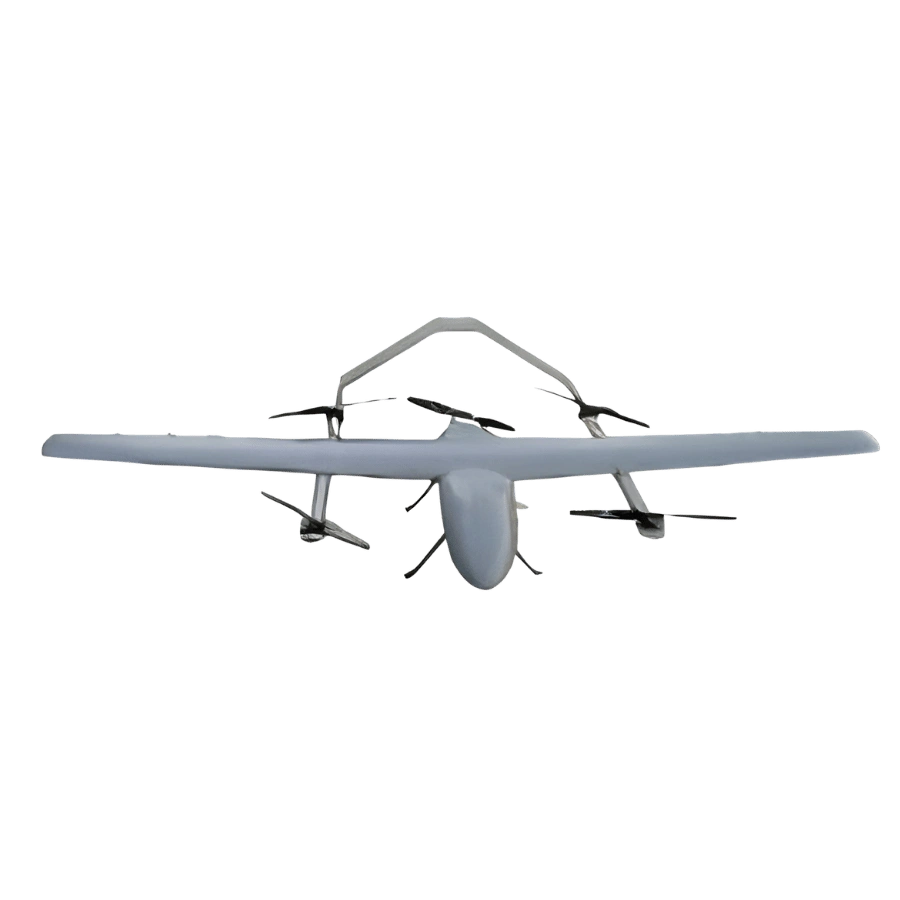

VF20E
Electric Compound Wing VTOL UAV
The VF20E is a electric compound wing vtol uav configured for fixed-wing efficiency with vertical takeoff and landing convenience, built for long-endurance mapping, surveillance and inspection missions.
Wingspan 3200mmMTOW 20kgMax Payload 5kgEndurance 240min @ 2kgWind Resistance Level 6IP54
20kg
Max Takeoff Weight5kg
Max Payload240min @ 2kg
Endurance110km/h
Max SpeedProduct Overview
Full Specifications
| Wingspan | 3200mm |
| Length | 1720mm |
| Height | 640mm |
| Frame Weight | 7.2kg |
| Max Takeoff Weight | 20kg |
| Max Payload | 5kg |
| Endurance | 240min @ 2kg |
| Cruise Speed | 80–100km/h |
| Max Speed | 110km/h |
| Rotor Climb Rate | ≤3.5m/s |
| Rotor Descent Rate | ≤1.5m/s |
| Service Ceiling | 5000m |
| Operating Temperature | -10°C ~ 45°C |
| Wind Resistance | Level 6 |
| Protection Rating | IP54 |
| Packing Dimensions | 1420×660×510mm |
Good to Know
Frequently Asked Questions
What is the VF20E's maximum takeoff weight and payload?
The VF20E has a maximum takeoff weight of 20kg and a maximum payload capacity of 5kg.
How long can the VF20E stay airborne?
Endurance is rated at 240min @ 2kg, with a cruise speed of 80–100km/h and a maximum speed of 110km/h.
What is the operating envelope for the VF20E?
Service ceiling is 5000m, with an operating temperature range of -10°C ~ 45°C and wind resistance up to Level 6.
Is the VF20E rated for outdoor / field use?
Yes. The airframe carries an IP54 ingress protection rating, suited to routine outdoor field operations.
What are the packed shipping dimensions?
Packing dimensions: 1420×660×510mm.
