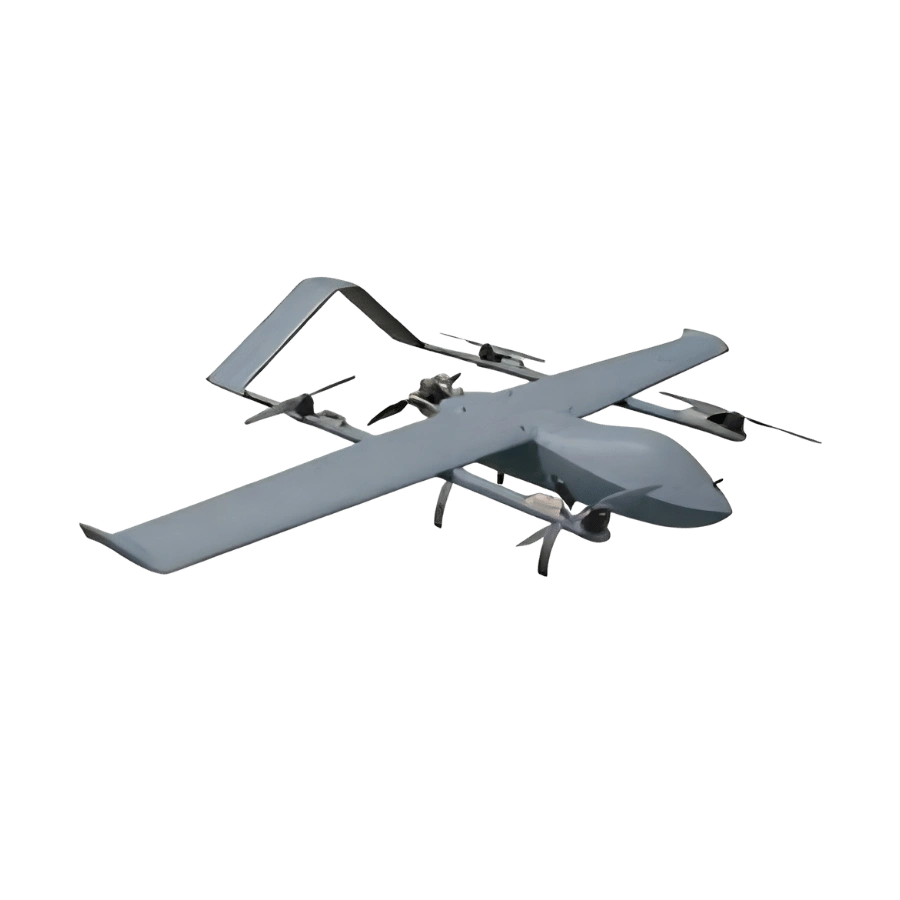

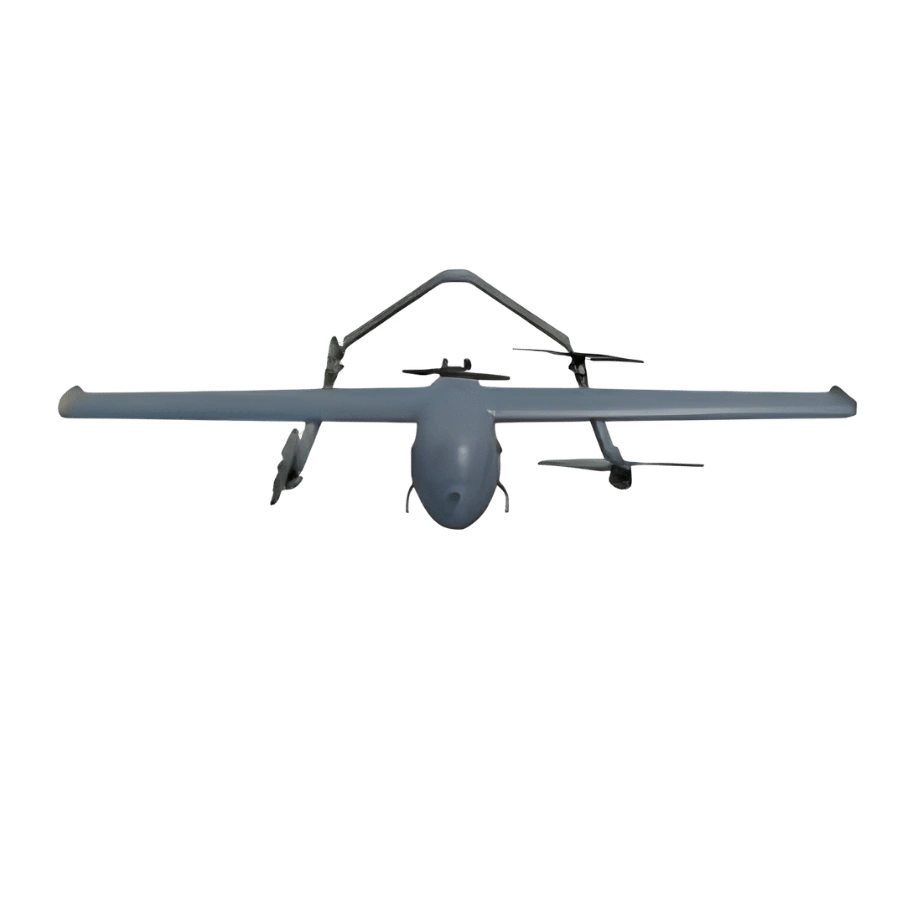

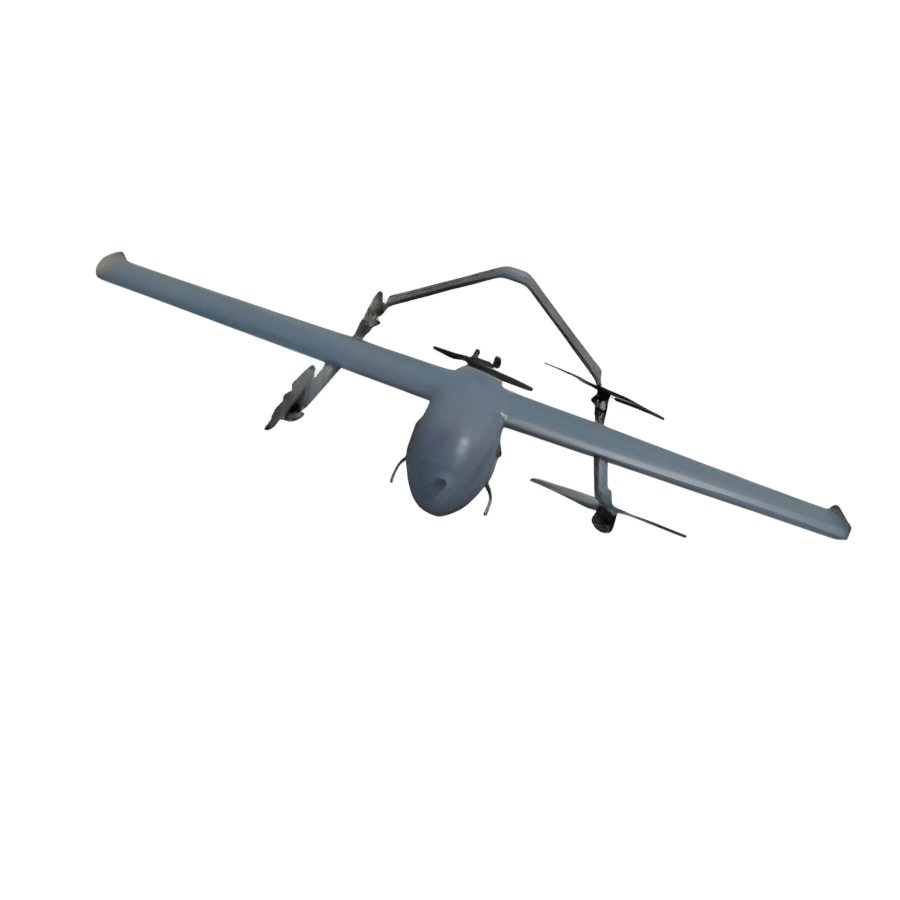

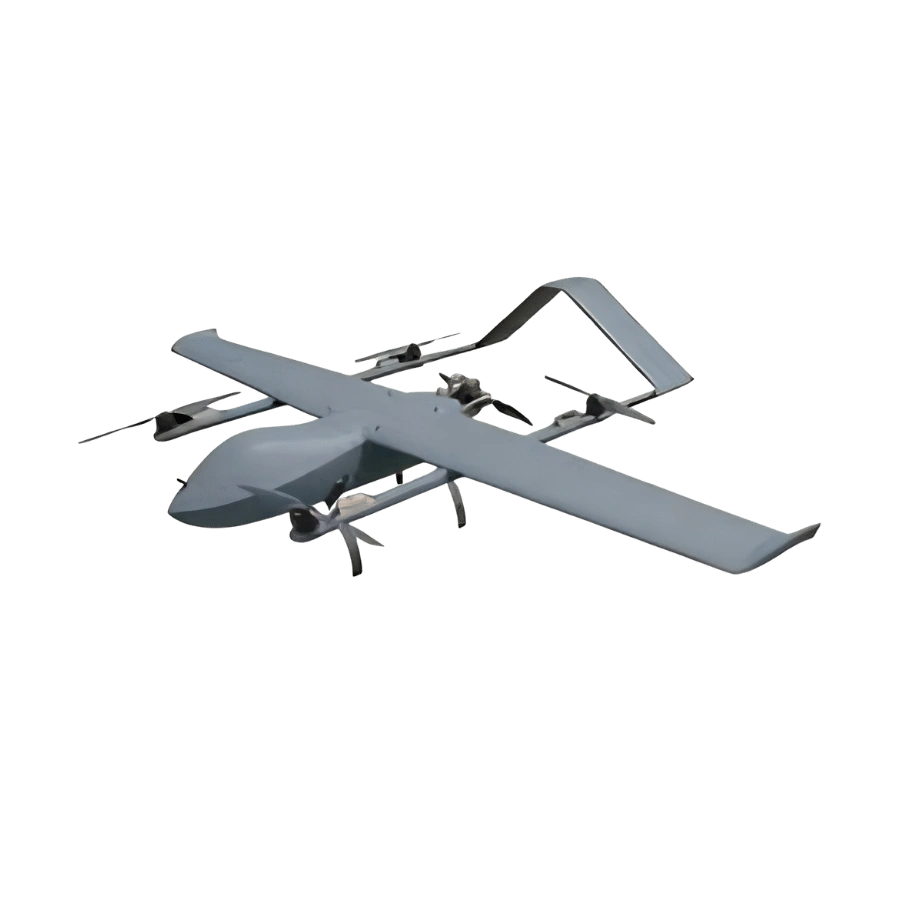

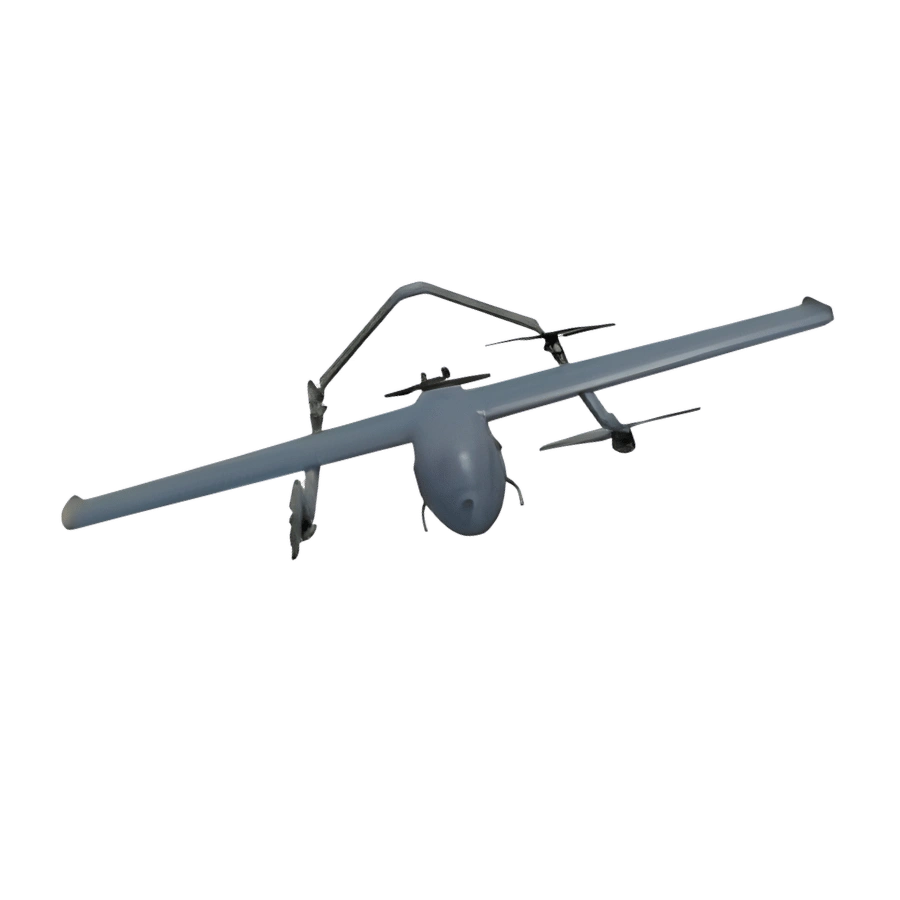

VT150P Fuel-Powered Compound Wing
- 6000mm wingspan, 3405mm length, 1058mm height
- Fuel tank capacity: 48L
- Max takeoff weight: 150kg | Max payload: 50kg
- Endurance: 300 minutes @ 25kg payload
- Cruise speed 110–150km/h, max speed 160km/h
- Rotor climb ≤3.5m/s, descent ≤1.5m/s
- Service ceiling: 5000m
- Operating range: -10°C to 45°C
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
VT150P
Fuel-Powered Compound Wing VTOL UAV
The VT150P is a fuel-powered compound wing vtol uav configured for fixed-wing efficiency with vertical takeoff and landing convenience, built for long-endurance mapping, surveillance and inspection missions.
Wingspan 6000mmMTOW 150kgMax Payload 50kgEndurance 300min @ 25kgWind Resistance Level 6IP54
150kg
Max Takeoff Weight50kg
Max Payload300min @ 25kg
Endurance160km/h
Max SpeedProduct Overview
Full Specifications
| Wingspan | 6000mm |
| Length | 3405mm |
| Height | 1058mm |
| Fuel Tank Capacity | 48L |
| Max Takeoff Weight | 150kg |
| Max Payload | 50kg |
| Endurance | 300min @ 25kg |
| Cruise Speed | 110–150km/h |
| Max Speed | 160km/h |
| Rotor Climb Rate | ≤3.5m/s |
| Rotor Descent Rate | ≤1.5m/s |
| Service Ceiling | 5000m |
| Operating Temperature | -10°C ~ 45°C |
| Wind Resistance | Level 6 |
| Protection Rating | IP54 |
| Packing Dimensions | 2550×980×1100mm / 2565×1425×695mm |
Good to Know
Frequently Asked Questions
What is the VT150P's maximum takeoff weight and payload?
The VT150P has a maximum takeoff weight of 150kg and a maximum payload capacity of 50kg.
How long can the VT150P stay airborne?
Endurance is rated at 300min @ 25kg, with a cruise speed of 110–150km/h and a maximum speed of 160km/h.
What is the operating envelope for the VT150P?
Service ceiling is 5000m, with an operating temperature range of -10°C ~ 45°C and wind resistance up to Level 6.
Is the VT150P rated for outdoor / field use?
Yes. The airframe carries an IP54 ingress protection rating, suited to routine outdoor field operations.
What are the packed shipping dimensions?
Packing dimensions: 2550×980×1100mm / 2565×1425×695mm.
