Drone Accessories, Zenmuse Cameras
Zenmuse H20N Worry-Free Plus Combo
- Starlight Night Vision
- 20× Hybrid Optical Zoom
- 640×512 px Thermal Camera,
- Laser Rangefinder 1200 m Max Range
- Synchronized Split-Screen Zoom
- Intelligent Night Scene Enhancement
₹1,150,000.00
- 1 Year warranty
- 14-Days Return & Refund
- Free Delivery

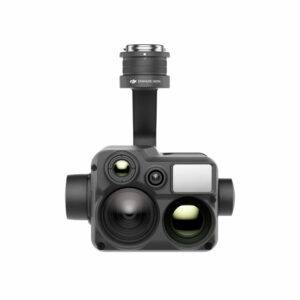

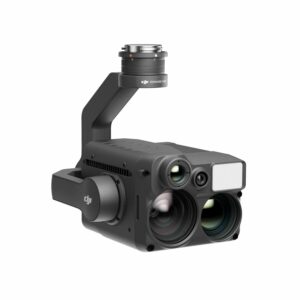

Zenmuse H20N Worry-Free Plus Combo
Vision Beyond Darkness
“N” for Night Vision
The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
Sensors Upgraded Across Multiple Dimensions
Infrared Zoom
Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)
See the Big Picture
Night Vision Wide Camera
Starlight Sensor: 2MP
Stronger Low-Light Performance
Pierce Through the Veil
Night Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details
Precise Distance Data
Laser Rangefinder
Range: 3 m to 1200 m
Accuracy: ± (0.2 m + D×0.15%)2
See Through the Night
The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments
Infrared Zoom
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.
Infrared Zoom
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect them in close detail after zoom-in.
Specifications
Product Name
Zenmuse H20N
Dimensions
178x135x161 mm
Weight
878±5 g
Protection Rating
IP44
Laser Safety
Class 1M (IEC 60825-1:2014)
Supported Aircraft

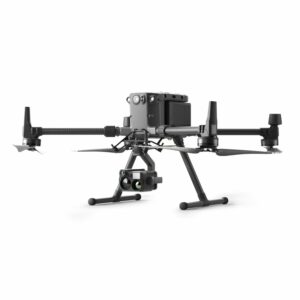

Matrice 300 RTK
Angular Vibration Range
±0.01°
Mount
Detachable
Sensor
1/1.8″ CMOS; Effective Pixels: 4M
Lens
Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
Aperture: f/1.6-f/11
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Aperture: f/1.6-f/11
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Focus Mode
MF/AF-C/AF-S
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
Photo: 8-1/8000 s
Video: 1/30-1/8000 s
Photo/Video (Night Scene): 1/15-1/8000 s
Video: 1/30-1/8000 s
Photo/Video (Night Scene): 1/15-1/8000 s
ISO Range
Video: 100-102400
Photo: 100-102400
Photo: 100-102400
Video Resolution
2688×1512@30fps
1920×1080@30fps
1920×1080@15fps ( Night Scene)
1920×1080@30fps
1920×1080@15fps ( Night Scene)
Video Format
MP4
Video Caption
Supported
Max Image Size
2688×1512
Photo Format
JPEG
Sensor
1/2.7″ CMOS; Effective Pixels: 2M
Lens
DFOV: 73.6°
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode
Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
1-1/8000 s
ISO Range
Video: 100-102400
Photo: 100-102400
Photo: 100-102400
Video Resolution
1920×1080@30fps
Video Format
MP4
Video Caption
Supported
Max. Image Size
1920×1080
Image Format
JPEG
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 12.5°
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞
Equivalent Digital Zoom
16x, 32x
Video Resolution
640×512@30fps
Video Format
MP4
Image Resolution
640×512
Image Format
R-JPEG* (16 bit raw included)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Sensitivity (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-20° C to 150° C (High Gain)
0° C to 500° C (Low Gain)
0° C to 500° C (Low Gain)
Temperature Alert
Supported
FFC
Auto/Manual
Palette
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 45.5°
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Equivalent digital zoom rate
4x
Video Resolution
640×512 @ 30 fps
Video Format
MP4
Image Resolution
640×512
Image Format
R-JPEG (16 bit raw included)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Sensitivity (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-20° to 150° C (High Gain)
0° to 500° C (Low Gain)
0° to 500° C (Low Gain)
Temperature Alert
Supported
FFC
Auto/Manual
Palette
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Wavelength
905 nm
Maximum Power
3.5 mW
Single Pulse Width
6 ns
Measuring Accuracy
± (0.2 m + target distance x 0.15%)
Measuring Range
3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
Supported microSD Cards
Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System
exFAT
Operating Temperature
-20° to 50° C (-4 to 122°F)
Storage Temperature
-20° to 60° C (-4 to 140°F)
