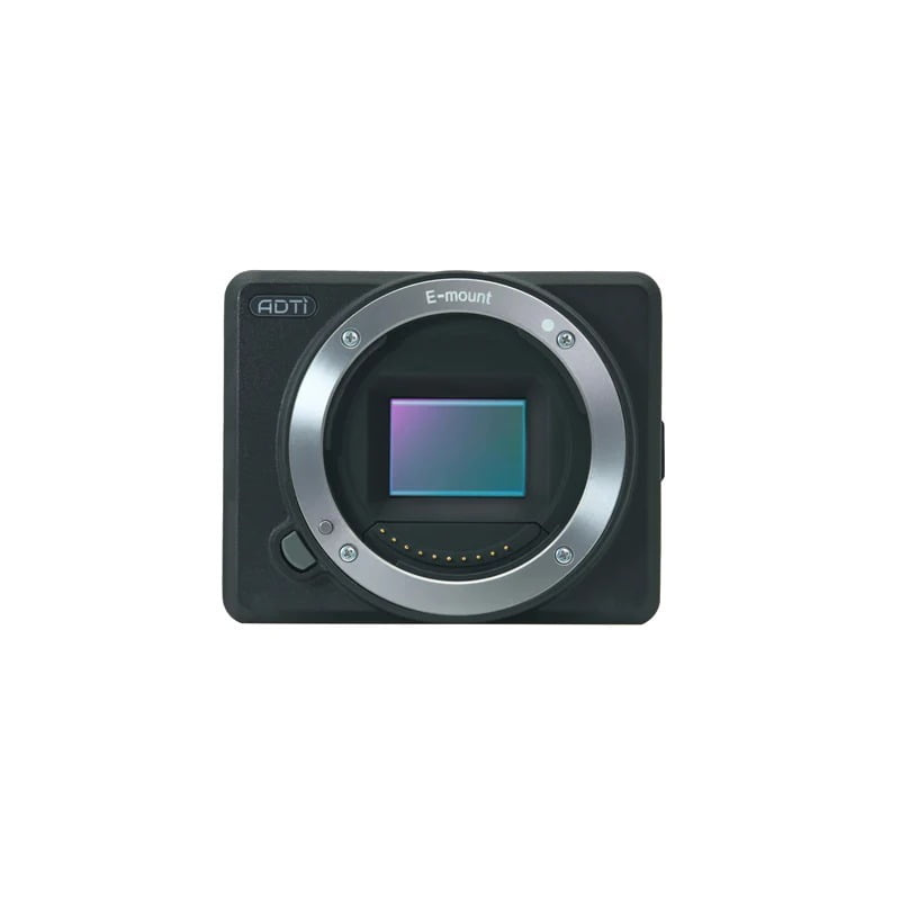

ADTI 24MP 24L V1 SURVEYOR LITE DRONE MAPPING CAMERA

  • Light in weight (camera body 105 g)
  • Compact in size (73*62*36 mm)
  • Activated cooling fan to prevent the camera from overheating
  • 24MP APS-C
Original price was: ₹134,746.Current price is: ₹129,491.
  • Authorised dealerDirect manufacturer partnership
  • Pan-India deliveryInsured shipping, all states
  • Post-sale supportTraining + service included
Overview

What makes it work

ADTI 24MP 24L V1 SURVEYOR LITE DRONE MAPPING CAMERA

ADTi introduces its inaugural offering in the realm of Drone/UAV Mapping Cameras with the ADTi 24MP Surveyor Lite Drone Mapping Camera. Representing ADTi’s pioneering generation, this camera boasts user-friendly features, including a plug-and-play control panel and an efficient active cooling fan system. Its seamless compatibility extends to most flight controllers, ensuring ease of integration into existing UAV setups. Moreover, the 24L V1 Surveyor Lite aligns with advanced mapping requirements by supporting PPK/RTK GNSS modules like the Emlid Reach, guaranteeing precision in mapping solutions. This innovative camera not only simplifies the mapping process but also enhances accuracy, making it an indispensable tool for professionals in various industries, from agriculture to urban planning. With its compact design and robust functionality, the 24L V1 Surveyor Lite emerges as a reliable choice for aerial mapping missions, empowering users with efficiency and accuracy in their surveying endeavors.

ADTI 24MP 24L V1 SURVEYOR LITE DRONE MAPPING CAMERA
ADTI 24MP 24L V1 SURVEYOR LITE DRONE MAPPING CAMERA
ADTI 24MP 24L V1 SURVEYOR LITE DRONE MAPPING CAMERA

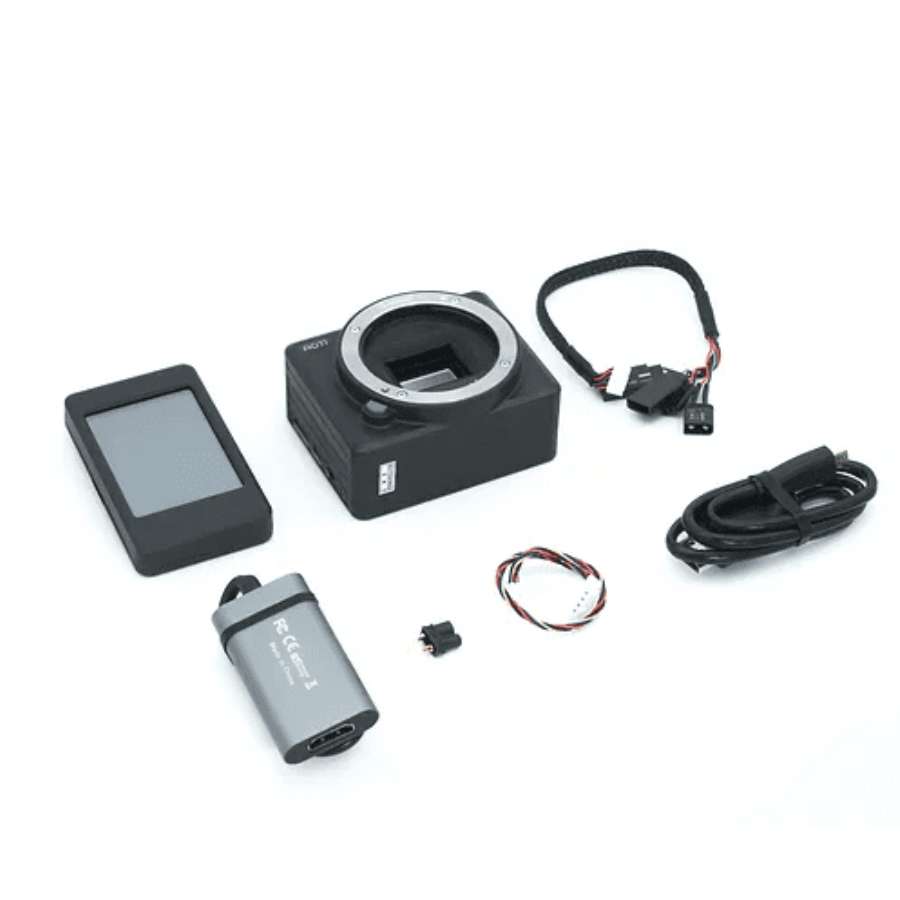

In The Box

Package Includes

  • 1 x 24MP Camera
  • 1 x Multi Terminal Cable
  • 1 x Relay to PWM Converter
  • 1 x Moniter
  • 1 x Micro USB Cable

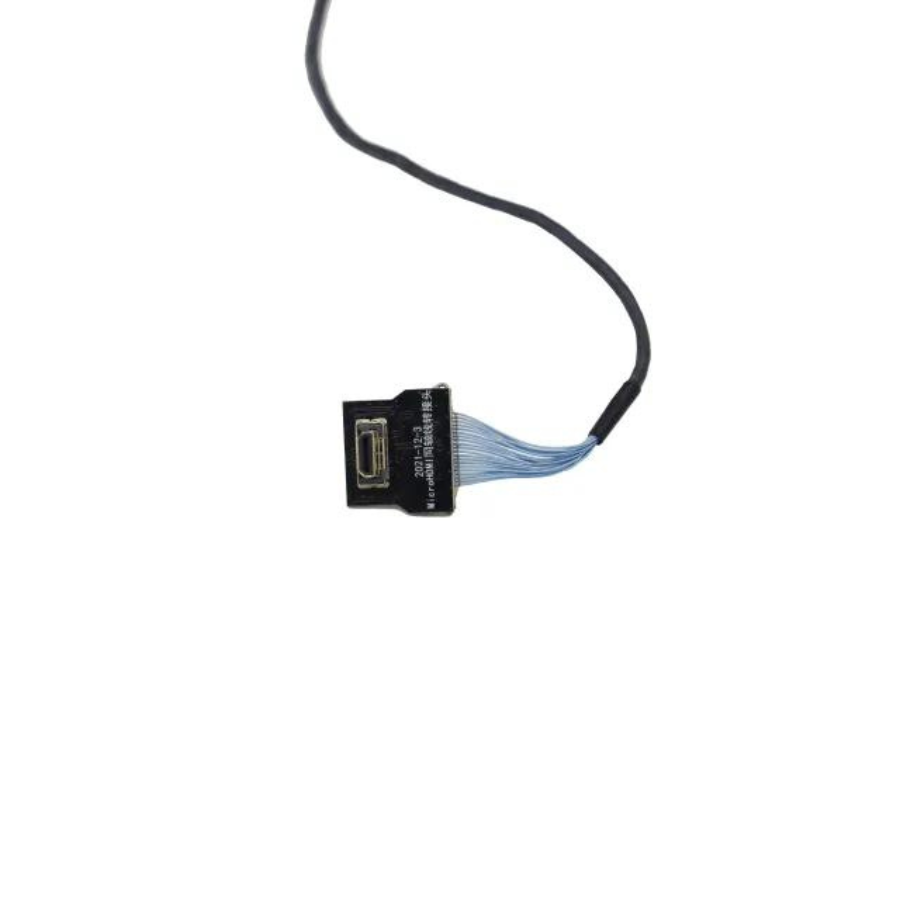

  • 1 x Micro HDMI Cable

Specifications

General Specifications

  • Sensor Type: CMOS
  • Sensor Manufacturer: Sony
  • Effective Megapixels: 24.3
  • Sensor Format: APS-C
  • Sensor size: 366.6mm2 (23.50mm x 15.60mm)
  • Approximate Pixel Pitch: 3.92 microns
  • Focal Length Multiplier: 1.5x
  • Aspect Ratio: 3:2
  • Color Filter Type: RGBG
  • Anti Aliasing Filter: Fixed
  • Color Depth (bits): 23.8
  • Maximum Effective ISO: 1,347

Image Capture Resolution

  • 6000 x 4000 (24.0 MP, 3:2),
  • 6000 x 3376 (20.3 MP, 16:9),
  • 4240 x 2832 (12.0 MP, 3:2),
  • 4240 x 2400 (10.2 MP, Other),
  • 3008 x 2000 (6.0 MP, 3:2),
  • 3008 x 1688 (5.1 MP, 16:9),
  • 12416 x 1856 (23.0 MP, Other),
  • 8192 x 1856 (15.2 MP, Other),
  • 2160 x 5536 (12.0 MP, Other),
  • 2160 x 3872 (8.4 MP, Other)
  • Image File Format:JPEG, RAW, RAW+JPEG
  • Continuous-mode frames/second:4.0

Video Capture Resolution

  • 1920×1080 (60p/​60i/​30p/​24p)
  • 1440×1080 (30p)
  • 640×480 (30p)
  • Video File Format:XAVC S/AVCHD 2.0 / MP4
  • HD Video Out:Yes
  • HD Video Connection:HDMI

Lens & Optics

  • Lens Mount: Sony E
  • Normal Focus Range: 25 cm to Infinity
  • Auto Focus: Yes
  • Manual Focus: Yes

Display

  • Power: 5V DC
  • Buttons: Yes
  • Screen Size: 5 inch

Camera

  • Camera Size:  73*62*36 mm
  • Camera Weight: 105 g
  • Package Size: 300*200*150 mm
  • Package Weight: 500 g
  • Power: 10-25V DC Lipo or Liion
  • Operating Temperature: -10 to 40°C
