FlightCore MK2 6S–14S Power Distribution Board
- High-Voltage UAV Power Distribution – Designed for high-power drones, UAVs, multirotors, and other demanding applications using 6S to 14S battery systems.
- 6S–14S Battery Compatibility – Supports a wide battery voltage range of approximately 22.2V to 58.8V, providing flexibility for various high-power UAV platforms.
- High-Current Power Distribution – Designed to distribute power efficiently across multiple ESCs and high-performance propulsion systems.
- Integrated Current & Voltage Monitoring – Provides power-monitoring functionality for tracking electrical system parameters during operation.
- Regulated Power Outputs – Includes dedicated regulated outputs for powering compatible flight controllers, onboard computers, sensors, and other UAV electronics.
- Designed for Multirotor Platforms – Suitable for demanding multirotor configurations requiring reliable high-voltage power distribution and organized wiring.
- Compact Power Management Solution – Combines power distribution and auxiliary power-management functions into a compact board for easier UAV integration.
- High-Power UAV Applications – Suitable for professional drones, industrial UAVs, aerial robotics, and other applications requiring high-voltage power handling.
- Supports Clean System Integration – Helps simplify UAV electrical architecture by centralizing power distribution and monitoring connections.
- Designed for Advanced Drone Builds – A practical solution for custom high-power UAV platforms using compatible 6S–14S battery systems and electronic speed controllers.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

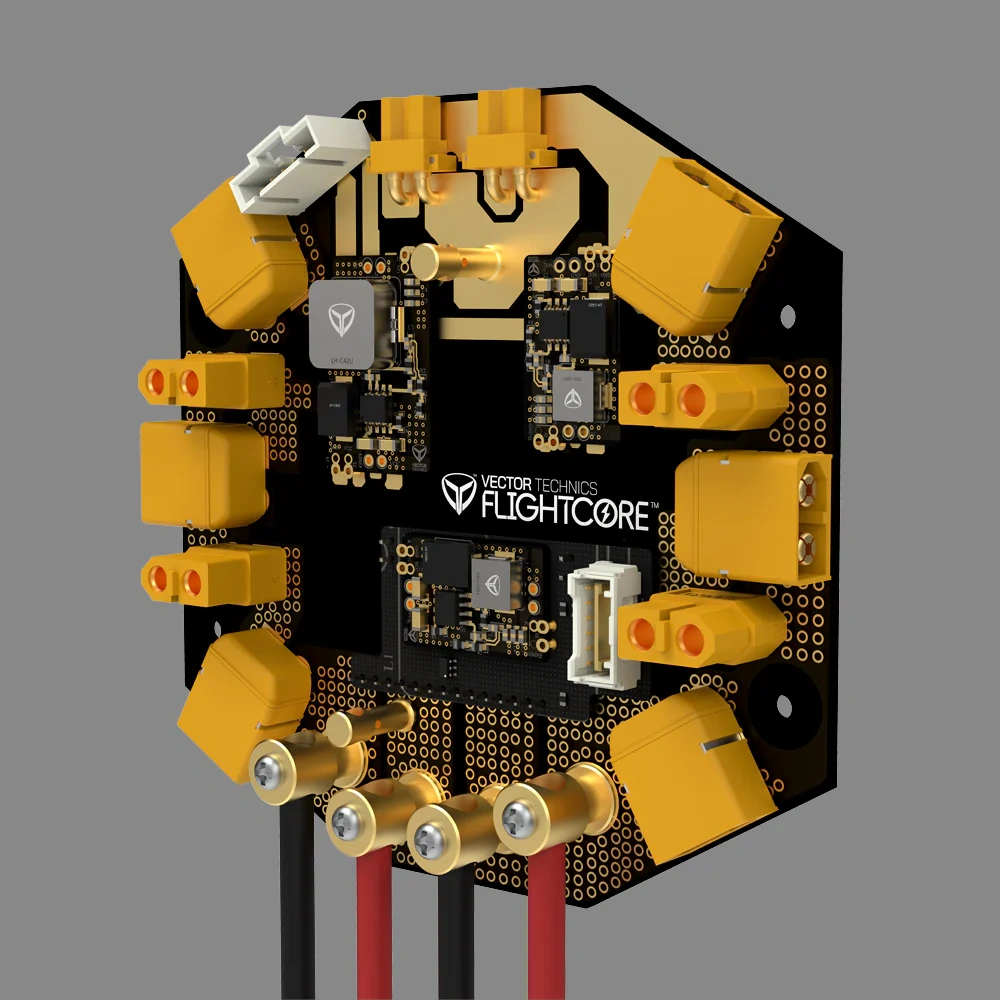

FlightCore MK2 Power Distribution Board
The FlightCore MK2 Power Distribution Board is a genuine Vector Technics PDB built for 6S-14S high-power UAVs — 300A peak current handling, dual regulated BEC outputs, and analog voltage/current sensing in a compact octagonal design.
6S-14S (22.2-58.8V)
4x XT60F + 6x XT60M + 2x XT30F
5V + 12V BEC
180°C Rated PCB
Full Specifications
| Specification | Details |
|---|---|
| Product | FlightCore MK2 Power Distribution Board — genuine Vector Technics hardware, “FLIGHTCORE” clearly silkscreened on the board itself (Vector Technics’ current site also lists this model as “Powercore MK2” — same product line) |
| Maximum Peak Current | 300A |
| Voltage Range | 6S-14S LiPo, approximately 22.2V to 58.8V |
| PCB Rating | 4-layer PCB rated for continuous operation up to 180°C |
| Input Connectors | Customizable — supports dual battery-lead inputs via lugs or wires (not fixed connectors) |
| xBoom SKU | xboom-145537 |
| Specification | Details |
|---|---|
| Power Outputs | 4x XT60 female connectors, 6x right-angle XT60 male connectors, and 2x right-angle XT30 female connectors |
| BEC 1 | Regulated 5V DC-DC output, 2A continuous |
| BEC 2 | Regulated 12V DC-DC output, 2A continuous |
| Protection | Integrated overcurrent and short-circuit protection on both regulated BEC outputs |
| Sensing Outputs | Analog voltage and current sensing outputs (0-100V range) for compatible flight controllers and telemetry systems |
| Mounting | 102 × 49mm mounting hole pattern |
| Weight | 160g ± 2g |
| Dimensions | 110 × 116 × 20mm (L × W × H) |
300A of Organized Power, In a Compact Octagon
FlightCore MK2 Power Distribution Board: Genuine Vector Technics Hardware
This is a genuine Vector Technics module, made in India — “FLIGHTCORE™” is silkscreened directly on the PCB alongside the Vector Technics logo. Vector Technics’ own current datasheet and product page list this same board as “Powercore MK2,” so if you see that name elsewhere, it refers to the same hardware. It’s built around a 4-layer PCB rated for continuous operation up to 180°C, handling up to 300A peak current across a wide 6S-14S (22.2-58.8V) input range — genuinely high-power territory, not a repurposed small-quad PDB.
Twelve total power connectors — 4 XT60 female, 6 right-angle XT60 male, and 2 right-angle XT30 female — give you plenty of organized outputs for motors, ESCs, and auxiliary payload electronics, while dual onboard regulators deliver protected 5V and 12V BEC power (2A continuous each, with overcurrent and short-circuit protection) for your flight controller and other onboard systems. Analog voltage and current sensing outputs let a compatible flight controller log battery telemetry directly, and the customizable lug-or-wire input design means it adapts to dual-battery setups common in heavy-lift and agricultural UAV builds.
300A Peak Current
Genuinely high-power distribution for demanding UAV builds.
12 Total Power Connectors
4 XT60F, 6 XT60M, and 2 XT30F for organized wiring.
Protected 5V & 12V BEC
Regulated, protected power for flight controllers and peripherals.
Analog Battery Sensing
Voltage and current outputs for direct telemetry logging.
See Every Detail

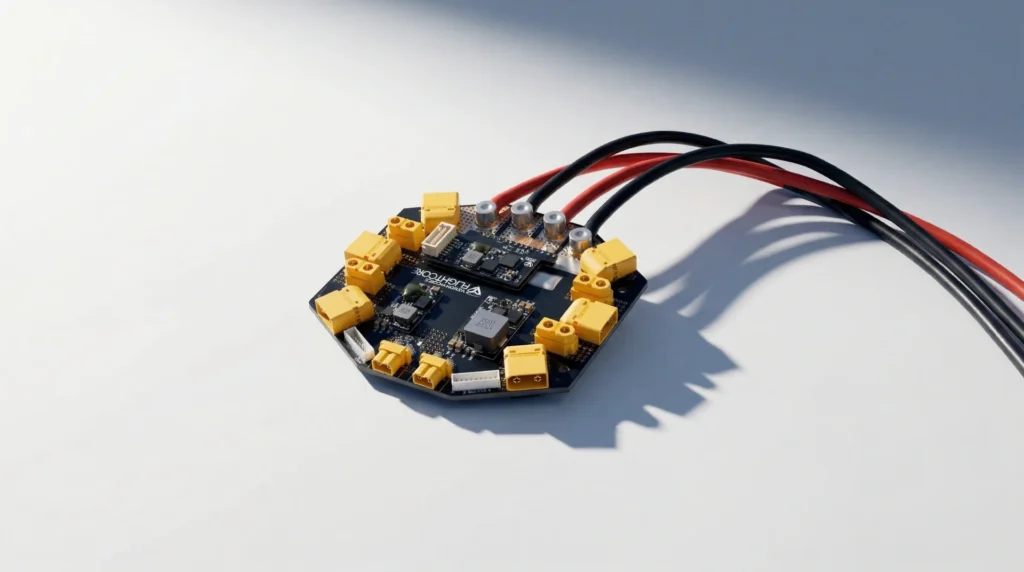

Compact Octagonal Design
All 12 power connectors and both BEC regulator modules fit within a 110×116×20mm footprint — a genuinely compact package for a board rated to 300A peak current.
Built for High-Power, Multi-Battery UAV Systems
The FlightCore MK2 Power Distribution Board brings genuinely organized, high-current power distribution to demanding builds.
⚡
300A Peak Current
Built for high-power, 6S-14S UAV platforms.
🔌
12 Power Connectors
4 XT60F, 6 XT60M, and 2 XT30F for organized wiring.
🔧
Protected 5V & 12V BEC
2A continuous each, with overcurrent/short-circuit protection.
📊
Analog Voltage & Current Sense
Direct battery telemetry output for compatible flight controllers.
🌡️
180°C-Rated 4-Layer PCB
Built to handle genuine heat under sustained high current.
🔋
Customizable Battery Inputs
Lug or wire input connections suit dual-battery setups.
Built for High-Power, Heavy-Lift UAV Projects
The FlightCore MK2 Power Distribution Board suits builders working on genuinely high-current, high-voltage UAV platforms.
Heavy-Lift Multirotors
300A handling for large payload, high-power drones.
Agricultural Spraying Drones
6S-14S range and dual-battery inputs suit large ag platforms.
Industrial UAV Systems
Reliable, protected power distribution for commercial operations.
Battery Telemetry Builds
Analog sensing feeds current/voltage data to your flight controller.
Dual-Battery UAV Builds
Customizable lug/wire inputs suit twin-battery power systems.
Custom High-Voltage Builds
An organized power hub for custom, high-current UAV projects.
Understanding Power Distribution Boards
No dedicated video review exists yet for this specific board, so these general PDB-concept videos explain how a board like this fits into a UAV power system — the wiring principles apply, even though the boards shown are smaller-scale examples.
Frequently Asked Questions
Is the FlightCore MK2 Power Distribution Board the same as the “Powercore MK2”?
How much current can this board actually handle?
What connectors does it have?
Can this power my flight controller and other electronics?
Does it support dual-battery setups?
How big and heavy is it?
