Description

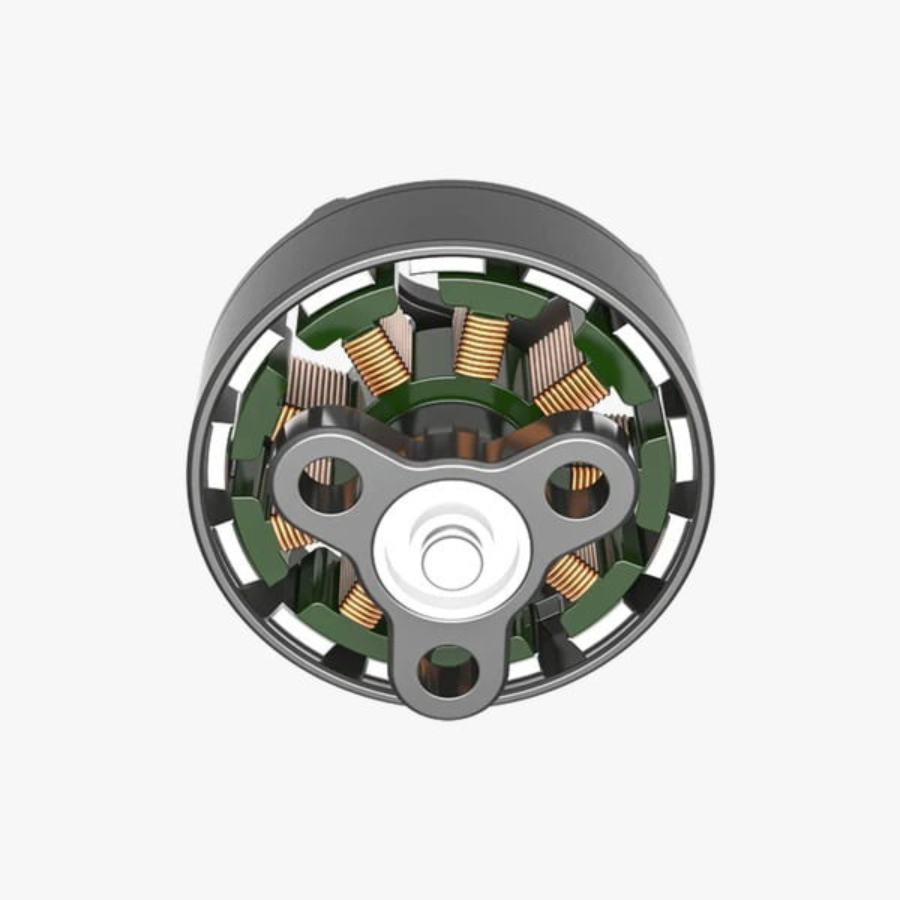

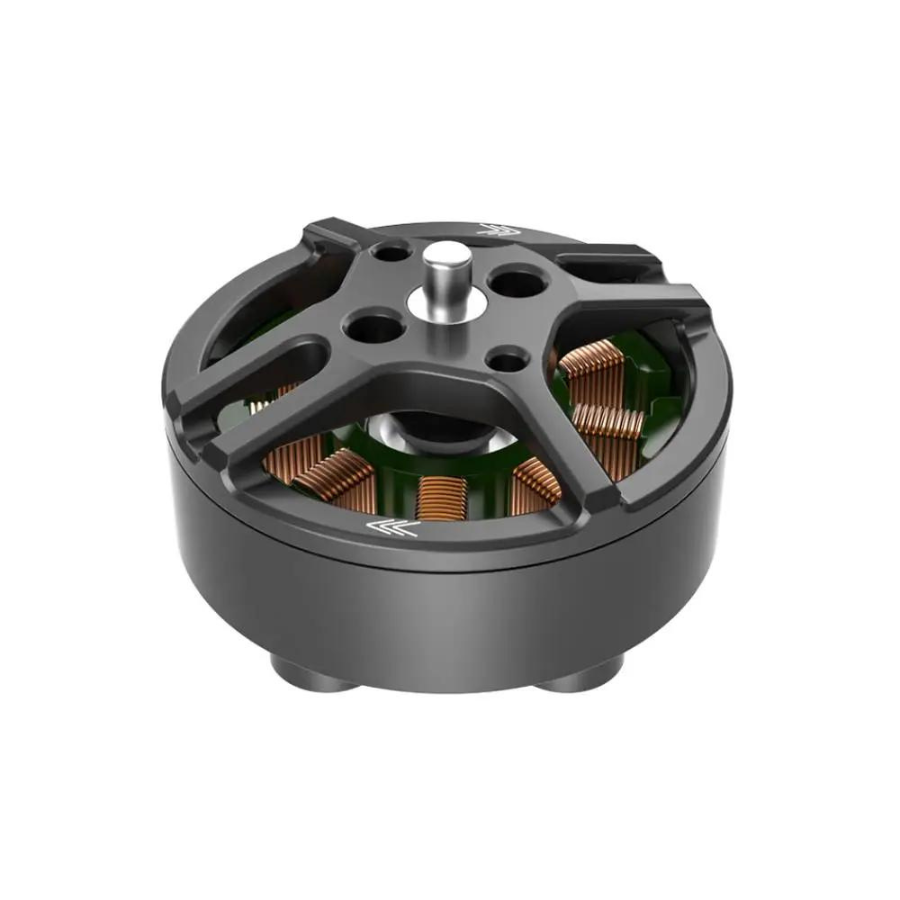

IFLIGHT-1404 4150KV FPV MOTOR
The IFLIGHT-1404 Defender 25 Motor is specifically engineered to meet the demands of modern ultralight drone builds, offering the perfect combination of power, precision, and weight optimization. Designed for hobbyists and professionals alike who are building within the Sub250g drone category, this motor allows users to push performance boundaries without compromising on regulations or flight efficiency.
At the core of this high-efficiency propulsion system is the 1404 4150KV motor, a compact powerhouse known for its impressive thrust-to-weight ratio. Crafted with precision and built using high-quality, lightweight materials, the Defender 25 Motor ensures durability and reliability even during intense flight conditions. Whether you’re flying through tight indoor spaces or navigating complex outdoor courses, this motor delivers consistent and responsive power, making it an ideal choice for both freestyle and racing drones.
One of the standout advantages of the Defender 25 is its ability to provide high performance in an ultra-light package, empowering drone builders to stay within the strict 250-gram limit without compromising on strength or speed. This makes it especially attractive for pilots seeking long flight times, extended maneuverability, and legal compliance in regions with drone weight restrictions.
The motor’s refined design enhances not only flight performance but also improves the drone’s agility, responsiveness, and overall control. Whether you’re a beginner pilot perfecting your skills or an experienced flyer customizing a high-speed quad, the Defender 25 provides a smooth and efficient flying experience, ensuring every movement is both stable and precise.
Integrating the iFlight Defender 25 Motor into your drone build means investing in quality engineering, optimized flight dynamics, and superior craftsmanship. It’s the go-to motor for Sub250g builders who refuse to compromise on performance, providing the perfect balance between weight, power, and reliability for all your aerial adventures. Shop now at XBOOM .
Specifications of IFLIGHT-1404
General
- Mounting Holes: 3 x 9 x 9 /2mm (3 mounting holes)
- Shaft Protruding Length: 1.8mm/0.2mm
- Winding: Single Strand copper winding
- Rotor Specifications: Segmented bell
- Weight (including wire): 8g/0.5g
- Interphase Resistance: 0.188Ω
- Bearing Specification: 5x2x2.5
- Model: Defender 25 Motor
- Dimension: 17.7×12.5mm
- Shaft Diameter: 1.5mm
- Magnet: N52H Curved
- Peak Current: 12.03A
- Configuration: 9N12P
- Lead: 65mm/26AWG
- Bearing Type: NMB
- Max Watt: 200.8W
- Input Volts: 4S
- Rotation: CW
- KV: 4150KV
Features
IFLIGHT-1404
- Works well with the iFlight Defender 25
- Ultralight Motor
- CW
Recommended (Not Included)
- iFlight Defender 25 1404 Motor – 4150KV (CCW)
Includes
- 1x iFlight Defender 25 1404 Motor – 4150KV (CW)
- 4x M2x5 Screws
