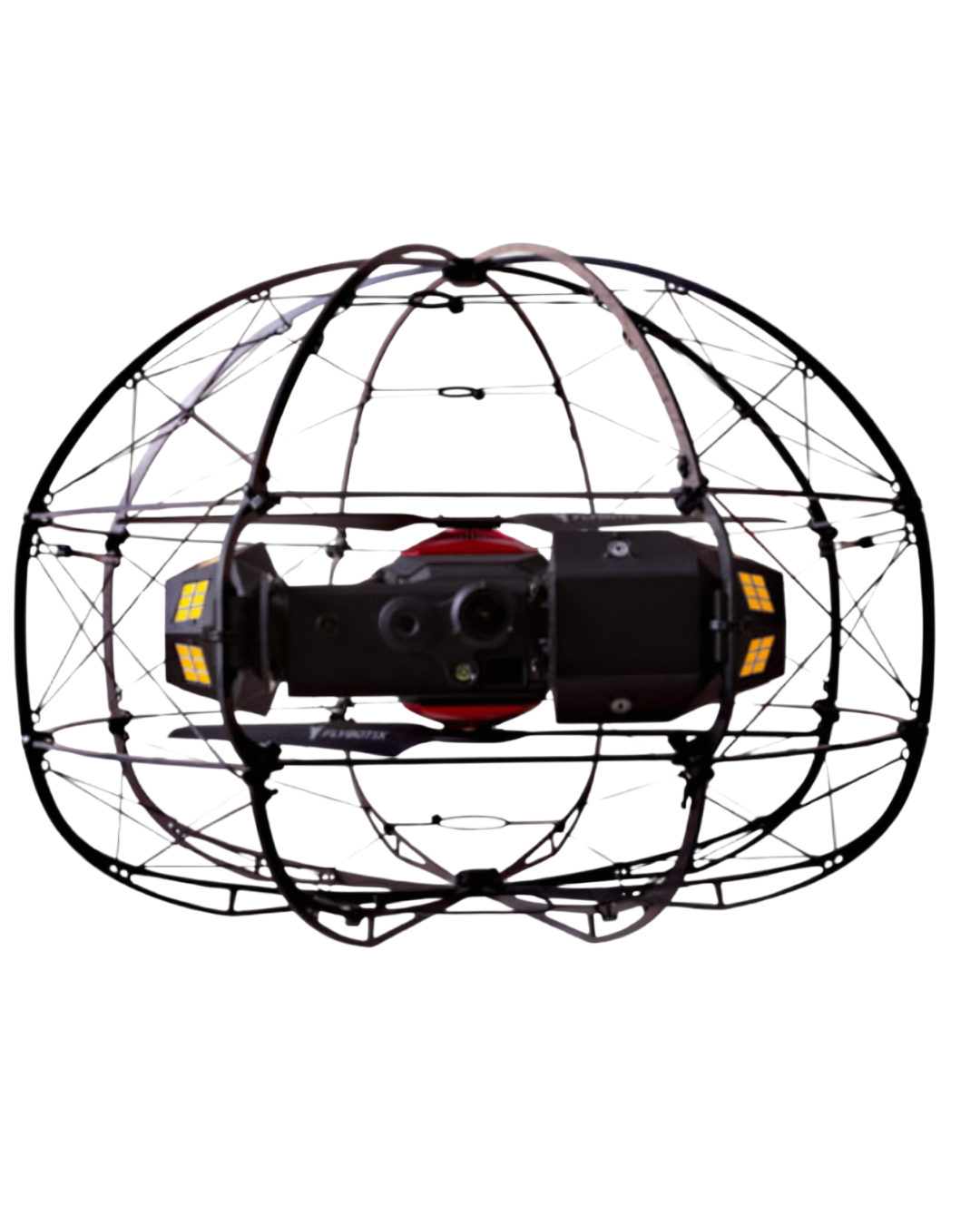

ASIO X

Caged indoor inspection drone for confined, GPS-denied spaces
4K RGB camera + radiometric thermal (FLIR) on stabilized tilt gimbal
40,000-lumen directional lighting for zero-light environments
3D LiDAR mapping & obstacle awareness; precise VIO hovering
Integrated multi-gas detector (CH₄, H₂S, O₂, CO) for leak detection
Up to ~20 min flight time; rugged 450 mm protective cage (~1.15 kg)
Flight aids: Height/Wall/Tube Lock, Rewind, Autoland for safe retrieval
256 GB onboard storage; 5.5″ FHD controller with ~4 h runtime
Built for oil & gas, power, chemical, mining, wastewater inspections

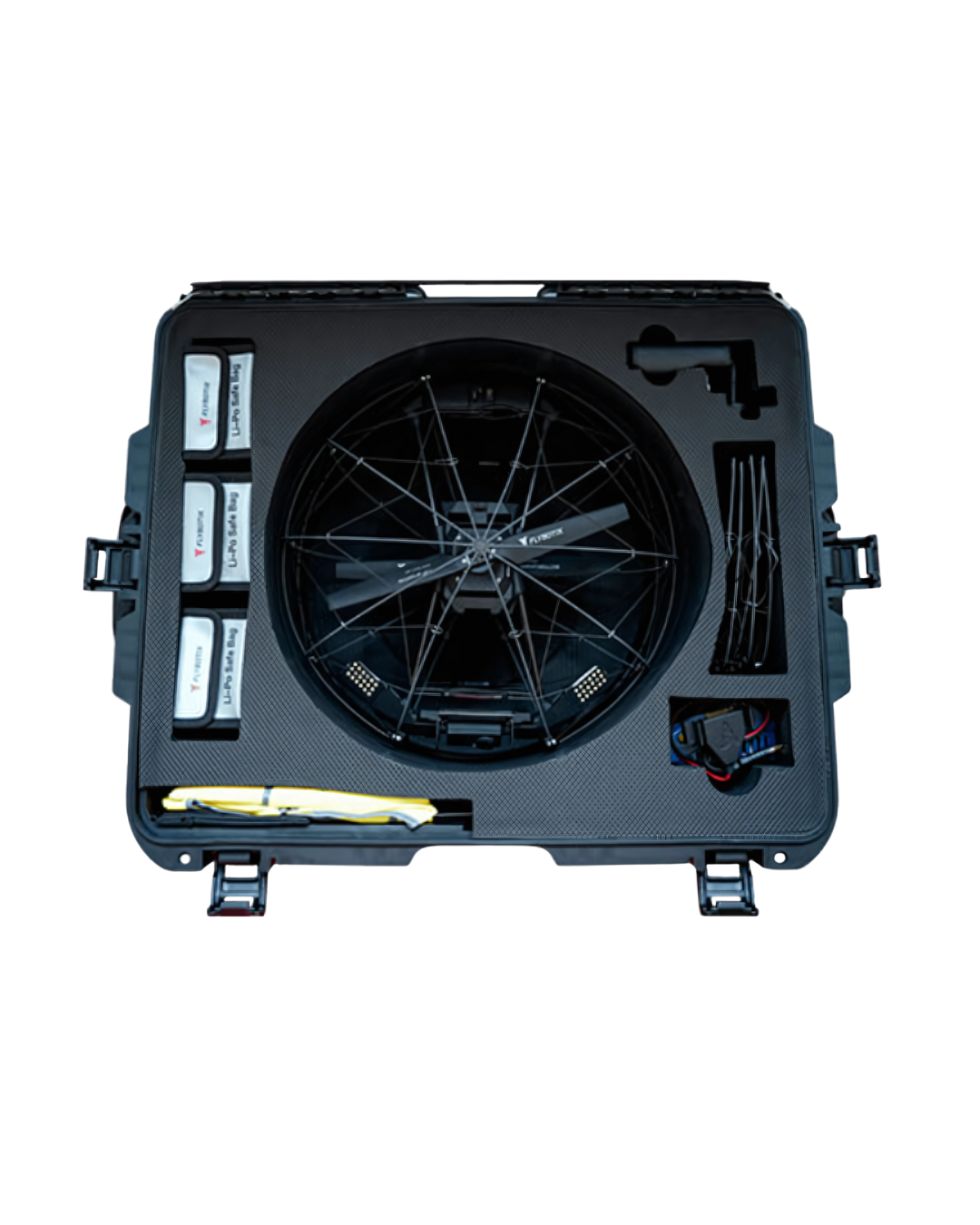

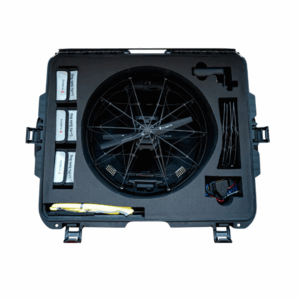

Ships as a complete kit: drone, RC, 3 batteries, dual charger, spares, case

Restricted Sale Notice

This drone is sold only for Research & Development (R&D) and Defence/Security purposes within India. The buyer is responsible for complying with the Drone Rules, 2021 (as amended), DGCA guidelines and all applicable Government of India norms, including registration on the Digital Sky Platform and obtaining a Unique Identification Number (UIN). Xboom Utilities may refuse, hold or cancel any order that does not meet these conditions.

Read the full Drone Sales Disclaimer & Compliance Notice

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

Product specifications

Drone core

Item	Spec
Configuration	Dual coaxial propellers; patented electromagnetic tilting system
Flight time	Up to 20 minutes
Max speed	Assisted: 1 m/s; Manual: 5 m/s
Dimensions	Ø450 mm × H315 mm (Ø17.7″ × H11.6″)
Weight	1.150 kg (2.53 lb)
Wind resistance	Up to 3 m/s
Materials	Carbon fiber, aerospace-grade composites, 3D-printed thermoplastics
Protection	Dust & water projections
Noise	~80 dB @ 1 m
Certifications	CE, FCC
Source: official ASIO X technical spec (June 2024).

Sensors & stabilization

Item	Spec
Core sensors	3× IMUs (incl. high-grade + fallback), magnetometer, barometer
Proximity/vision	6× distance sensors, 6× optical flow sensors, 2× global-shutter VIO cameras
Additional	Radar
Algorithms	Flight stabilization, Height Lock, Wall Lock, Tube Lock, Recovery, Rewind, Autoland

Cameras & gimbal

Item	Spec
RGB camera	1/2.3″ CMOS, 12.3 MP; stills 4056×3040; video 4K 30 fps; stream 720p 30 fps; MP4/JPG; effective resolution 0.2 mm @ 30 cm; FOV 153° diag / 121° horiz; DOF 30 cm – ∞
IR (thermal)	FLIR Lepton 3.5 (radiometric); 160×120 px @ 9 fps; sensitivity <50 mK; 8–14 µm; FOV 71° diag / 57° horiz; temp range −10°C to 400°C
Gimbal	±90° tilt (180° total); total FOV 273° vertical / 121° horizontal; active pitch stabilization + passive vibration damping

LiDAR & gas detection

Item	Spec
3D LiDAR	FOV 106° × 86°; range 0.1–7 m; 5 fps
Gas detector	Locates/quantifies CH₄, H₂S, O₂, CO (integrated payload)

Lighting

Item	Spec
Max luminosity	40,000 lumen
LED panels	8 (directional: left/right/up/front/down; software-dimmed)
Color	4000 K, CRI 70
Dimming	0–100% (strobe >20%)
Power impact	~3 min flight-time reduction at 100% (2×15 W)

Battery & power

Item	Spec
Battery type	LiPo 19 V, 3900 mAh (74.1 Wh)
Charge time	~1.10 h (100%), ~40 min (80%)
Lifetime	~100 cycles
Storage temp	−25°C to 35°C

Controller & comms

Item	Spec
Controller	5.5″ FHD (1920×1080) screen; 4950 mAh; ~4 h runtime
Connectivity	micro-USB; Wi-Fi 2.4 GHz (2402–2480 MHz); EIRP <20 dBm
Operating temps	Drone 0–40°C; Controller 0–45°C
Storage	Onboard 256 GB (U3) SD (FAT32)
