EXA-4060 Brushless Servo Motor
- Delivers up to 60kg stall torque, providing reliable performance for high-load robotic joints and precision actuation.
- Compact 44 × 25 × 38 mm housing offers powerful torque in a space-efficient design for compact robotic systems.
- Lightweight 100g construction delivers an excellent power-to-weight ratio for articulated and mobile robot applications.
- High-efficiency brushless motor ensures smoother operation, greater reliability, and longer service life than brushed servos.
- Operates on a 12V input voltage, making it compatible with standard robotics batteries and power systems.
- 3.6A stall current rating provides efficient power usage while simplifying multi-servo power management.
- TTL communication interface enables easy wiring and convenient daisy-chaining of multiple servos on a single communication bus.
- 40 RPM no-load speed is optimized for smooth, controlled, high-torque motion rather than high-speed movement.
- Part of the Energize Lab EXA Series, offering compact, high-performance brushless servos for robotics and automation.
- Ideal for robotic arm joints, heavy-duty grippers, pan-tilt systems, automation equipment, animatronics, and other space-constrained, high-load actuation projects.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Energize Lab · EXA Series Flagship
EXA-4060 Brushless Servo Motor
The EXA-4060 is genuine Energize Lab hardware and the flagship of its precision EXA Series — a 60kg brushless servo in the same compact, machined-metal housing family as the EXA-4015 and EXA-4030.
Brushless Motor
TTL Serial Control
44×25×38mm
EXA-Series Flagship
Full Specifications
| Specification | Details |
|---|---|
| Product | EXA-4060 Brushless Servo Motor — genuine Energize Lab hardware, “EXA-4060” and the Energize Lab logo machined into the housing |
| Product Category | High-Torque Brushless Smart Servo Motor / Robotics Actuator Component |
| Stall Torque | 60kg (at rated 12V input) — the highest in the EXA Series |
| No-Load Speed | 40 RPM — the slowest in the EXA Series, optimized for controlled, high-torque motion over speed |
| Stall Current | 3.6A maximum |
| Motor Type | Brushless DC motor (verified against xBoom’s own listing and Energize Lab’s manufacturer page — see the EXA-4015 page for the full “coreless vs. brushless” verification story) |
| xBoom SKU | xboom-146249 |
| Specification | Details |
|---|---|
| Communication | TTL serial connection, supports daisy-chaining multiple servos on one bus |
| Input Voltage | 12V |
| Dimensions | 44 × 25 × 38mm |
| Weight | 100g |
| Series | Energize Lab EXA Series (also includes EXA-4015 and EXA-4030) |
| Manufacturer | Energize Lab (Shenzhen Zhuneng Technology Co., Ltd.) — also the creator of the Eilik companion robot |
The EXA Series Flagship
EXA-4060 Brushless Servo Motor: Genuine Energize Lab Hardware

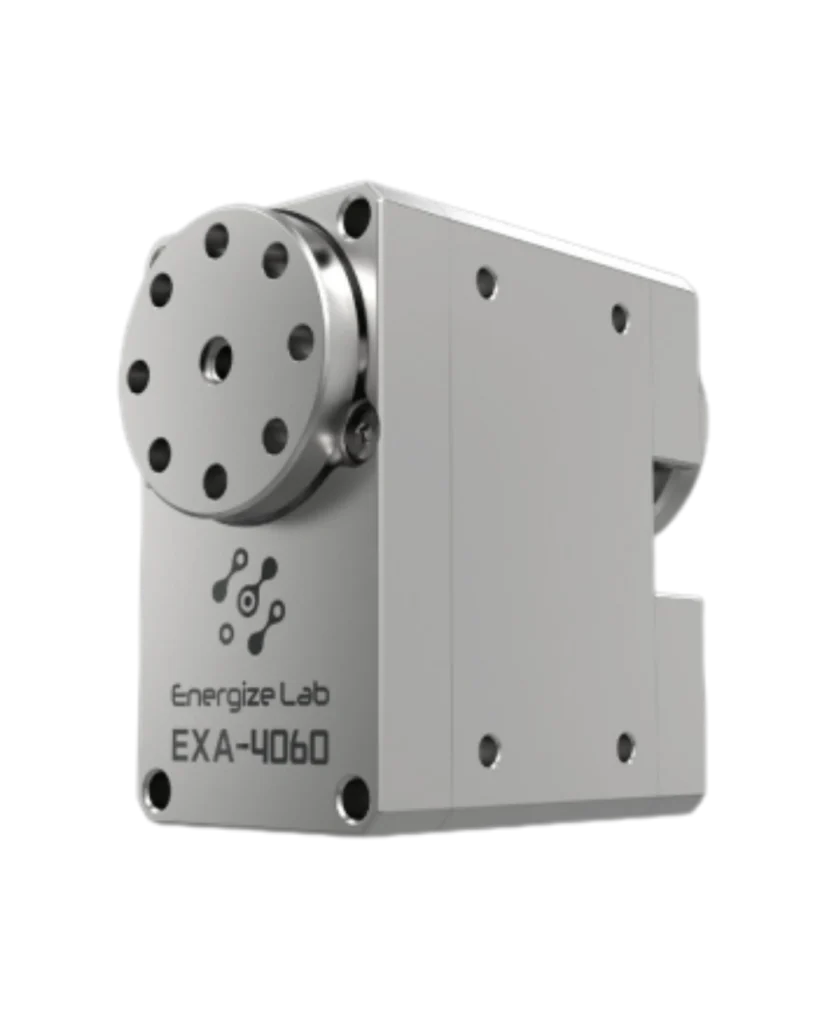

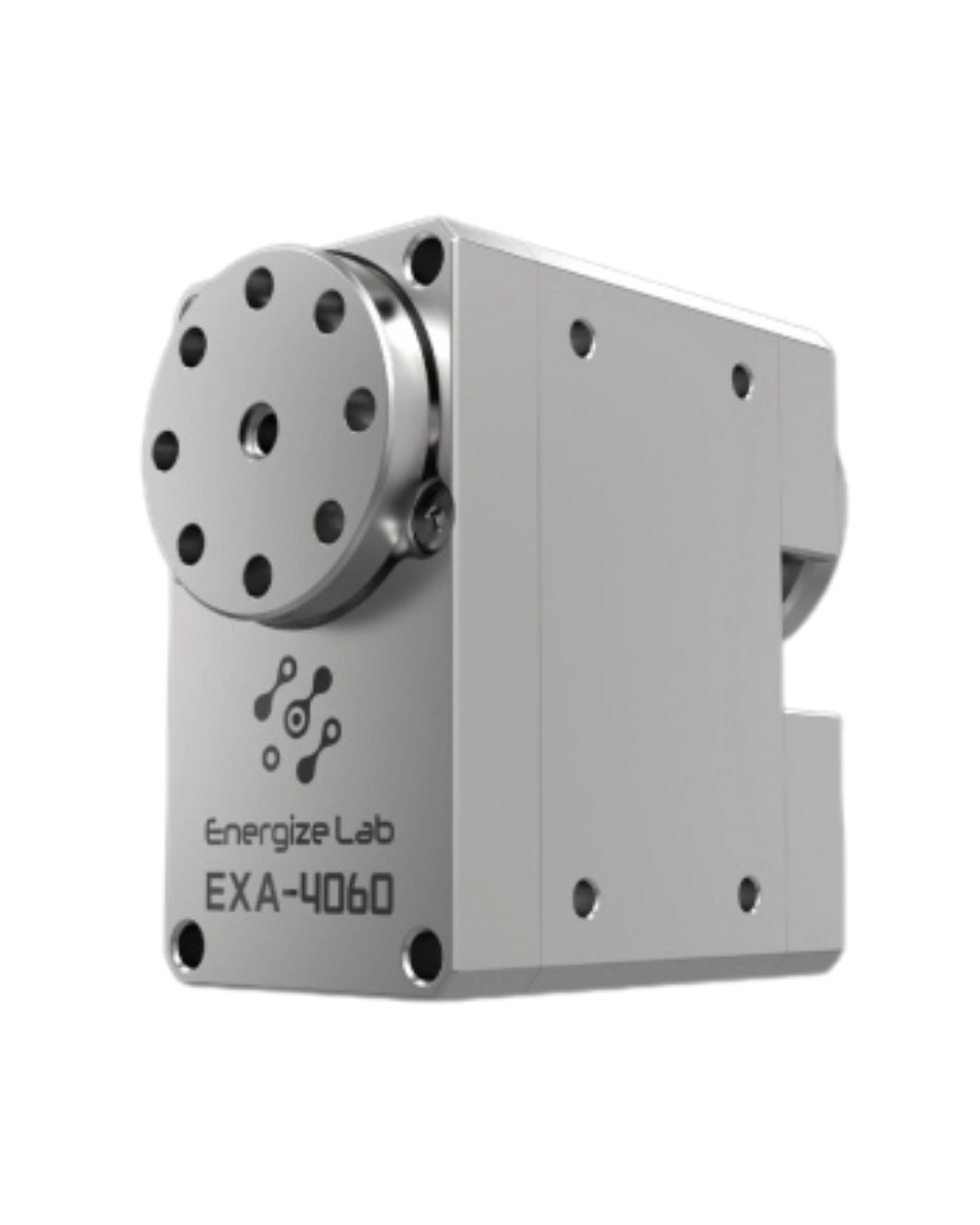

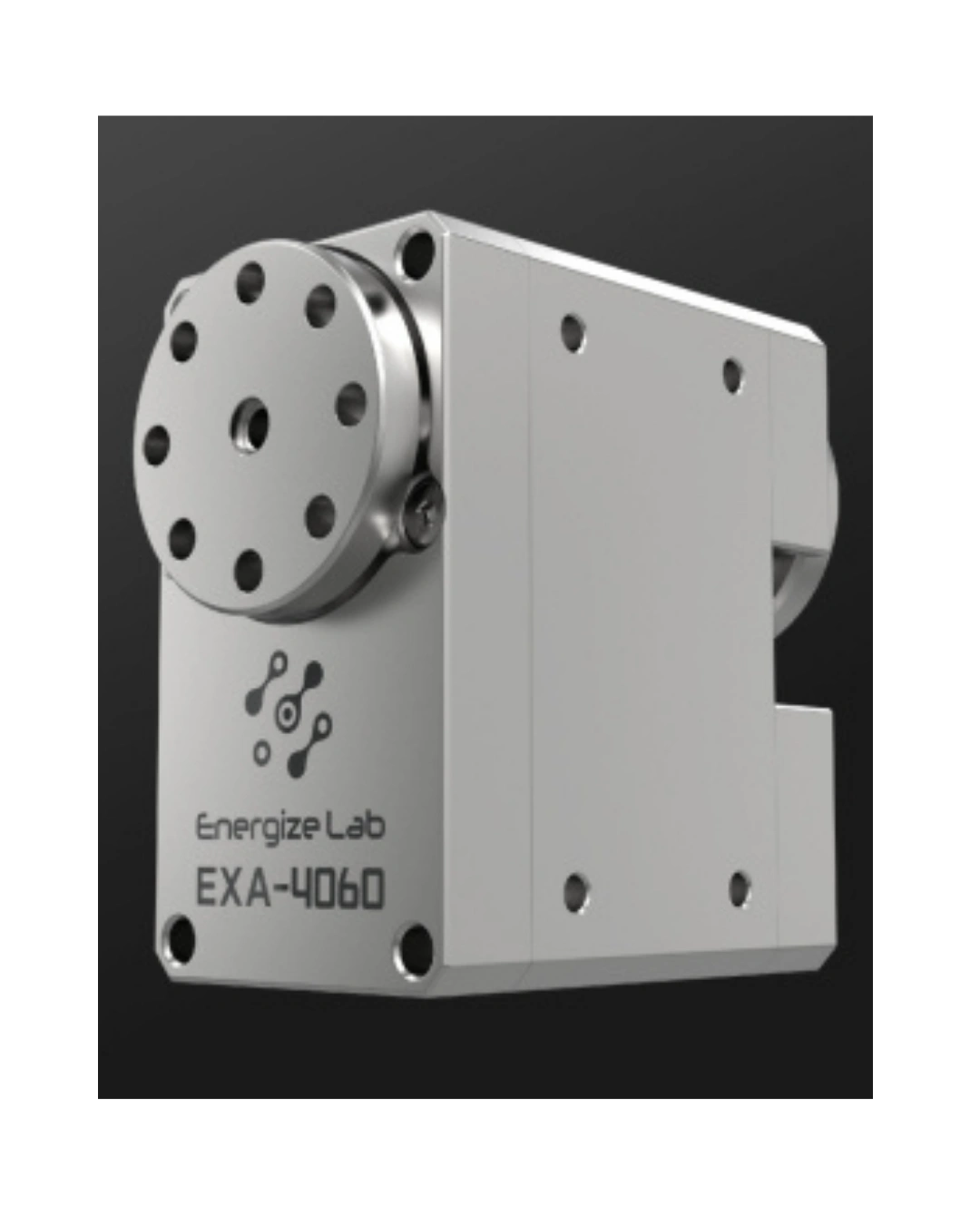

The EXA-4060 is genuine Energize Lab hardware — “EXA-4060” and the Energize Lab logo are machined directly into a precision metal housing, visible across all 3 product photos, the same clear branding standard confirmed on the EXA-4015 and EXA-4030. It’s the flagship of the series: 60kg stall torque, four times the EXA-4015’s rating, in a housing that’s still compact at 44 × 25 × 38mm and just 100g.
That torque comes with the same speed-for-torque tradeoff seen throughout Energize Lab’s lineup — 40 RPM, the slowest no-load speed in the EXA Series, versus the EXA-4015’s 60 RPM. xBoom’s own listing confirms this unit is “part of the Energize Lab EXA Series,” and every spec matched Energize Lab’s own manufacturer figures exactly, with no discrepancies to flag.
| Spec | EXA-4015 | EXA-4030 | EXA-4060 (this) |
|---|---|---|---|
| Stall Torque | 15kg | 30kg | 60kg |
| Dimensions | 29×16.5×24.5mm | 38.5×21×32mm | 44×25×38mm |
| Weight | 35g | 65g | 100g |
| No-Load Speed | 60 RPM | 50 RPM | 40 RPM |
| Stall Current | 1.2A | 4A | 3.6A |
60kg Stall Torque
The highest torque rating anywhere in the EXA Series.
Brushless Motor
Verified against two independent first-party sources.
Visibly Genuine
Energize Lab’s logo is machined directly into the housing.
TTL Serial Control
Daisy-chain multiple servos on a single control bus.
See Every Detail
What It Is, and Where It Goes
The EXA-4060 is a high-torque brushless smart servo motor — a self-contained rotary actuator with its own control electronics, built for the heaviest joints a compact housing can support.
🤖 Robotics Actuator
🦾 Heavy-Duty Joint Component
🎭 Animatronics
🔗 TTL Bus Servo
Robotic Arm Joints
Heavy-load joints needing real lifting torque.
Heavy-Duty Grippers
Strong gripping mechanisms for demanding payloads.
Animatronics
High-torque, precise motion for animatronic figures.
Pan-Tilt Systems
Rotating larger cameras, sensors, or equipment mounts.
Automation Equipment
High-load positioning tasks in compact automation gear.
Articulated Robot Joints
Mobile and articulated builds needing serious torque.
The Flagship of a Genuine Energize Lab Series
The EXA-4060 is the highest-torque member of Energize Lab’s precision EXA Series, sharing its machined-metal build and TTL interface with the smaller EXA-4015 and EXA-4030. It is not confirmed to be the servo inside Eilik or Panxer; what it shares with them is the same manufacturer and the same TTL control protocol.
This completes xBoom’s three-model EXA Series lineup — 4015, 4030, and 4060, all now verified against Energize Lab’s own manufacturer spec table.
Precision Torque, Flagship-Grade
The EXA-4060 Brushless Servo Motor brings genuine, flagship-grade Energize Lab engineering to heavy-duty robotics work.
💪
60kg Stall Torque
Four times the EXA-4015’s rating in a compact housing.
⚖️
100g, 44×25×38mm
Compact for a servo rated at this torque and current.
🧲
Brushless DC Design
Verified, not guessed — confirmed via two first-party sources.
🔌
TTL Serial Interface
Daisy-chain multiple servos on a shared control bus.
⚡
12V, 3.6A Stall
Efficient current draw relative to its torque output.
🏷️
Visibly Genuine Branding
Energize Lab logo confirmed in every product photo.
Built for Heavy-Duty, Space-Constrained Robotics
The EXA-4060 suits builders who need the highest torque the EXA Series offers, without giving up its compact machined-metal footprint.
Robotic Arm Joints
Real lifting torque for heavy-duty arm joints.
Heavy-Duty Grippers
Strong gripping mechanisms for demanding payloads.
Animatronics
High-torque, precise motion for animatronic figures.
Automation Equipment
High-load positioning in compact automation fixtures.
Custom Mechatronics Projects
A flagship-grade building block for original designs.
Research Platforms
A proven, well-specified actuator for robotics research.
The Company Behind This Hardware
Energize Lab hasn’t published an EXA-4060-specific demo — this is precision/industrial hardware, not consumer content. Honestly labeled: these are official Energize Lab videos of Eilik and Panxer, its consumer robots, included here only to show Energize Lab is a real, established manufacturer — not as a claim that this exact part is used inside them.
Frequently Asked Questions
What type of product is the EXA-4060 Brushless Servo Motor?
Is the EXA-4060 brushless or coreless?
How does the EXA-4060 compare to the rest of the EXA Series?
Is this the servo used inside Eilik or Panxer?
What voltage does it need?
Can multiple EXA-4060 servos be wired together?
