EPS-5030 TTL Brushless Smart Servo Motor
- High-Torque Brushless Smart Servo – The EPS-5030 delivers up to 30kg·cm stall torque, making it ideal for robotic arms, quadruped robots, humanoid robots, and industrial automation systems.
- Compact High-Performance Design – Measuring 47 × 27 × 30mm and weighing only 65g, the EPS-5030 provides an excellent combination of power, compactness, and lightweight construction.
- Efficient Brushless DC Motor – Equipped with a brushless motor for improved efficiency, smoother operation, reduced maintenance, and extended service life compared to conventional brushed motors.
- Fast 140 RPM Operation – Delivers a no-load speed of 140 RPM, providing responsive and accurate motion for dynamic robotic applications.
- TTL Serial Communication – Features a TTL communication interface for easy integration with compatible servo controllers, embedded systems, and robotics development platforms.
- 12V Operating Voltage – Designed to operate at 12V DC, ensuring stable performance for professional robotics and automation applications.
- High Power Capability – Supports a maximum stall current of 10A, enabling reliable torque delivery for demanding load-bearing and precision motion tasks.
- Ideal for Advanced Robotics – Suitable for robotic manipulators, humanoid robots, quadruped platforms, automation equipment, research systems, and custom mechatronic projects.
- Easy System Integration – Compact dimensions and TTL connectivity simplify installation into new robotic designs and existing motion-control systems.
- Designed for Precision Motion Control – Combines high torque, brushless efficiency, and fast response to deliver smooth, repeatable, and dependable actuator performance.
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
Energize Lab · EPS Series
EPS-5030 TTL Brushless Smart Servo Motor
The EPS-5030 is genuine Energize Lab professional-grade hardware — a mid-tier brushless smart servo built for robotic arms, humanoid and quadruped robots, and industrial automation.
Brushless Motor
TTL Serial Control
140 RPM
Professional Grade
Full Specifications
| Specification | Details |
|---|---|
| Product | EPS-5030 TTL Brushless Smart Servo Motor — genuine Energize Lab hardware, “EPS-5030” and the Energize Lab logo molded into the housing |
| Product Category | Professional Brushless Smart Servo Motor / Robotics Actuator Component |
| Stall Torque | 30kg·cm (at rated 12V input) |
| No-Load Speed | 140 RPM (matches exactly between xBoom’s listing and Energize Lab’s own spec table — no discrepancy on this unit) |
| Stall Current | 10A maximum |
| Motor Type | Brushless DC motor |
| xBoom SKU | xboom-146208 |
| Specification | Details |
|---|---|
| Communication | TTL serial connection, for integration with compatible servo controllers and microcontrollers |
| Input Voltage | 12V |
| Dimensions | 47 × 27 × 30mm |
| Weight | 65g |
| Series | Energize Lab EPS Series (also includes EPS-5015, EPS-5060, and EPS-5090) |
| Manufacturer | Energize Lab (Shenzhen Zhuneng Technology Co., Ltd.) — also the creator of the Eilik companion robot |
The EPS Series’ Mid-Torque Workhorse
EPS-5030 TTL Brushless Smart Servo Motor: Genuine Energize Lab Hardware

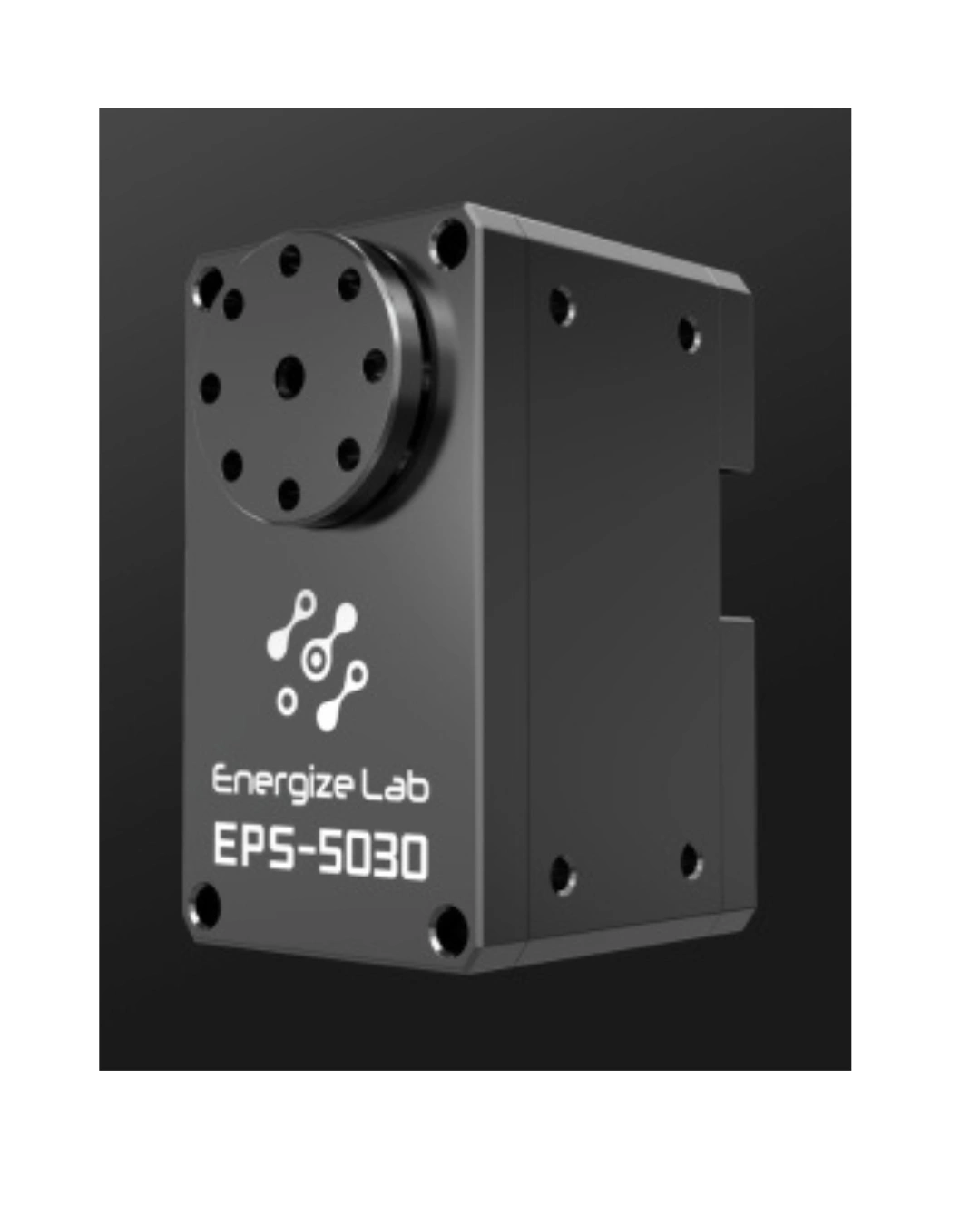

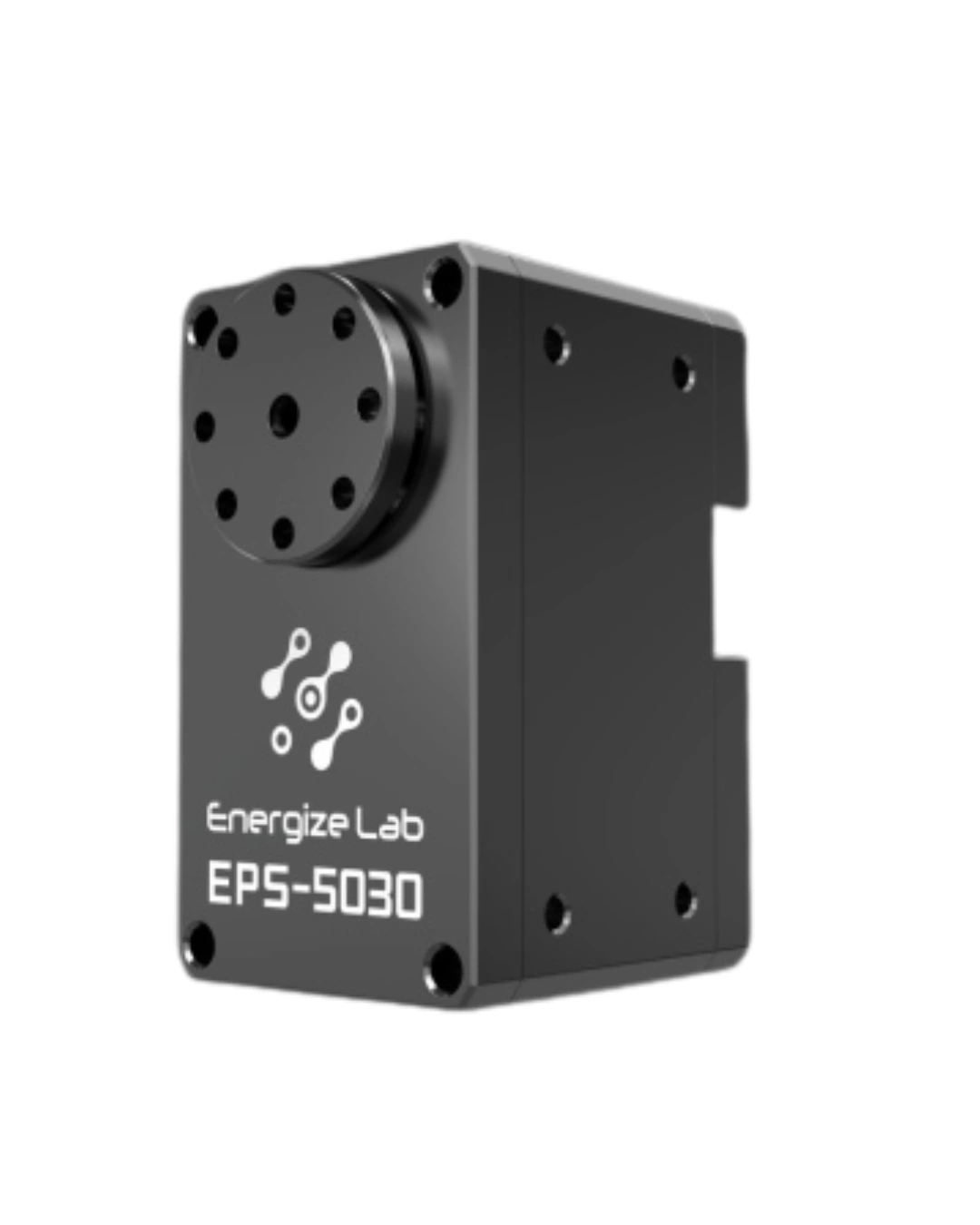

The EPS-5030 is genuine Energize Lab hardware — “EPS-5030” and the Energize Lab logo are molded directly into the housing across all 3 product photos, the same clear branding standard confirmed on the EPS-5015, EM-10, and EH-30. It sits between the compact EPS-5015 and the higher-current EPS-5090 in Energize Lab’s professional EPS Series, all built around brushless motors rather than the cored motors used in the smaller EM and EH series.
At 30kg·cm stall torque, 140 RPM no-load speed — the fastest in the EPS lineup — and a 12V/10A power profile, the EPS-5030 is positioned as a mid-tier workhorse: more torque and speed than the EPS-5015, without stepping up to the EPS-5090’s full current draw. Every spec on xBoom’s listing for this unit matched Energize Lab’s own manufacturer comparison table exactly, with no discrepancies to flag.
| Spec | EPS-5015 | EPS-5030 (this product) |
|---|---|---|
| Stall Torque | 15kg·cm | 30kg·cm |
| Dimensions | 38×23×28mm | 47×27×30mm |
| Weight | 50g | 65g |
| No-Load Speed | 120 RPM | 140 RPM |
| Voltage / Current | 12V / 8A | 12V / 10A |
30kg·cm Torque
Twice the EPS-5015’s rating, for heavier professional joints.
140 RPM — Fastest in the EPS Line
The quickest no-load speed across the whole EPS Series.
Visibly Genuine
Energize Lab’s logo is molded directly into the housing.
TTL Serial Control
Consistent protocol across Energize Lab’s servo lineup.
See Every Detail
What It Is, and Where It Goes
The EPS-5030 is a professional brushless smart servo motor — a self-contained rotary actuator with its own control electronics, built for demanding joints inside a larger robotic or automation system, not a standalone product on its own.
🤖 Robotics Actuator
🦾 Robotic Arm Joint Component
🏭 Industrial Automation
🔗 TTL Bus Servo
Robotic Arms & Manipulators
Joints needing higher torque and faster response.
Humanoid Robot Joints
Hip, knee, and shoulder actuation for bipedal platforms.
Quadruped Robot Joints
Load-bearing leg actuation for four-legged platforms.
Industrial Automation
Fast, precise positioning in automation equipment.
Research Platforms
Reliable, well-specified actuation for robotics research.
Advanced Educational Robotics
University and competition-level robotics programs.
From the Same Manufacturer Behind Eilik
The EPS-5030 is genuine Energize Lab hardware from its professional EPS Series — a different, brushless-motor product line from the cored-motor EM and EH servos used in Energize Lab’s consumer robots. It is not confirmed to be the servo inside Eilik or Panxer; what it shares with them is the same manufacturer and the same TTL control protocol, applied here to industrial-grade brushless hardware.
Note: despite the “50-15/30/60/90” model numbering suggesting a clean torque progression, Energize Lab’s own EPS-5060 is a genuine outlier — its published stall torque is 3kg, not the ~60kg the naming pattern would suggest. Verified directly against the manufacturer’s own comparison table, not a typo on our part.
Built for Fast, High-Torque Robotic Motion
The EPS-5030 TTL Brushless Smart Servo Motor brings genuine, industrial-grade Energize Lab engineering to demanding robotics work.
💪
30kg·cm Stall Torque
Twice the EPS-5015’s rating for heavier joints.
🌀
140 RPM No-Load
The fastest no-load speed across the EPS Series.
🧲
Brushless DC Design
Less friction and maintenance than a cored/brushed motor.
🔌
TTL Serial Interface
Consistent protocol across Energize Lab’s whole lineup.
⚡
12V, 10A Stall
Professional-grade power delivery for demanding loads.
🏷️
Visibly Genuine Branding
Energize Lab logo confirmed in every product photo.
Built for Professional Robotics Builders
The EPS-5030 TTL Brushless Smart Servo Motor suits builders who need more torque and speed than the EPS-5015 offers.
Advanced Educational Robotics
University and competition-level robotics programs.
Industrial Automation
Fast, reliable brushless actuation for automation gear.
Robotic Arms & Manipulators
Higher torque and speed for professional arm joints.
Humanoid & Quadruped Robots
Load-bearing joint actuation for advanced platforms.
Custom Mechatronics Projects
A professional-grade building block for original designs.
Research Platforms
A proven, well-specified actuator for robotics research.
The Company Behind This Hardware
Energize Lab hasn’t published an EPS-5030-specific demo — this is professional/industrial hardware, not consumer content. Honestly labeled: these are official Energize Lab videos of Eilik and Panxer, its consumer robots, included here only to show Energize Lab is a real, established manufacturer — not as a claim that this exact part is used inside them.
