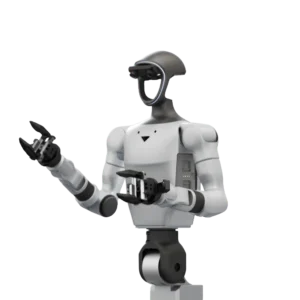

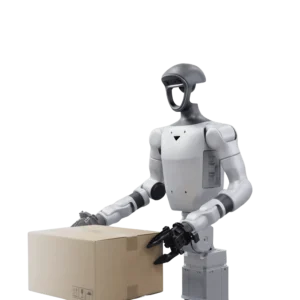

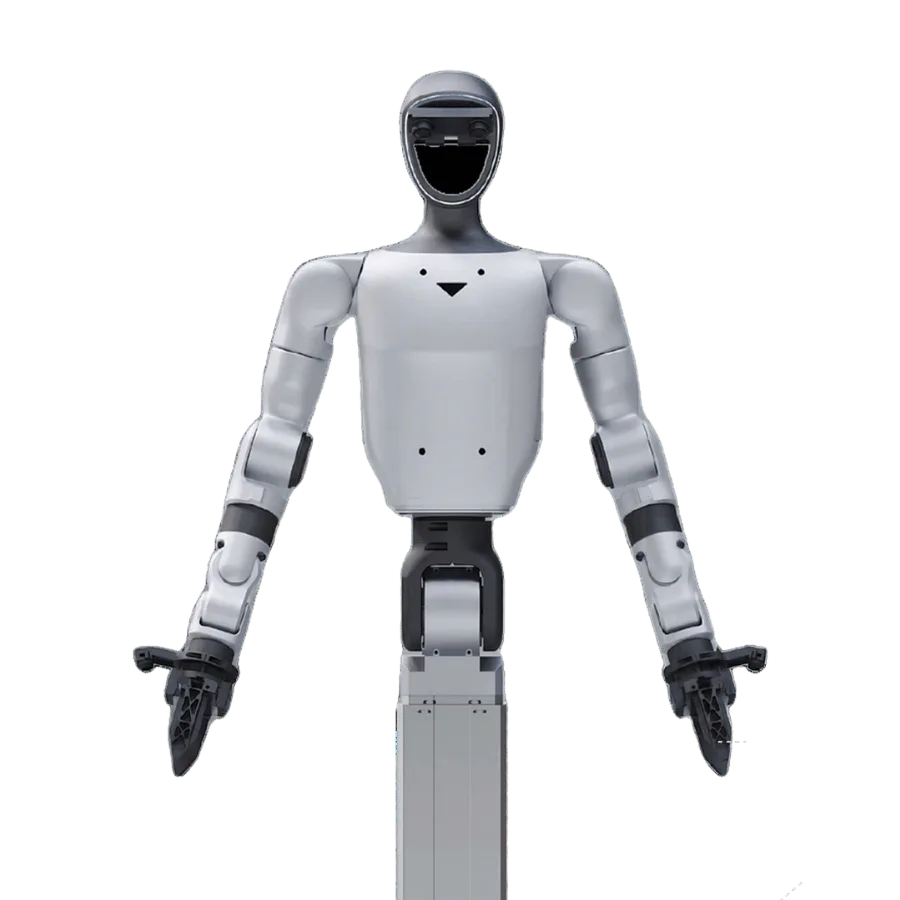

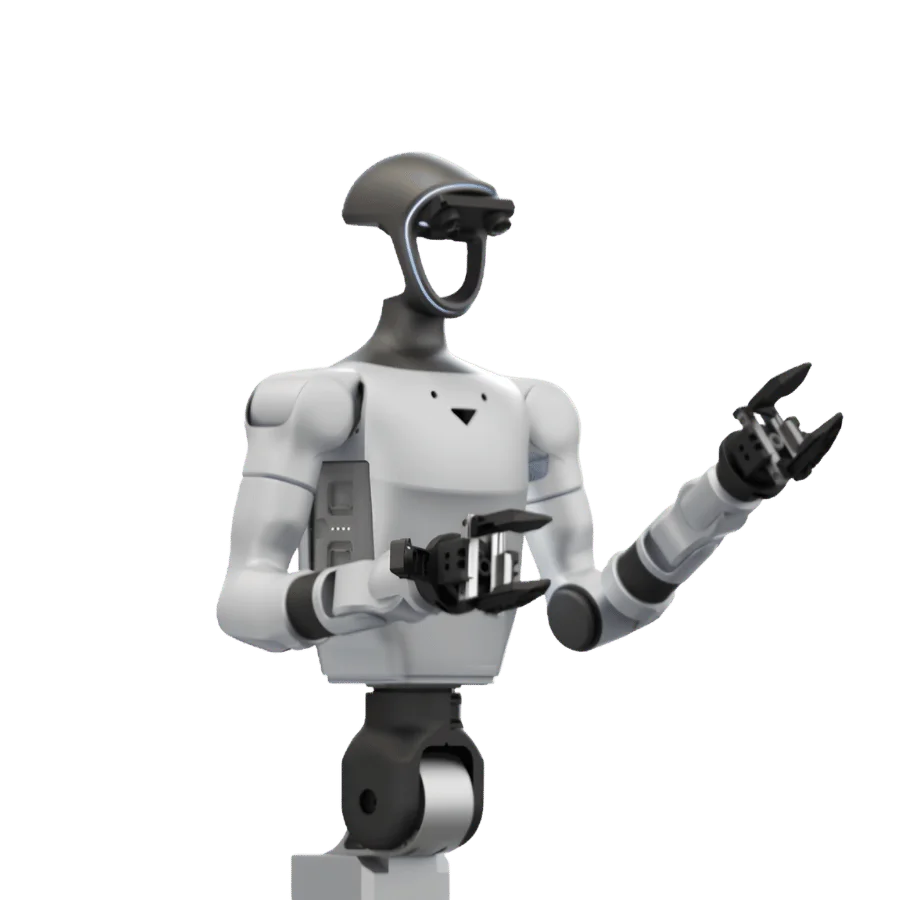

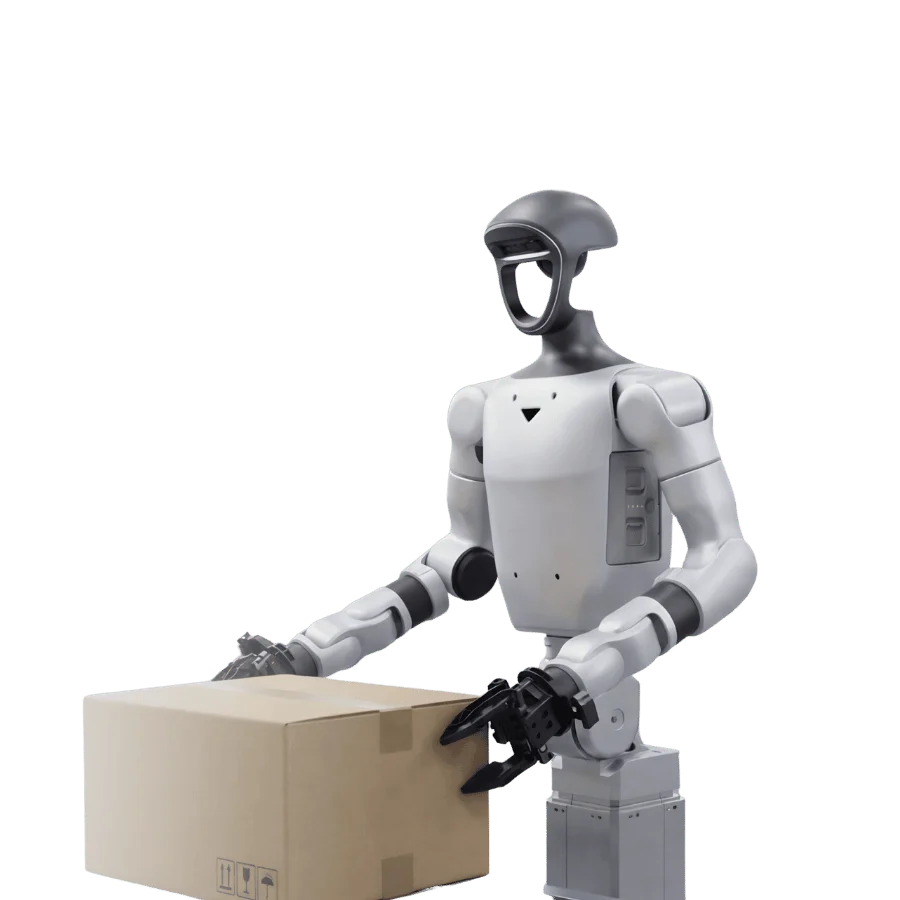

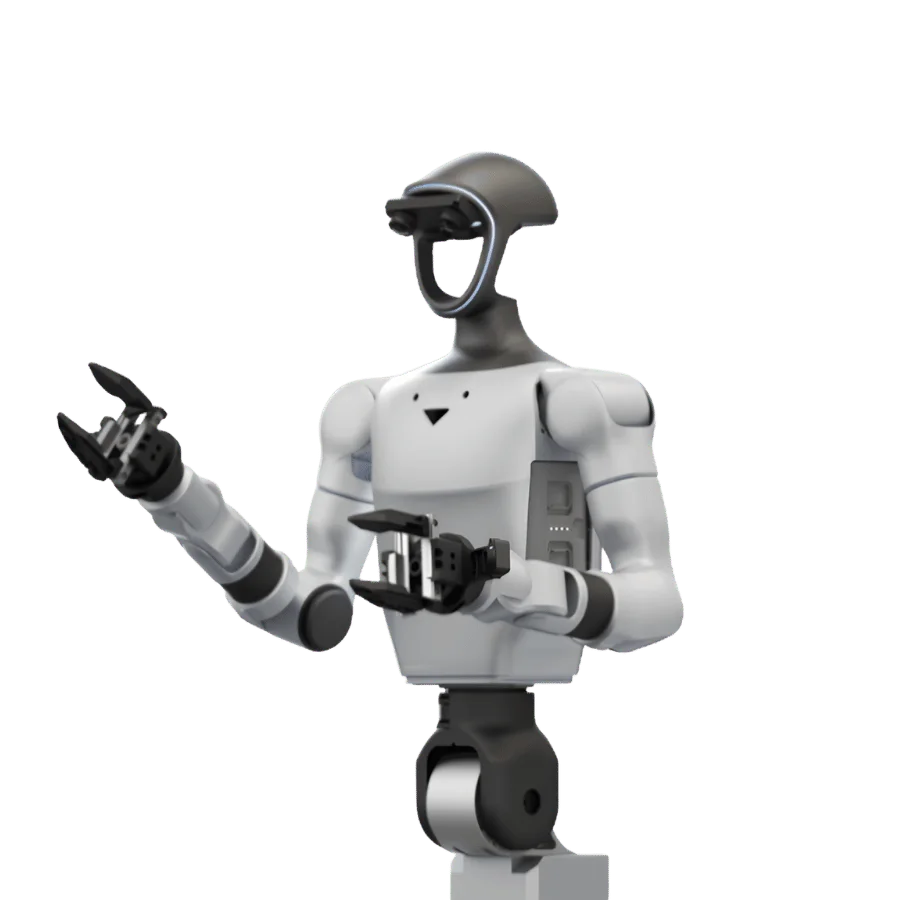

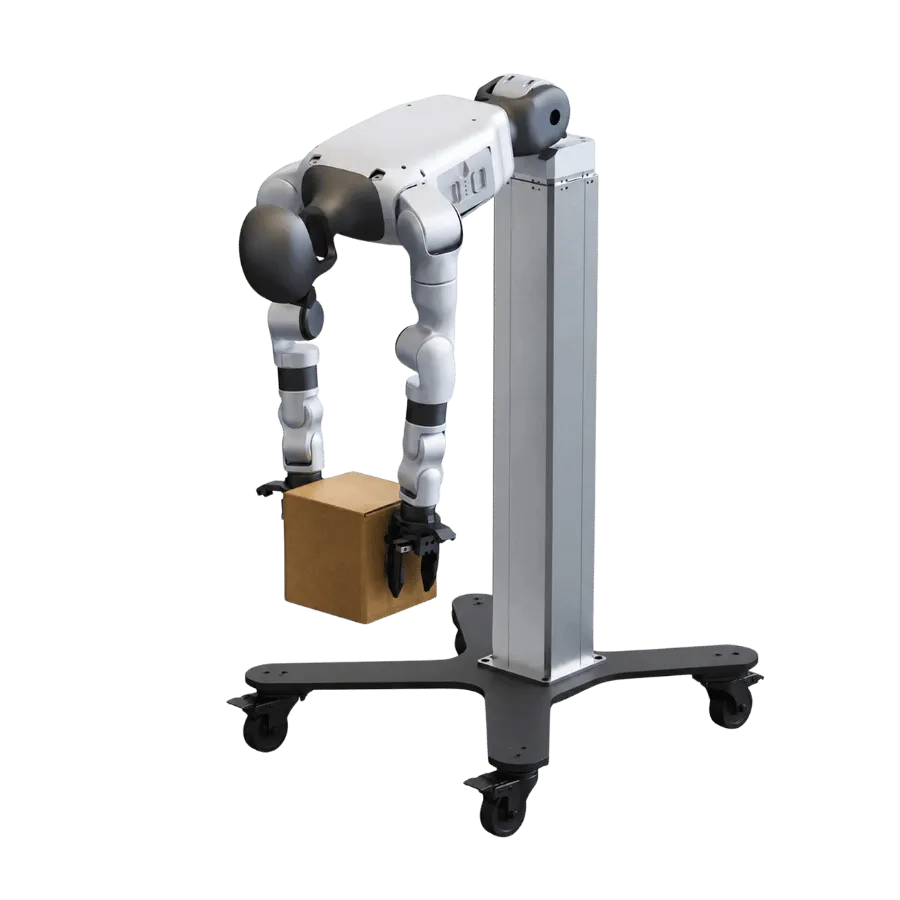

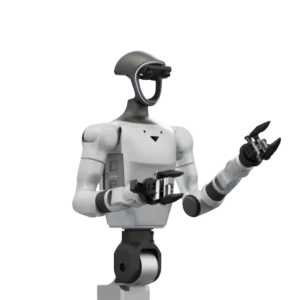

Unitree G1-D Standard B
- Dex3-1 force-controlled 3-finger dexterous hands (non-tactile), each with an RGB camera
- 7 DOF per hand: thumb 3, index finger 2, middle finger 2
- 31 DOF whole machine: arms 7×2, waist 2, column 1, hands 7×2
- Arm payload ~3kg with ~0.45m reach, and a 2-DOF waist with wide motion range
- Lift column with 420mm stroke, 1mm accuracy and 60mm/s max speed, for a max operating height of ~2m
- 8-core CPU plus Jetson Orin 16G (100 Tops), 4-mic array, 5W speaker, Wifi 6 and BT 5.2
- 2h quick-release battery, handheld remote, OTA upgrades, secondary development support and a 12-month warranty
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
G1-D Standard B
End-to-End Platform for Humanoid Robot · Data & Training
Core Components
High-Performance Humanoid Robot
Proprietary humanoid platforms built with in-house actuators, gearboxes, encoders and sensors.
Streamlined Data Acquisition Tools
One platform for the whole data pipeline: collection, processing, labeling, review and data asset management.
Comprehensive Model Training & Inference Tools
Distributed training, custom model development and smooth deployment, with support for all major open-source frameworks.
Higher-DOF Robot Platform
- Expanded Operational Workspace
- Lower-Latency Control Response
Streamlined Data Acquisition Tools
Standardized, flexible workflows cut collection costs and replace manual processes.
Visual Template Management for Efficient Collection
Project management, task allocation, progress tracking and status analysis in one platform. Templates generate collection tasks in one click, and the whole workflow can be tracked in real time.
Flexible Configurations with Diverse Platforms & End Effectors
Data can be collected across many robot platforms and end-effector configurations, and strong standardization turns data from varied devices into quality model training data.
High-Concurrency Architecture for Scalable Operations
Built for many robots collecting at once, with load-balanced scheduling that receives and processes large data streams in real time.
24/7 Online Collection, Stable and Reliable
A highly available service architecture supports round-the-clock collection, and broad format compatibility lets data be exported directly or converted to mainstream training formats, speeding up R&D.
Data Acquisition Pipeline
Creating New Collection Tasks
Task Editing and Assignment
Data Acquisition and Annotation
Data Upload and Review
Data Storage
Data Export
Comprehensive Model Training & Inference Tools
An end-to-end workflow from data processing to one-click model deployment, integrating mainstream open-source robot model frameworks.
Rich Ecosystem with Mainstream Model Support
An open model ecosystem with built-in community datasets, open-source dataset training and deep integration with leading open models such as PI and GROOT.
Simulation Environment for Model Evaluation
A high-fidelity 3D asset library for building realistic simulations and quickly generating evaluation plans to validate algorithms.
User-Friendly Design for Rapid Deployment
Deploys out of the box. Start model development with one-click training, evaluate with built-in simulation, and move algorithms onto real machines smoothly.
Distributed Training for High Efficiency
A high-performance distributed architecture with elastic scheduling and parallel acceleration that scales with workload, reaching up to 90% GPU utilization.
Training and Inference Pipeline
Model Architecture Selection
Training Configuration
Real-Time Monitoring
Parameter Editing
Simulation Testing
Model Export & Deployment
Application scenario
UnifoLM-WMA-0: A World-Model-Action (WMA) Framework
An open-source world-model–action architecture spanning multiple robot embodiments, designed for general-purpose robot learning. Its core is a world model that understands the physical interactions between robots and their environments.
Decision-Making Mode: Action Generation Powered by Precise Prediction
From the current environment state and task goal, it predicts upcoming physical interactions. These predictions help the policy generate actions, reducing decision errors and improving the accuracy and sensibility of motion.
Simulation Mode: High-Fidelity Feedback for Data Generation
It works as an interactive simulator that returns realistic feedback to robot motion inputs, producing high-quality synthetic data that enriches training and speeds up learning.
Technical Specifications
| Dimensions (HxWxD) | Min ~1260x620x620mm, Max ~1680x620x620mm |
|---|---|
| Weight (w/ battery) | ~90kg |
| DOF | 17 total (Arm 7*2 + Waist 2 + Column 1), 7 per arm |
| Payload / Reach | Payload: ~3kg (Arm), Reach: ~0.45m |
| Waist | 2 DOF, Range: Z ±155° / Y -2.5°~+135° |
| Lift | 420mm stroke, 1mm accuracy, 60mm/s max speed |
| Max operating height | ~2m |
| Sensors | Multiple perception sensors |
|---|---|
| Cooling | Local air cooling |
| Power | Battery or direct power cable; standard battery x1, battery charger x1 and direct power cable x1 included |
| Battery Life | 2h (Smart 9000mAh, quick-release) |
| Charger | 54V 5A |
| Compute | 8-core CPU, NVIDIA Jetson Orin 16G (100 Tops) |
| I/O | 4-mic array, 5W speaker, Wifi 6, BT 5.2 |
| Control | Handheld remote included |
| Software | OTA upgrades, secondary dev support |
| Includes | RGB camera |
|---|---|
| Weight | Approx. 650g |
| Dimensions | 175mm x 88mm x 77mm |
| Single Hand DOF | 7 (Thumb 3 DOF, Index finger 2 DOF, Middle finger 2 DOF) |
| Operating Voltage | 12~58V |
| Static Current | [email protected] |
| Communication Interface | USB |
| Wrist RGB Camera | FOV D:130° H:120° V:81°; Resolution: 1920x1080 |
| Whole Machine DOF | 31 (Calculated as: Single Arm 7*2 + Waist 2 + Vertical Column 1 + Dexterous Hand 7*2 = 31) |
|---|---|
| Warranty | 12-month whole machine warranty |
Frequently Asked Questions
What is the G1-D Standard B?
The G1-D Standard B is a G1-D humanoid robot platform with a 7-DOF dual-arm upper body, a 2-DOF waist and a lifting column, fitted with Dex3-1 Force-Controlled 3-Finger Dexterous Hand (Non-tactile). It is built around the end-to-end data and model training workflow described above.
What are the dimensions, weight and lift range of the G1-D Standard B?
Dimensions are min ~1260x620x620mm and max ~1680x620x620mm, and the weight with battery is ~90kg. The lift column has a 420mm stroke, 1mm accuracy and 60mm/s max speed, with a max operating height of ~2m.
What end effector does the G1-D Standard B come with?
It is fitted with the Dex3-1 force-controlled 3-finger dexterous hand (non-tactile), which includes an RGB camera. Each hand weighs approx. 650g, measures 175mm x 88mm x 77mm and has 7 DOF (thumb 3, index finger 2, middle finger 2), with USB communication and 12~58V operating voltage.
How many degrees of freedom does the G1-D Standard B have?
The whole system has 31 DOF (Single Arm 7*2 + Waist 2 + Vertical Column 1 + Dexterous Hand 7*2 = 31). The robot body itself has 17 DOF (arm 7*2, waist 2, column 1).
What are the battery life, computing power and warranty of the G1-D Standard B?
Battery life is 2h with the Smart 9000mAh quick-release battery (54V 5A charger), the compute is an 8-core CPU plus NVIDIA Jetson Orin 16G (100 Tops), and OTA upgrades and secondary development are supported. The warranty is 12 months for the whole machine.
