DOBOT M1 PRO SCARA ROBOT

• 4-axis SCARA robot designed for light-industry manufacturing and assembly automation
• 1.5 kg rated payload with a 400 mm working radius for versatile workstation coverage
• ±0.02 mm position repeatability — industrial-grade precision in a desktop footprint
• All-in-one integrated controller design — no external cabinet or extra wiring required
• Collision detection for safe human-machine collaboration in shared workspaces
• Supports TCP/IP, Modbus TCP, and Modbus RTU communication protocols
• Powered by DobotStudio Pro with scripting, graphical (Blockly), and app-based programming

Trusted dealerDirect manufacturer partnership
Pan-India deliveryInsured shipping, all states
Post-sale supportTraining + service included

Overview

What makes it work

Dobot M1 Pro SCARA Robot – 4-Axis Industrial Desktop Arm | xBoom.in

SCARA Robot · Industrial Automation

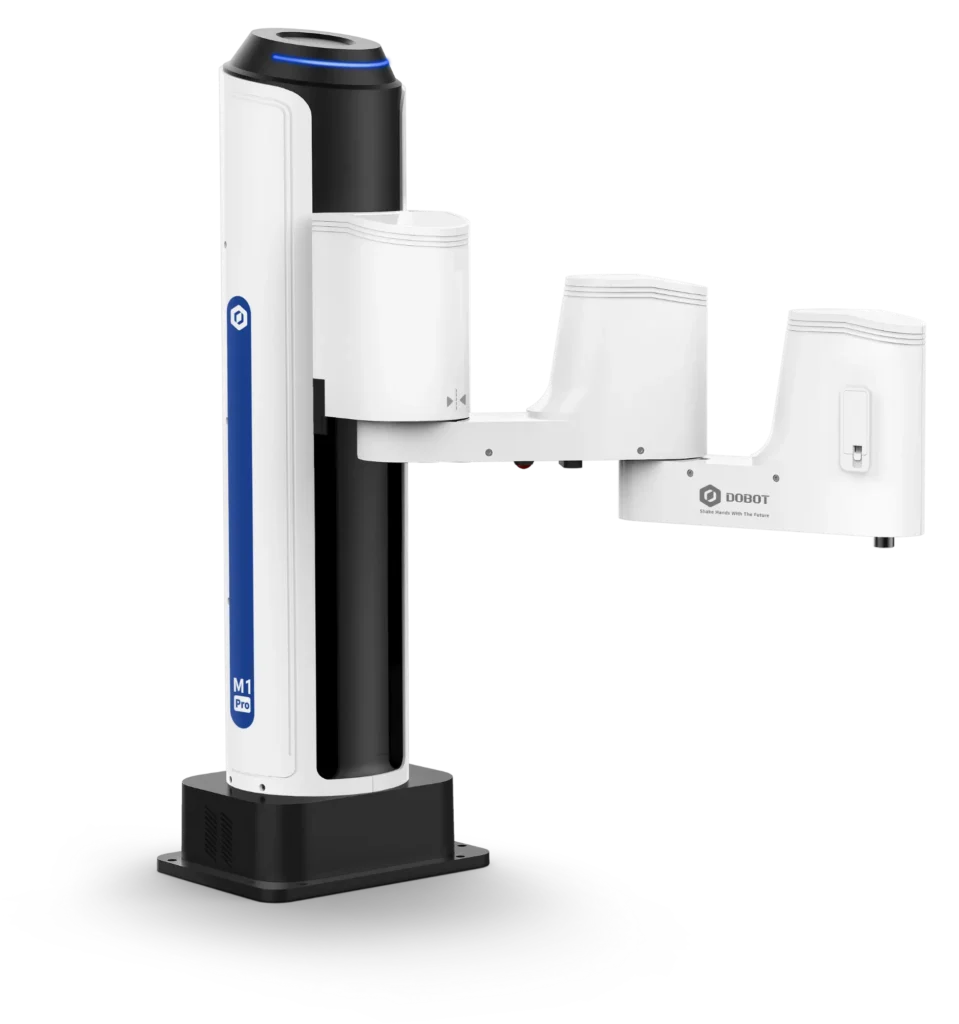

Dobot M1 Pro
SCARA Robot

A second-generation intelligent SCARA robot with built-in dynamic algorithms — compact, fast, and engineered for light-industry manufacturing.

1.5kg

Payload

400mm

Reach

±0.02mm

Repeatability

Axes

Controlled Axes

1.5kg

Rated Load

400mm

Max. Reach

±0.02mm

Repeatability

15.7kg

Weight

192W

Rated Power

Overview

Built for Light Industry. Ready for Complex Tasks.

The Dobot M1 Pro is the second-generation intelligent SCARA robot that inherits and advances the M1's capabilities. By integrating Dobot's latest software and hardware platforms, it is purpose-built to handle the manufacturing demands of light industry, enabling even the most complex automation tasks with precision and speed.

Its all-in-one compact design integrates the control box directly into the arm, eliminating the need for additional wiring. With plug-and-play capability and high portability, the M1 Pro minimises setup time and gets production lines running faster than traditional SCARA systems.

Key Features

What Makes the M1 Pro Different

⚡

Quick to Deploy

Integrated control box design removes the need for external wiring. Plug-and-play setup means the robot is operational in minimal time, reducing downtime on production floors.

🛡️

Safe to Collaborate

Equipped with collision detection for safe human-machine collaboration. Its forearm is 40% narrower than traditional industrial arms, significantly reducing risk of accidental impact.

🖥️

Easy to Operate

Calibration is greatly simplified with scripting and graphical programming options. Supports wired and wireless connections to PCs, tablets, smartphones, and other terminal devices.

🔄

Optimised Performance

An added encoder interface supports dynamic grabbing and tracking. Multi-thread and on-the-fly I/O controls reduce overall motion cycle time for higher throughput.

📡

Multi-Protocol Communication

Supports TCP/IP, Modbus TCP, and Modbus RTU communication interfaces, making it compatible with a wide range of industrial PLC and SCADA systems.

🎯

High Precision

±0.02 mm position repeatability enables the M1 Pro to handle delicate tasks that require fine, consistent accuracy across thousands of cycles.

Specifications

Technical Specifications

Specification	Details
Controlled Axes	4
Rated Load (Maximum Payload)	1.5 kg
Working Radius (Max. Reach)	400 mm
Repeatability	±0.02 mm
Weight	15.7 kg
Power Input	100~240 V AC, 50/60 Hz
Rated Voltage	DC 48 V
Rated Power	192 W
Communication Interface	TCP/IP, Modbus TCP, Modbus RTU
Installation	Desktop
Base Dimension	230 mm × 175 mm
Work Environment	0°C ~ 40°C
Software	DobotStudio Pro
Range of Motion – J1	±85°
Range of Motion – J2	±130°
Range of Motion – J3	5 mm ~ 245 mm
Range of Motion – J4	±360°
Max Joint Speed – J1	180° /s
Max Joint Speed – J2	180° /s
Max Joint Speed – J3	1000 mm/s
Max Joint Speed – J4	1000° /s

Deep Dive

Why the M1 Pro is the Right SCARA for Your Line

Design Philosophy

All-In-One. No Wiring Headaches.

Traditional SCARA systems require a separate control cabinet, additional wiring harnesses, and lengthy commissioning time. The M1 Pro integrates the controller directly within the arm body. The result is a genuinely plug-and-play robot that can be moved, repositioned, and redeployed without rewiring — a critical advantage in lean factories with changing production layouts.

Safety & Collaboration

A Narrower Arm for Safer Shared Workspaces

The M1 Pro's forearm profile is 40% narrower than a conventional industrial arm. Paired with active collision detection, this means operators can work in close proximity without elevated risk. The collision detection system monitors motion in real time and responds instantly, making the M1 Pro a genuine collaborative robot rather than one that simply runs behind a fence.

Performance

Dynamic Tracking. Shorter Cycle Times.

The M1 Pro adds an encoder interface that enables dynamic grabbing and tracking — the robot can pick objects from a moving conveyor without stopping the line. Multi-thread I/O controls allow multiple operations to execute simultaneously, cutting cycle times and pushing throughput higher. For manufacturers optimising every second of takt time, these capabilities translate directly to output gains.

Applications

Where the M1 Pro Performs

📦

Loading & Unloading

🔩

Assembly

💧

Gluing & Dispensing

🔍

Quality Inspection

🚚

Transporting

Industries served: Automotive · Food & Beverage · Consumer Electronics · Healthcare

See It In Action

M1 Pro Videos

Dobot M1 Pro – Product Overview

FAQ

Frequently Asked Questions

The Dobot M1 Pro has a rated load (maximum payload) of 1.5 kg, making it suitable for light-industry pick-and-place, assembly, and inspection tasks.

The M1 Pro supports TCP/IP, Modbus TCP, and Modbus RTU communication interfaces, enabling integration with a wide range of PLCs, SCADA systems, and factory networks.

No. The M1 Pro features an all-in-one design with the controller integrated directly into the arm body. This eliminates the need for a separate control cabinet and external wiring, simplifying installation and relocation.

The M1 Pro uses DobotStudio Pro, which supports scripting and graphical (Blockly) programming. It also supports connection via PC, tablet, and smartphone through the CRStudio mobile app.

The M1 Pro has a maximum working radius of 400 mm and a position repeatability of ±0.02 mm — comparable to many larger industrial SCARA robots.

Yes. xBoom.in is an authorised Dobot reseller in India. You can enquire about pricing, availability, and deployment support via WhatsApp at wa.aisensy.com/xboom or through our contact page.
