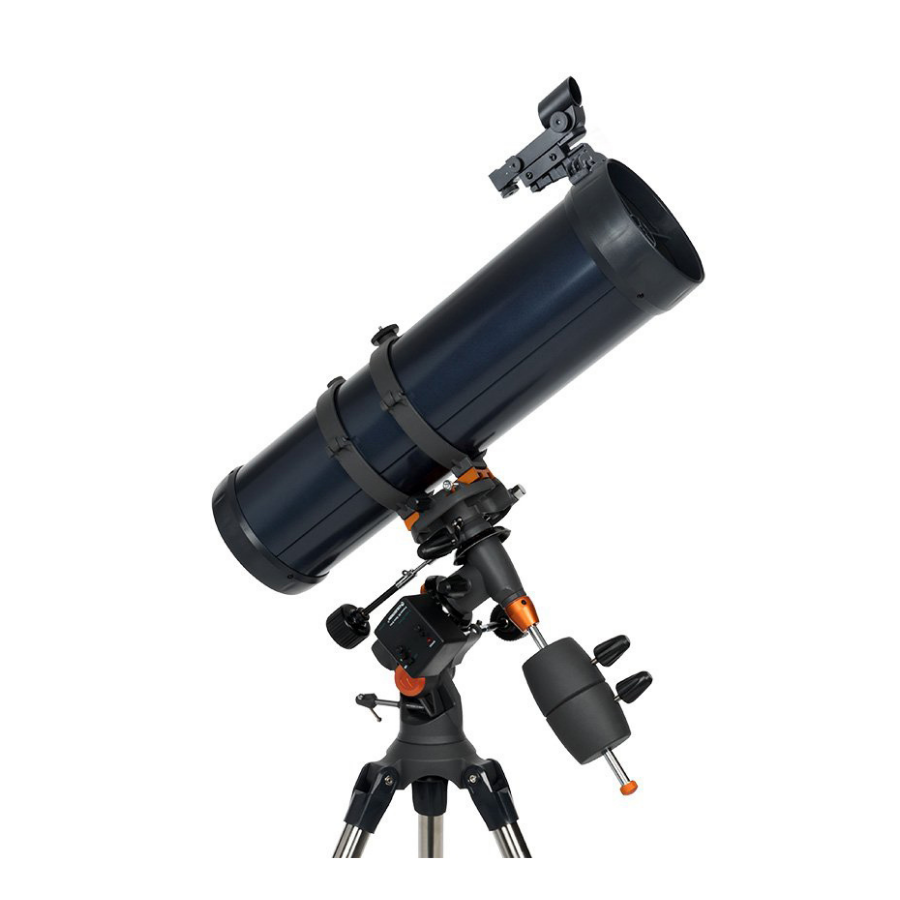

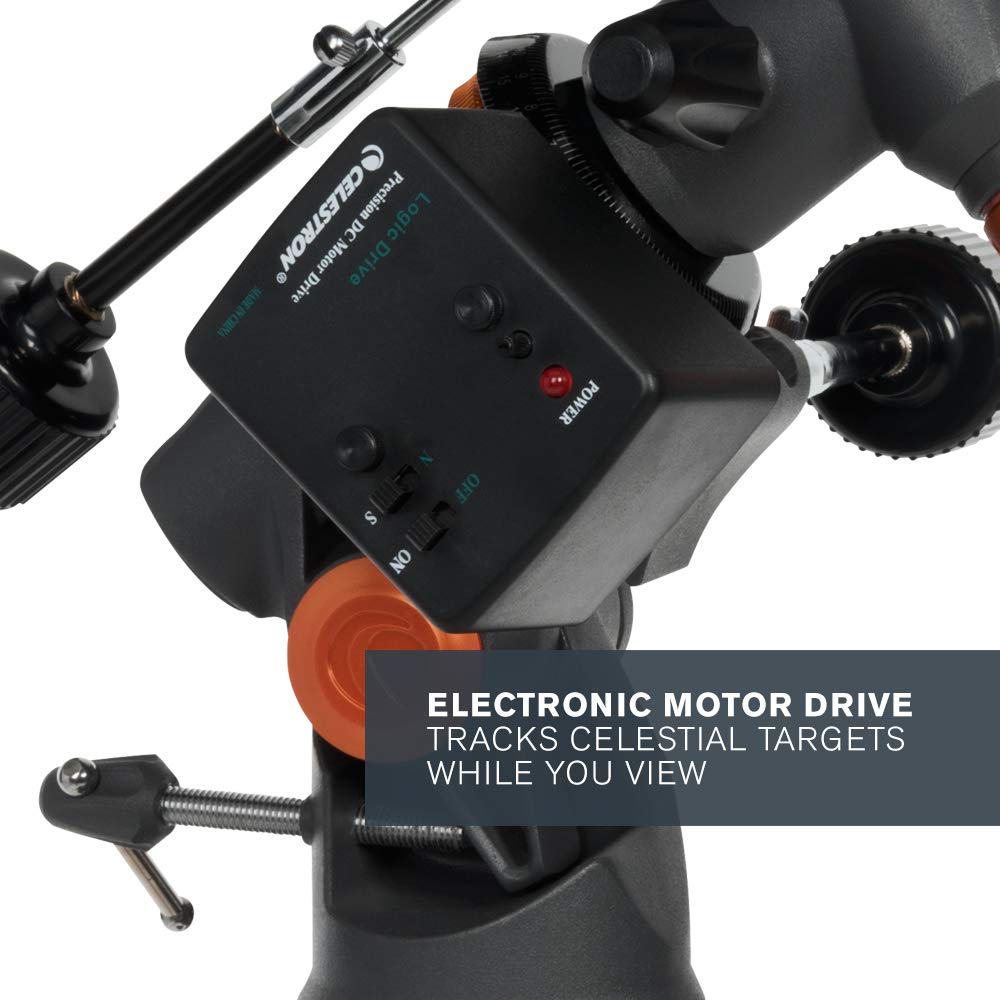

 CELESTRON AstroMaster 130 EQ Motor DriveTelescope
Discover our Solar System with the 130 EQ Motor Drive Telescope You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 130EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.
Specifications of 130 EQ Motor Drive Telescope
OPTICAL TUBE SPECIFICATIONS |
|
---|---|
Optical Design: | Newtonian Reflector |
Aperture: | 130mm (5.11″) |
Focal Length: | 650mm (25.6″) |
Focal Ratio: | f/5 |

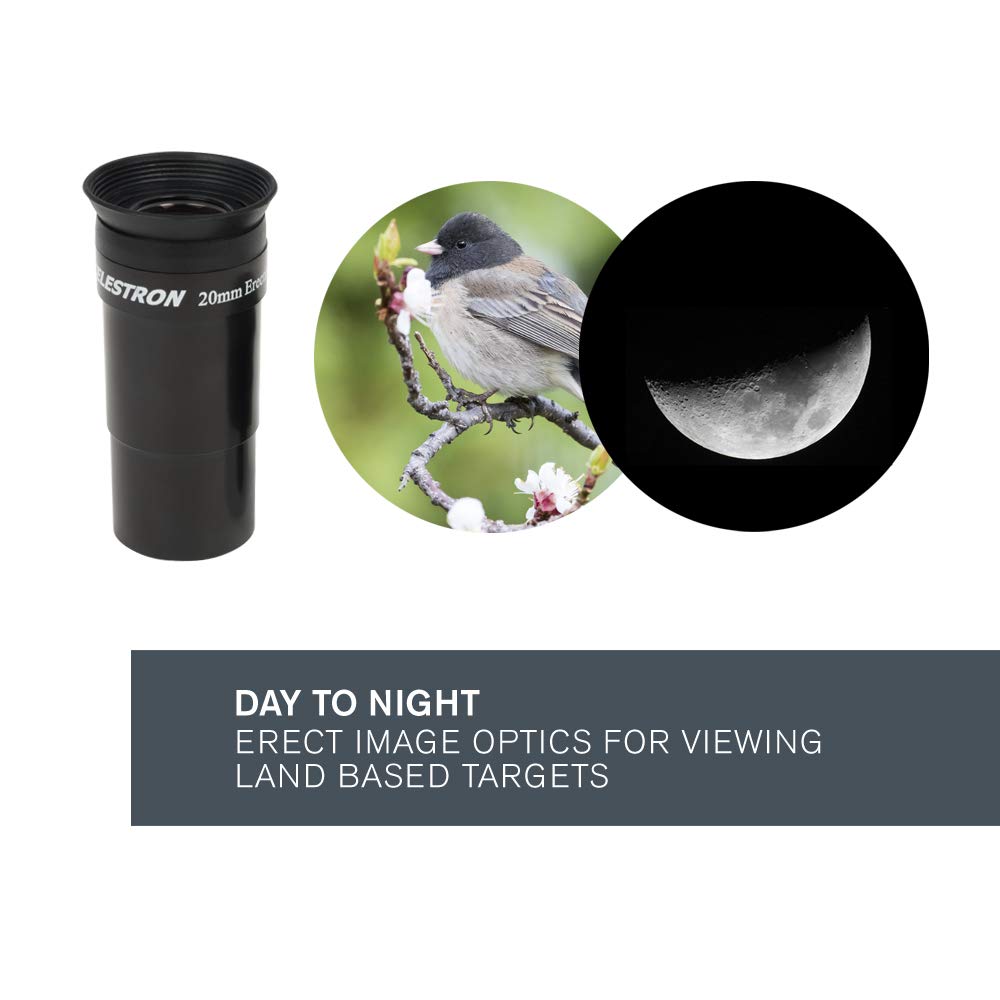

Focal Length of Eyepiece 1: | 20mm (.78″) with built-in erect image corrector |
Magnification of Eyepiece 1: | 33x |
Focal Length of Eyepiece 2: | 10mm (.4″) standard |
Magnification of Eyepiece 2: | 65x |
Barlow Lens: | Not Included |
Finderscope: | Built-on StarPointer™ red dot finderscope |
Star Diagonal: | None |
Optical Tube: | Aluminum |
Highest Useful Magnification: | 307x |
Lowest Useful Magnification: | 19x |
Limiting Stellar Magnitude: | 13.1 |
Resolution (Rayleigh): | 1.07 arc seconds |
Resolution (Dawes): | .89 arc seconds |
Light Gathering Power (Compared to human eye): | 345x |
Secondary Mirror Obstruction: | 44mm (1.73″) |
Secondary Mirror Obstruction by Diameter: | 34% |
Secondary Mirror Obstruction by Area: | 11% |
Optical Coatings: | TBD |
Optical Tube Length: | 610mm (24″) |
Optical Tube Diameter: | TBD |
Optical Tube Weight: | TBD |
Dovetail: | CG-3 Dovetail bar |
MOUNT SPECIFICATIONS | |

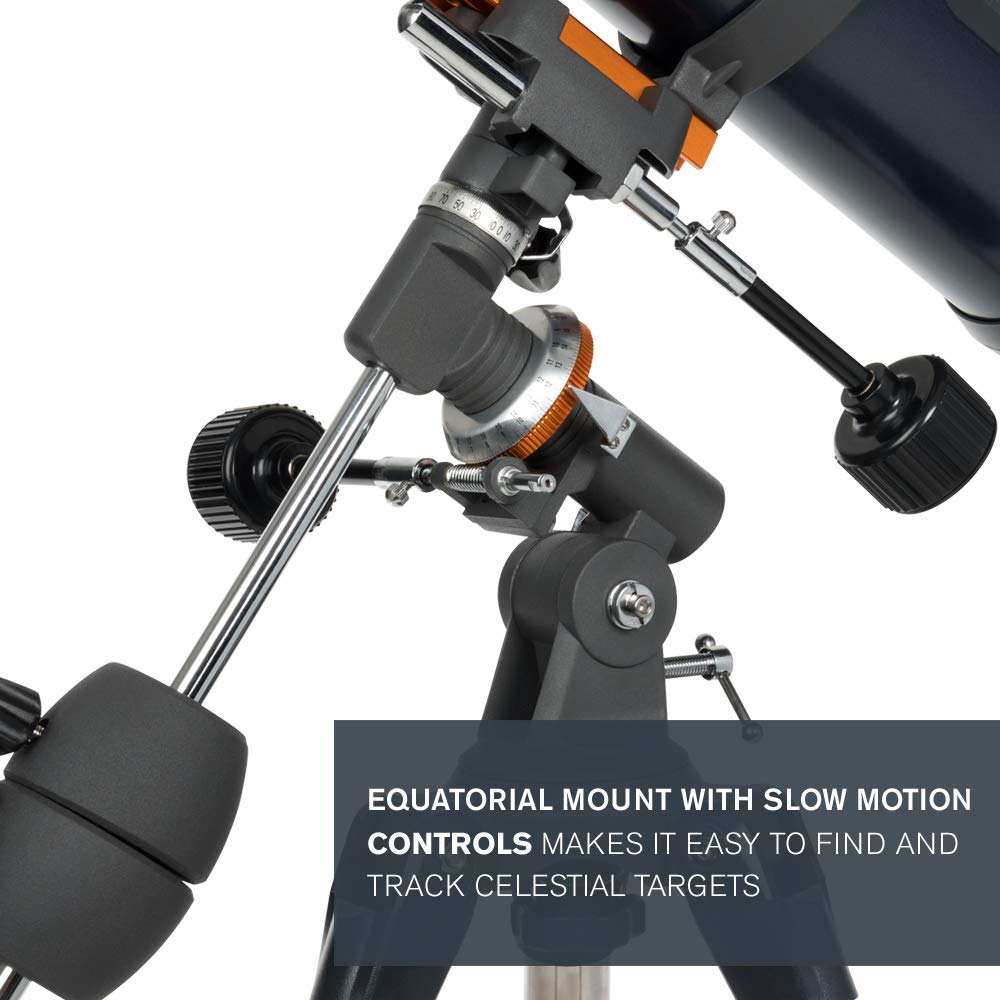

Mount Type: | CG-3 Equatorial |

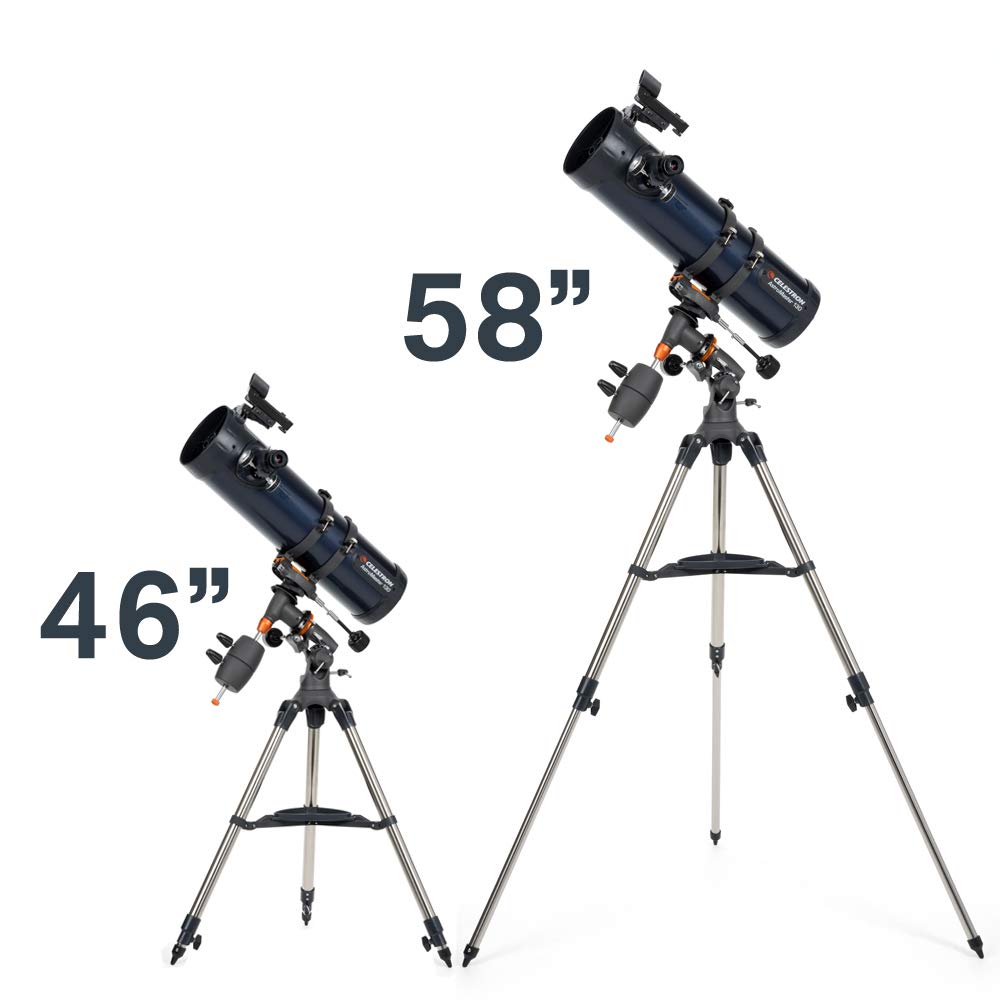

Height adjustment range (includes mount and tripod): | 812.8mm – 1295.4mm (32″ – 51″) |

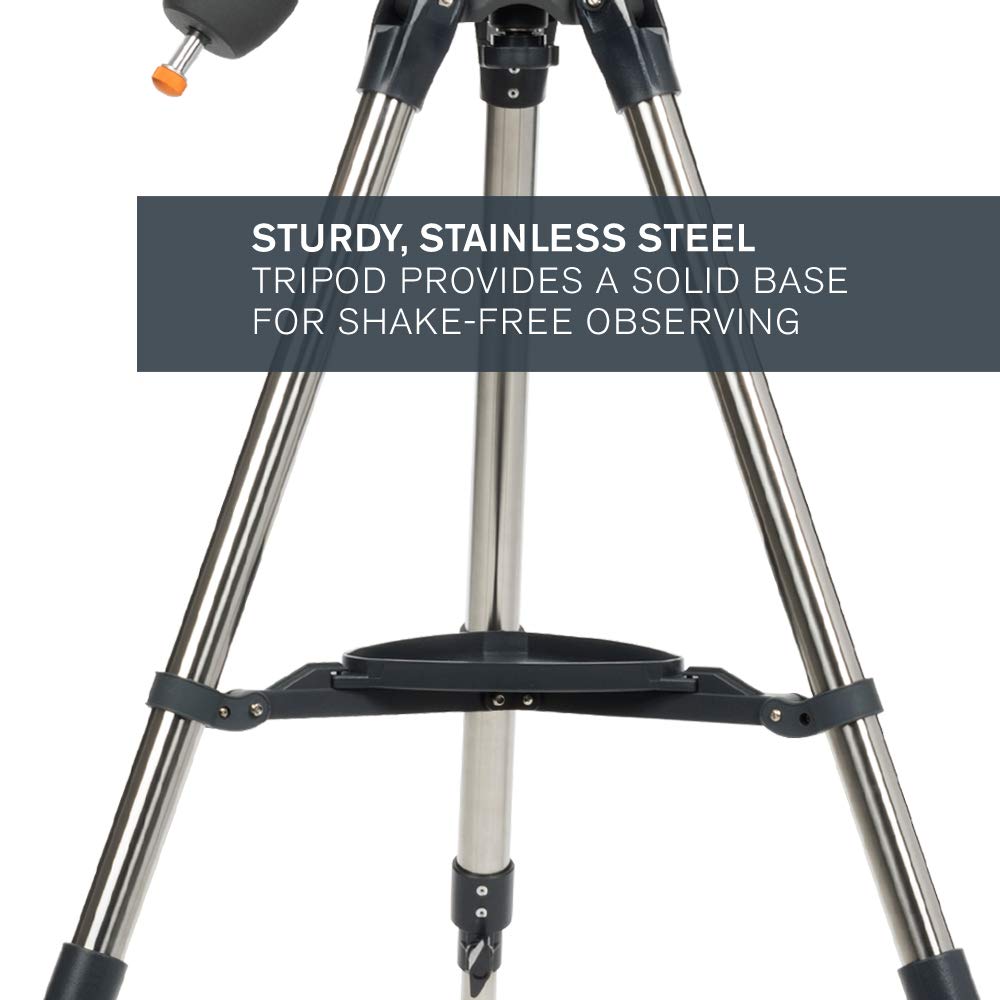

Tripod Leg Diameter: | 31.75mm (1.25″) steel |
Accessory Tray: | Yes |
Tripod Weight: | 7.6 lbs (3.44 kg) |
Slew Speeds: | Manual |
Dovetail Compatibility: | CG-3 saddle plate |
Software: | Celestron Starry Night Basic Edition Software | SkyPortal App |
Total Kit Weight: | TBD |

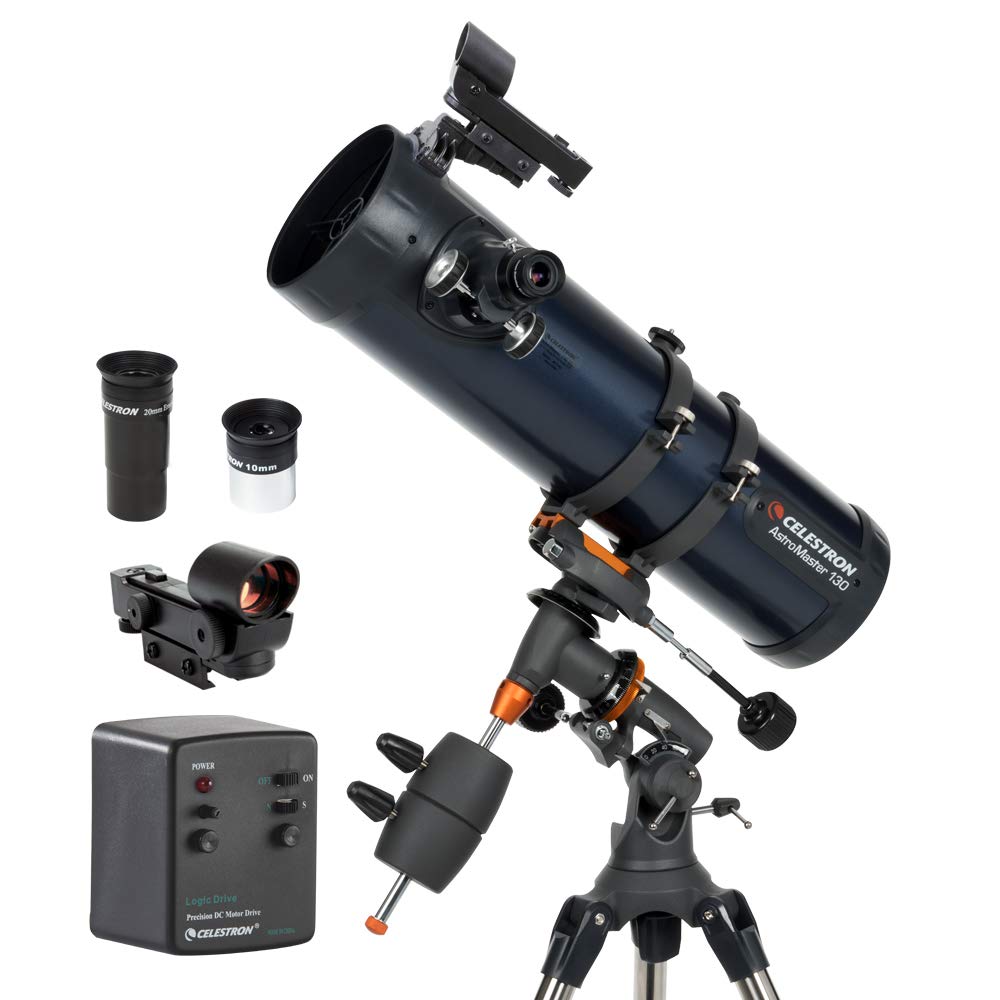

Included Items: | Optical tube | Tripod and mount (preassembled) | 20mm eyepiece with built-in erect image corrector | Standard 10mm eyepiece | Red-dot finderscope | Manual |
The following items are FREE with the telescope listed above. [ Subject To Availability ] | |
Magnitude 5 Star Atlas | |
110 Messier Object Locator    A4 size front back colour print | |
109 Deep Sky CALDWELL Catalogue A4Â size front back colour print | |
Star Dial – Identifying Stars & Constellations | |
Various Astronomical Post-Card (SET-3) | |
The Moon Map Poster B/W chart unfold to 22″x26″ | |
COLOUR POSTER 17.5″ X 22.5 ” One |
