VF12E Electric Compound Wing
- 2500mm wingspan, 900mm length, 555mm height
- Frame weight: 4.1kg | Max takeoff weight: 12kg
- Max payload capacity: 2kg
- Endurance: 150 minutes @ 1kg payload
- Cruise speed 70–100km/h, max speed 110km/h
- Rotor climb ≤3.5m/s, descent ≤1.5m/s
- Service ceiling: 5000m
- Operating range: -10°C to 45°C
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

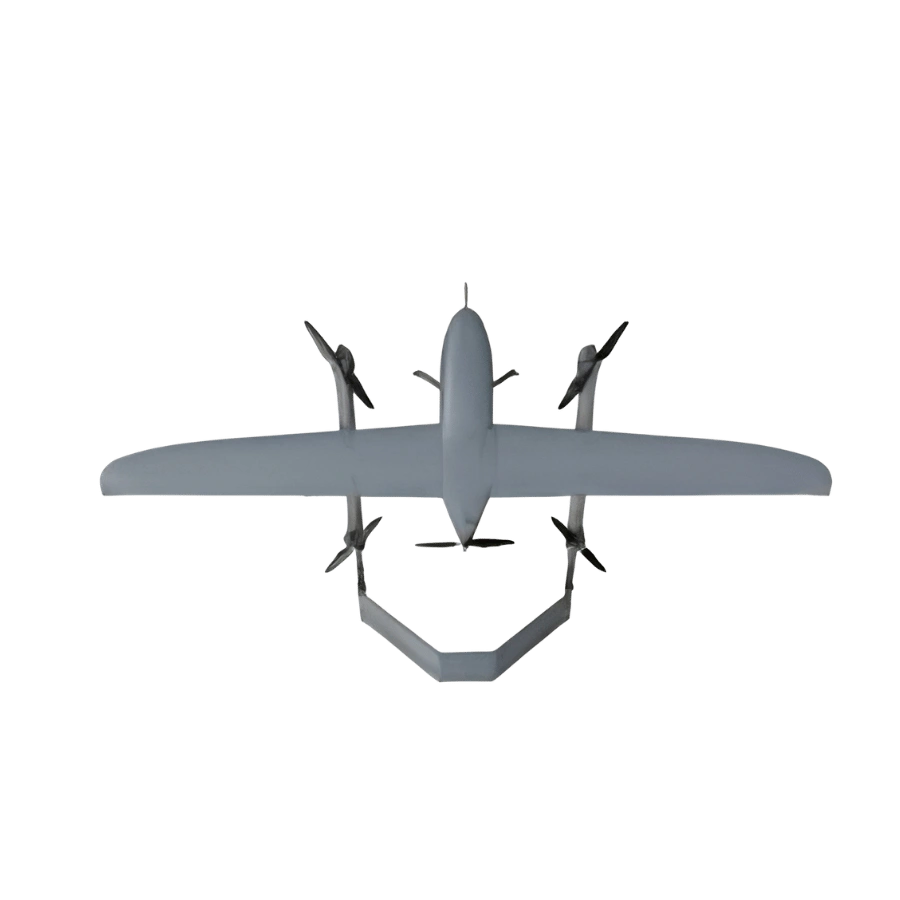

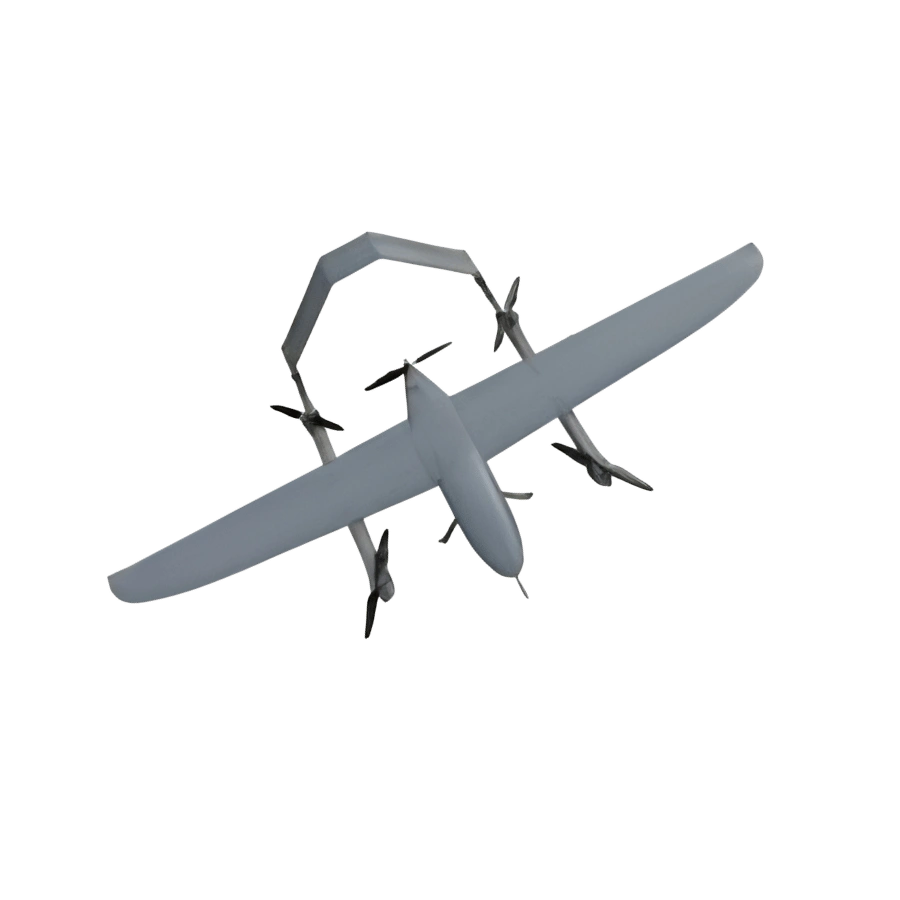

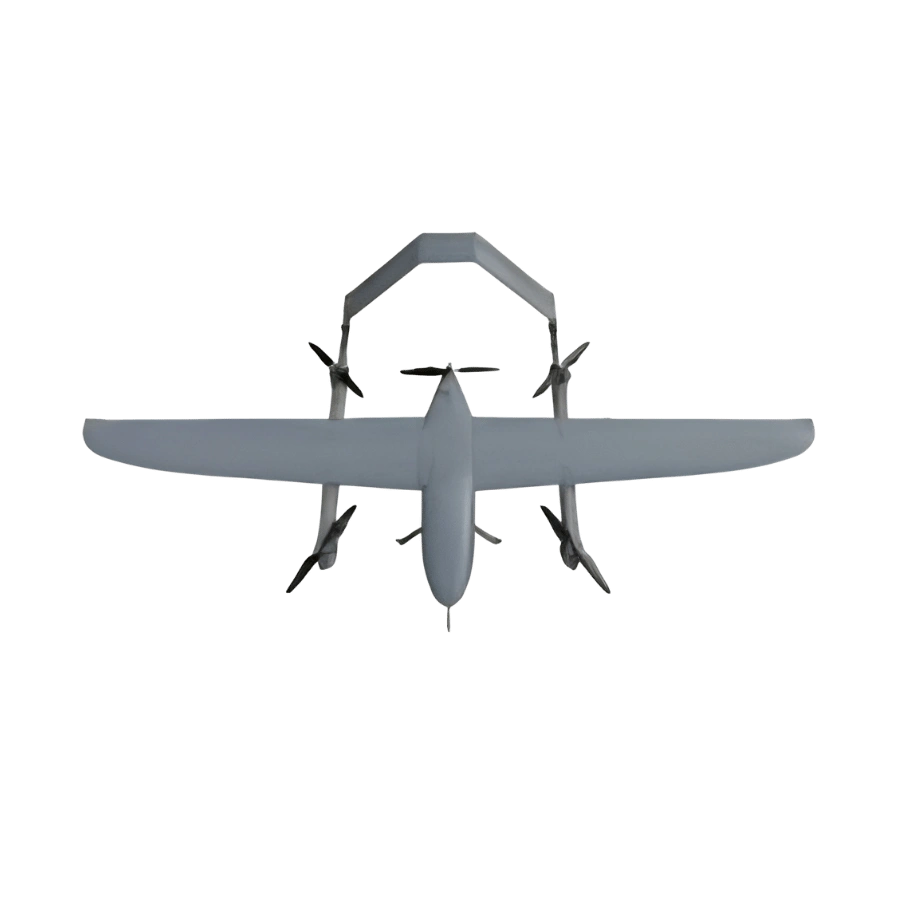

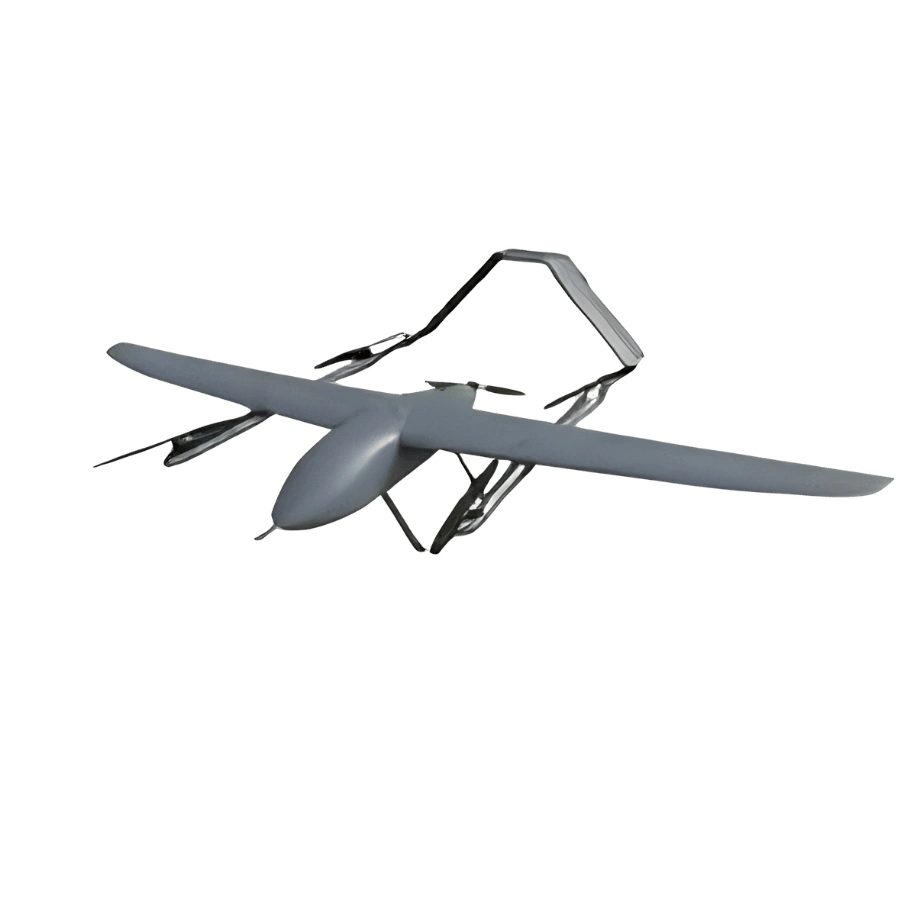

VF12E
Electric Compound Wing VTOL UAV
The VF12E is a electric compound wing vtol uav configured for fixed-wing efficiency with vertical takeoff and landing convenience, built for long-endurance mapping, surveillance and inspection missions.
Wingspan 2500mmMTOW 12kgMax Payload 2kgEndurance 150min @ 1kgWind Resistance Level 6IP54
12kg
Max Takeoff Weight2kg
Max Payload150min @ 1kg
Endurance110km/h
Max SpeedProduct Overview
Full Specifications
| Wingspan | 2500mm |
| Length | 900mm |
| Height | 555mm |
| Frame Weight | 4.1kg |
| Max Takeoff Weight | 12kg |
| Max Payload | 2kg |
| Endurance | 150min @ 1kg |
| Cruise Speed | 70–100km/h |
| Max Speed | 110km/h |
| Rotor Climb Rate | ≤3.5m/s |
| Rotor Descent Rate | ≤1.5m/s |
| Service Ceiling | 5000m |
| Operating Temperature | -10°C ~ 45°C |
| Wind Resistance | Level 6 |
| Protection Rating | IP54 |
| Packing Dimensions | 1420×455×400mm |
Good to Know
Frequently Asked Questions
What is the VF12E's maximum takeoff weight and payload?
The VF12E has a maximum takeoff weight of 12kg and a maximum payload capacity of 2kg.
How long can the VF12E stay airborne?
Endurance is rated at 150min @ 1kg, with a cruise speed of 70–100km/h and a maximum speed of 110km/h.
What is the operating envelope for the VF12E?
Service ceiling is 5000m, with an operating temperature range of -10°C ~ 45°C and wind resistance up to Level 6.
Is the VF12E rated for outdoor / field use?
Yes. The airframe carries an IP54 ingress protection rating, suited to routine outdoor field operations.
What are the packed shipping dimensions?
Packing dimensions: 1420×455×400mm.
