VF13E Electric Compound Wing
- 2500mm wingspan, 1560mm length, 345mm height
- Frame weight: 3.9kg | Max takeoff weight: 13.5kg
- Max payload capacity: 2kg
- Endurance: 210 minutes @ 1kg payload
- Cruise speed 75–90km/h, max speed 100km/h
- Rotor climb ≤3.5m/s, descent ≤1.5m/s
- Service ceiling: 5000m
- Operating range: -10°C to 45°C
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work

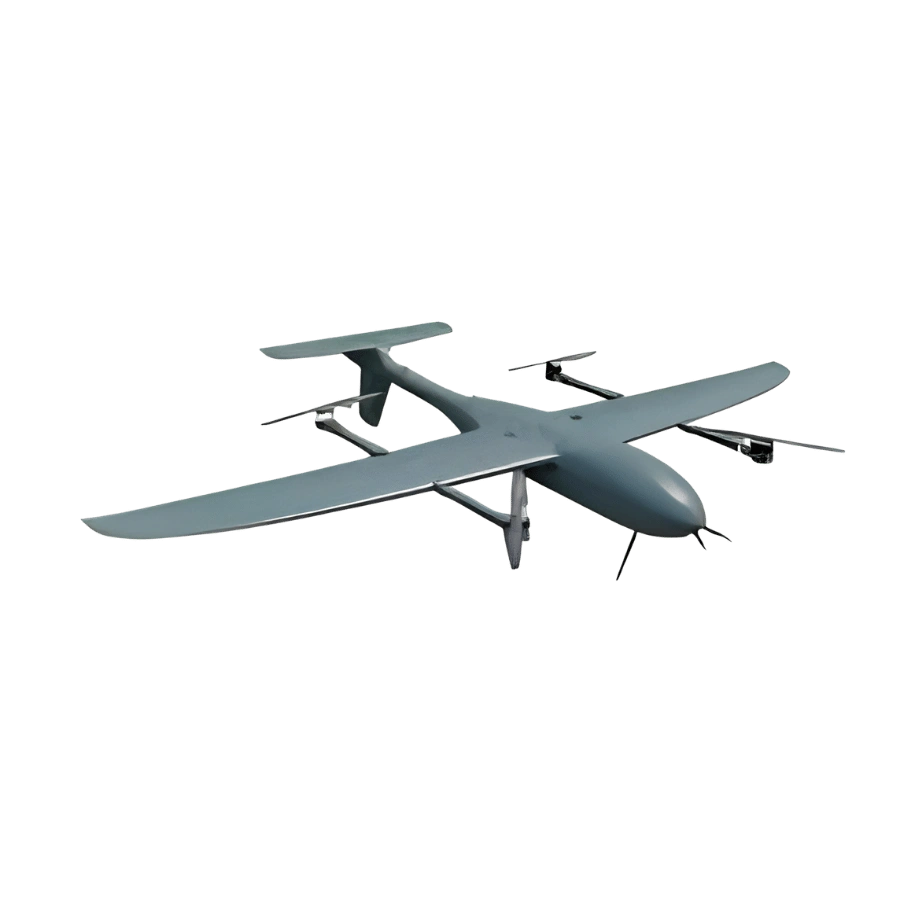

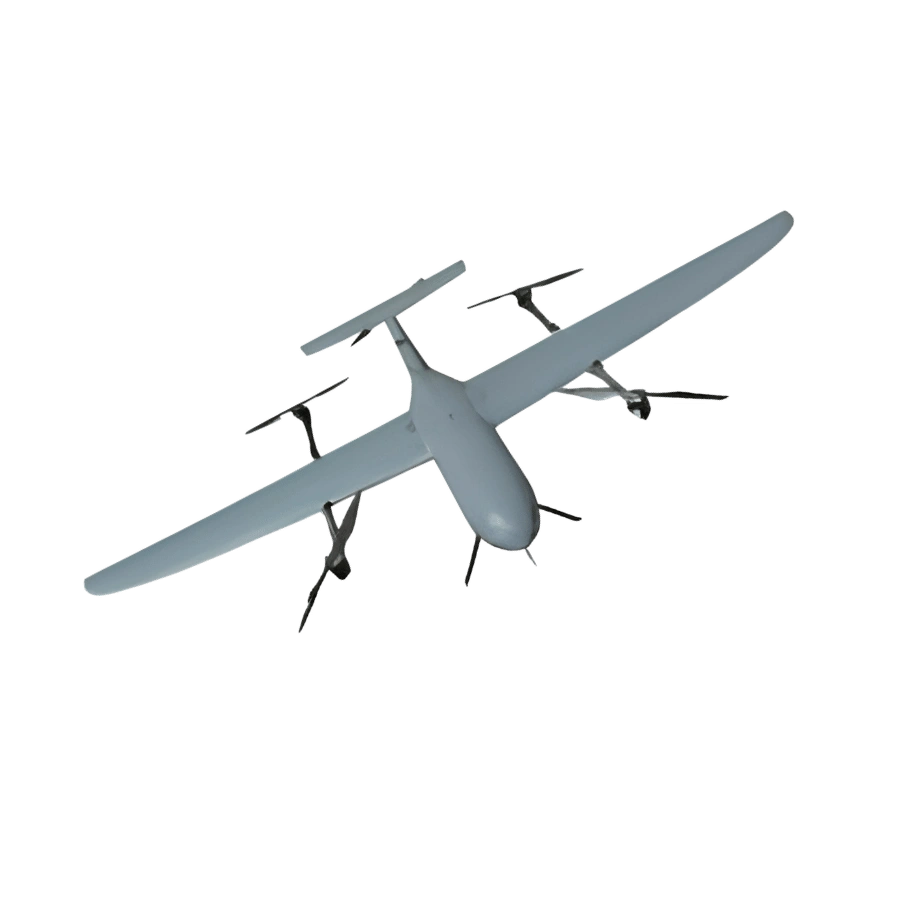

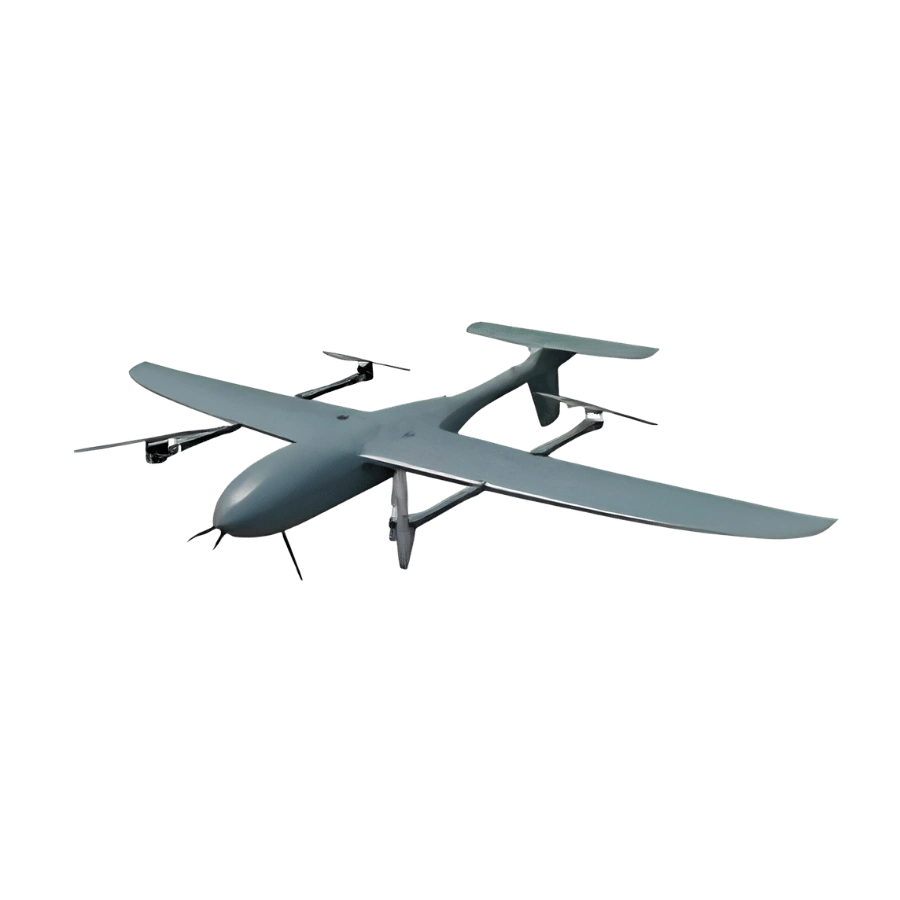

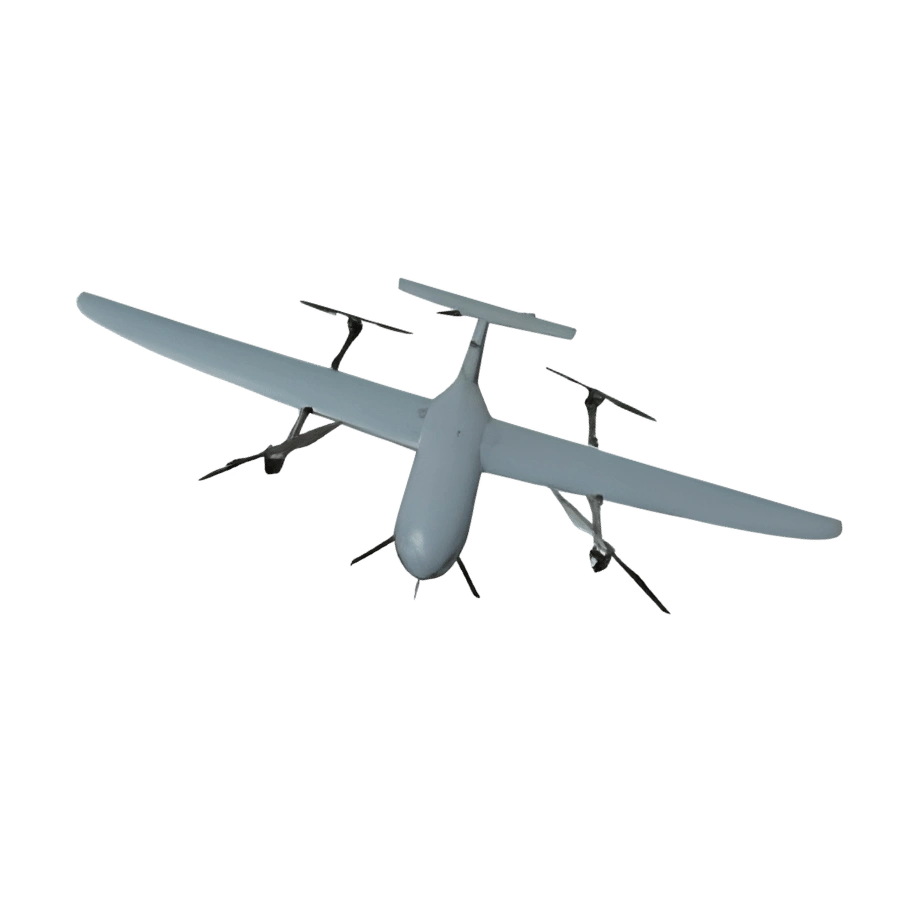

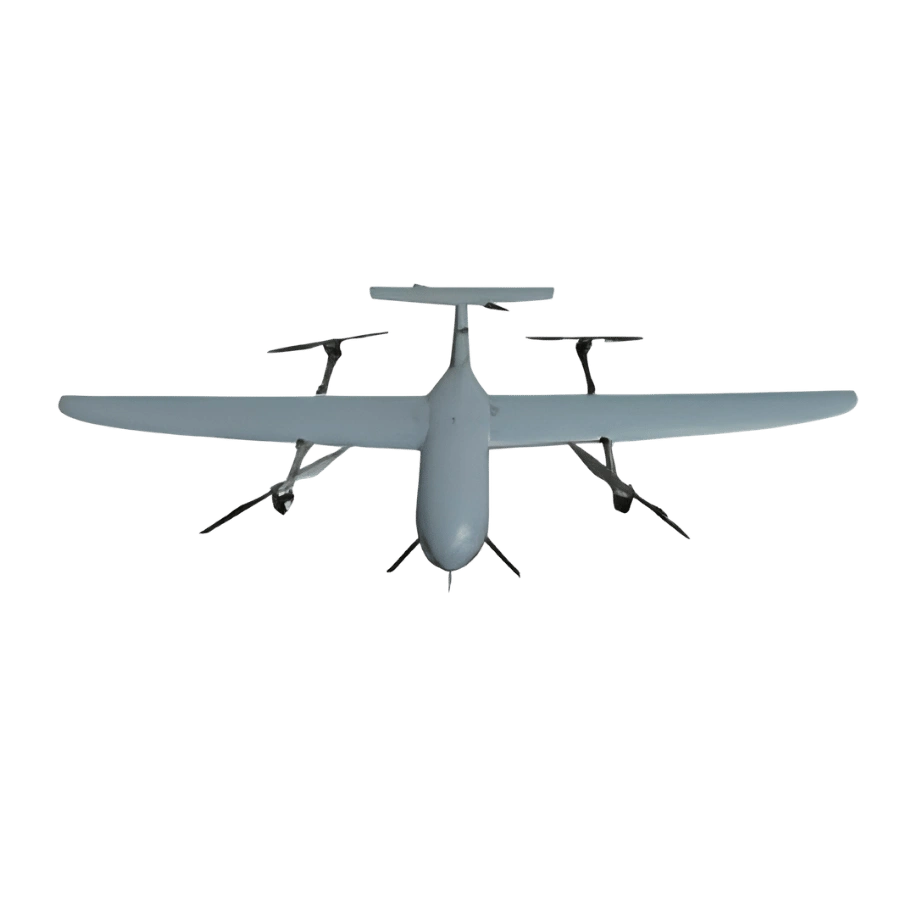

VF13E
Electric Compound Wing VTOL UAV
The VF13E is a electric compound wing vtol uav configured for fixed-wing efficiency with vertical takeoff and landing convenience, built for long-endurance mapping, surveillance and inspection missions.
Wingspan 2500mmMTOW 13.5kgMax Payload 2kgEndurance 210min @ 1kgWind Resistance Level 6IP54
13.5kg
Max Takeoff Weight2kg
Max Payload210min @ 1kg
Endurance100km/h
Max SpeedProduct Overview
Full Specifications
| Wingspan | 2500mm |
| Length | 1560mm |
| Height | 345mm |
| Frame Weight | 3.9kg |
| Max Takeoff Weight | 13.5kg |
| Max Payload | 2kg |
| Endurance | 210min @ 1kg |
| Cruise Speed | 75–90km/h |
| Max Speed | 100km/h |
| Rotor Climb Rate | ≤3.5m/s |
| Rotor Descent Rate | ≤1.5m/s |
| Service Ceiling | 5000m |
| Operating Temperature | -10°C ~ 45°C |
| Wind Resistance | Level 6 |
| Protection Rating | IP54 |
| Packing Dimensions | 1260×486×405mm |
Good to Know
Frequently Asked Questions
What is the VF13E's maximum takeoff weight and payload?
The VF13E has a maximum takeoff weight of 13.5kg and a maximum payload capacity of 2kg.
How long can the VF13E stay airborne?
Endurance is rated at 210min @ 1kg, with a cruise speed of 75–90km/h and a maximum speed of 100km/h.
What is the operating envelope for the VF13E?
Service ceiling is 5000m, with an operating temperature range of -10°C ~ 45°C and wind resistance up to Level 6.
Is the VF13E rated for outdoor / field use?
Yes. The airframe carries an IP54 ingress protection rating, suited to routine outdoor field operations.
What are the packed shipping dimensions?
Packing dimensions: 1260×486×405mm.
